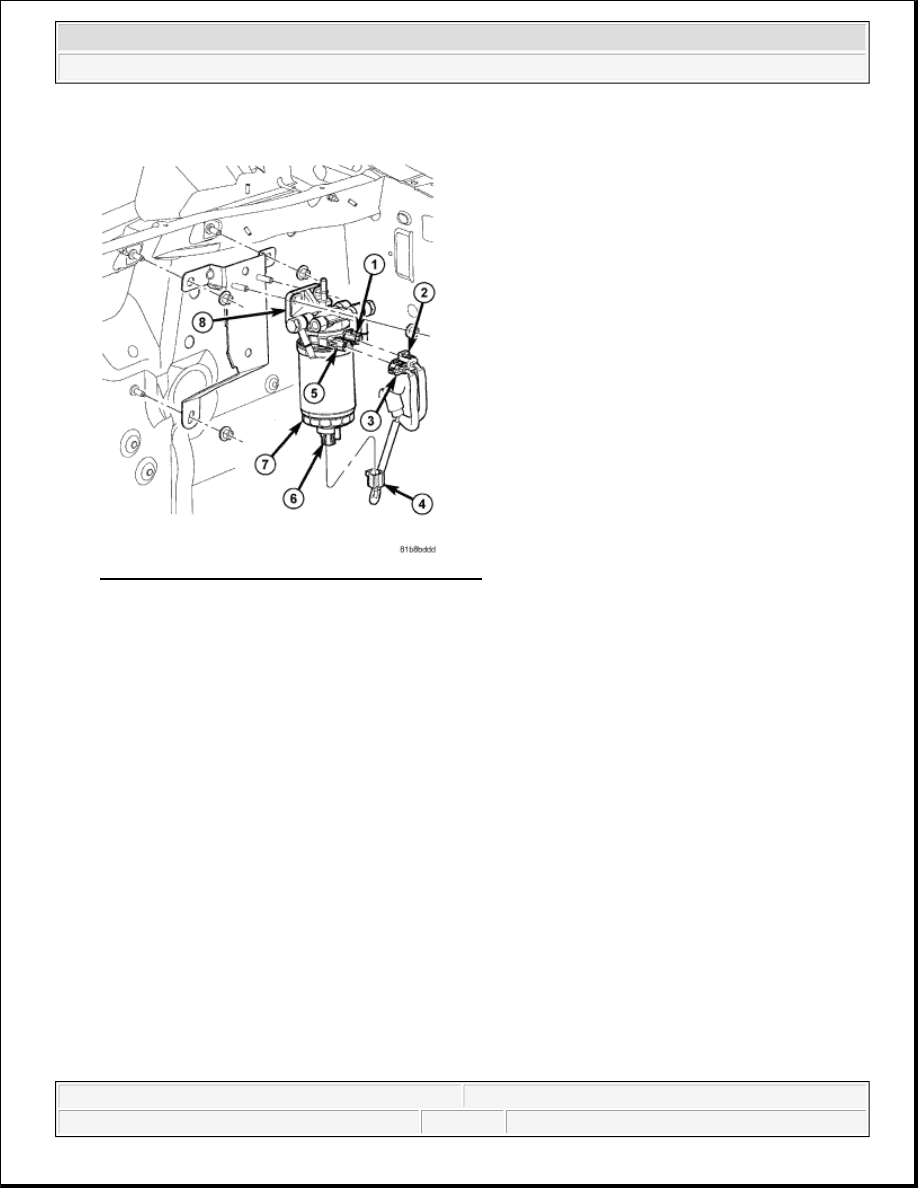

Fig. 53: Fuel Filter/Water Separator Components
Courtesy of CHRYSLER LLC

12. Connect electrical connectors (2), (3) and (4).

13. WATER-IN-FUEL (WIF) SENSOR REPLACEMENT: The combination fuel drain valve/WIF sensor

is located on the bottom of the fuel filter housing.

The WIF sensor is not a separately serviceable item. If diagnostics have led you to replace this sensor,
then the whole fuel filter assembly needs to be changed.

SENSOR-WATER IN FUEL

DESCRIPTION

WATER-IN-FUEL (WIF) SENSOR - ECM INPUT



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



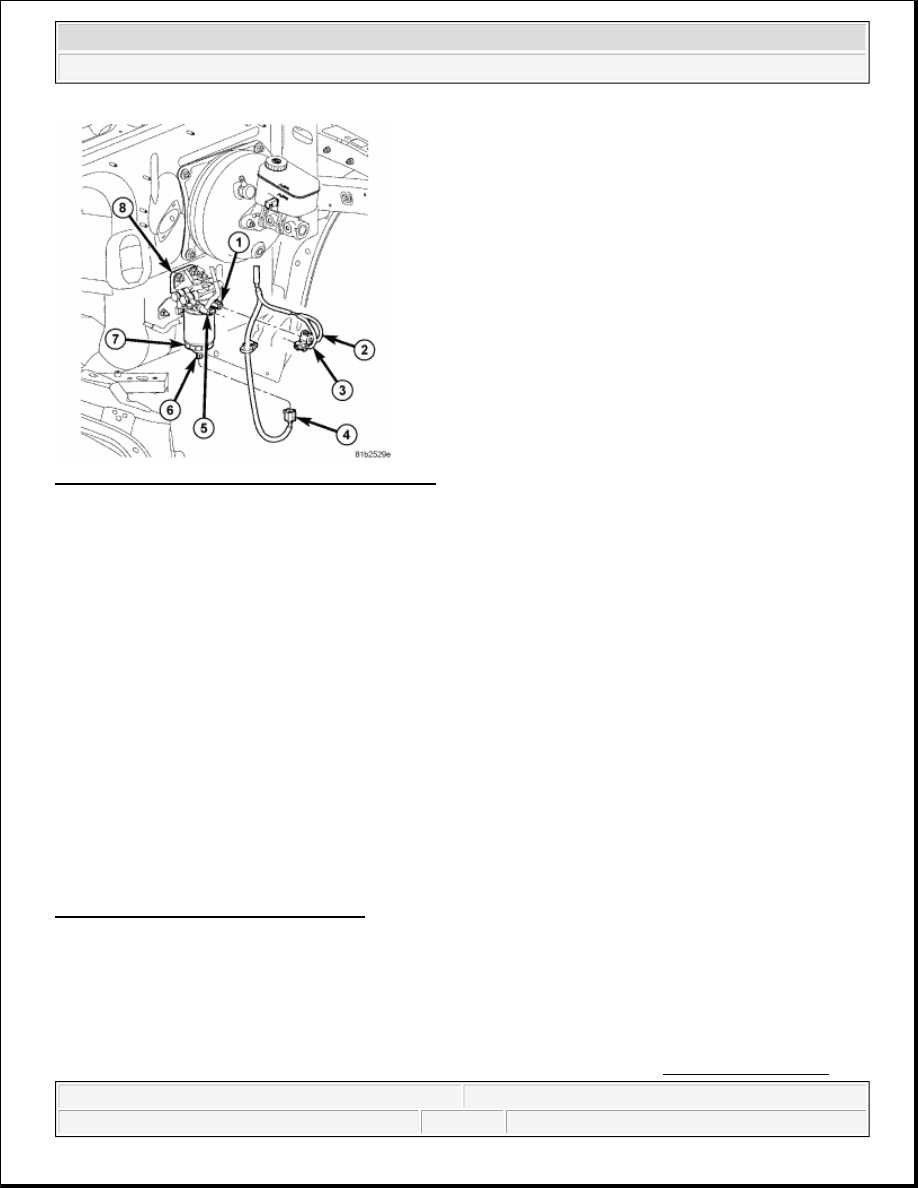

Fig. 54: Water-In-Fuel (WIF) Sensor components
Courtesy of CHRYSLER LLC

The combination drain valve/Water-In-Fuel (WIF) sensor (6) is located on the bottom of the fuel filter/water
separator filter canister.

OPERATION

WATER-IN-FUEL (WIF) SENSOR - ECM INPUT

The sensor sends an input to the Engine Control Module (ECM) when it senses water in the fuel filter/water
separator. As the water level in the filter/separator increases, the resistance across the WIF sensor decreases.
This decrease in resistance is sent as a signal to the ECM and compared to a high water standard value. Once
the value reaches 30 to 40 kilohms, the ECM will activate the water-in-fuel warning lamp through CAN bus
circuits. This all takes place when the ignition key is initially put in the ON position. The ECM continues to
monitor the input while the engine is running.

REMOVAL

WATER-IN-FUEL (WIF) SENSOR

The Water-In-Fuel (WIF) sensor is located at the bottom of fuel filter/water separator canister. Refer to
SEPARATOR-FUEL FILTER/WATER for removal and installation procedures.

HEATER - FUEL

REMOVAL

WATER-IN-FUEL (WIF) SENSOR

The fuel heater is located in the fuel filter/water separator canister housing. Refer to SEPARATOR-FUEL



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



FILTER/WATER for removal and installation procedures.

RELAY - FUEL HEATER

REMOVAL

REMOVAL

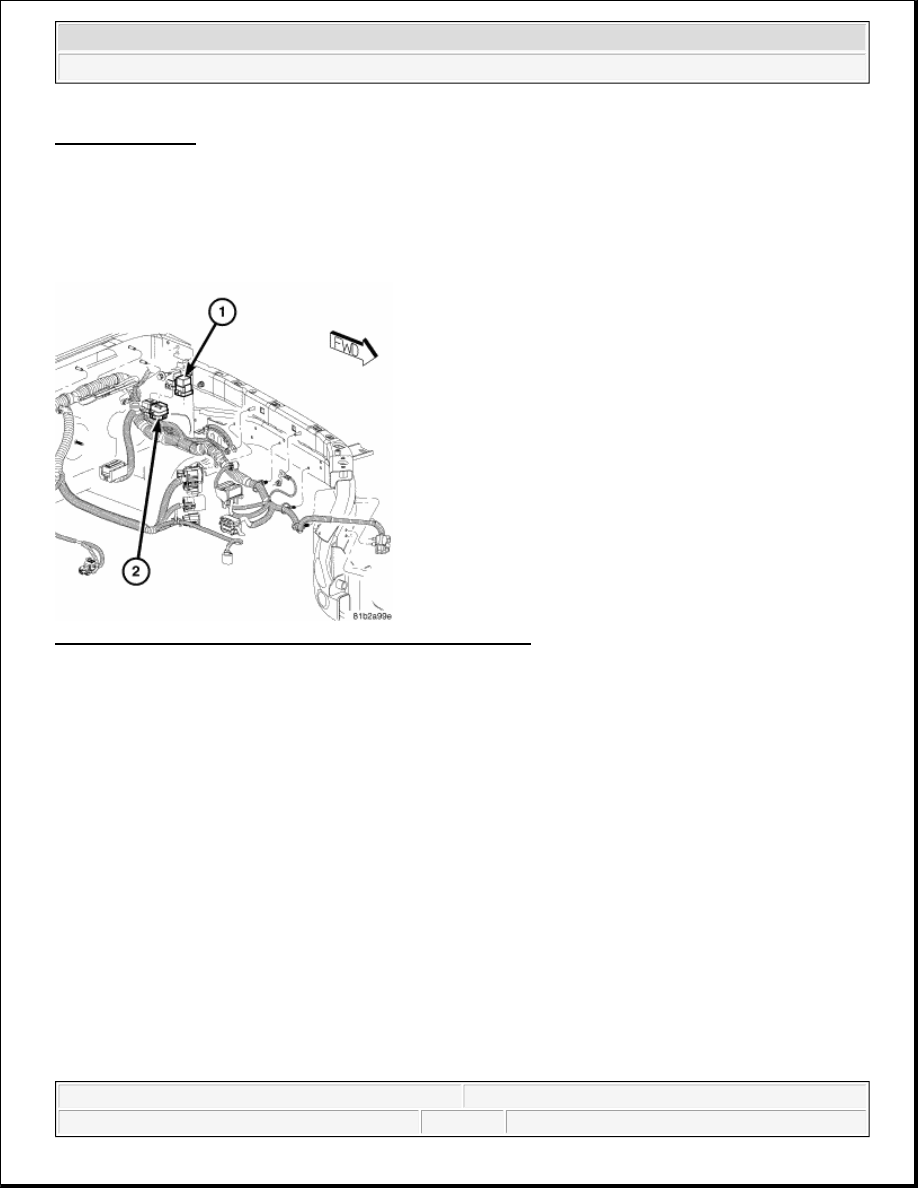

Fig. 55: Identifying Fuel Heater Relay & Electrical Connector
Courtesy of CHRYSLER LLC

The fuel heater relay (1) is located in the left/rear of the engine compartment.

1. Disconnect negative battery cable.

2. Disconnect electrical connector (2) from relay.

3. Remove relay mounting bolt and remove relay.

4. Check condition of relay connector pins for corrosion, etc.

INSTALLATION

INSTALLATION



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



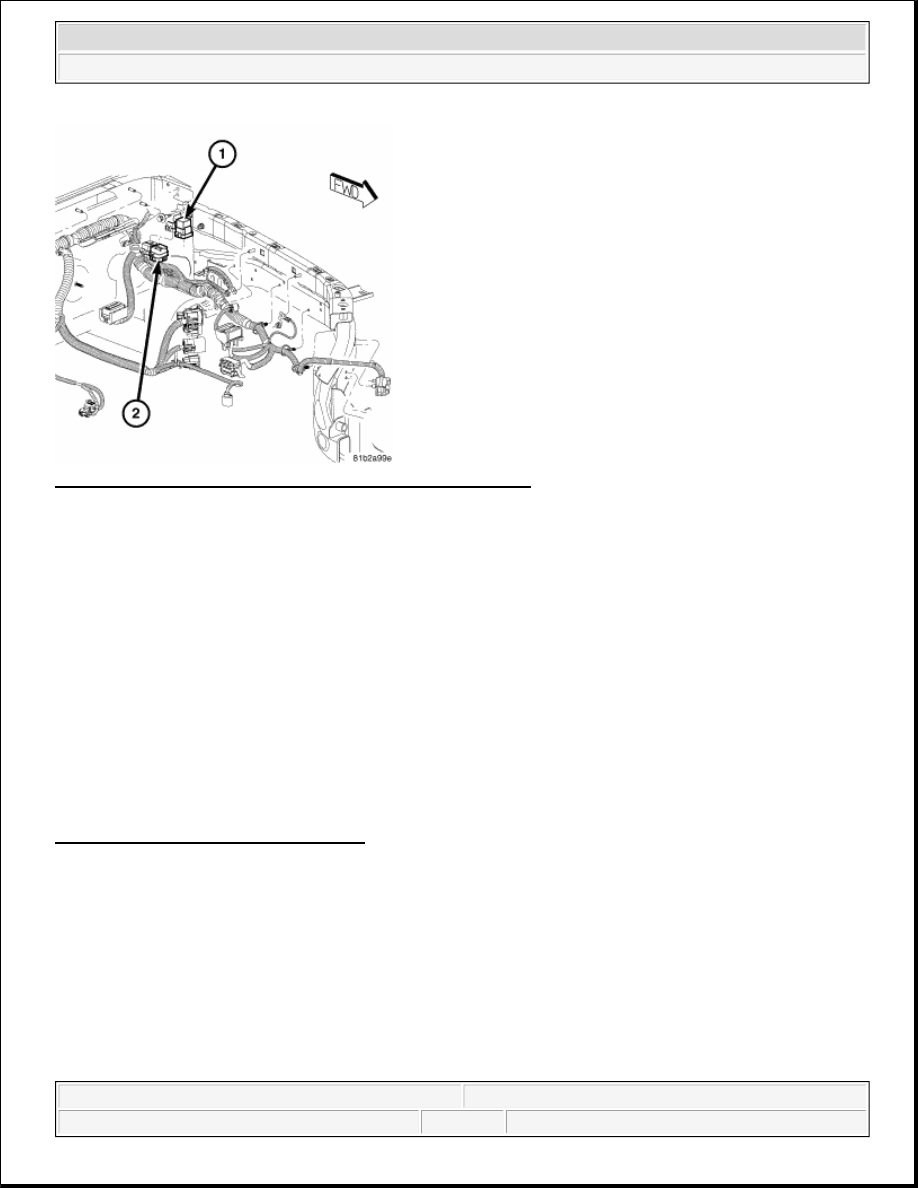

Fig. 56: Identifying Fuel Heater Relay & Electrical Connector
Courtesy of CHRYSLER LLC

The fuel heater relay (1) is located in the left/rear of the engine compartment.

1. Check condition of relay connector pins for corrosion, etc.

2. Position relay and install mounting bolt.

3. Connect electrical connector (2) to relay.

4. Connect negative battery cable to battery.

SENSOR - FUEL TEMPERATURE

REMOVAL

WATER-IN-FUEL (WIF) SENSOR

The fuel temperature sensor is located in the fuel filter/water separator canister housing. Refer to
SEPARATOR-FUEL FILTER/WATER for removal and installation procedures.

RAIL - FUEL

REMOVAL

REMOVAL

CAUTION: Cleanliness cannot be overemphasized when handling or replacing diesel

fuel system components. This especially includes the fuel injectors, high-
pressure fuel lines and fuel injection pump. Very tight tolerances are used
with these parts. Dirt contamination could cause rapid part wear and
