Fig. 10: 2-Button Type Fitting
Courtesy of CHRYSLER LLC

6. Perform fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE Procedure.

7. Disconnect negative battery cable from battery.

8. Clean fitting of any foreign material before disassembly.

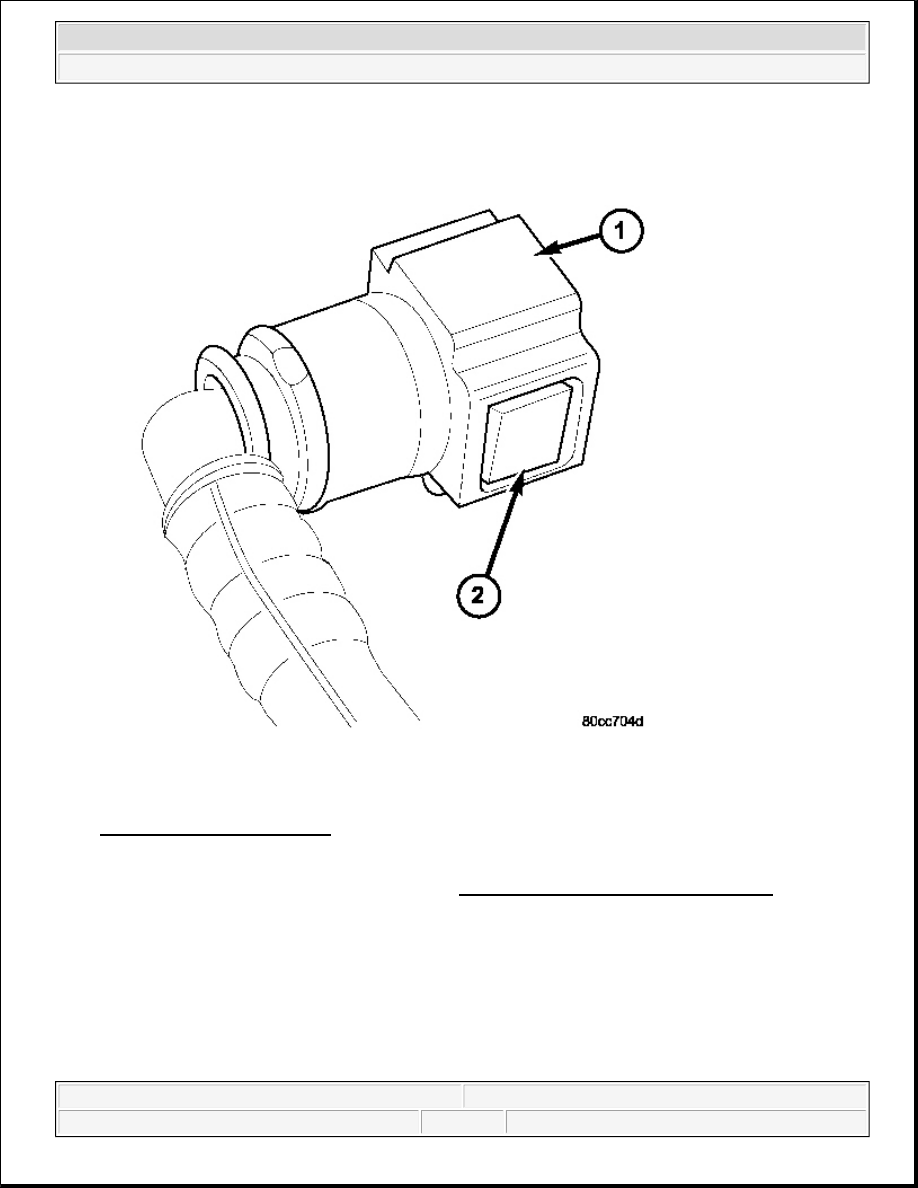

9. 2-Button Type Fitting: This type of fitting (1) is equipped with a push-button located on each side of

quick-connect fitting (2). Press on both buttons simultaneously for removal. Special tools are not required
for disconnection.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



Fig. 11: Pinch Type Quick-Connect Fitting
Courtesy of CHRYSLER LLC

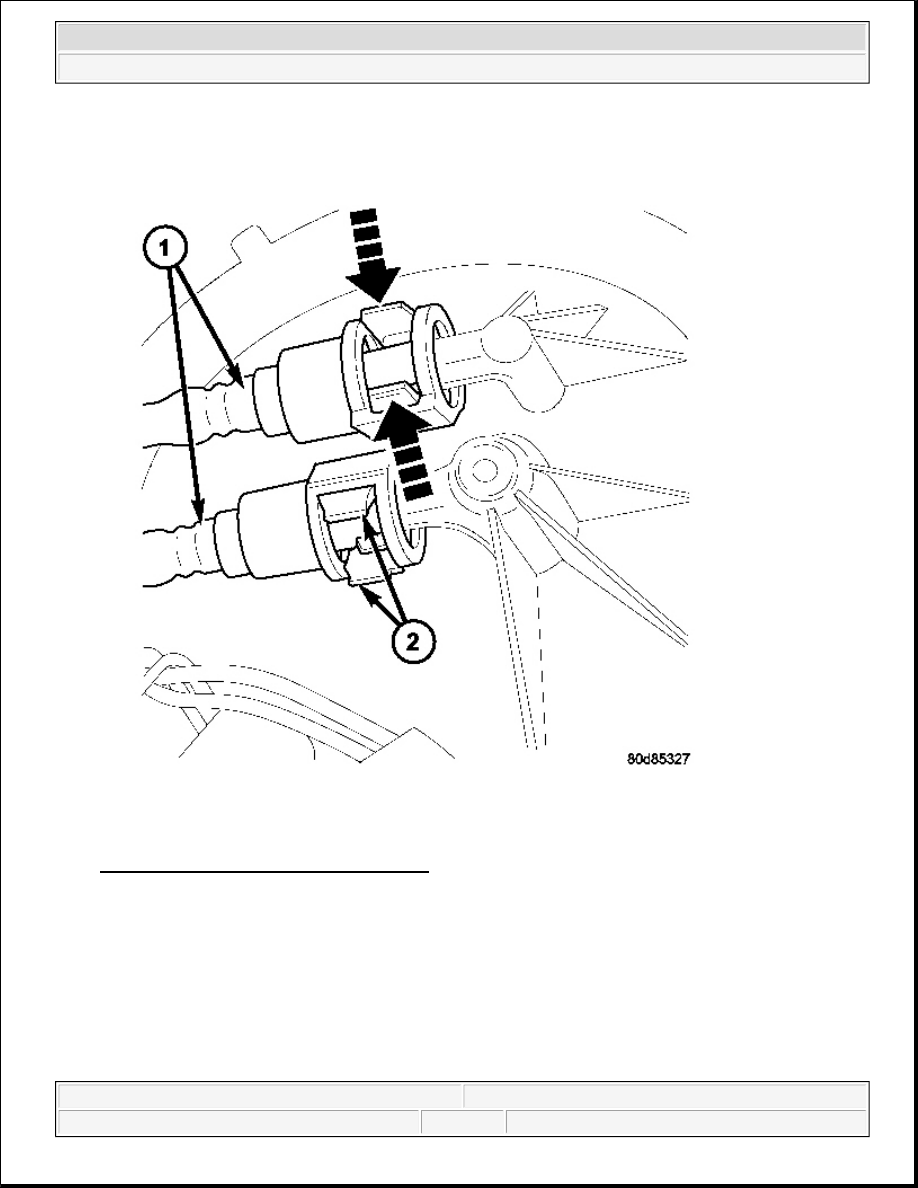

10. Pinch-Type Fitting: This fitting (1) is equipped with two finger tabs (2). Pinch both tabs together while

removing fitting. Special tools are not required for disconnection.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



Fig. 12: Single-Tab Type Fitting
Courtesy of CHRYSLER LLC

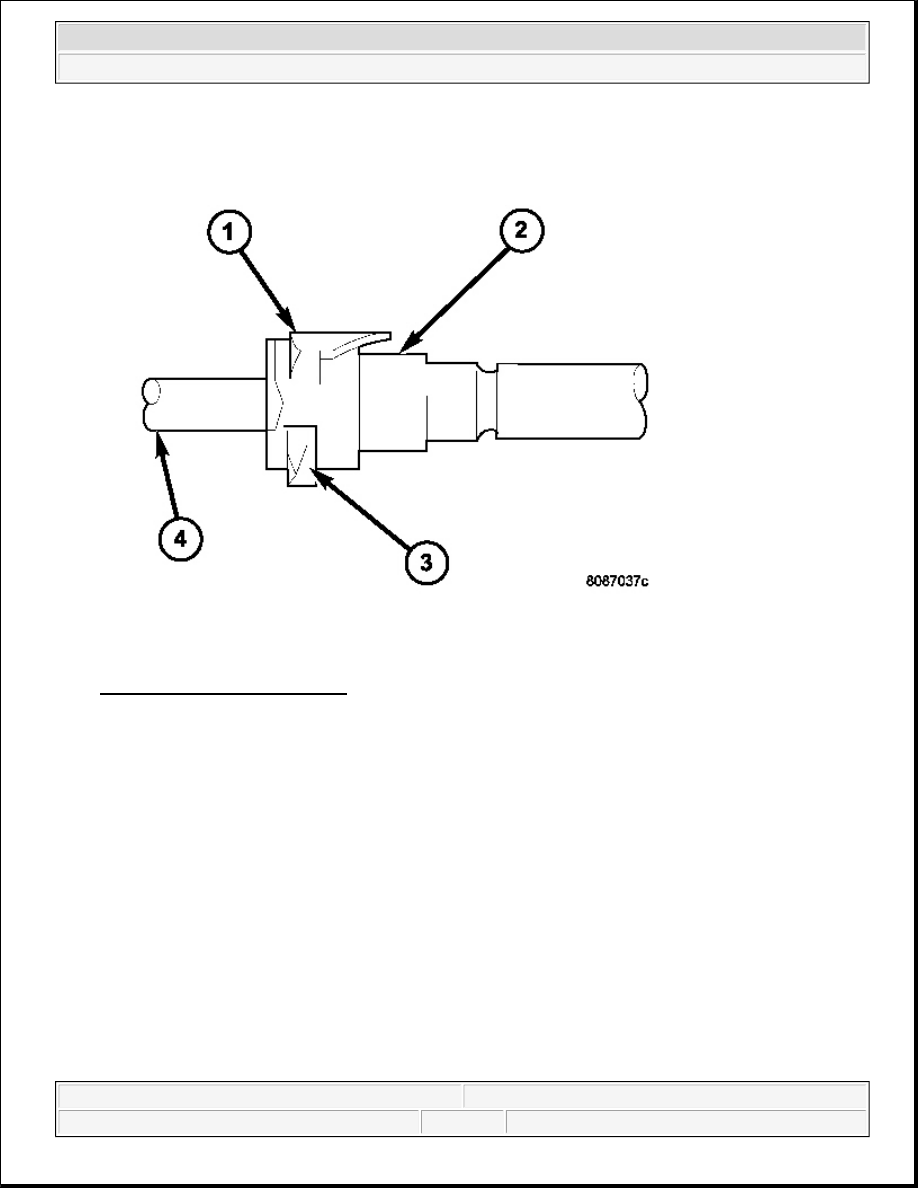

11. Single-Tab Type Fitting: This type of fitting (3) is equipped with a single pull tab (1). The tab is

removable. After tab is removed, quick-connect fitting can be separated from fuel system component.
Special tools are not required for disconnection.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



Fig. 13: Disconnecting Single-Tab Type Fitting
Courtesy of CHRYSLER LLC

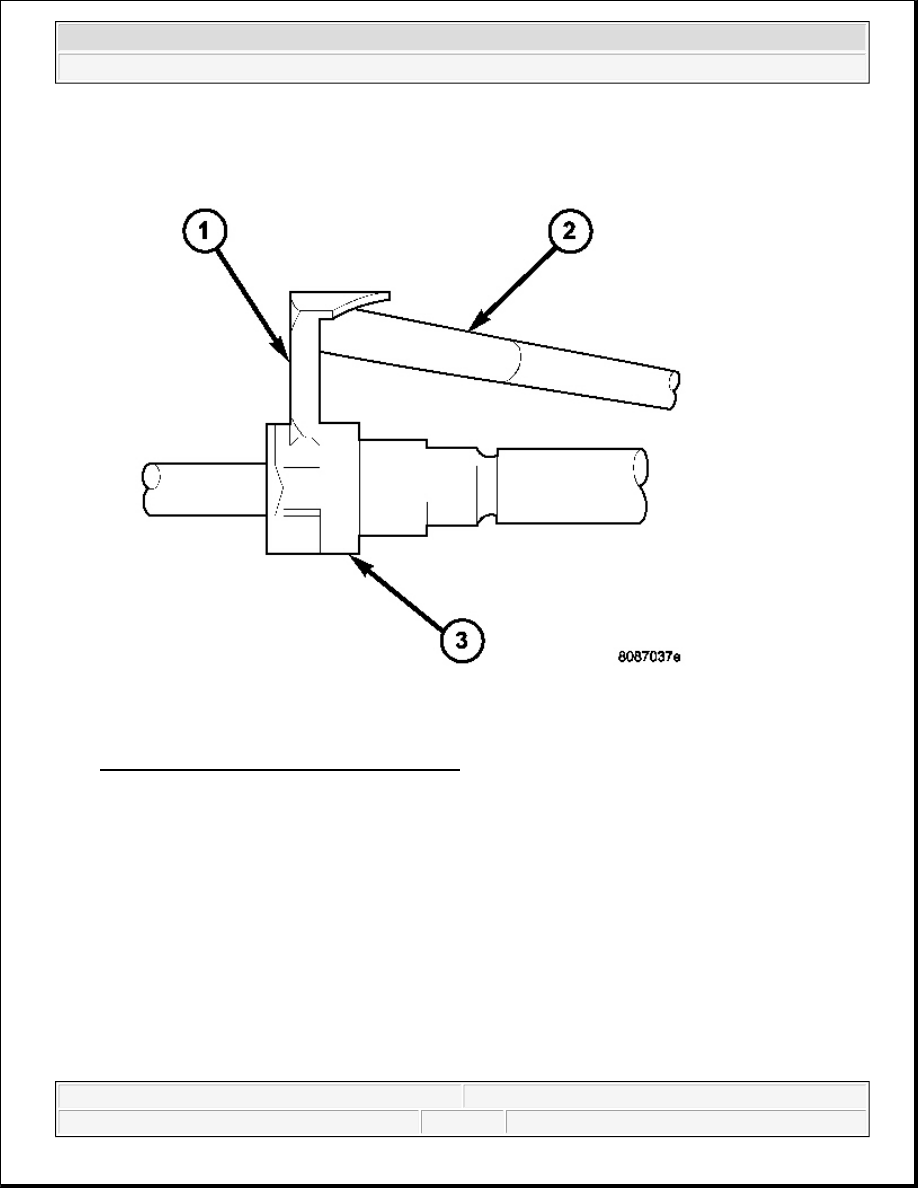

12. Press release tab on side of fitting to release pull tab (1). If release tab is not pressed prior to releasing

pull tab, pull tab will be damaged.

13. While pressing release tab on side of fitting, use screwdriver (2) to pry up pull tab.

14. Raise pull tab until it separates from quick-connect fitting.
