Dodge Nitro. Manual - part 656

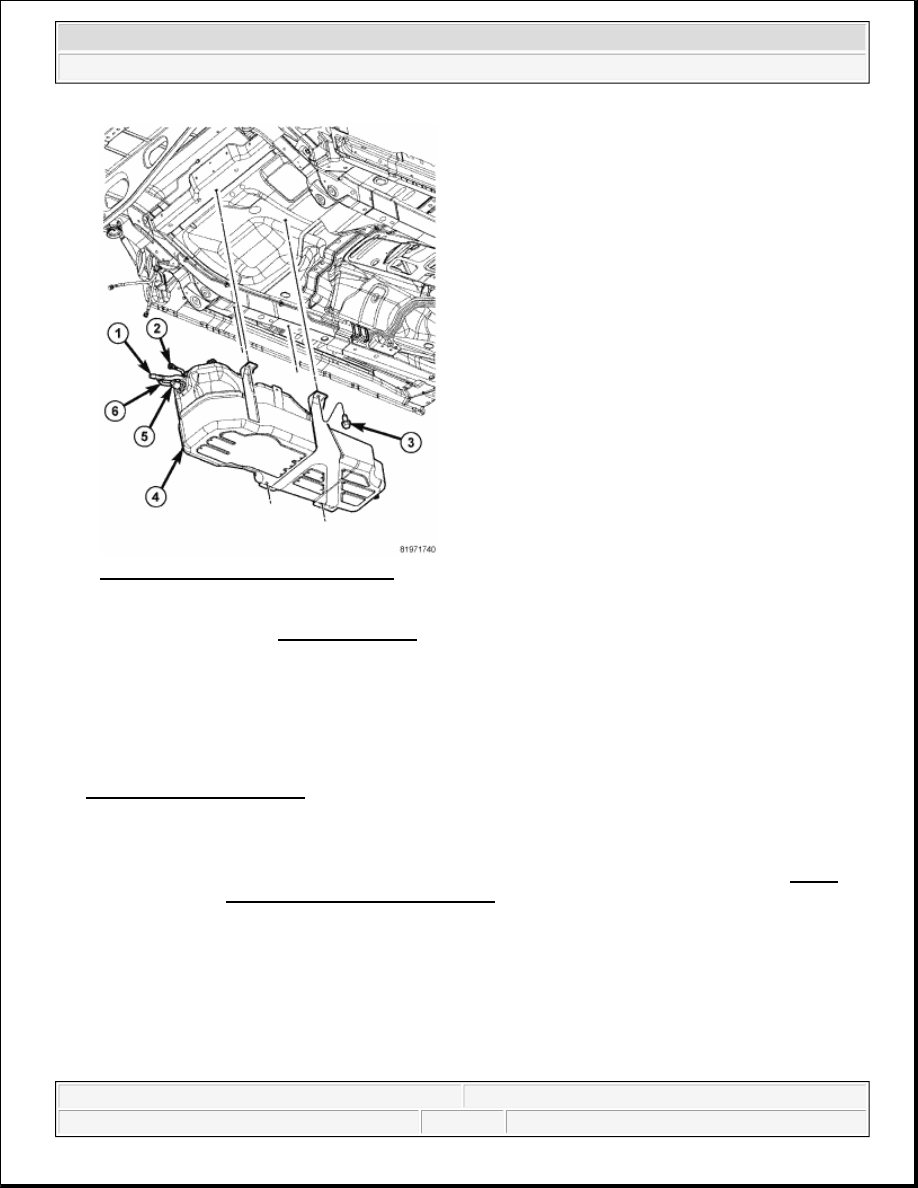

Fig. 7: Removing/Installing Fuel Tank
Courtesy of CHRYSLER LLC

3. Install fuel tank (4). See INSTALLATION.

LINES-FUEL

DESCRIPTION

FUEL LINES

See STANDARD PROCEDURE.

The lines/tubes/hoses used on fuel injected vehicles are of a special construction. This is due to the higher fuel
pressures and the possibility of contaminated fuel in this system. If it is necessary to replace these
lines/tubes/hoses, only those marked EFM/EFI may be used.

If equipped: The hose clamps used to secure rubber hoses on fuel injected vehicles are of a special rolled edge
construction. This construction is used to prevent the edge of the clamp from cutting into the hose. Only these
rolled edge type clamps may be used in this system. All other types of clamps may cut into the hoses and cause

WARNING:

The fuel system may be under a constant pressure (even with the engine
off). Before servicing any fuel system hoses, fittings, lines, or most
components, fuel system pressure must be released. Refer to the FUEL
SYSTEM PRESSURE RELEASE procedure.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



high-pressure fuel leaks.

Use new original equipment type hose clamps.

FITTING-QUICK CONNECT

DESCRIPTION

FITTING-QUICK CONNECT

Different types of quick-connect fittings are used to attach the various fuel system components, lines and tubes.
These are: a single-button type, a two-button type, a pinch type, a single-tab type, a two-tab type or a plastic
retainer ring type. Some are equipped with safety latch clips. Some may require the use of a special tool for
disconnection and removal. See STANDARD PROCEDURE.

STANDARD PROCEDURE

FITTING-QUICK CONNECT

Different types of quick-connect fittings are used to attach the various fuel system components, lines and tubes.
These are: a single-button type, a two-button type, a pinch type, a single-tab type, a two-tab type or a plastic
retainer ring type. Some are equipped with safety latch clips. Some may require the use of a special tool for
disconnection and removal.

DISCONNECTING

CAUTION: Before separating a quick-connect fitting, pay attention to what type of

fitting is being used by referring to Quick-Connect Fitting Removal. This
will prevent unnecessary fitting or fitting latch breakage.

CAUTION: The interior components (O-rings, clips) of quick-connect fittings are not

serviced separately, but new plastic spacers and latches are available for
some types. If service parts are not available, do not attempt to repair the
damaged fitting or fuel line (tube). If repair is necessary, replace the
complete fuel line (tube) assembly.

WARNING:

The fuel system is under a constant pressure (even with engine off).
Before servicing any fuel system hose, fitting or line, fuel system
pressure must be released. Refer to FUEL SYSTEM PRESSURE RELEASE
procedure.

CAUTION: Before separating a quick-connect fitting, pay attention to what type of

fitting is being used by referring to Quick-Connect Fitting Removal. This
will prevent unnecessary fitting or fitting latch breakage.

CAUTION: The interior components (O-rings, clips) of quick-connect fittings are not



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



1. Perform fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE Procedure.

2. Disconnect negative battery cable from battery.

3. Clean fitting of any foreign material before disassembly.

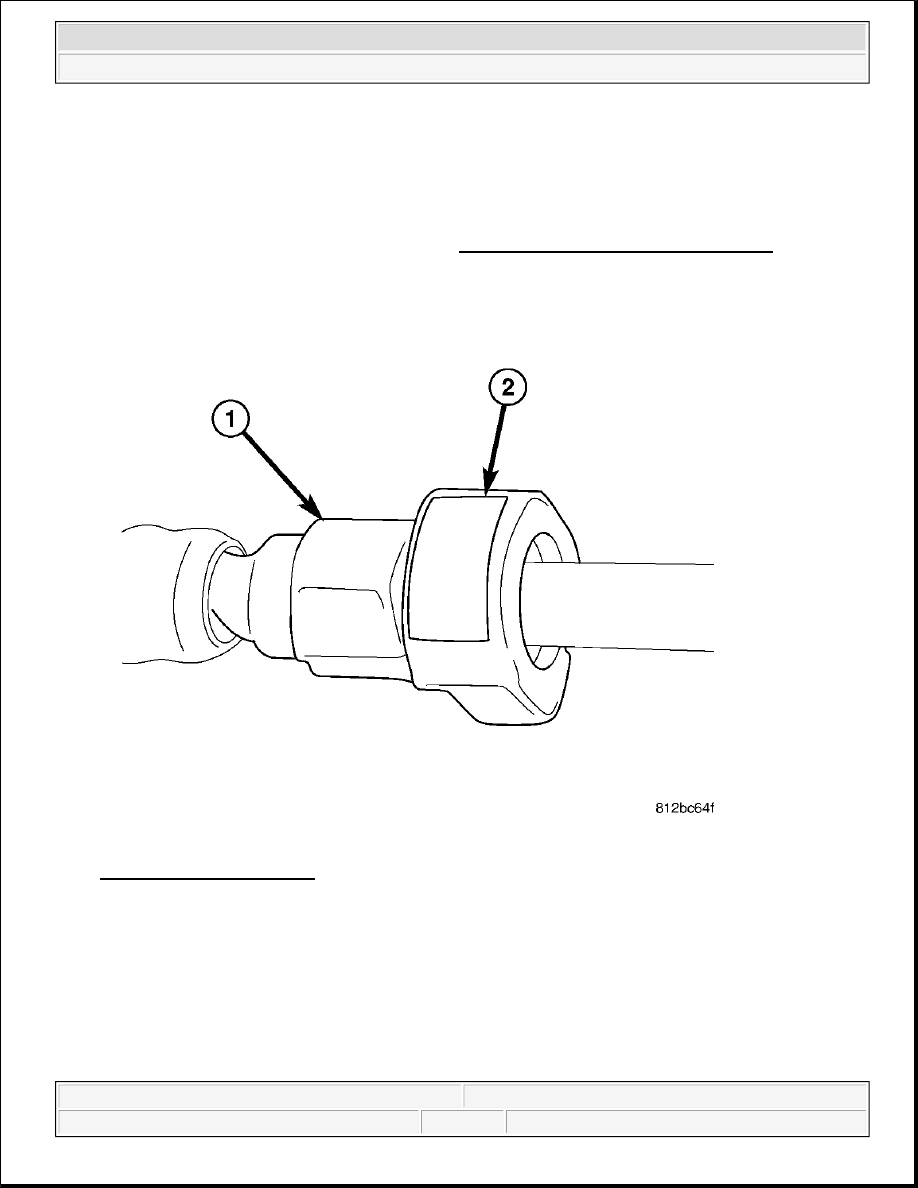

Fig. 8: Single Button Fitting
Courtesy of CHRYSLER LLC

4. Single-Button Type Fitting: This type of fitting is equipped with a single push-button (2) located on the

quick-connect fitting.

serviced separately, but new plastic spacers and latches are available for
some types. If service parts are not available, do not attempt to repair the
damaged fitting or fuel line (tube). If repair is necessary, replace the
complete fuel line (tube) assembly.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



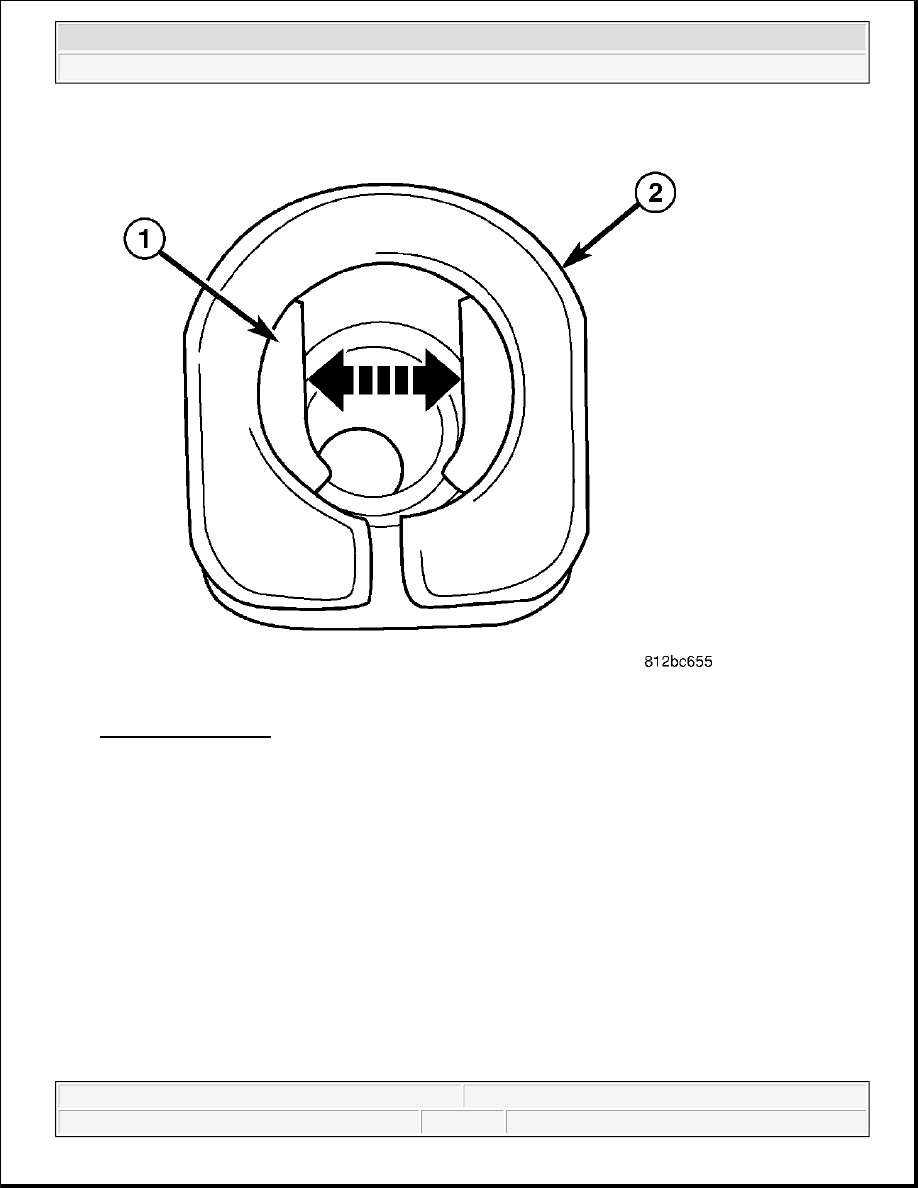

Fig. 9: Fitting Latches
Courtesy of CHRYSLER LLC

5. The push-button is attached to two internal latches (1). To disconnect, press on push-button with your

thumb and unlatch fitting from fuel line. Special tools are not required for disconnection. DO NOT
ATTEMPT TO PRY OR PULL UP ON PUSH-BUTTON. LATCHES WILL BE BROKEN.
