Fig. 34: Identifying Left Multi-Function Switch, Screw & Clockspring
Courtesy of CHRYSLER LLC

1. Position the left multi-function switch (1) close enough to the mounting bracket (3) integral to the left

side of the clockspring to reconnect the jumper wire harness connector to the connector receptacle on the
inboard side of the switch housing.

2. Align the slide tabs on the switch housing with the channel formations integral to the clockspring

mounting bracket, then slide the switch into the bracket until it is firmly seated.

3. Install and tighten the screw (2) that secures the mounting tab on the front of the left multi-function

switch to the mounting bracket on the clockspring. Tighten the screw to 1 N.m (10 in. lbs.).

4. Reconnect the instrument panel wire harness connector to the connector receptacle on the back of the

switch housing.

5. Reinstall the upper and lower shrouds onto the steering column. Refer to INSTALLATION .

6. Reconnect the battery negative cable.

LICENSE PLATE LAMP

REMOVAL

LICENSE PLATE LAMP BULB

NOTE:

The following procedure is for replacement of a license plate lamp bulb. The
license plate lamps are integral to the liftgate handle and light bar unit. If any
part of this unit is ineffective or damaged, the entire handle and light bar unit
must be replaced.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro

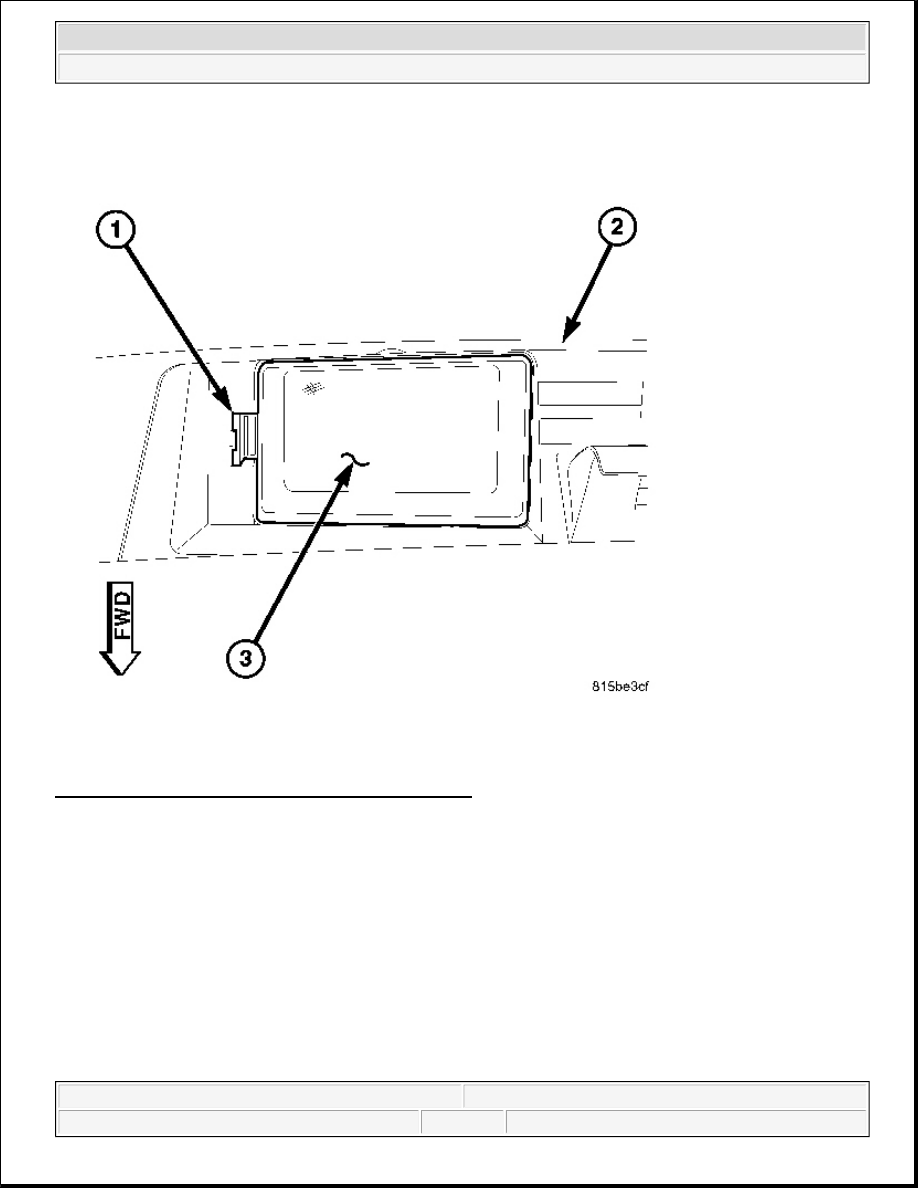

Fig. 35: Identifying Latch Tab, Light Bar Unit & Lens
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.

2. Reach under the liftgate handle and light bar unit (2) to access and depress the latch tab (1) on the

outboard side of the license plate lamp lens toward the lens (3).

3. Pull the outboard side of the lens downward far enough to disengage the two tabs on the inboard side of

the lens from the lamp housing.

4. Remove the lens from under the handle and light bar.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro

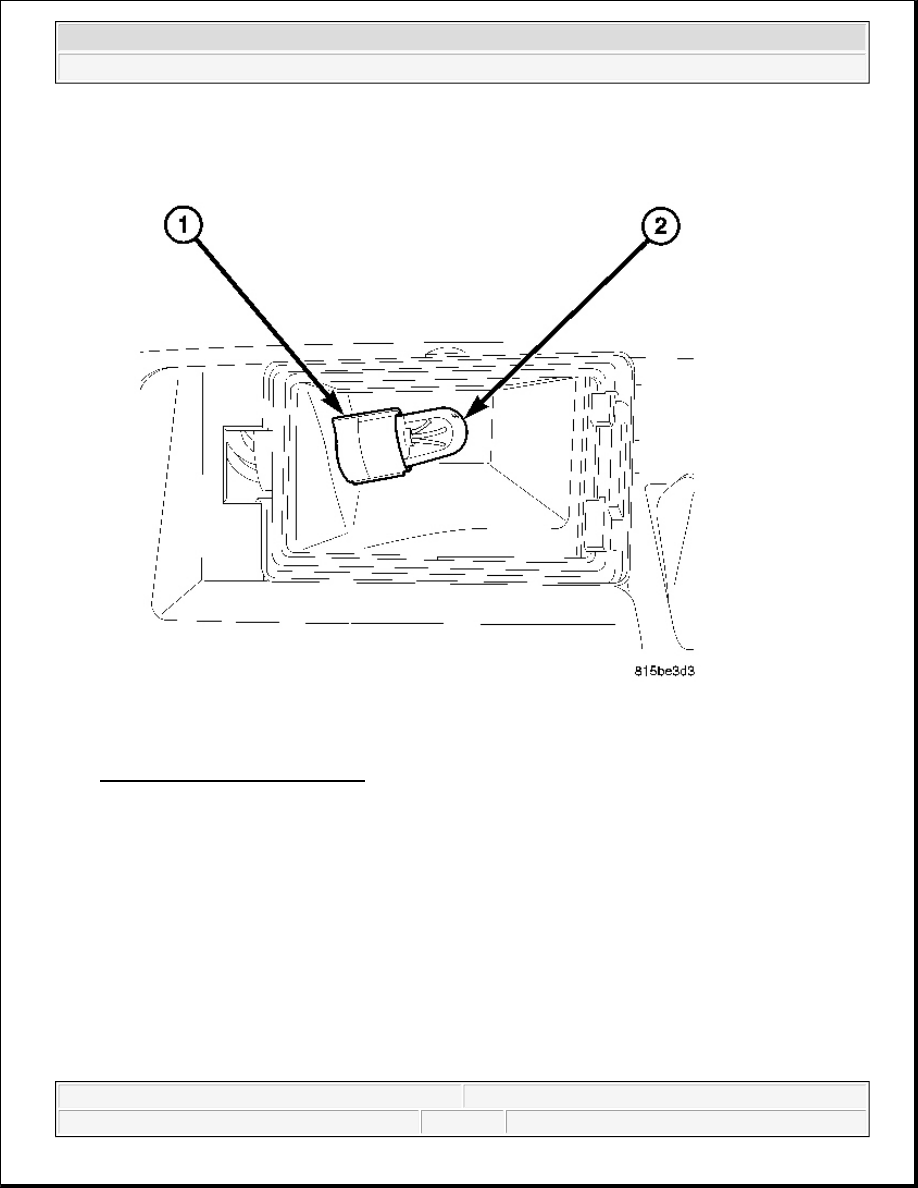

Fig. 36: Identifying Socket & Bulb
Courtesy of CHRYSLER LLC

5. Firmly grasp and pull the bulb (2) straight out of the socket (1) in the outboard side of the lamp housing.

INSTALLATION

LICENSE PLATE LAMP BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.

NOTE:

The following procedure is for replacement of a license plate lamp bulb. The
license plate lamps are integral to the liftgate handle and light bar unit. If any



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro

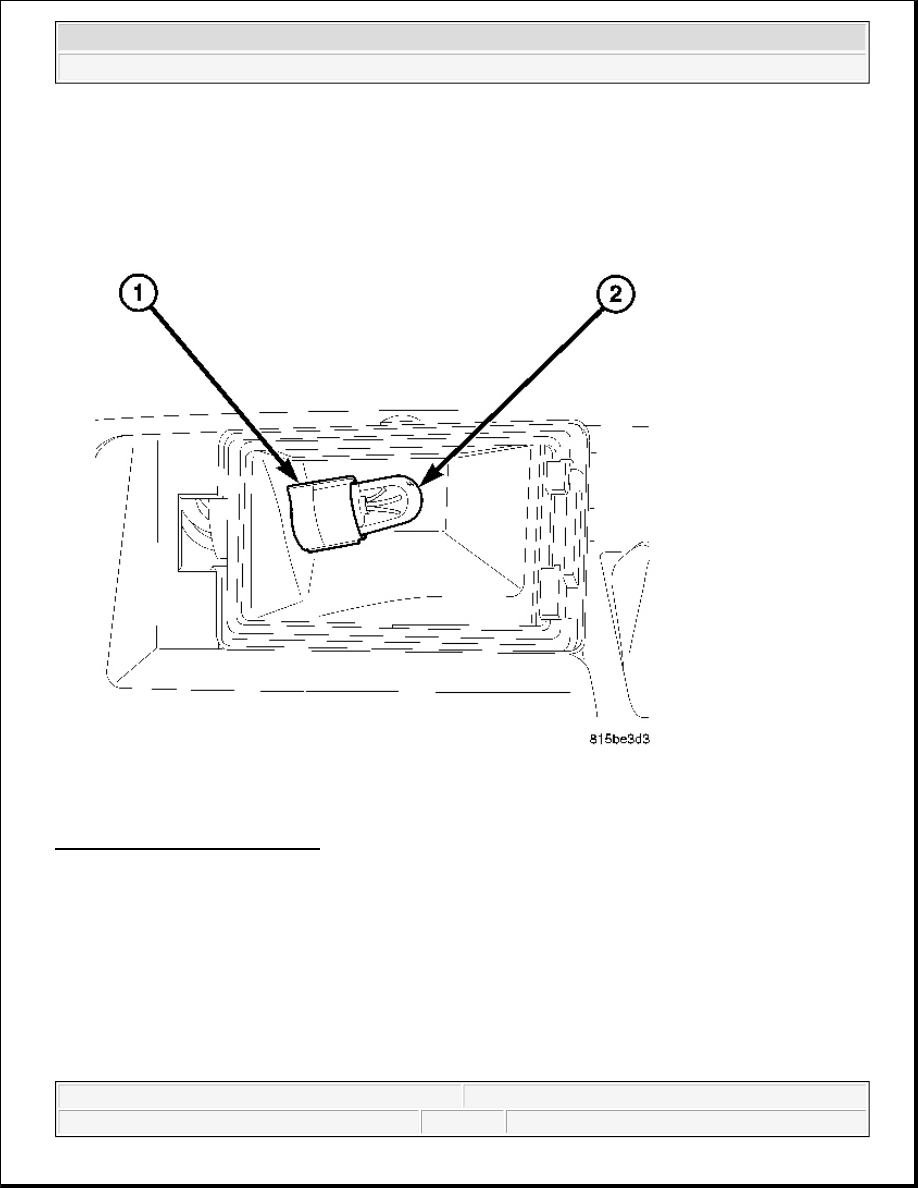

Fig. 37: Identifying Socket & Bulb
Courtesy of CHRYSLER LLC

1. Align the base of the bulb (2) with the socket (1) in the outboard side of the license plate lamp housing.

2. Push the bulb straight into the socket until the base is firmly seated.

part of this unit is ineffective or damaged, the entire handle and light bar unit
must be replaced.
