Dodge Nitro. Manual - part 609





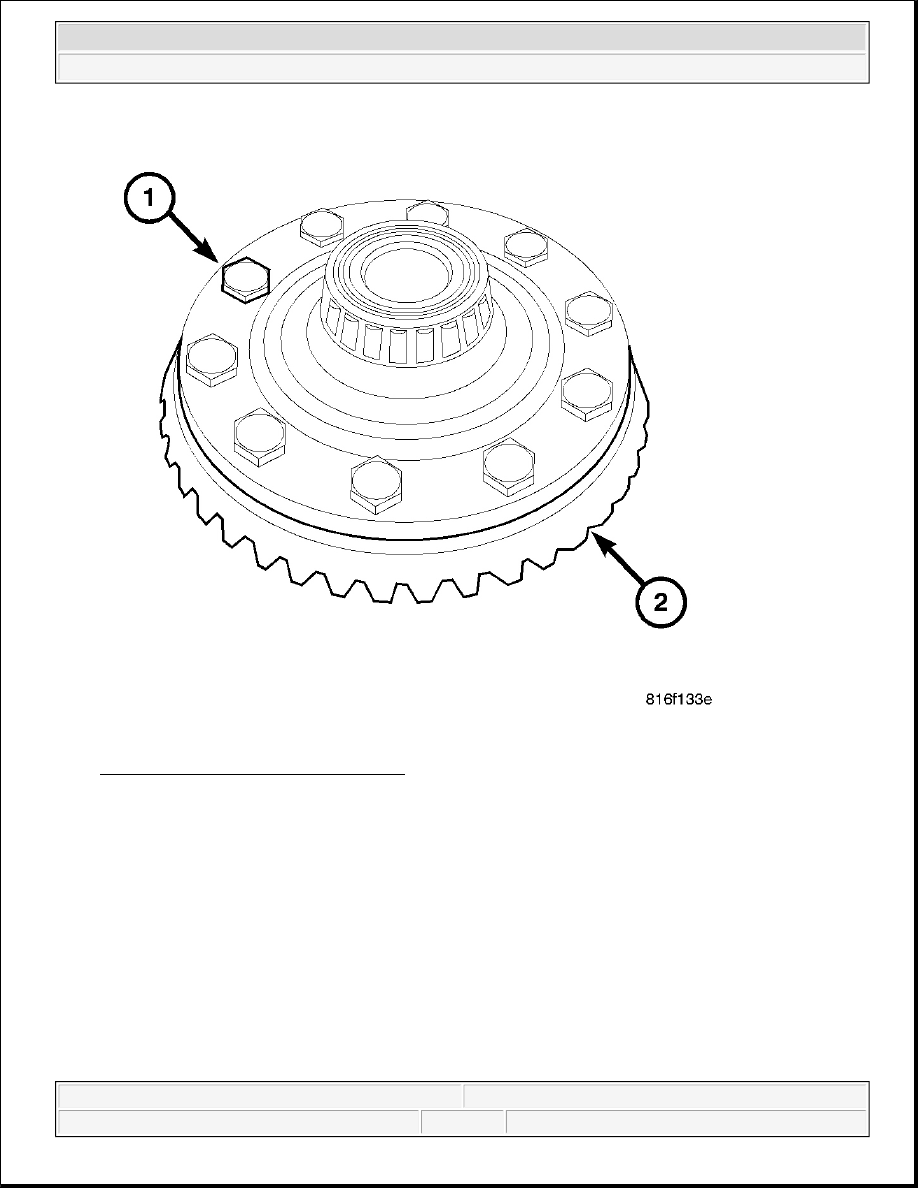

Fig. 337: Identifying Ring Gear & Bolts
Courtesy of CHRYSLER LLC

6. Install new left hand threaded ring gear (2) bolts (1) and alternately tighten to 27 N.m (20 ft. lbs.). Then

with torque angle gauge alternately tighten to 95 degrees ± 5 degrees.

7. Install differential in axle housing and verify gear mesh refer to Adjustments (Gear Contact Pattern).

CAUTION: Never reuse the ring gear bolts. Failure to follow these instructions

will result in damage.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



2007 ENGINE

Exhaust System And Turbocharger - Nitro

DESCRIPTION

DESCRIPTION-GAS ENGINE

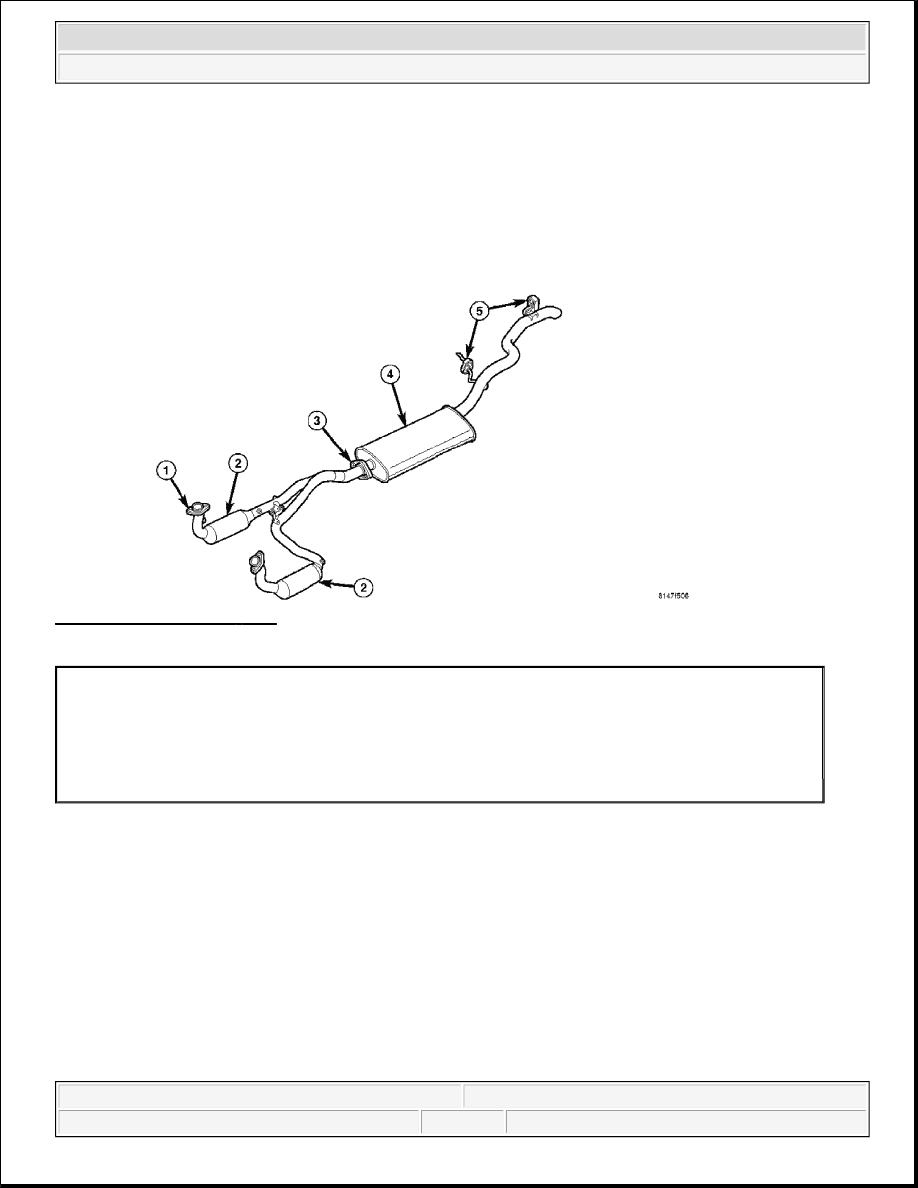

Fig. 1: Exhaust System - Gas
Courtesy of CHRYSLER LLC

The basic exhaust system consists of an exhaust pipe assembly with catalytic converters (2), muffler (4) and
tailpipe assembly and heat shields

The exhaust system must be properly aligned to prevent stress, leakage and body contact. Minimum clearance
between any exhaust component and the body or frame is 25 mm (1.0 in.). If the system contacts any body
panel, it may amplify objectionable noises from the engine or body.

When inspecting an exhaust system, critically inspect for cracked or loose joints, stripped screw or bolt threads,
corrosion damage and worn, cracked or broken hangers. Replace all components that are badly corroded or
damaged. DO NOT attempt to repair.

When replacement is required, use original equipment parts (or equivalent). This will assure proper engine

1 - EXHAUST FLANGE
2 - CATALYTIC CONVERTER
3 - FRONT EXHAUST PIPE ASSEMBLY-TO-MUFFLER CLAMP
4 - MUFFLER
5 - INSULATOR
6 - RESONATOR



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro





2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro



function and system alignment.

DESCRIPTION-2.8L DIESEL

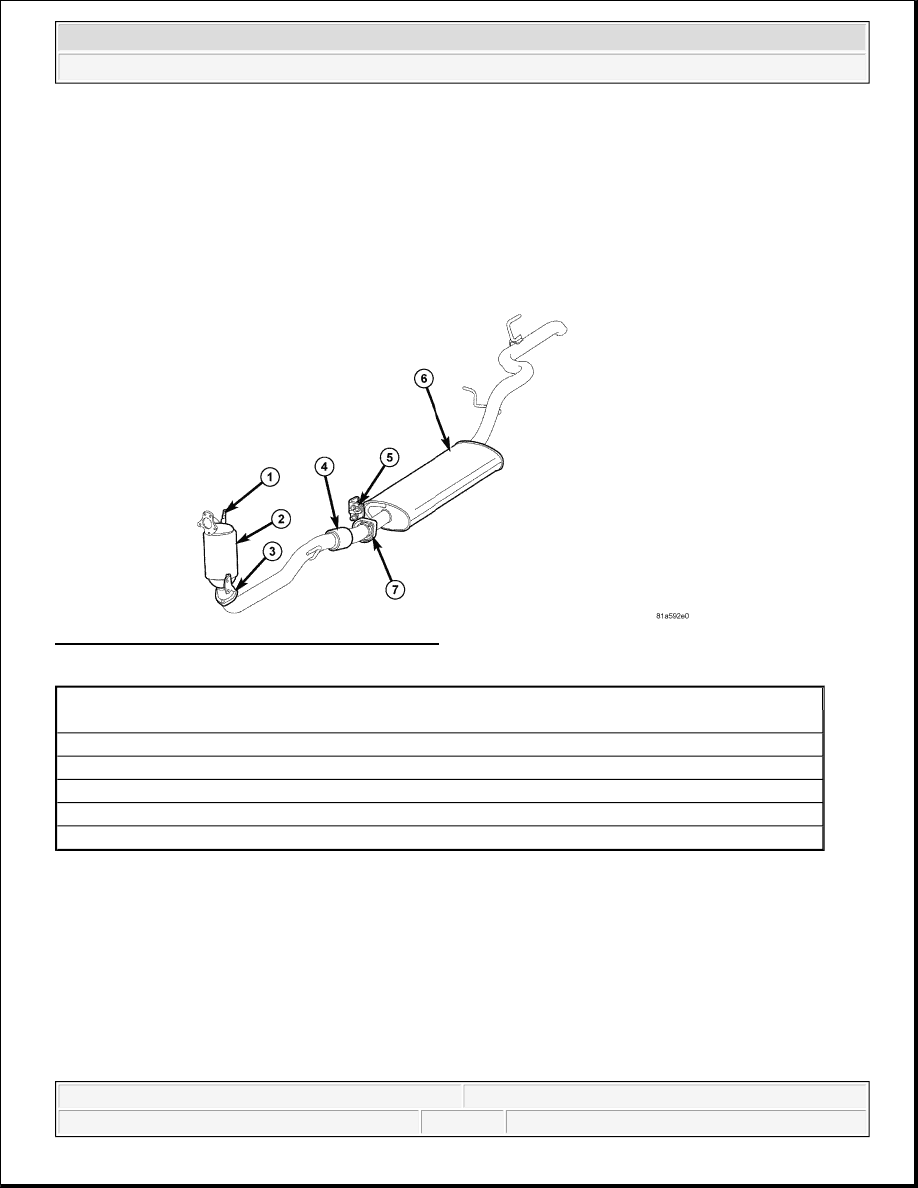

Fig. 2: Exhaust System - 2.8L Diesel - W/Out DPF
Courtesy of CHRYSLER LLC

The diesel engine exhaust system consists of an engine exhaust manifold, turbocharger, EGR valve with
intercooler, front exhaust pipe with catalytic converter, muffler and tailpipe assembly.

CAUTION: Avoid application of rust prevention compounds or undercoating materials

to exhaust system floor pan exhaust heat shields. Light overspray near the
edges is permitted. Application of coating will result in excessive floor pan
temperatures and objectionable fumes.

1 - OXYGEN SENSOR
2 - MANIVERTER
3 - MANIVERTER TO EXHAUST PIPE FLANGE
4 - FLEXIBLE BELLOWS
5 - ISOLATORS
6 - MUFFLER/TAILPIPE ASSEMBLY
7 - EXHAUST PIPE TO MUFFLER FLANGE

CAUTION: Avoid application of rust prevention compounds or undercoating materials

to exhaust system floor pan exhaust heat shields. Light overspray near the
edges is permitted. Application of coating will result in excessive floor pan
temperatures and objectionable fumes.



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro



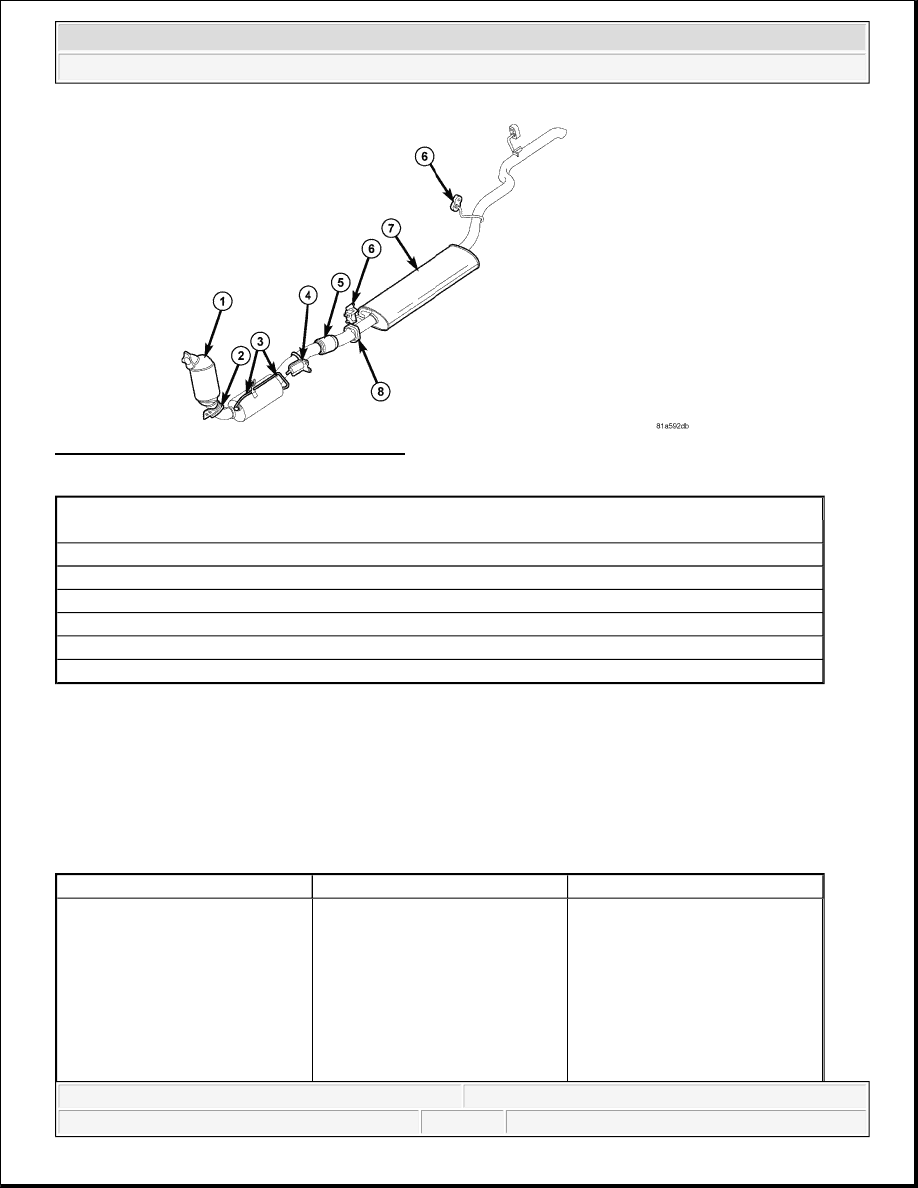

Fig. 3: Exhaust System - 2.8L Diesel - W/DPF
Courtesy of CHRYSLER LLC

The exhaust system must be properly aligned to prevent stress, leakage and body contact. The exhaust
components should be kept a minimum of 25.4 mm (1.0 in.) away from the body and frame. If the system
contacts any body panel, it may amplify objectionable noises from the engine or body.

DIAGNOSIS AND TESTING

EXHAUST SYSTEM-GAS ENGINES

1 - MANIVERTER
2 - MANIVERTER TO DFP FLANGE
3 - PRESSURE SENSOR TUBING
4 - STEADY MOUNT
5 - FLEXIBLE BELLOWS
6 - ISOLATOR
7 - MUFFLER/TAIL PIPE ASSEMBLY
8 - DPF TO MUFFLER FLANGE

CONDITION

POSSIBLE CAUSE

CORRECTION

EXCESSIVE EXHAUST NOISE
OR LEAKING EXHAUST
GASES

1. Leaks at pipe joints.

1. Tighten clamps/bolts to
specified torque at leaking joints.

2. Rusted or blown out muffler.

2. Replace muffler. Inspect
exhaust system.

3. Broken or rusted out exhaust
pipe.

3. Replace exhaust pipe.

4. Exhaust pipe leaking at
manifold flange.

4. Tighten/replace flange attaching
nuts/bolts.



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro
