10. Remove pinion flange (1) with Puller 8992 (2).

11. Remove pinion seal with a seal puller.

INSTALLATION

SEAL-PINION

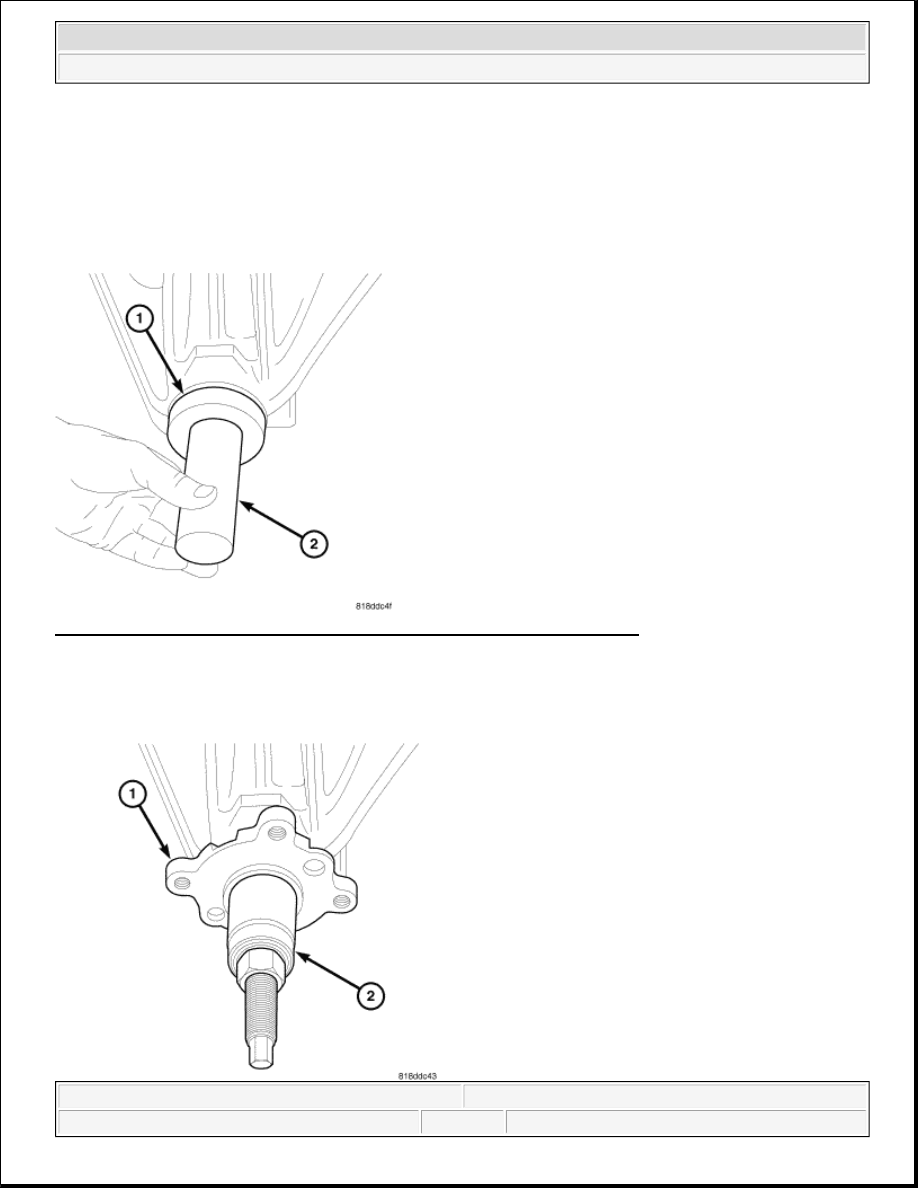

Fig. 287: Installing Pinion Seal With Installer C-4076-B And Handle C-4735
Courtesy of CHRYSLER LLC

1. Apply a light coating of gear lubricant on the lip of pinion seal.

2. Install new pinion seal with Installer C-4076-B (1) and Handle C-4735 (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 288: Installing Flange With Installer C-3718
Courtesy of CHRYSLER LLC

3. Install flange on the pinion shaft with the reference marks aligned.

4. Install flange (1) with Installer C-3718 (2).

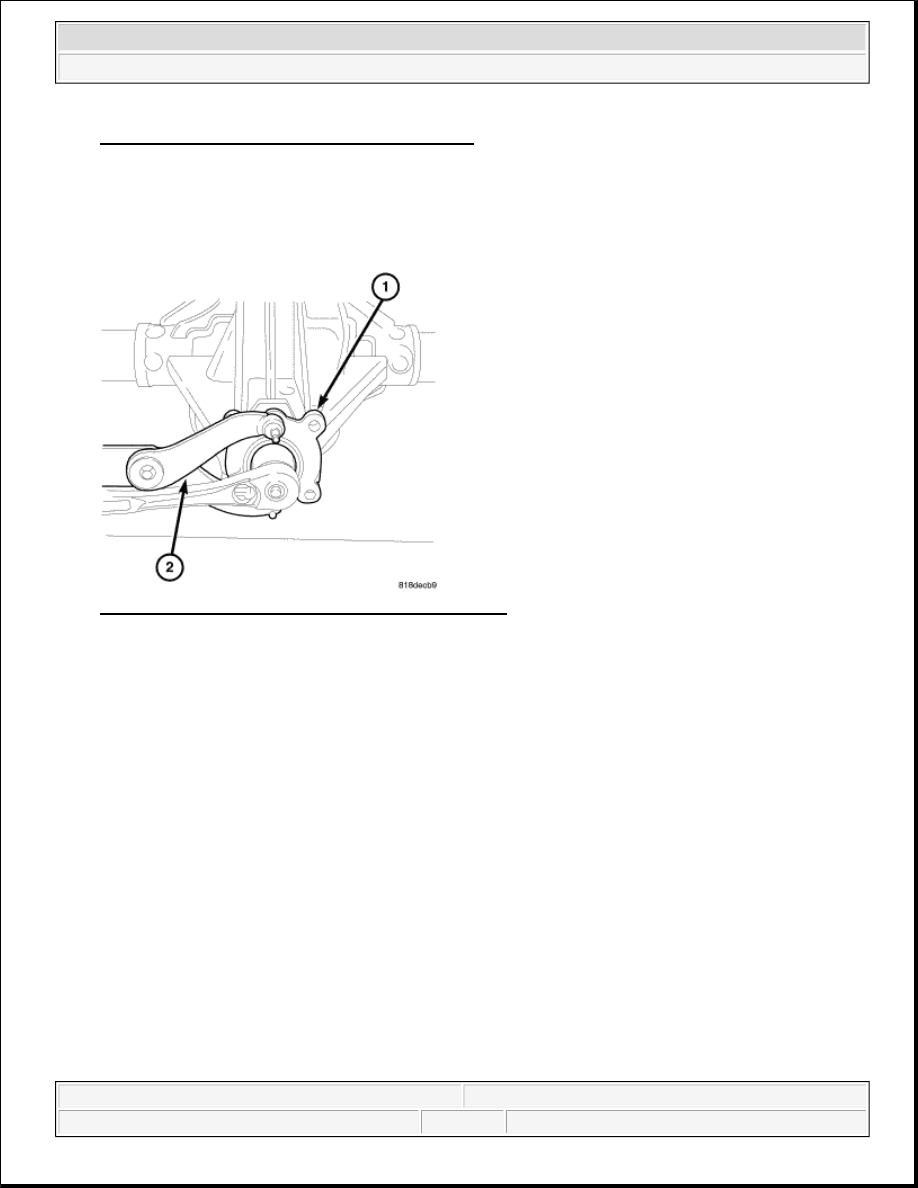

Fig. 289: Holding Pinion Flange With Holder C-3281
Courtesy of CHRYSLER LLC

5. Install new pinion nut. Hold flange (1) with Holder C-3281 (2) and tighten pinion nut to 285 N.m (210 ft.

lbs.). Rotate pinion several revolutions to ensure the bearing rollers are seated.

NOTE:

Do not exceed the minimum torque 285 N.m (210 ft. lbs.) when installing
the pinion nut at this point.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

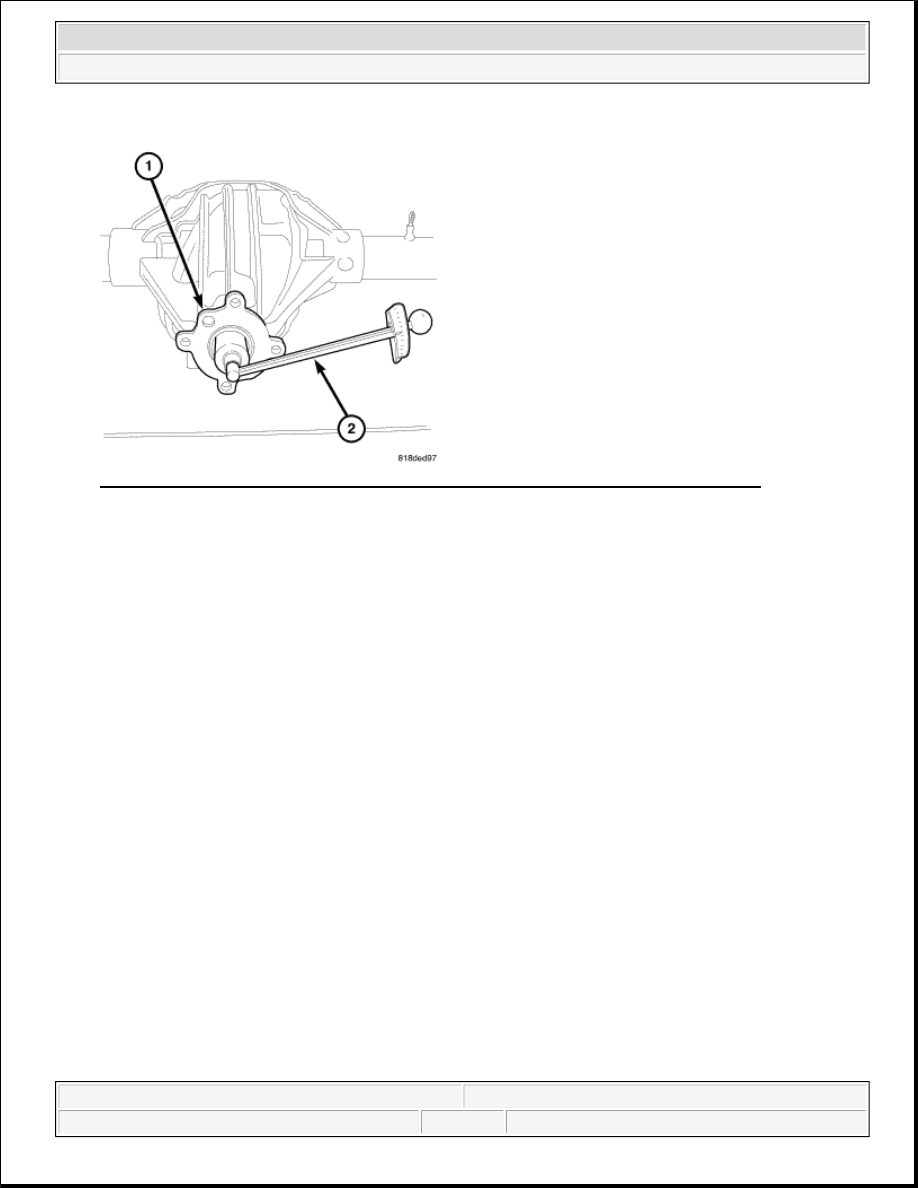

Fig. 290: Measuring Pinion Torque To Rotating With An Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC

6. Measure pinion torque to rotate (1) with an inch pound torque wrench (2). Pinion torque to rotating

should be equal to recorded reading plus an additional 0.56 N.m (5 in. lbs.).

If pinion torque to rotate is low, tighten pinion nut in 6.8 N.m (5 ft. lbs.) increments until pinion torque to
rotating is achieved.

CAUTION: Never loosen pinion nut to decrease pinion bearing rotating torque. If

pinion torque to rotating is exceeded, a new collapsible spacer must
be installed. Failure to follow these instructions will result in damage
to the axle.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

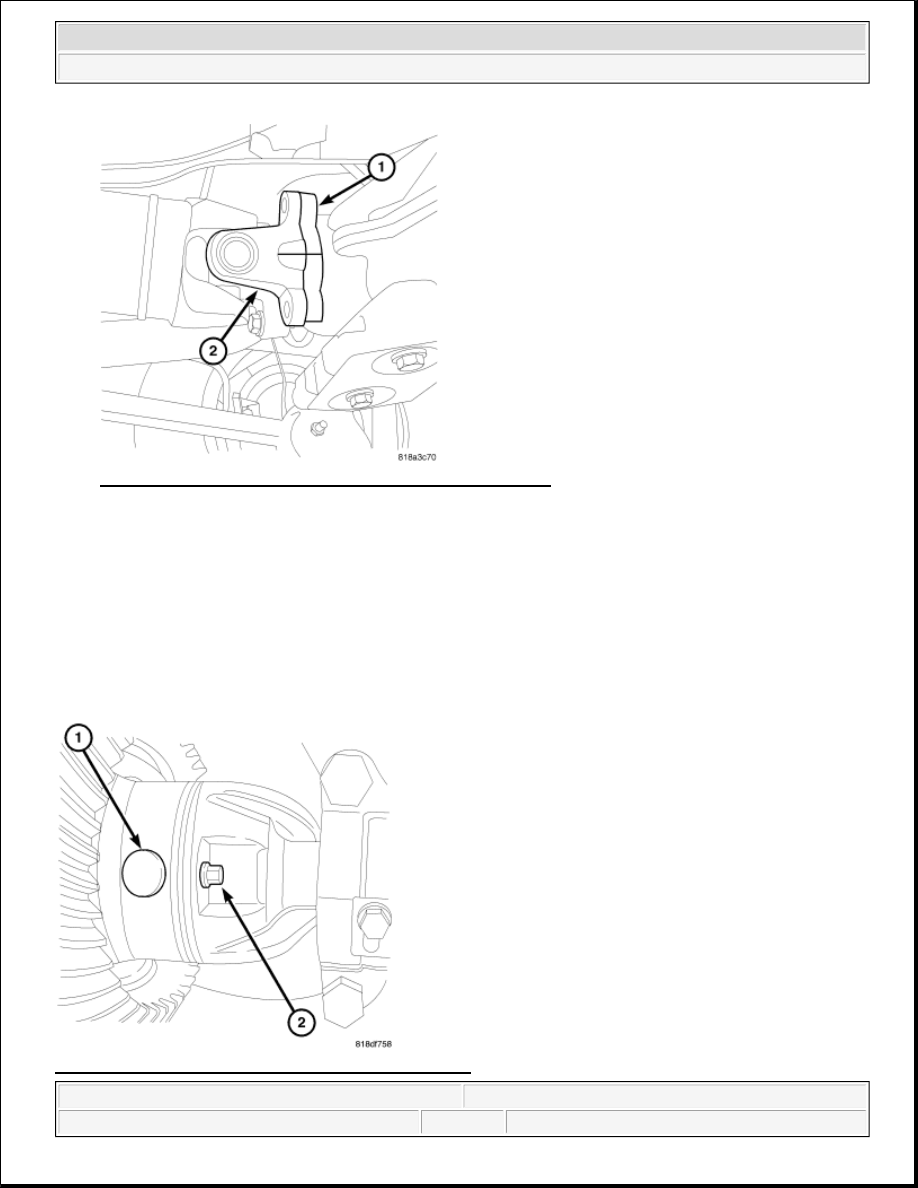

Fig. 291: Identifying Axle Flange & Propeller Shaft Flange
Courtesy of CHRYSLER LLC

7. Install propeller shaft (1) with axle flange (2) installation reference marks aligned.

8. Install rear brake components.

DIFFERENTIAL

REMOVAL

DIFFERENTIAL

Fig. 292: Identifying Pinion Mate Shaft & Lock Screw



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
