Fig. 209: Identifying Line Across Axle Flange & Propeller Shaft Flange
Courtesy of CHRYSLER LLC

1. With vehicle in neutral, position vehicle on hoist.

2. Position a lift/jack under the axle and secure axle to device.

3. Mark axle pinion flange (1) and propeller shaft flange (2) for installation reference.

4. Remove propeller shaft and suspend under the vehicle.

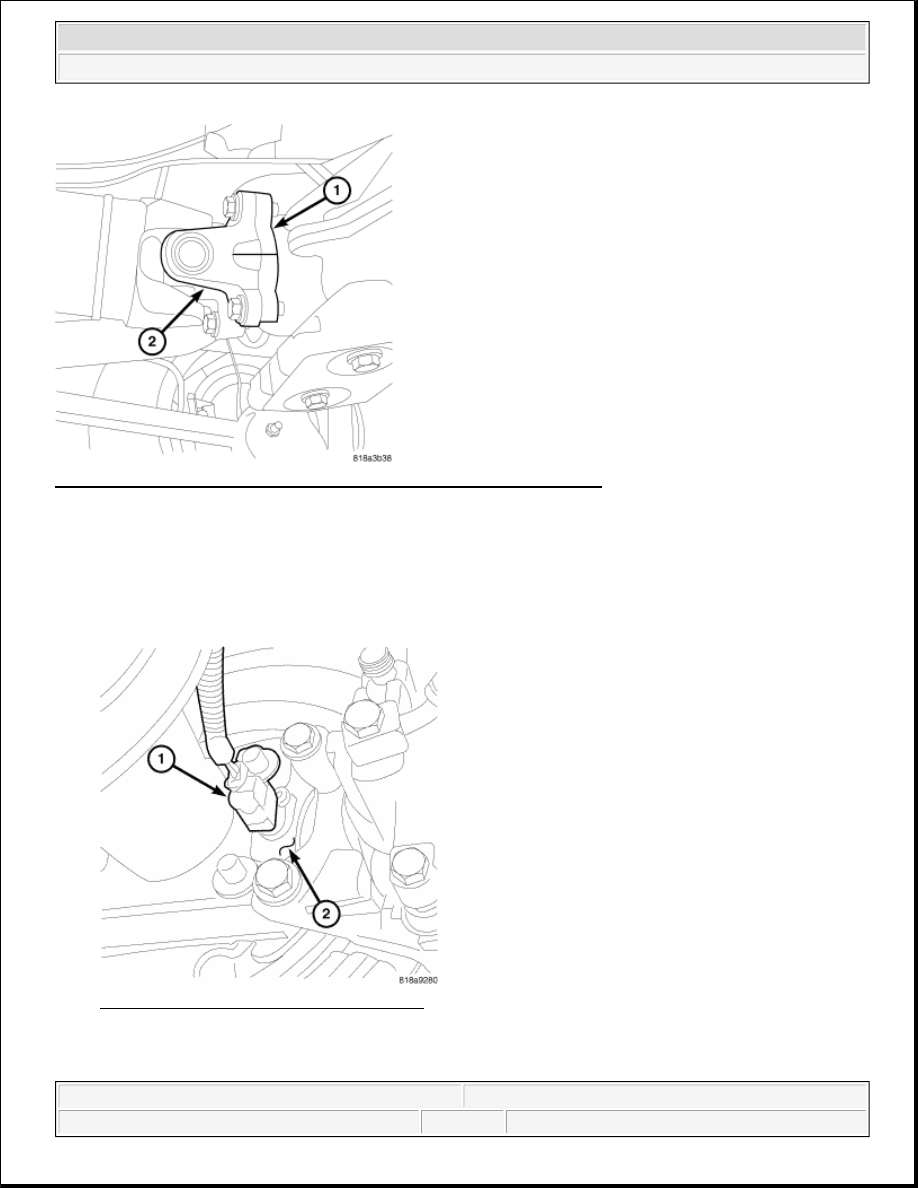

Fig. 210: Identifying Brake Sensor & Axle
Courtesy of CHRYSLER LLC

5. Remove brake sensor (1) from axle (2) and remove calipers, rotors and cables.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



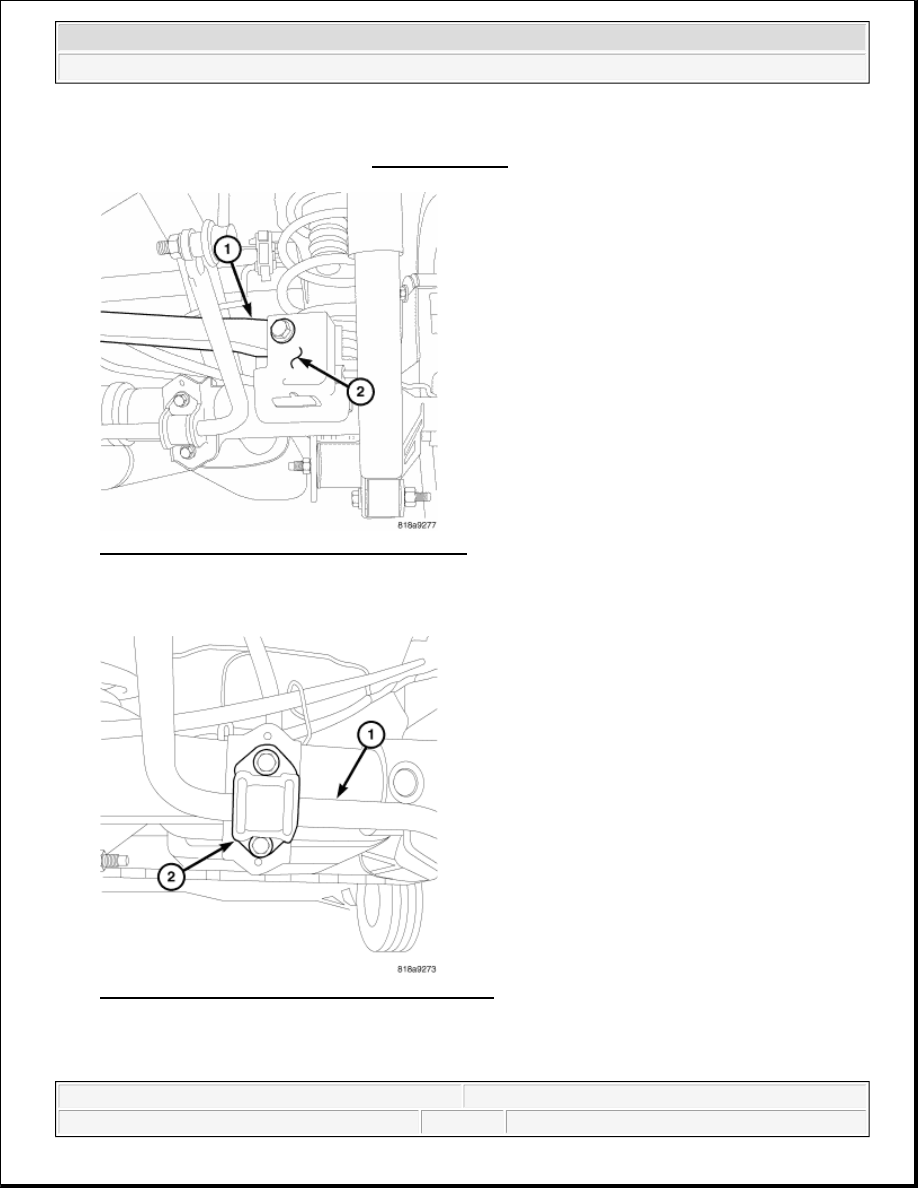

Fig. 211: Identifying Track Bar & Axle Bracket
Courtesy of CHRYSLER LLC

6. Remove track bar (1) bolt from axle bracket (2).

Fig. 212: Identifying Stabilizer Bar & Axle Bracket
Courtesy of CHRYSLER LLC

7. Remove vent hose from the axle shaft tube.

8. Remove stabilizer bar (1) axle bracket (2).

NOTE:

The parking brake is self-adjusting, and cables must be locked out before
removal. Refer to ADJUSTMENTS .



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



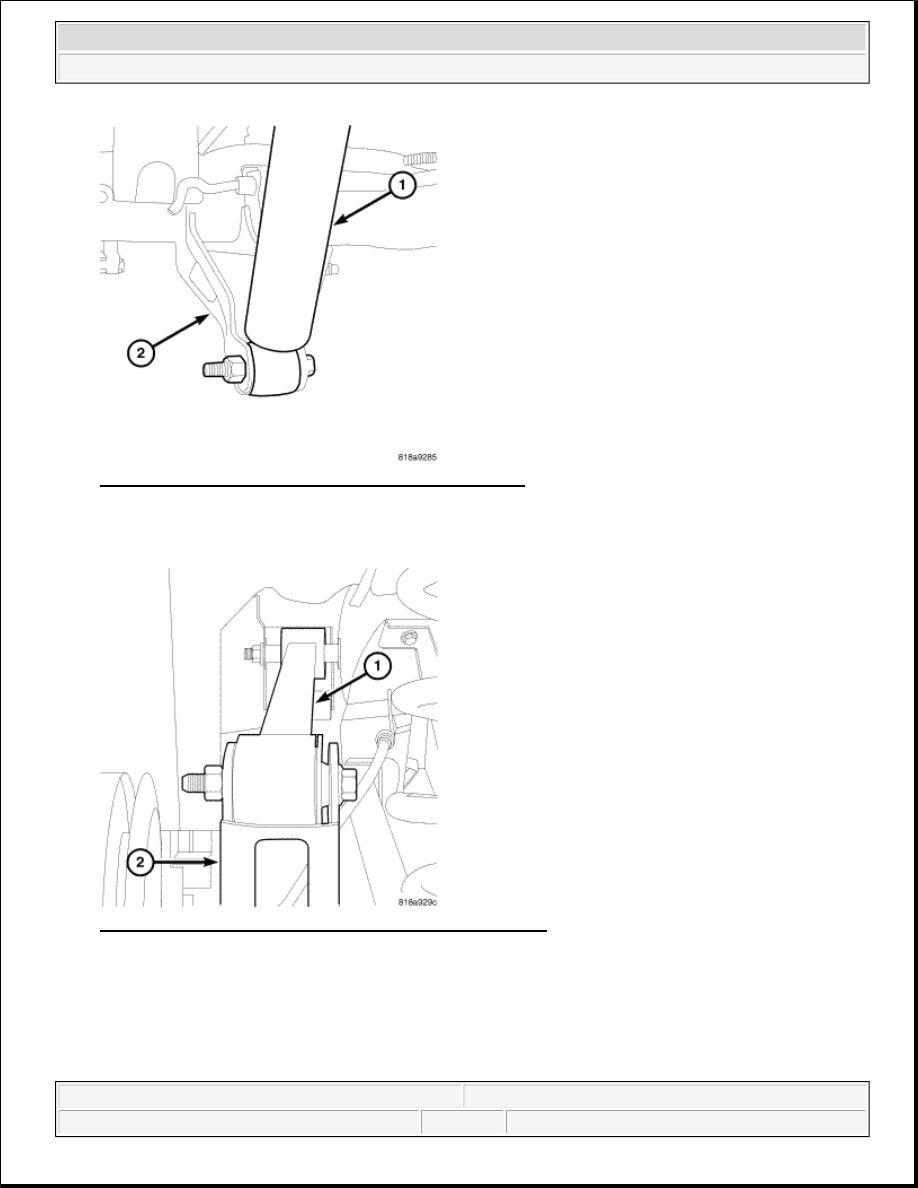

Fig. 213: Identifying Shock Absorbers & Axle Brackets
Courtesy of CHRYSLER LLC

9. Remove shock absorbers (1) from axle brackets (2).

Fig. 214: Identifying Upper Control Arm & Axle Brackets
Courtesy of CHRYSLER LLC

10. Remove upper control arm (1) nuts and bolts from the axle brackets (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



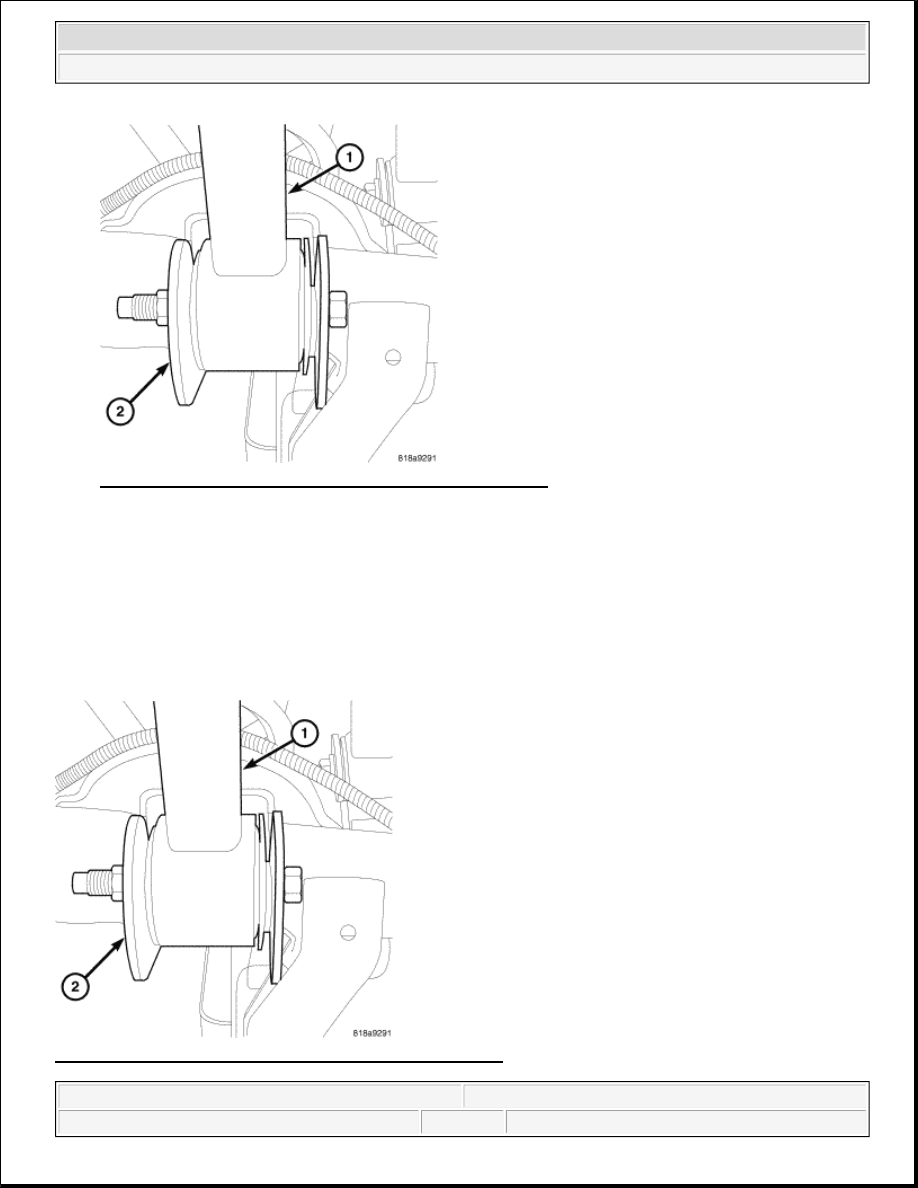

Fig. 215: Identifying Lower Control Arm & Axle Brackets
Courtesy of CHRYSLER LLC

11. Lower axle enough to remove coil springs and spring insulators.

12. Remove lower control arm (1) mounting bolts from axle brackets (2).

13. Lower and remove the axle.
