Dodge Nitro. Manual - part 580

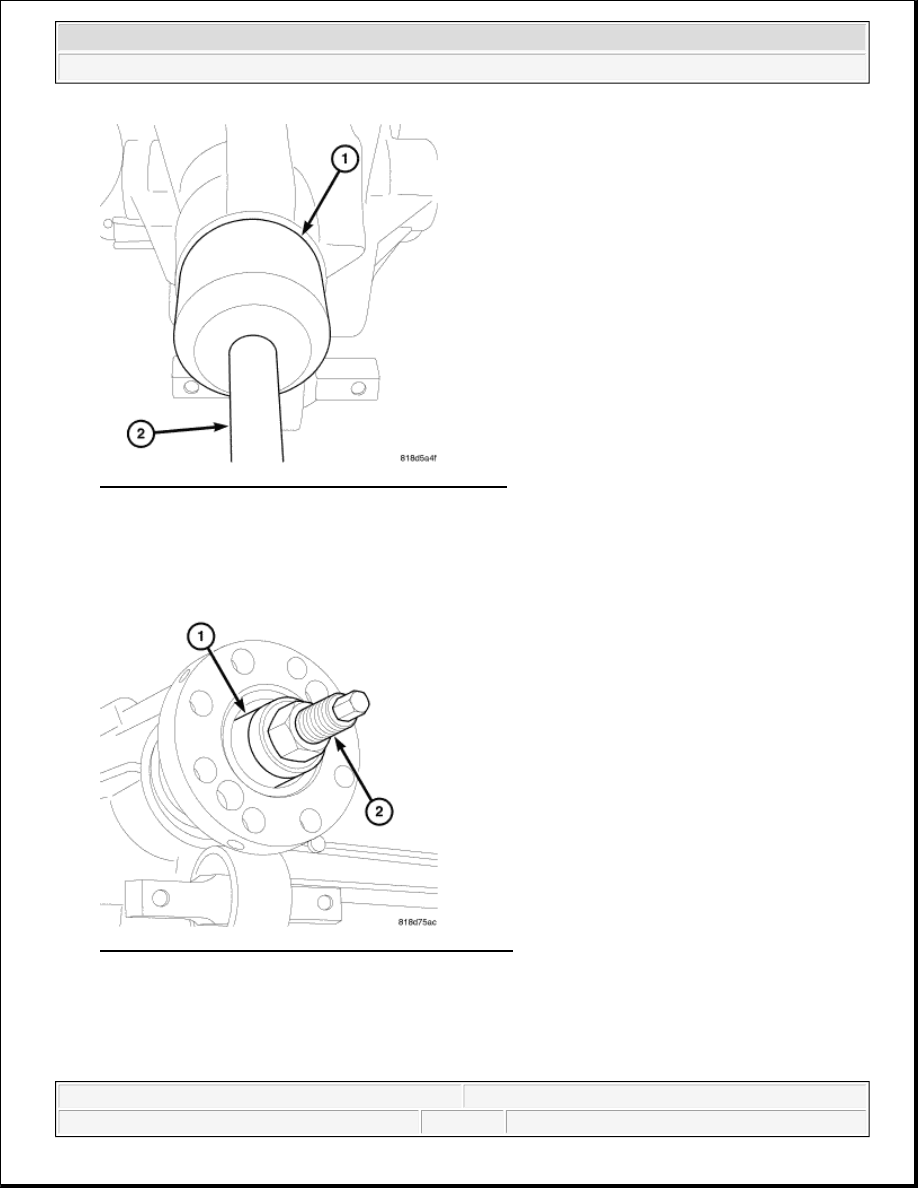

Fig. 203: Identifying Installer 8681 & Handle C-4171
Courtesy of CHRYSLER LLC

9. Apply a light coating of gear lubricant on the lip of pinion seal. Install seal with Installer 8681 (1) and

Handle C-4171 (2).

Fig. 204: Identifying Installer W-162-D & Screw 8112
Courtesy of CHRYSLER LLC

10. Install pinion flange with Installer W-162-D (1) Screw 8112 (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



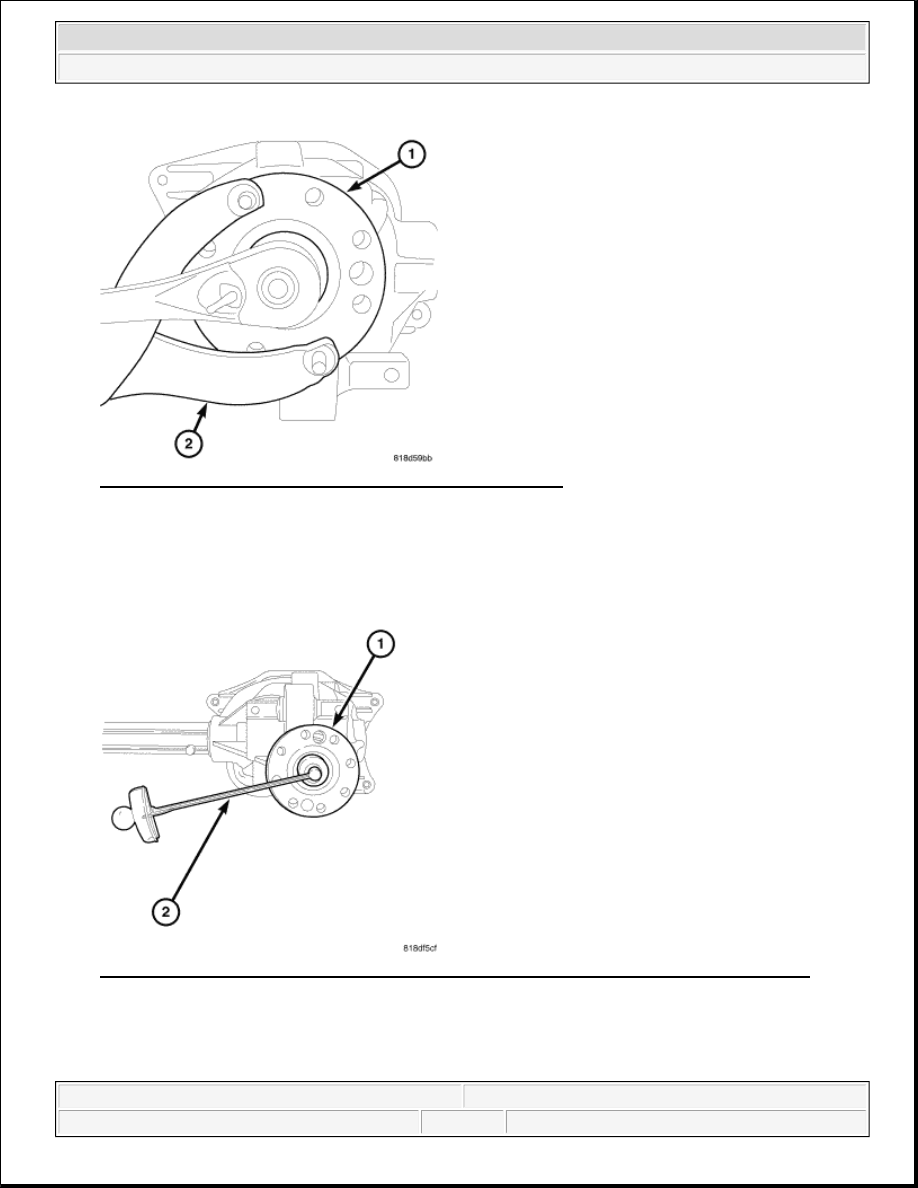

Fig. 205: Holding Pinion Flange With Flange Holder C-3281
Courtesy of CHRYSLER LLC

11. Install new pinion nut. Hold flange (1) with Holder C-3281 (2) and tighten the nut to 217 N.m (160 ft.

lbs.). Do not exceed minimum tighten torque 217 N.m (160 ft. lbs.).

12. With a torque wrench set at 352 N.m (260 ft. lbs.) Tighten pinion nut until pinion end play is eliminated.

Fig. 206: Measuring Pinion Torque To Rotate (PTTR) With An Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC

13. Rotate pinion several times to seat bearings and verify pinion (1) rotates smoothly.

14. Slowly tighten the pinion nut in 6.8 N.m (5 ft. lbs.) increments until pinion torque to rotate is achieved.

Measure rotating torque frequently to avoid over crushing the collapsible spacer.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



15. Measure pinion torque to rotate (PTTR) with an inch pound torque wrench (2).

Pinion Torque To Rotate is:

Original Bearings: 1.0 - 2.2 N.m (10 - 20 in. lbs.).

New Bearings: 1.7 - 2.8 N.m (15 - 25 in. lbs.).

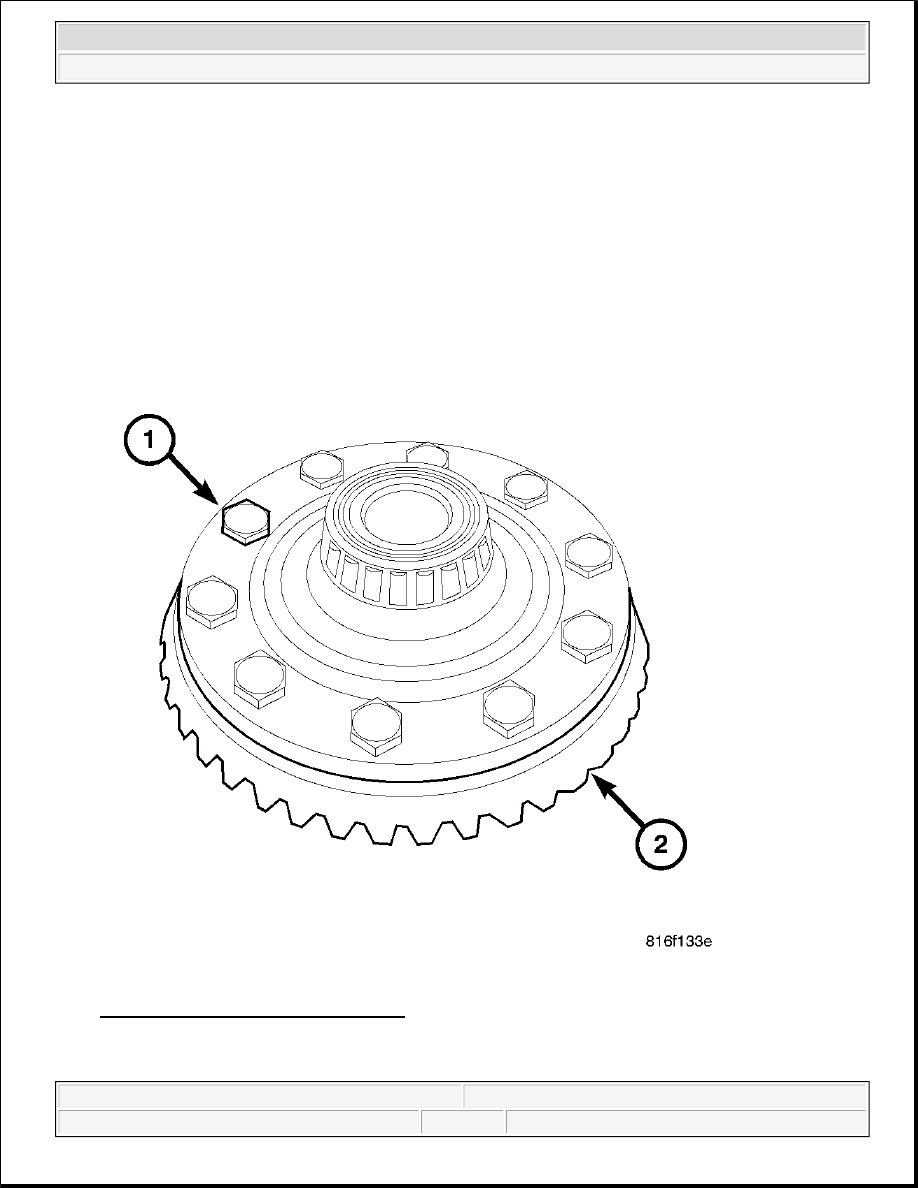

Fig. 207: Identifying Ring Gear & Bolts
Courtesy of CHRYSLER LLC

16. Invert differential case and start two ring gear bolts. This will provide case-to-ring gear bolt hole

CAUTION: Never loosen pinion gear nut to decrease pinion rotating torque and

never exceed specified preload torque. Failure to follow these
instructions will result in damage.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



alignment.

17. Invert differential case in the vise. Install new ring gear (2) bolts (1) and alternately tighten to 108 N.m

(80 ft. lbs.).

18. Install differential in housing.

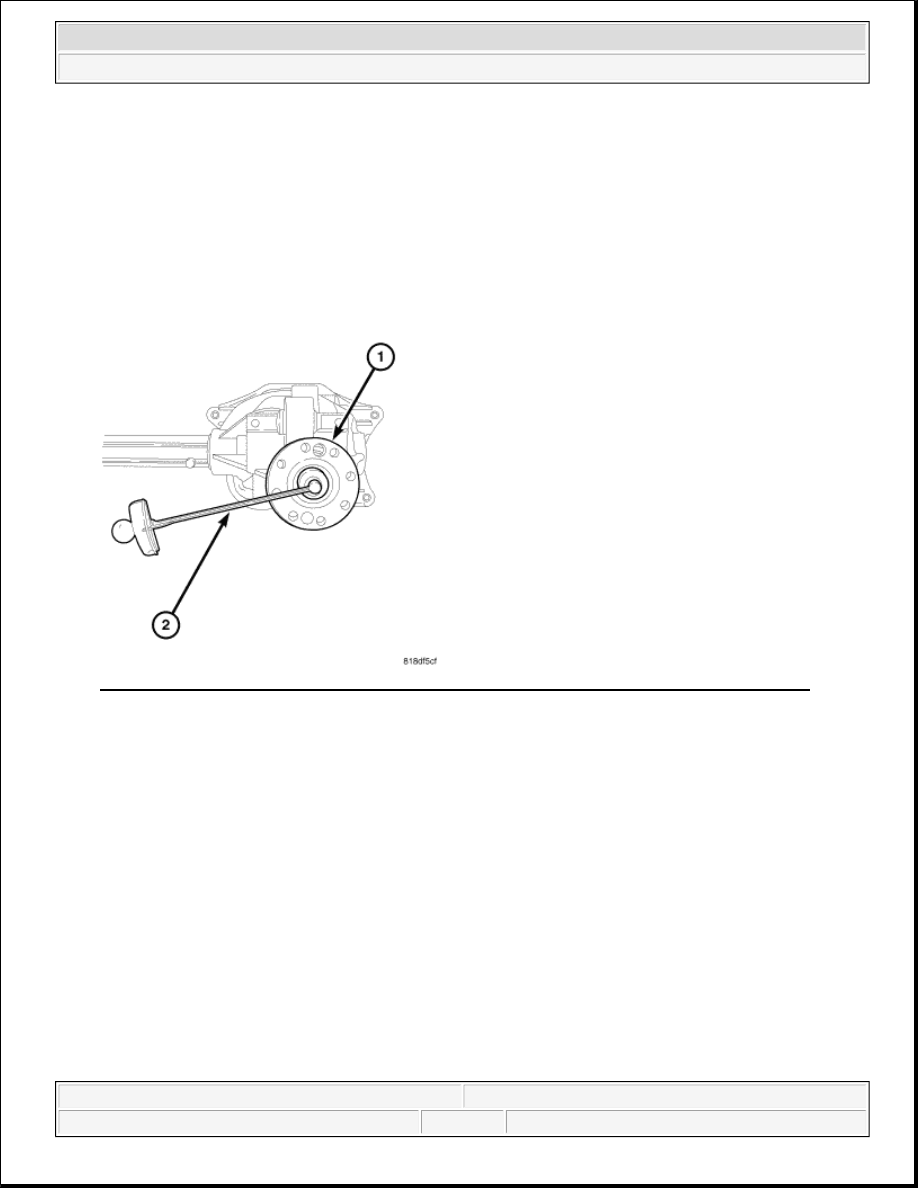

Fig. 208: Measuring Pinion Torque To Rotate (PTTR) With An Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC

19. Measure Total Torque to Rotate (TTTR) with an inch pound torque wrench (2). This will verify the

correct differential bearing preload.

Total Torque to Rotate (TTTR) is Pinion Torque To Rotate (PTTR) plus:

Gear Ratio 3.21: 0.53 - 0.87 N.m (4.6 - 7.7 in. lbs.)

Gear Ratio 3.55: 0.48 - 0.78 N.m (4.2 - 6.9 in. lbs.)

Gear Ratio 3.73: 0.45 - 0.75 N.m (3.9 - 6.6 in. lbs.)

If TTTR is high, decrease shim thickness equally on both sides of the differential and check TTTR
again. If TTTR is low, increase shim thickness equally on both sides of the differential and check
TTTR again.

20. Verify differential gear contact pattern.

REAR AXLE - 8 1/4

CAUTION: Never reuse the ring gear bolts. Failure to follow these instructions

will result in damage.
