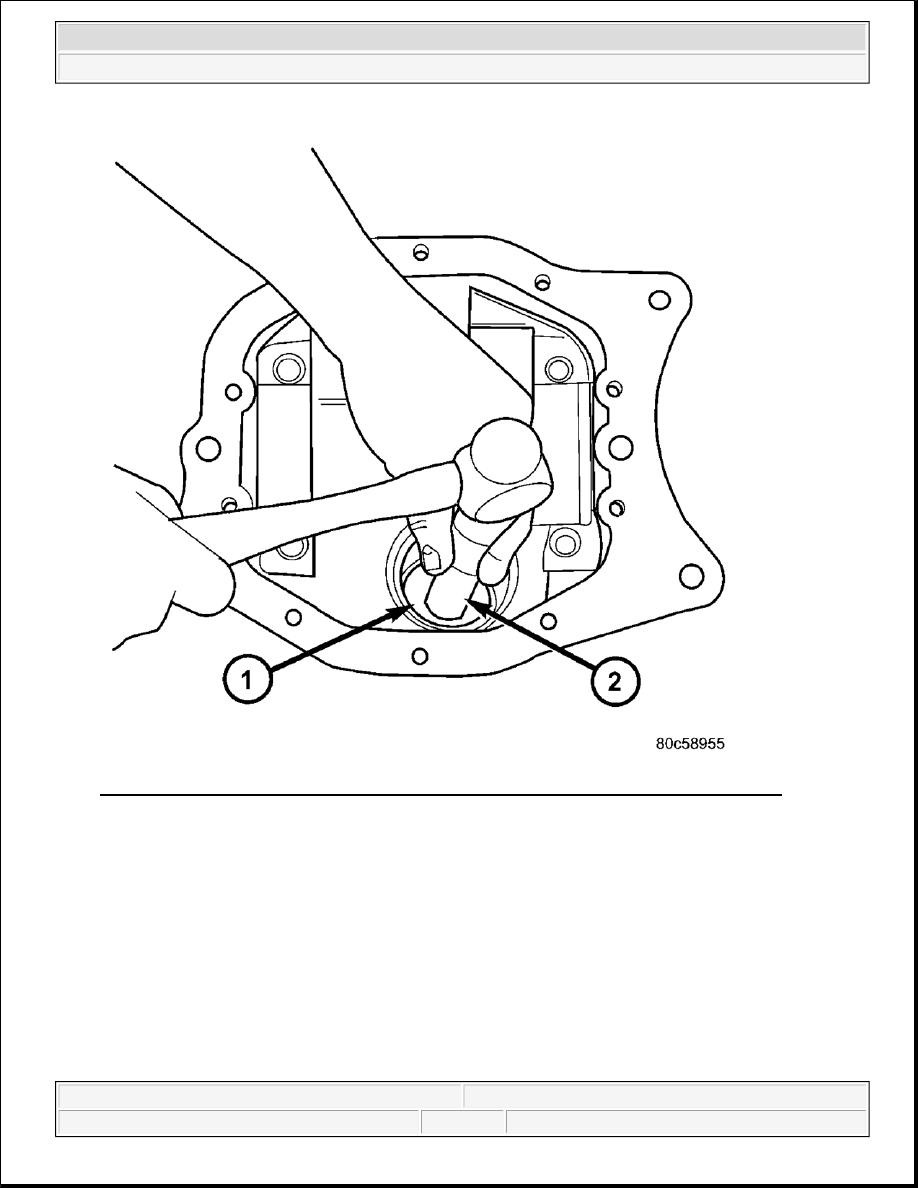

Fig. 192: Removing Front Pinion Bearing Cup With Remover D-149 And Handle C-4171
Courtesy of CHRYSLER LLC

10. Remove rear pinion bearing cup with a hammer and drift.

11. Remove front pinion bearing cup with Remover D-149 (1) and Handle C-4171 (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 193: Removing Collapsible Spacer From Pinion Shaft
Courtesy of CHRYSLER LLC

12. Remove collapsible spacer (1) from pinion shaft (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

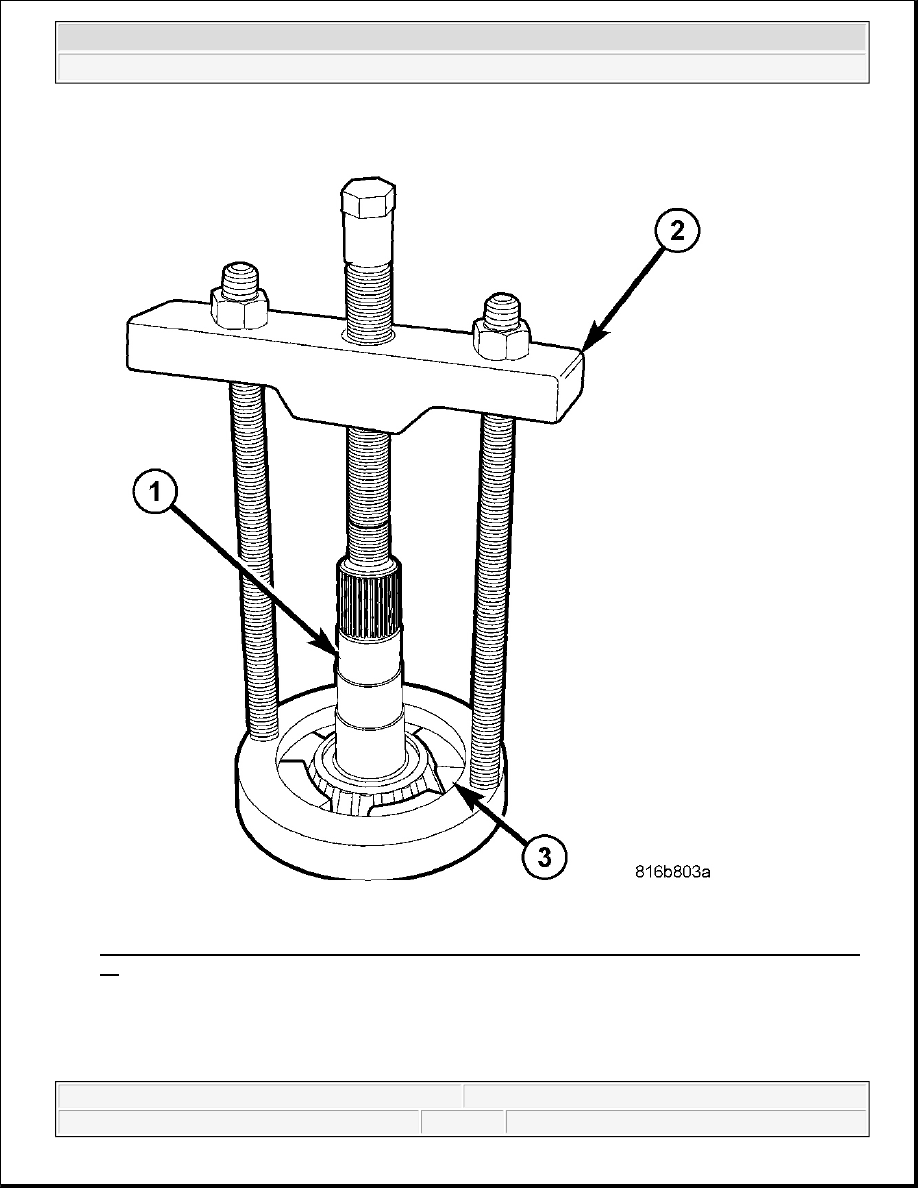

Fig. 194: Removing Rear Pinion Bearing From Pinion With Puller C-293-PA And Adapters C-293-
42
Courtesy of CHRYSLER LLC

13. Remove rear pinion bearing from the pinion (1) with Puller C-293-PA (2) and Adapters C-293-42 (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

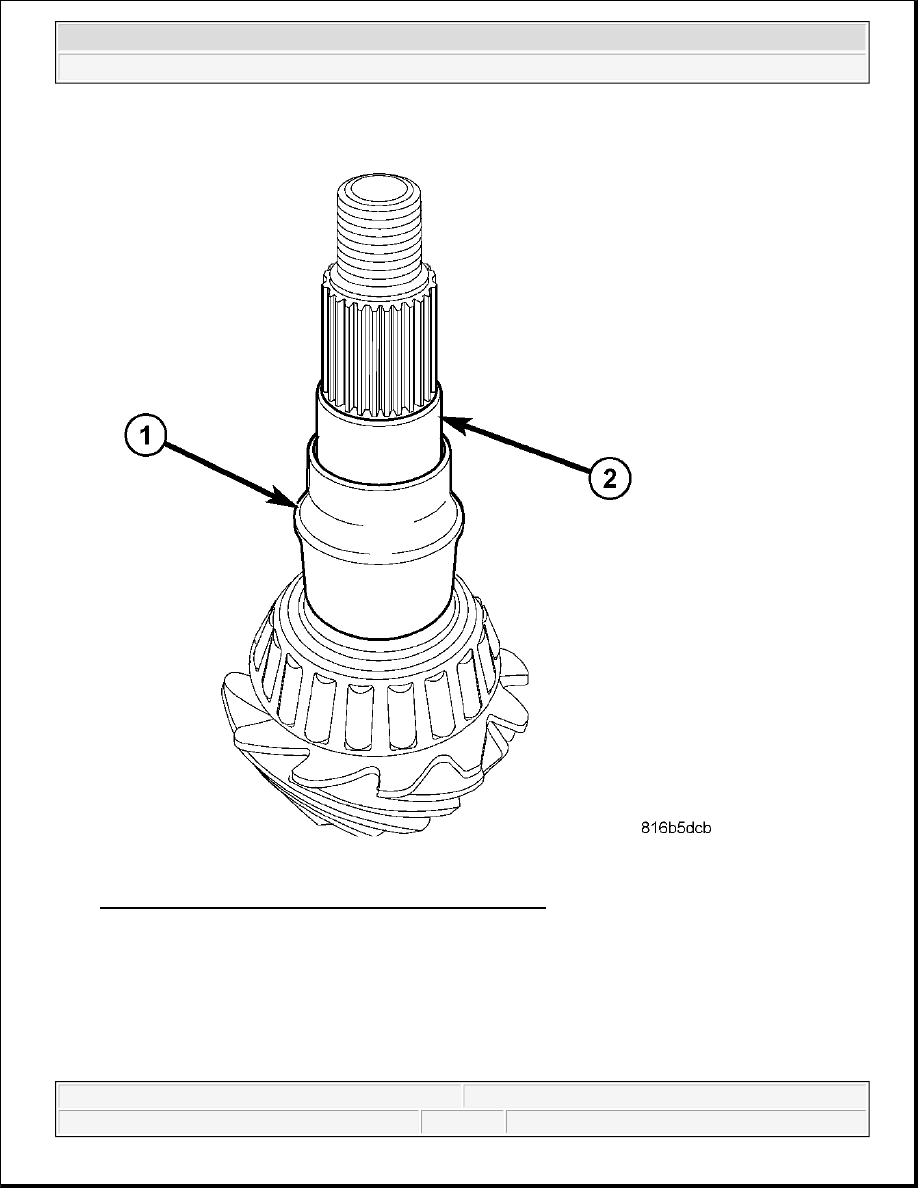

Fig. 195: Removing/Installing Pinion Depth Shim From/On Pinion Shaft
Courtesy of CHRYSLER LLC

14. Remove pinion depth shim (1) from the pinion shaft (2) and record thickness.

INSTALLATION

GEAR-PINION/RING

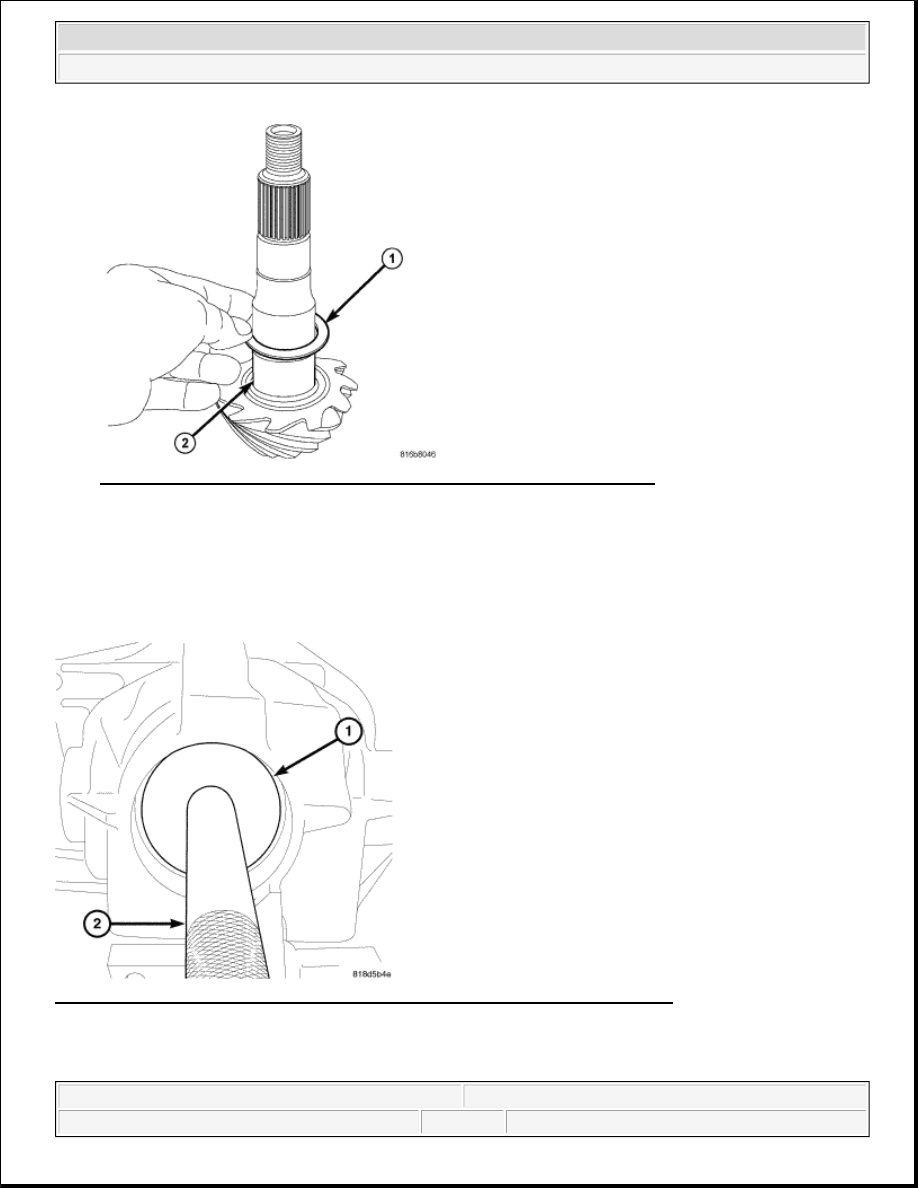

Fig. 196: Installing Front Bearing Cup With Installer D-146 And Handle C-4171
Courtesy of CHRYSLER LLC

NOTE:

Pinion depth shims are located under the rear pinion bearing. Refer to



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
