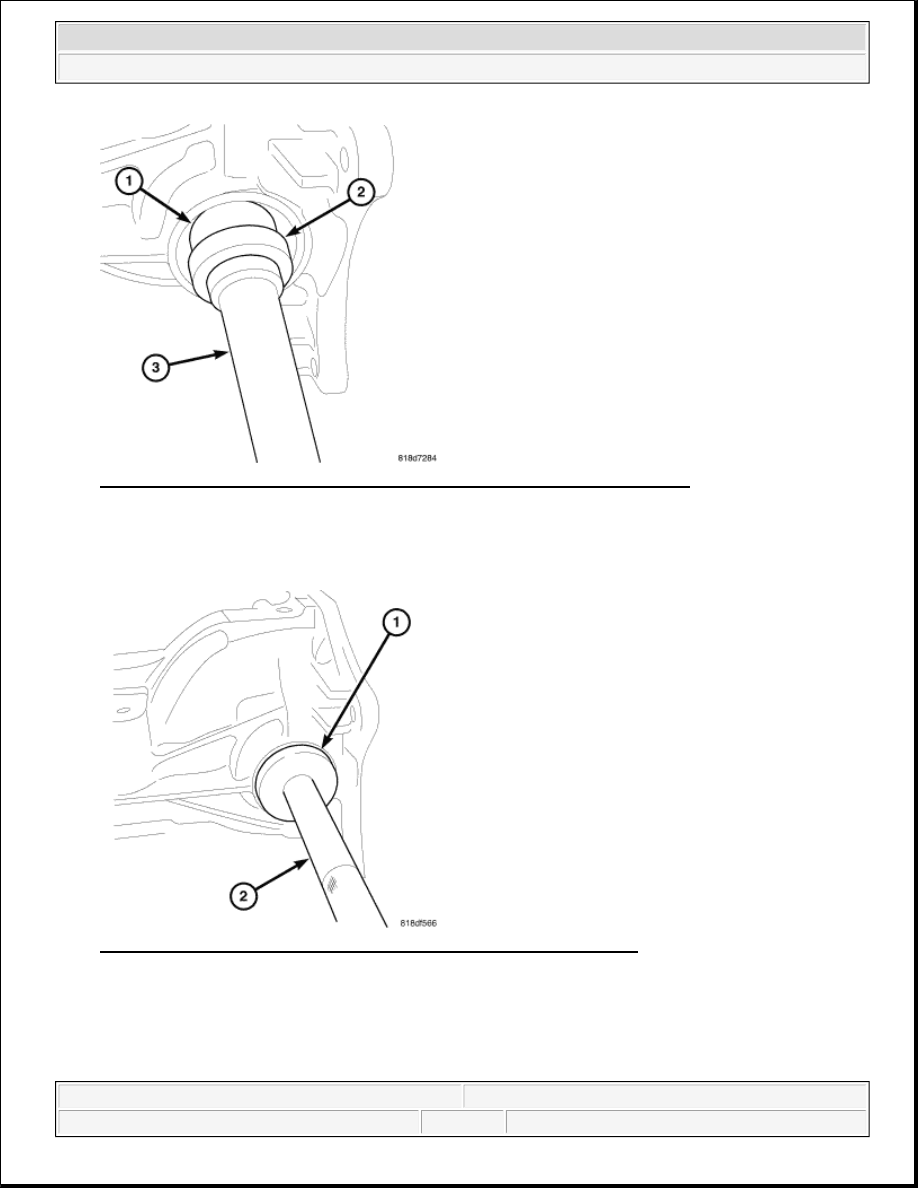

Fig. 160: Identifying Shaft Bearing/Bushing, Installer 8805 & Handle C-4171
Courtesy of CHRYSLER LLC

2. Install shaft bearing/bushing (1) with large diameter end of Installer 8805 (2) and Handle C-4171 (3).

Drive bearing/bushing in flush with housing bore.

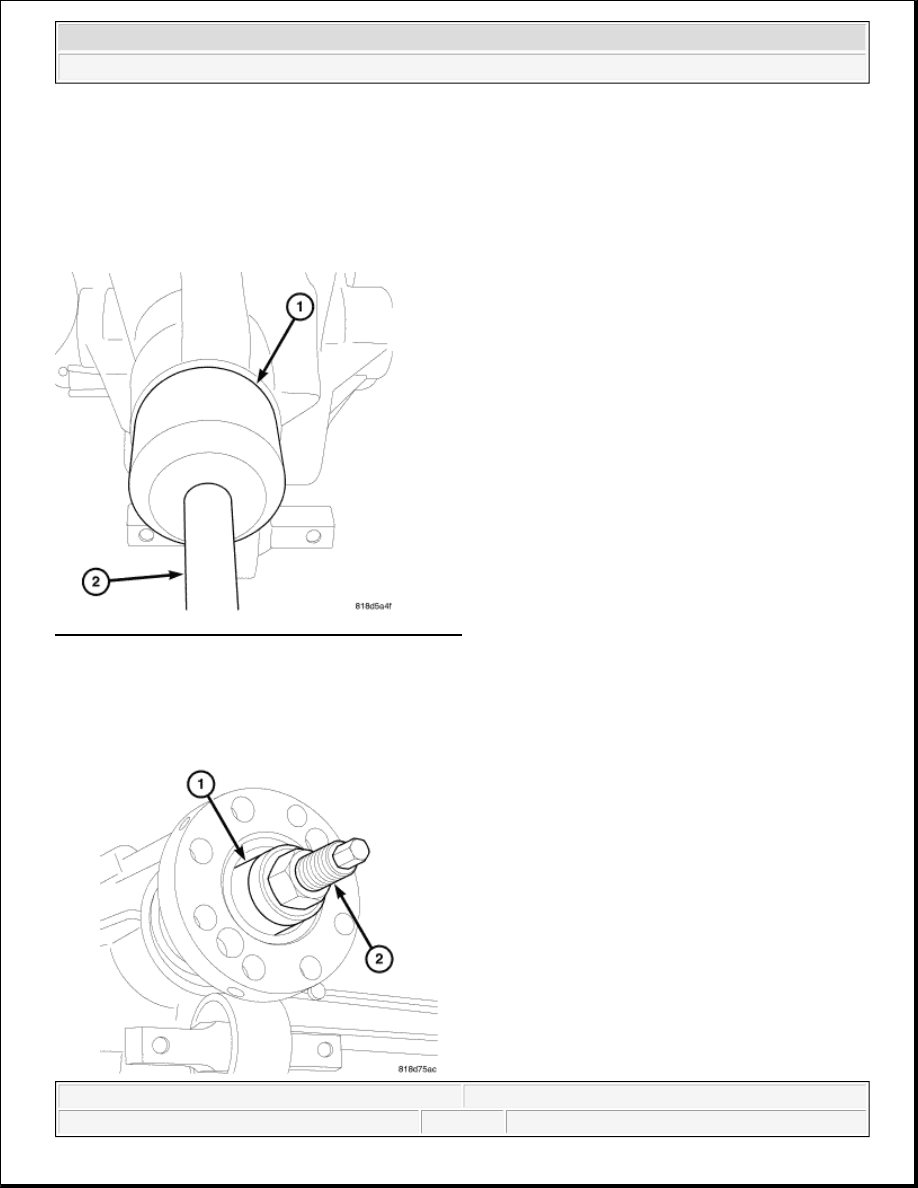

Fig. 161: Installing Shaft Seal With Installer 8806 And Handle C-4171
Courtesy of CHRYSLER LLC

3. Apply a light coat of lubricant on the lip of the shaft seal.

4. Install new shaft seal in axle with Installer 8806 (1) and Handle C-4171 (2).

5. Install right axle shaft and half shafts.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



SEAL-PINION

REMOVAL

SEAL-PINION

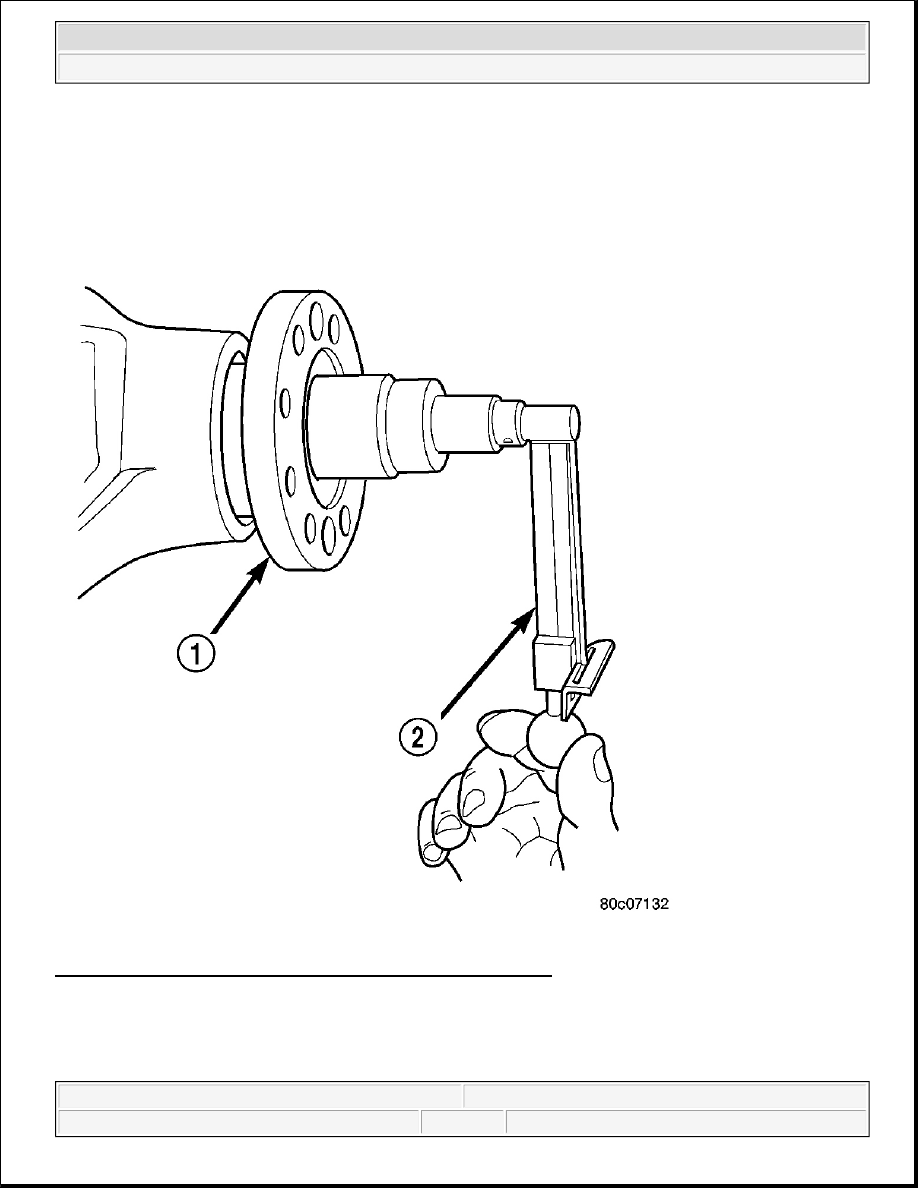

Fig. 162: Pinion Rotation Torque & Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC

1. Remove brake calipers and rotors.

2. Remove propeller shaft.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



3. Rotate pinion gear several times and verify the pinion rotates smoothly.

4. Record pinion torque to rotate (1) with an inch pound torque wrench (2).

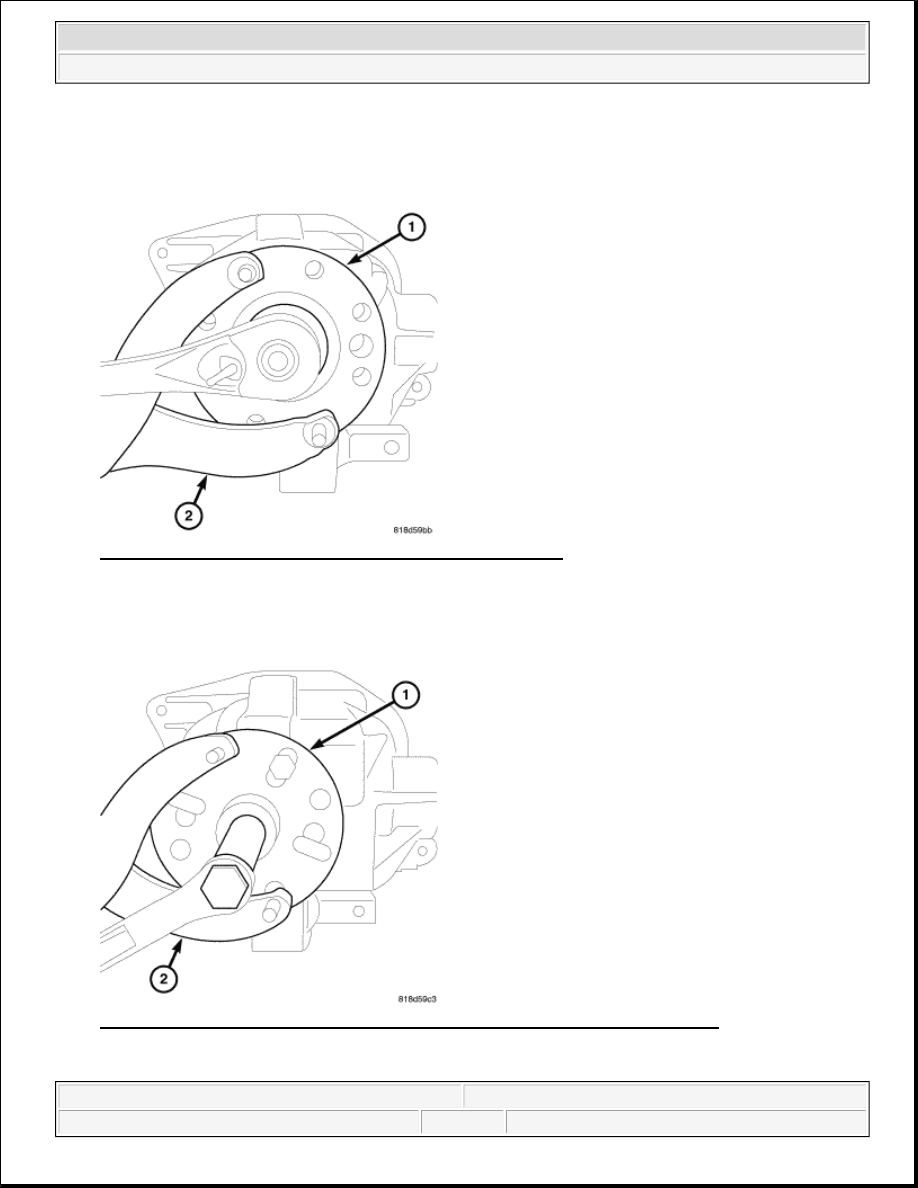

Fig. 163: Holding Pinion Flange With Flange Holder C-3281
Courtesy of CHRYSLER LLC

5. Hold pinion flange (1) with Flange Holder C-3281 (2) and remove pinion nut.

6. Mark a line on the pinion shaft and flange for installation reference.

Fig. 164: Removing Pinion Flange With Puller C-452 And Flange Holder C-3281
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



7. Remove pinion flange with Puller C-452 (1) and Flange Holder C-3281 (2).

8. Remove pinion seal with a seal puller.

INSTALLATION

SEAL-PINION

Fig. 165: Identifying Installer 8681 & Handle C-4171
Courtesy of CHRYSLER LLC

1. Apply a light coating of gear lubricant on the lip of pinion seal. Install with Installer 8681 (1) and Handle

C-4171 (2).
