Verify bushing is aligned with the second side of the bracket. Installer Spacer 9958-1 (3) and press
bushing through the second side of the bracket.

SHAFT-AXLE

REMOVAL

SHAFT-AXLE

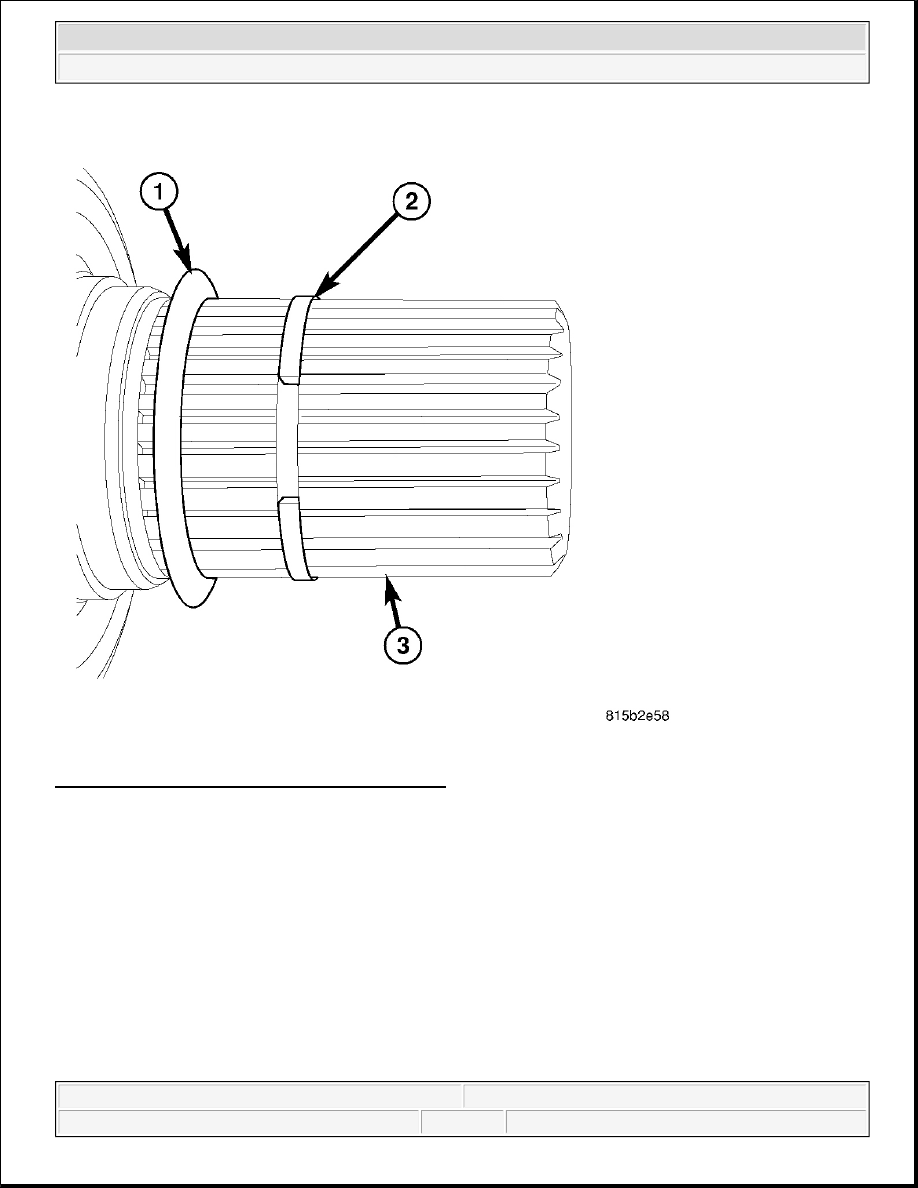

Fig. 149: Identifying Snap Ring, O-Ring And Shaft
Courtesy of CHRYSLER LLC

1. Remove right half shaft from vehicle.

2. Remove O-ring (1) and snap ring (2) and from axle shaft (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



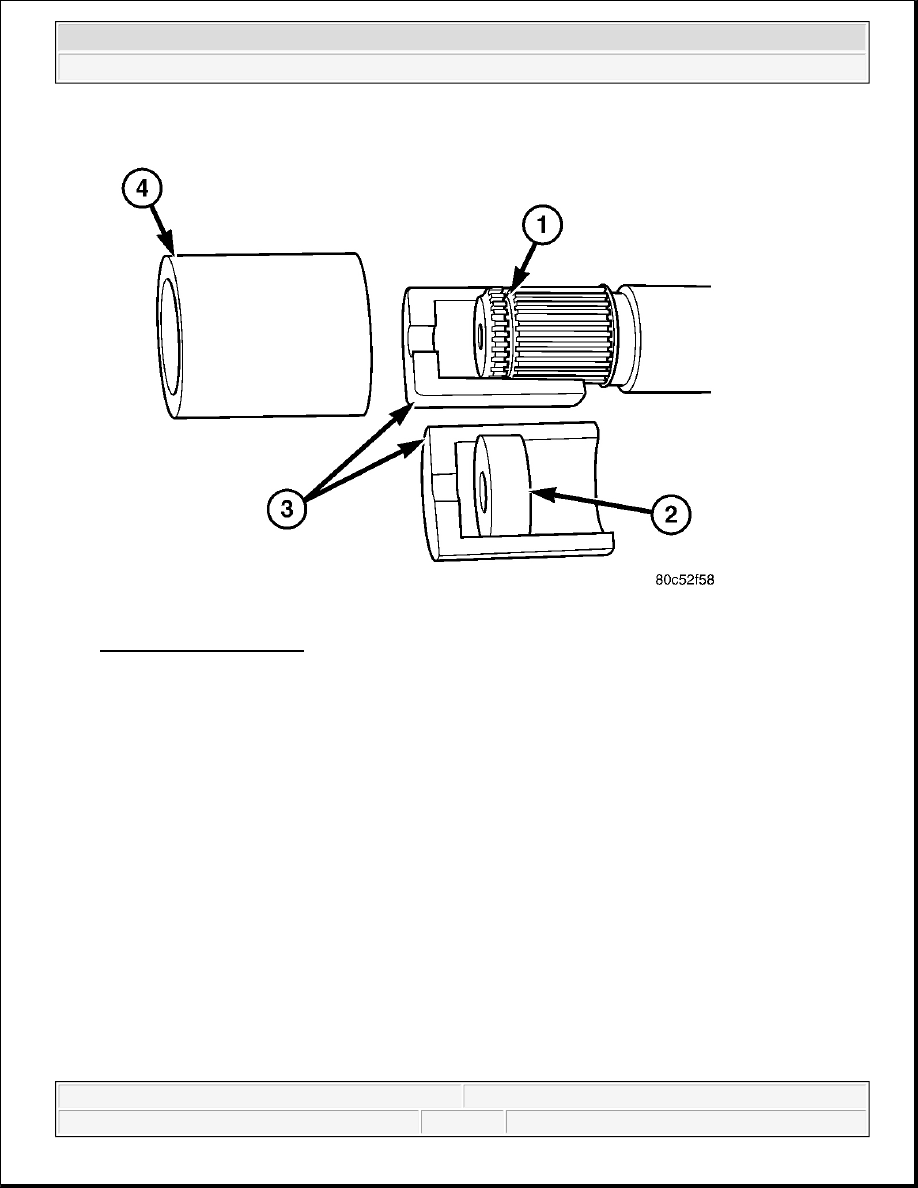

Fig. 150: Axle Shaft Puller
Courtesy of CHRYSLER LLC

3. Assemble Remover 8420A blocks (3) with hammer threads (2) on snap ring groove (1) on right axle

shaft. Slide collar (4) over blocks and thread Slide Hammer C-3752.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



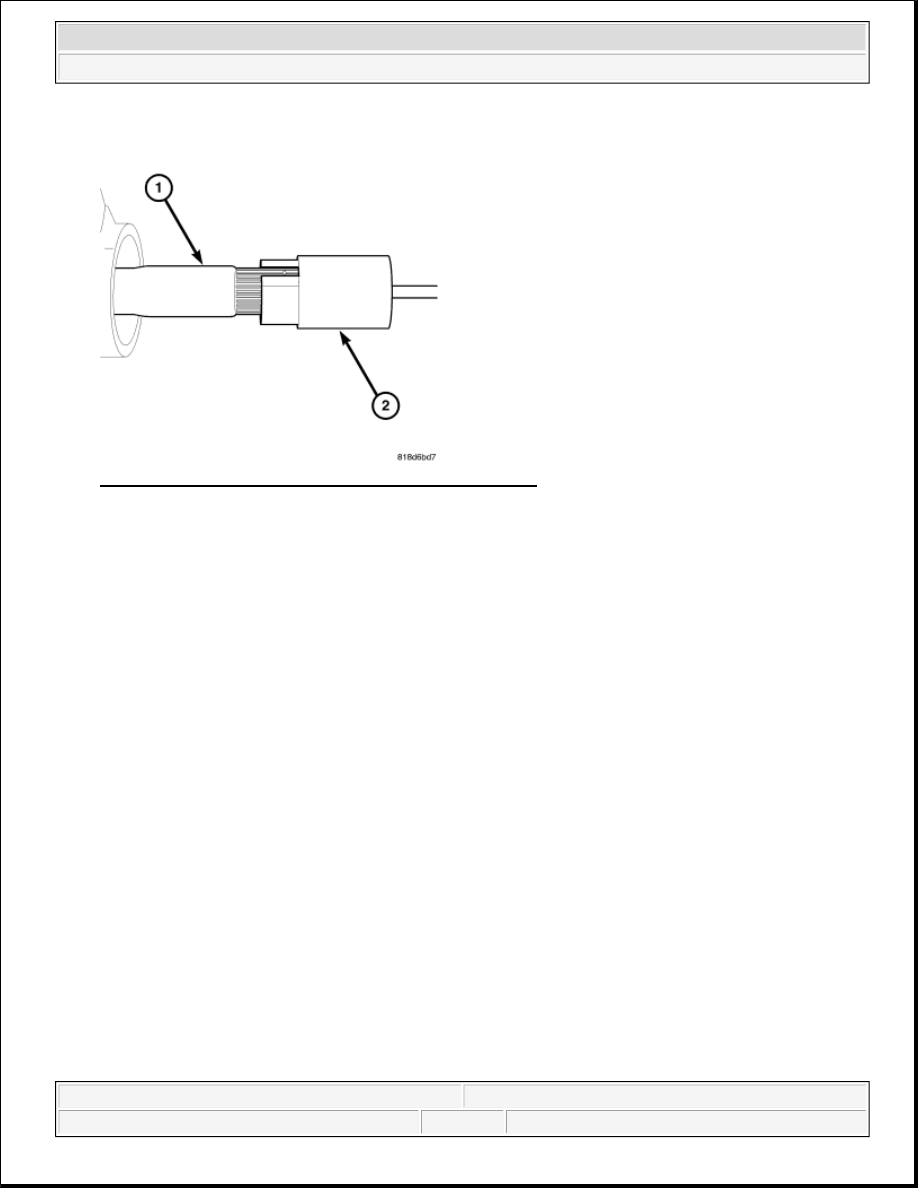

Fig. 151: Identifying Right Axle Shaft & Remover 8420A
Courtesy of CHRYSLER LLC

4. Remove right axle shaft (1) with Remover 8420A (2) and Slide Hammer C-3752.

5. Slide axle shaft out of the axle tube.

INSTALLATION

SHAFT-AXLE



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



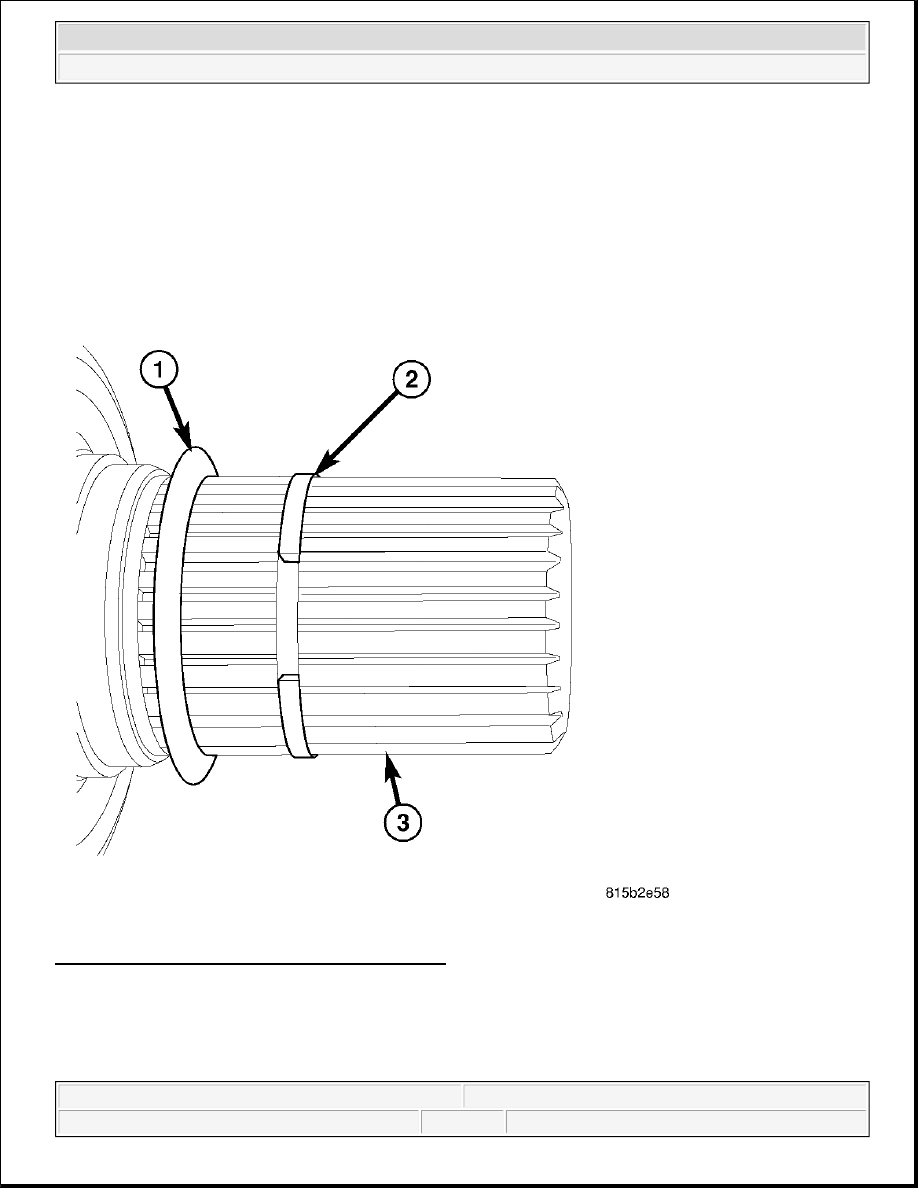

Fig. 152: Identifying Snap Ring, O-Ring And Shaft
Courtesy of CHRYSLER LLC

1. Lubricate bearing bore and seal lip with gear lubricant. Insert axle shaft through seal, bearing and engage

it into side gear splines.

2. Install O-ring (1) and snap ring (2) on axle shaft (3).

3. Push the axle shaft until the axle shaft snap-ring passes through the side gear.

4. Install right half shaft.

5. Check differential fluid level.

SEAL-AXLE SHAFT

NOTE:

Use care to prevent shaft splines from damaging axle shaft seal.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
