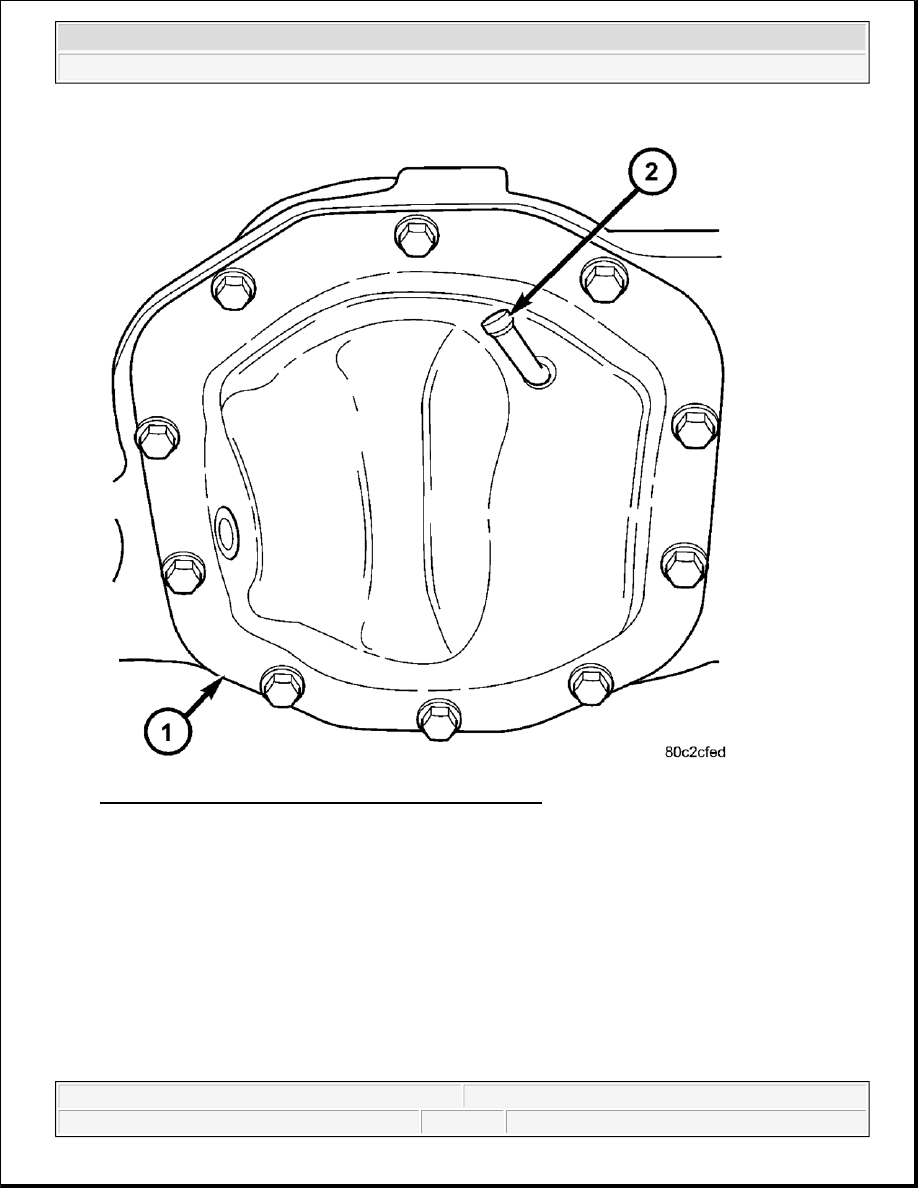

Fig. 136: Removing/Installing Differential Housing Cover
Courtesy of CHRYSLER LLC

3. Install differential housing cover (1) and tighten bolts in a criss-cross pattern to 19-26 N.m (14-19 ft.

lbs.).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

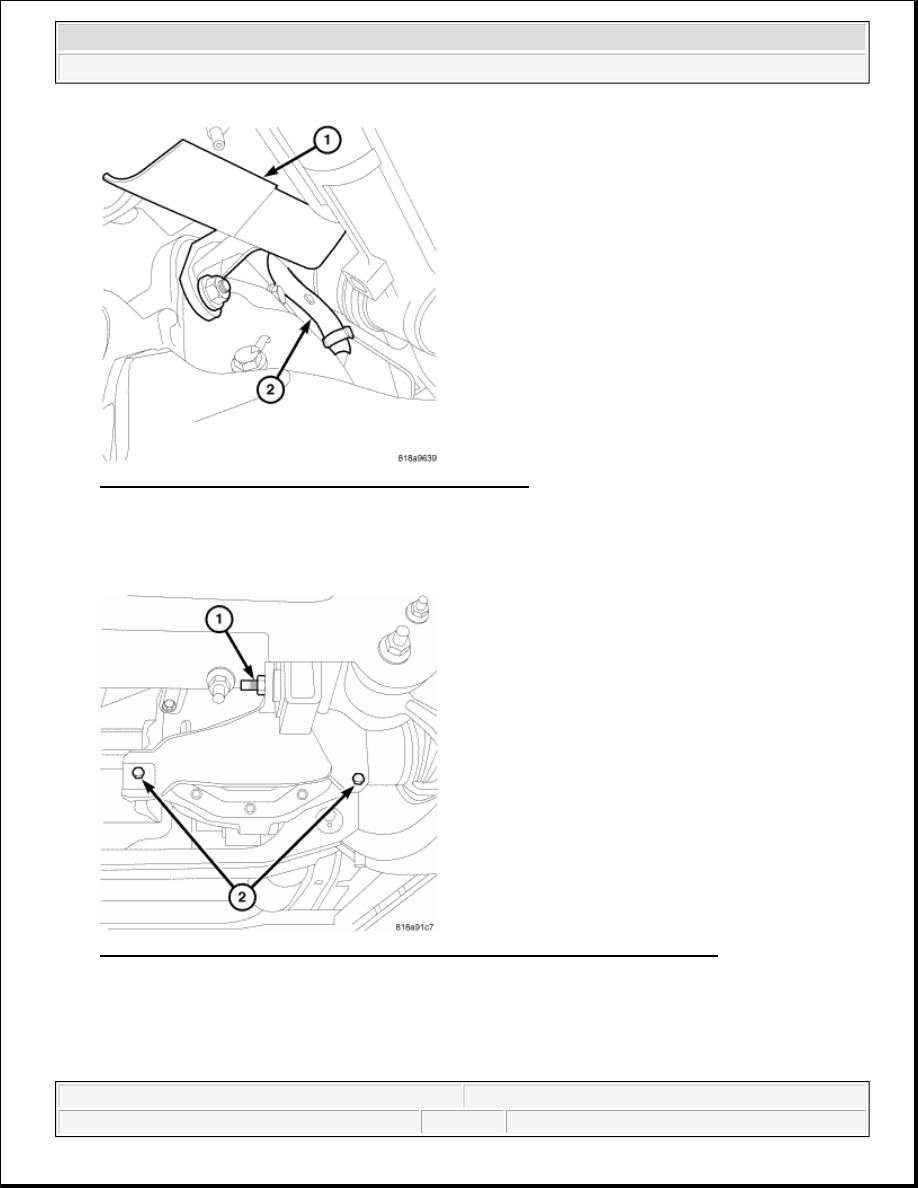

Fig. 137: Identifying Oil Filter Drain Tray & Vent Hose
Courtesy of CHRYSLER LLC

4. Install oil filter drain tray (1) and tighten nut to 23 N.m (200 in. lbs.).

5. Install vent hose (2) on differential cover with new clamp.

Fig. 138: Identifying Front Axle Bracket Cradle Nut & Front Axle Bracket Bolts
Courtesy of CHRYSLER LLC

6. Install front axle bracket bolts (2) and nuts. Tighten nuts to 61 N.m (45 ft. lbs.).

7. Tighten front axle bracket cradle nut (1) to 61 N.m (45 ft. lbs.).

8. Install skid plate.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



BUSHING-AXLE

REMOVAL

BUSHING-AXLE

PINION NOSE BUSHING

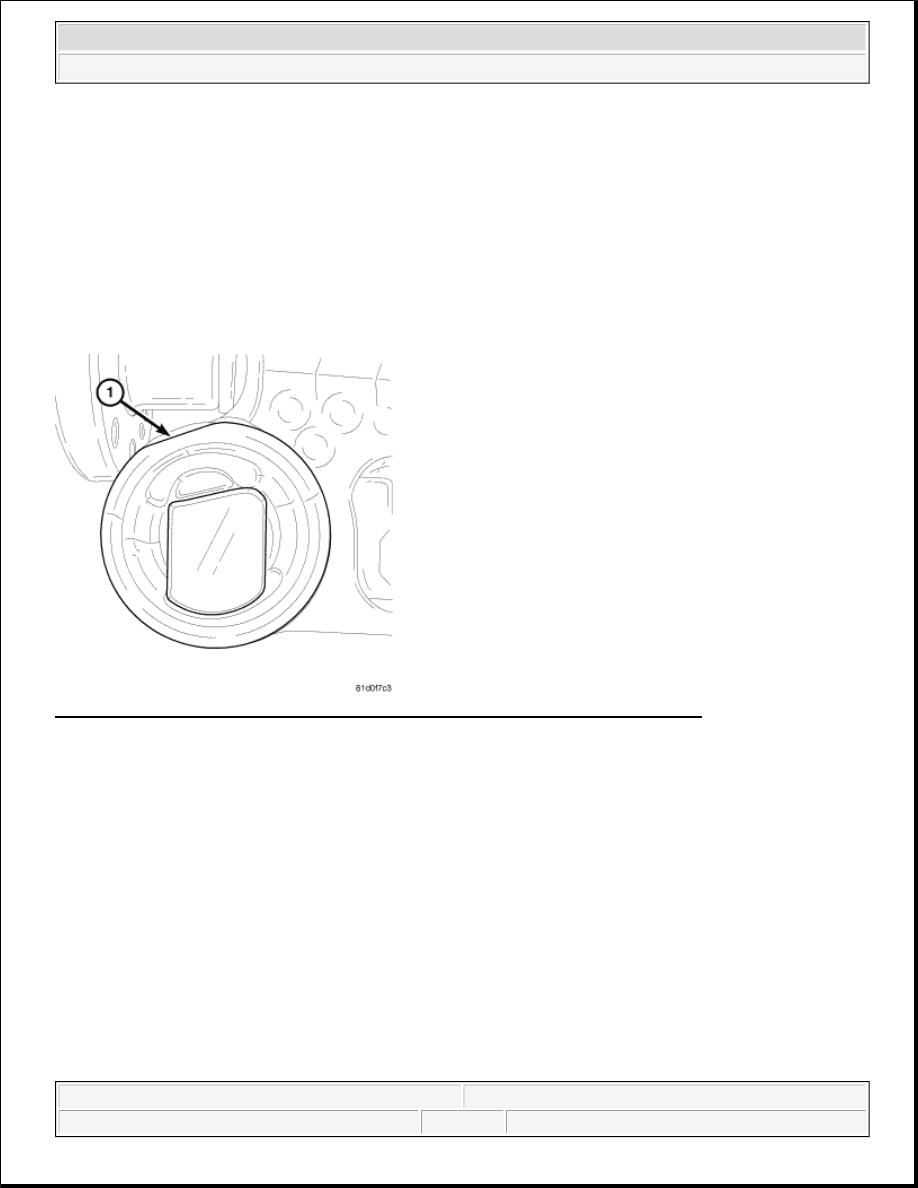

Fig. 139: Marking Bushing Flange Flat Location On Axle For Installation Reference
Courtesy of CHRYSLER LLC

1. Mark bushing flange flat location (1) on the axle for installation reference.

CAUTION: Bushing must be installed in the original location ± 2 degrees. Failure to

follow these instruction will result in a NVH problem.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 140: Removing Pinion Nose Bushing With Remover 9958-5 And Handle C-4171
Courtesy of CHRYSLER LLC

2. Remove pinion nose bushing (1) with Remover 9958-5 (2) and Handle C-4171 (3). Drive bushing out

with a hammer.

AXLE TUBE BUSHING

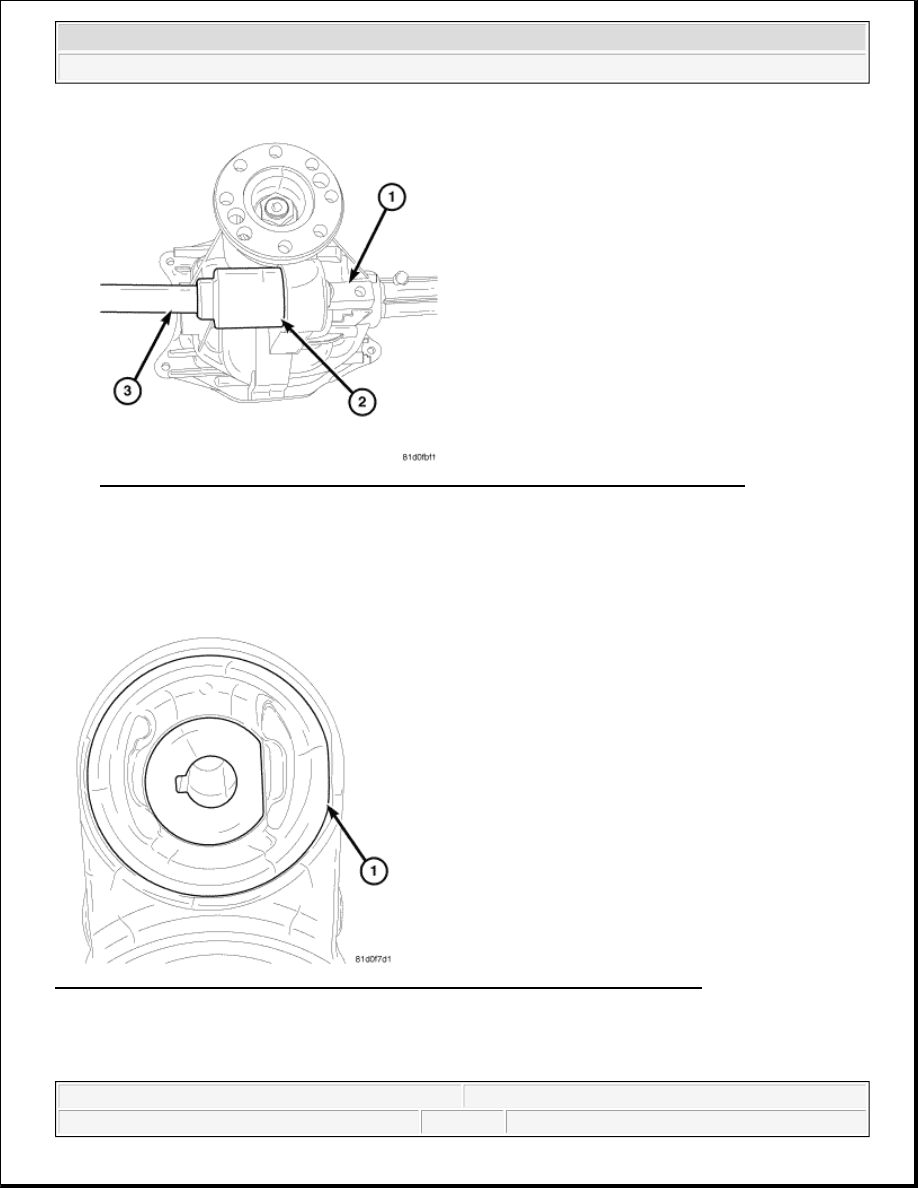

Fig. 141: Marking Bushing Flange Flat Location On Axle For Installation Reference
Courtesy of CHRYSLER LLC

1. Mark bushing flange flat location (1) on the axle for installation reference.
