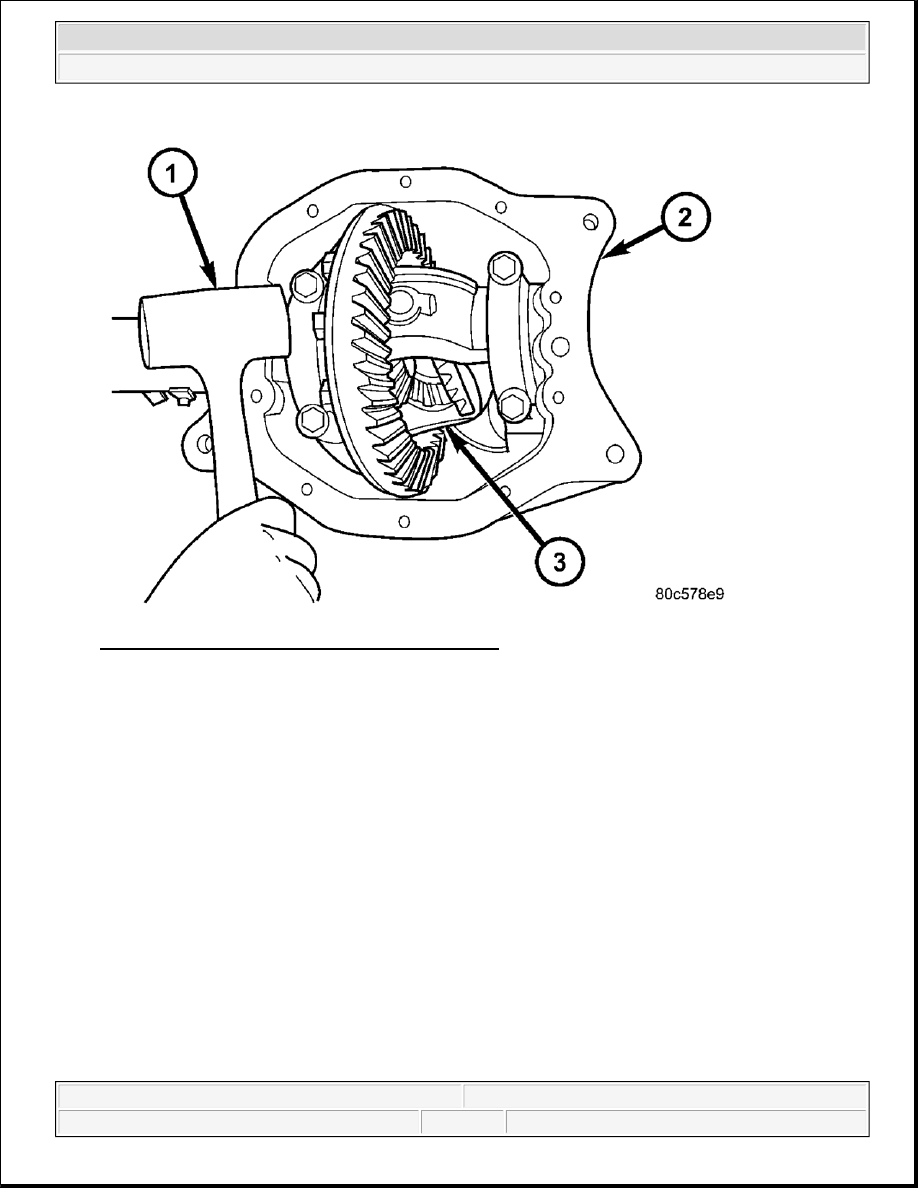

Fig. 88: Identifying Dead-Blow Hammer & Housing
Courtesy of CHRYSLER LLC

7. With a dead-blow hammer (1), seat differential dummy bearing to pinion side of the housing (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 89: Seat Dummy Bearing Ring Gear Side
Courtesy of CHRYSLER LLC

8. With a dead-blow hammer (2), seat differential dummy bearing to ring gear (3) side of the housing (1).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

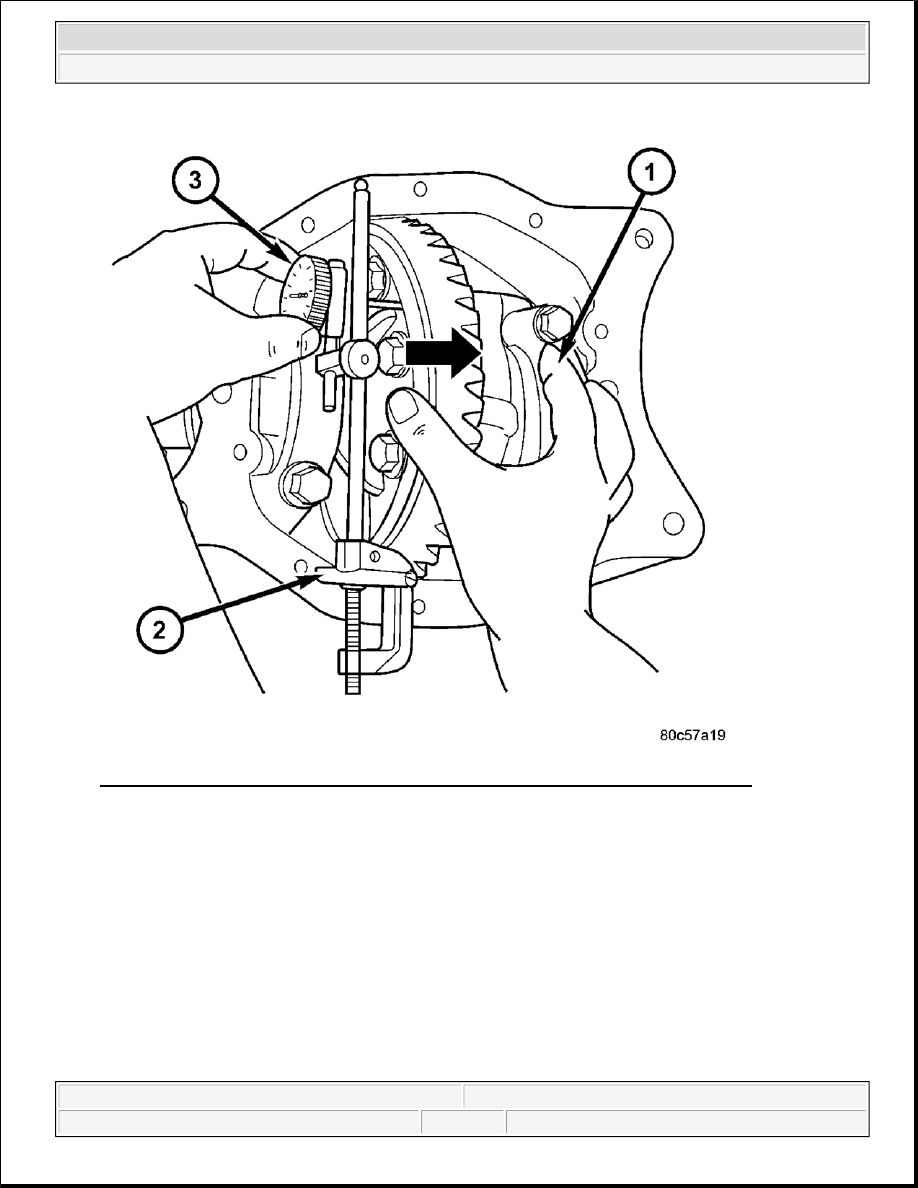

Fig. 90: Identifying Pinion Gear Side, Pilot Stud C-3288-B & Dial Indicator C-3339A
Courtesy of CHRYSLER LLC

9. Thread Pilot Stud C-3288-B (2) into rear cover bolt hole below ring gear.

10. Attach a Dial Indicator C-3339A (3) to the Pilot Stud. Position the dial indicator plunger on flat surface

between the ring gear bolts.

11. Push and hold differential case to pinion gear side (1) of the housing and zero dial indicator.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

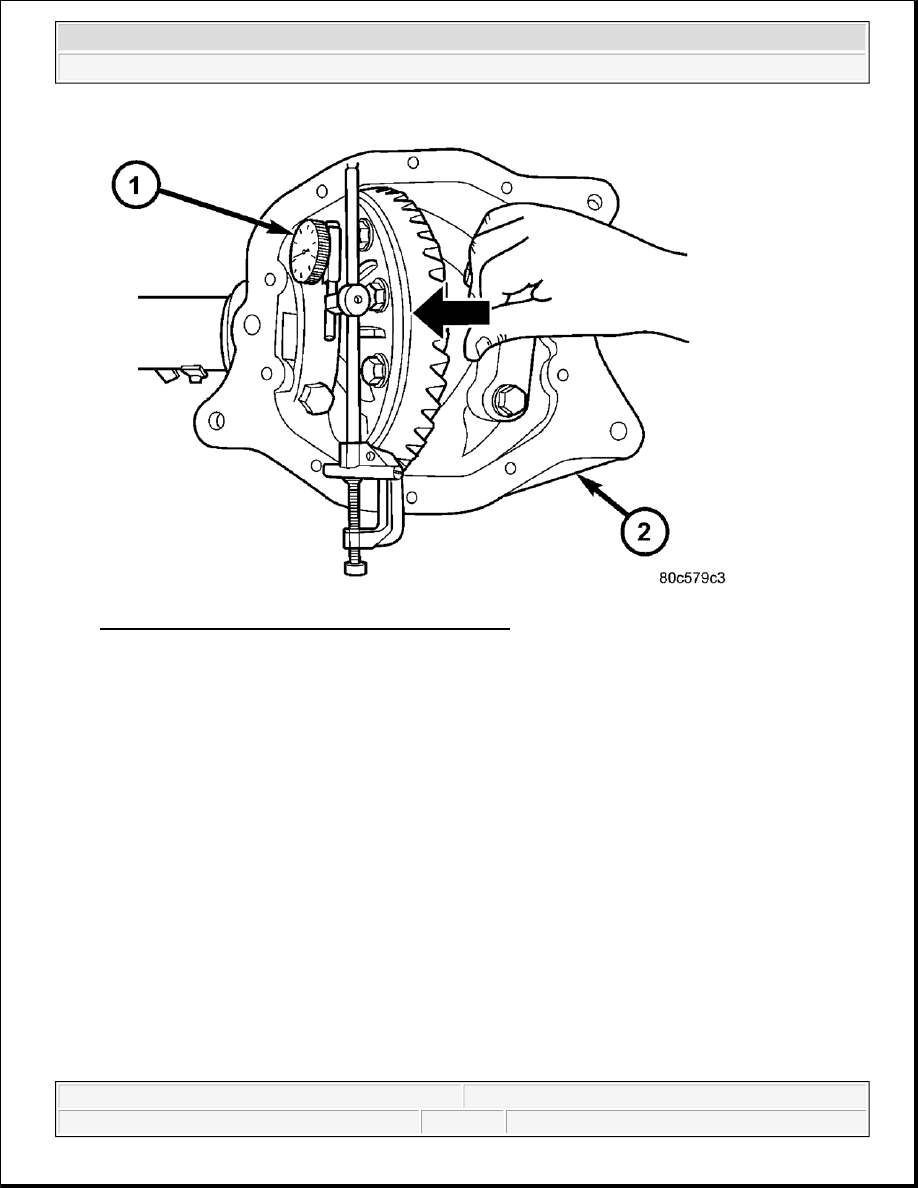

Fig. 91: Identifying Record Dial Indicator & Housing
Courtesy of CHRYSLER LLC

12. Push and hold differential case to ring gear side of the housing (2) and record dial indicator (1) reading.

13. Add dummy shims thickness 6 mm (0.236 in.) plus preload specification 0.152 mm (0.006 in.) to the dial

indicator reading. This is the total shim thickness needed to preload the new bearings when the
differential is installed.

EXAMPLE: Differential Dial Indicator Reading + Dummy Shims 6 mm (0.236 in.) + Preload
Specification 0.152 mm (0.006 in.) = Total Differential Shim

14. Rotate dial indicator out of the way on the pilot stud.

15. Remove differential case and dummy bearings from the housing.
