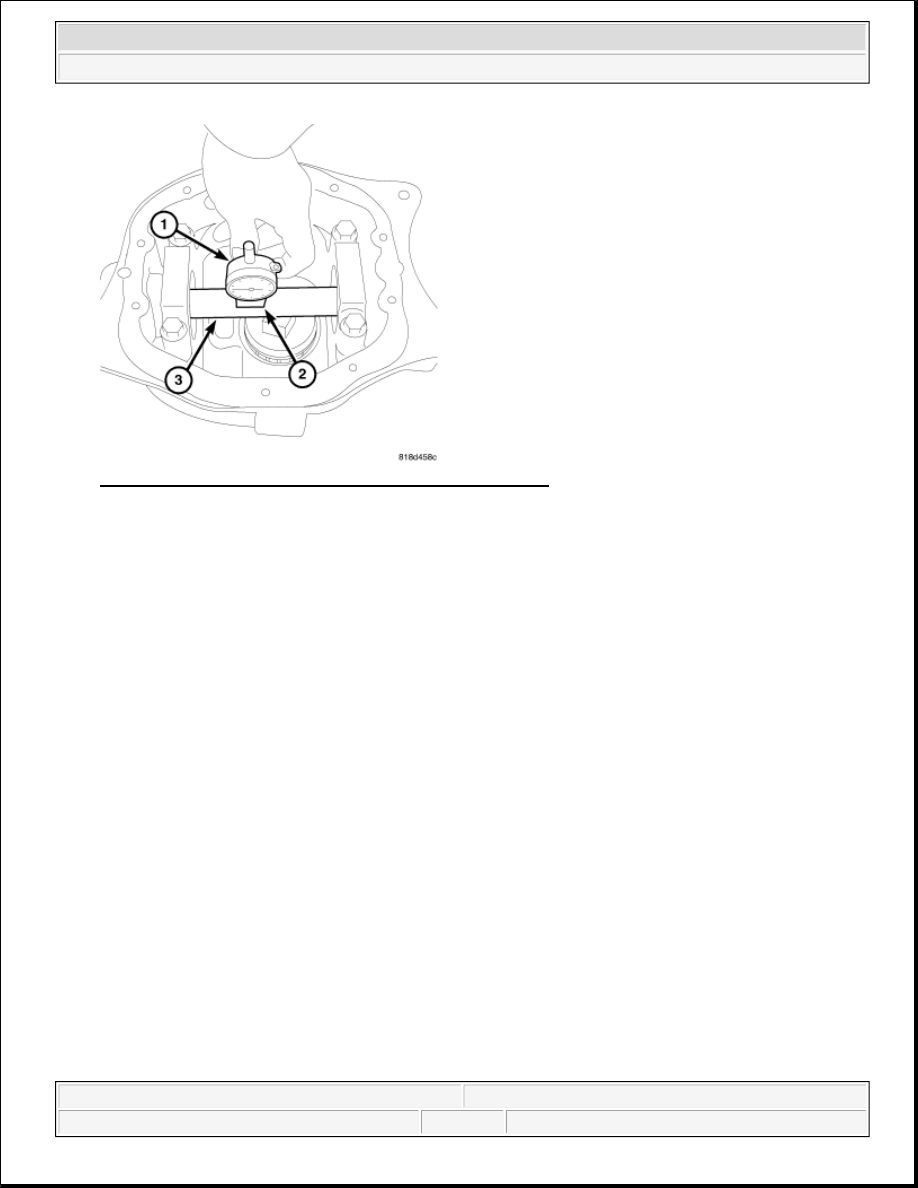

Fig. 84: Identifying Dial Indicator, Scooter Block & Arbor
Courtesy of CHRYSLER LLC

6. Assemble Dial Indicator C-3339A into Scooter Block D-115-2 and secure set screw.

7. Position Dial Indicator (1) with Scooter Block (2) flush on the pinion height block. Hold scooter block

and zero the dial indicator.

8. Slowly slide the scooter block (2) across the pinion block over to the arbor (3). Move the scooter block

till the dial indicator probe crests the arbor (3) and record the highest reading.

9. Select a shim equal to the dial indicator reading plus or minus the pinion depth variance number on the

face of the pinion. For example: If the depth variance is -2, add 0.002 in. to the dial indicator reading. If
the depth variance is +2, subtract 0.002 in. from the dial indicator reading.

DIFFERENTIAL SIDE BEARING PRELOAD AND GEAR BACKLASH



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



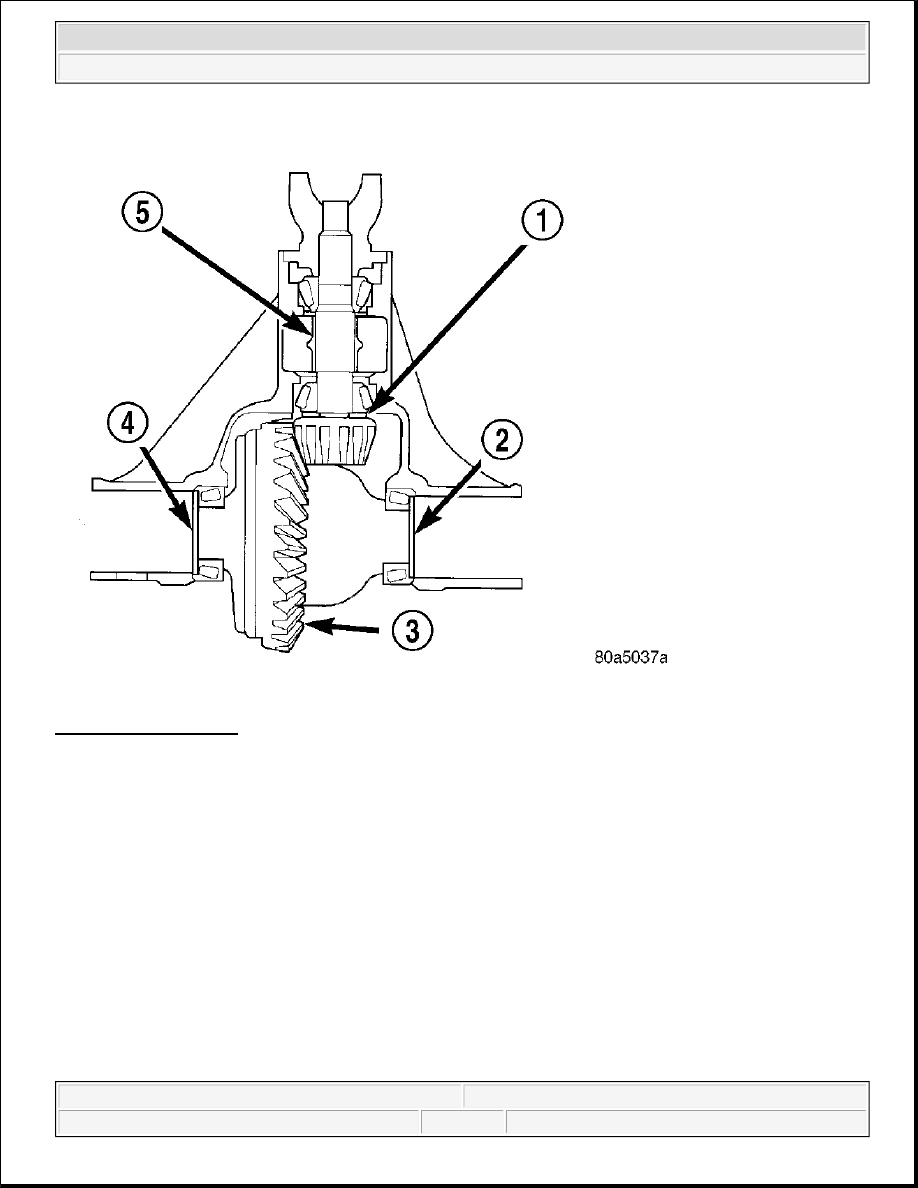

Fig. 85: Shim Locations
Courtesy of CHRYSLER LLC

Differential bearing preload and gear backlash is achieved with selective shims (2) (4) located between the
differential bearing cups and differential housing. Shim thickness is determined using Dummy Bearings D-348
and Dummy Shims 8107 in place of the differential side bearings and preload shims.

Before measuring differential bearing preload and gear backlash, pinion gear depth must be established and
pinion gear prepared for installation. Pinion gear depth is essential to establishing gear backlash and tooth
contact patterns.

PRELOAD SHIM SELECTION



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



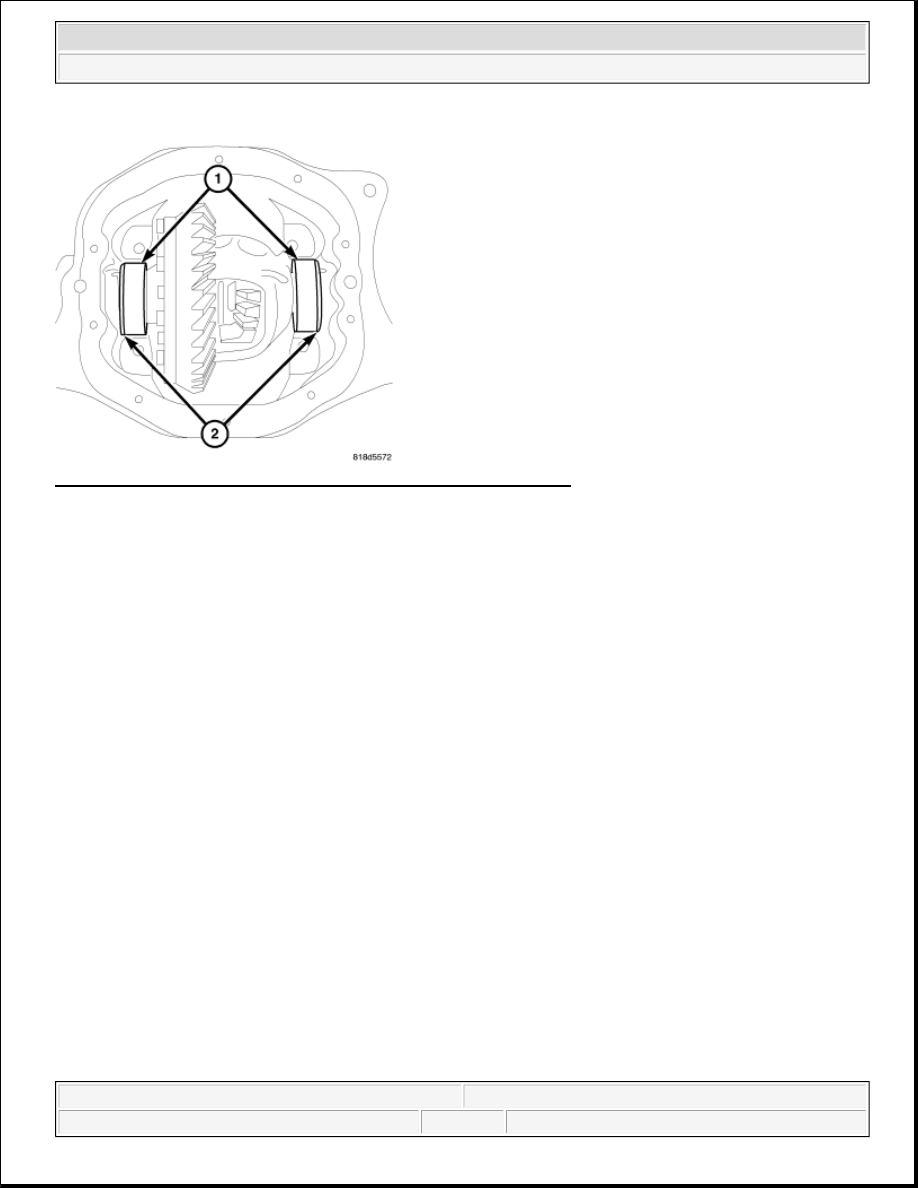

Fig. 86: Identifying Dummy Bearings D-348 & Dummy Shims 8107
Courtesy of CHRYSLER LLC

1. Remove differential side bearings from differential case.

2. Install ring gear on differential case and tighten bolts to specification.

3. Install Dummy Bearings D-348 (1) on differential case.

4. Install differential case in the housing.

5. Record thickness of Dummy Shims 8107 (2) then install shims between dummy bearings and differential

housing.

NOTE:

Each dummy shim is 3 mm (0.118 in.) thick.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



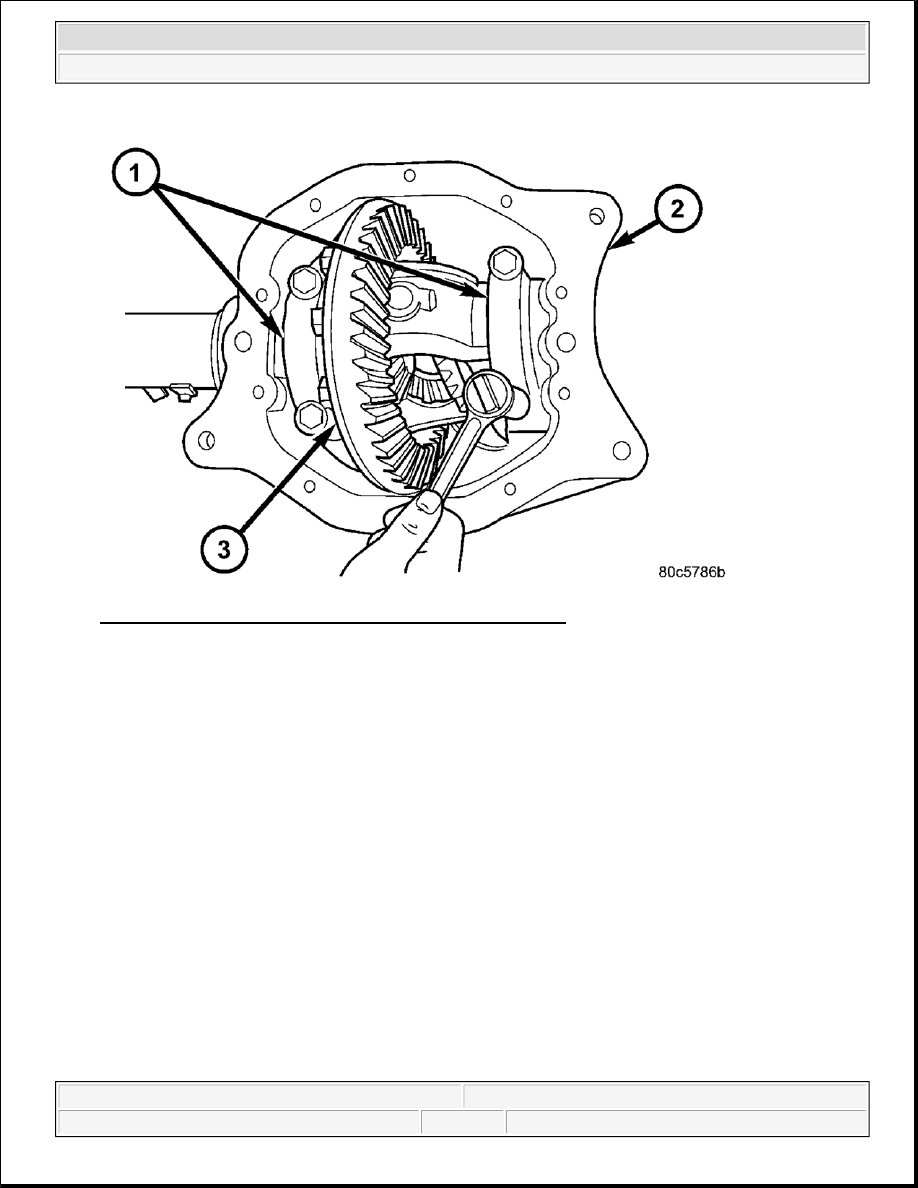

Fig. 87: Identifying Bearing Caps & Snug Bearing Cap Bolts
Courtesy of CHRYSLER LLC

6. Install bearing caps (1) in their correct positions and snug bearing cap bolts (3).
