1. Disconnect negative battery cable.

2. Remove fan blade/viscous fan drive assembly from water pump using special tool 6958 spanner wrench,

by turning mounting nut counterclockwise as viewed from front. Threads on viscous fan drive are
RIGHT HAND.

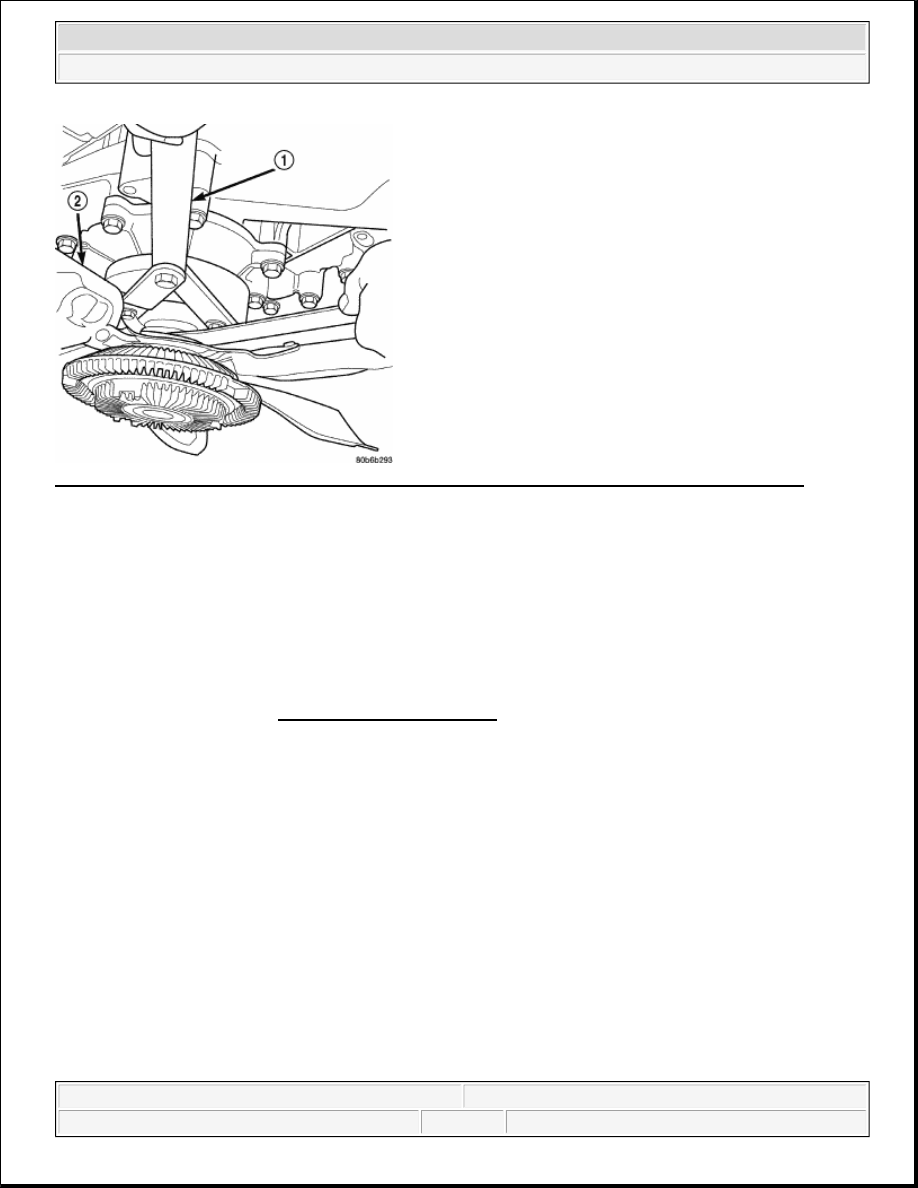

1 - SPECIAL TOOL 6958 SPANNER WRENCH
2 - FAN

NOTE:

The thermal viscous fan drive/fan blade assembly is attached (threaded) to
fan support.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



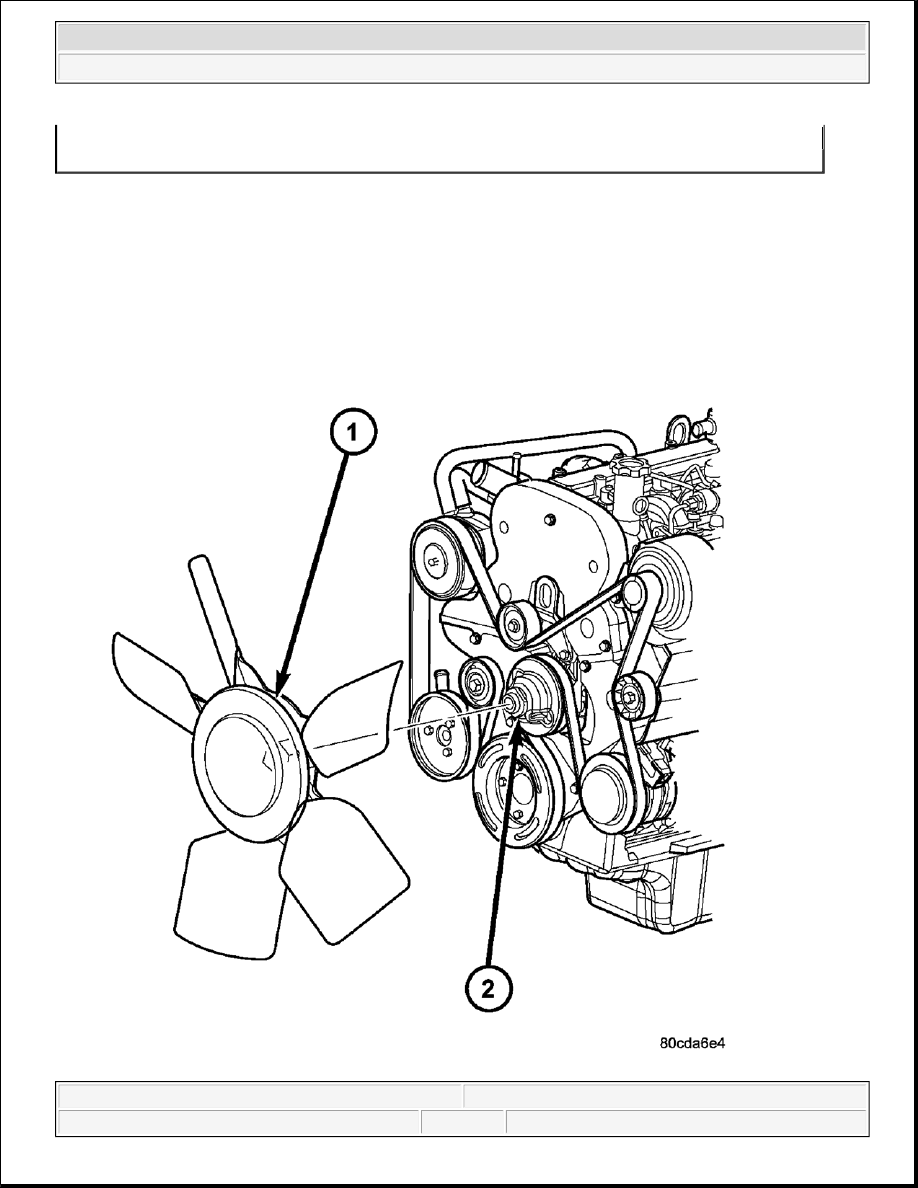

Fig. 58: Cooling Fan And Fan Drive Viscous Clutch Assembly & Fan Support
Courtesy of CHRYSLER LLC

3. Do not attempt to remove fan/fan drive viscous clutch assembly (1) from vehicle at this time.

4. Do not unbolt fan blade assembly from fan drive viscous clutch at this time.

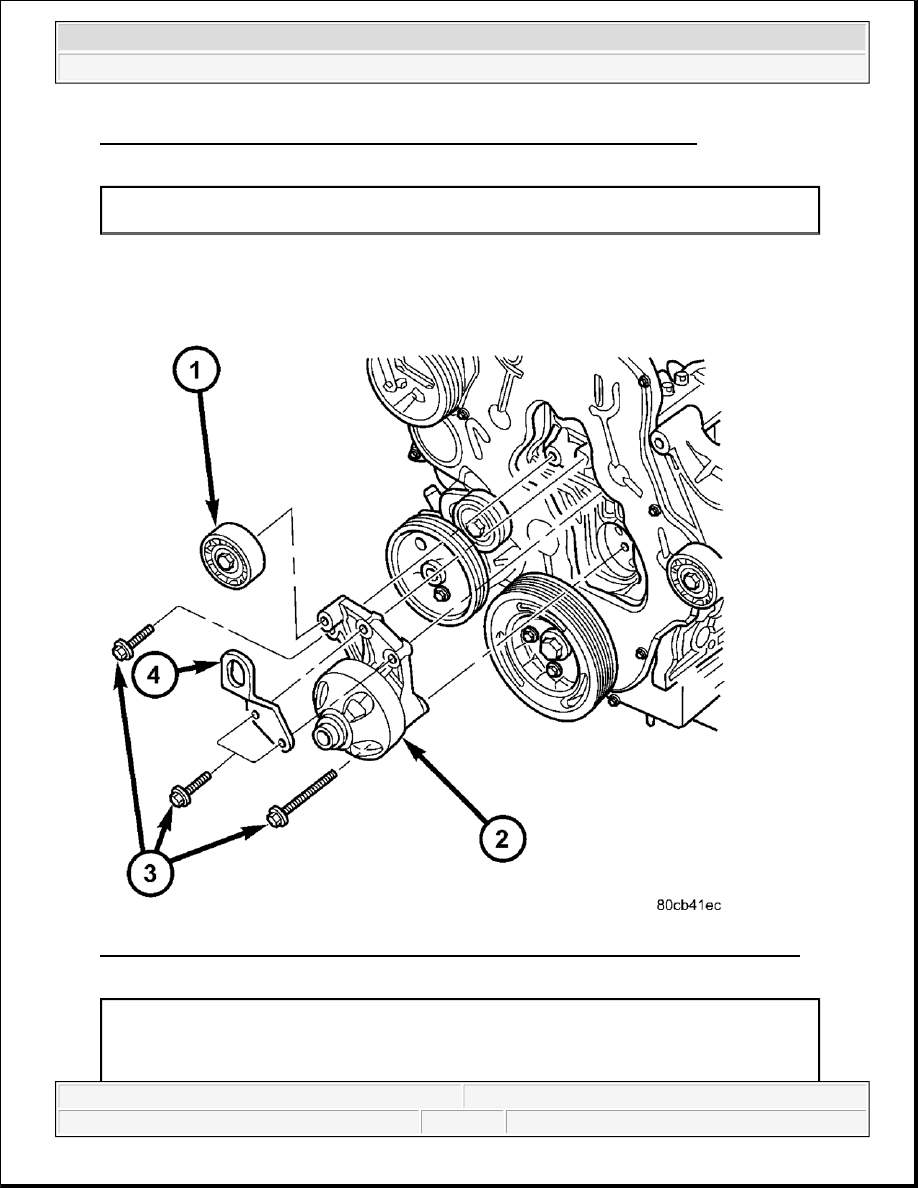

Fig. 59: Identifying Idler Pulley, Cooling Fan Support, Retaining Bolts & Engine Lift Hook
Courtesy of CHRYSLER LLC

1 - COOLING FAN AND FAN DRIVE VISCOUS CLUTCH ASSEMBLY
2 - FAN SUPPORT

1 - IDLER PULLEY
2 - COOLING FAN SUPPORT
3 - RETAINING BOLTS



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



5. Remove fan shroud to radiator bolts.

6. Remove fan shroud and fan blade/fan drive viscous clutch assembly as a complete unit from vehicle.

7. After removing fan blade/fan drive viscous clutch assembly, do not place viscous clutch in horizontal

position. If stored horizontally, silicone fluid in the fan drive viscous clutch could drain into its bearing
assembly and contaminate lubricant.

8. Remove four bolts securing fan blade assembly to fan drive viscous clutch.

9. Remove cooling fan support (2) from engine block.

CLEANING

CLEANING

Clean the fan blades using a mild soap and water. Do not use an abrasive to clean the blades.

INSPECTION

INSPECTION

1. Remove fan blade assembly from viscous fan drive unit (four bolts).

2. Lay fan on a flat surface with leading edge facing down. With tip of blade touching flat surface, replace

fan if clearance between opposite blade and surface is greater than 2.0 mm (.090 inch). Rocking motion
of opposite blades should not exceed 2.0 mm (.090 inch). Test all blades in this manner.

3. Inspect fan assembly for cracks, bends, loose rivets or broken welds. Replace fan if any damage is found.

INSTALLATION

INSTALLATION

4 - ENGINE LIFT HOOK

WARNING:

Do not attempt to bend or straighten fan blades if fan is not within
specifications.

CAUTION: If fan blade assembly is replaced because of mechanical damage, water

pump and viscous fan drive should also be inspected. These components
could have been damaged due to excessive vibration.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



Fig. 60: Using Tool 6958 To Install Fan Blade/Viscous Fan Drive Assembly To Water Pump Shaft
Courtesy of CHRYSLER LLC

1. Install fan blade assembly to viscous fan drive. Tighten bolts to 23 N.m (17 ft. lbs.) torque.

2. Position fan blade/viscous fan drive assembly into the radiator shroud.

3. Install the radiator shroud and fan drive assembly into the vehicle.

4. Install fan shroud retaining screws. Tighten screws to 6 N.M (50 lbs. in.)

5. Using Tool 6958, install the fan blade/viscous fan drive assembly to the water pump shaft. Tighten

mounting nut to 50 N.m (37 ft. lbs.).

6. Install the upper radiator hose.

7. Fill cooling system. See STANDARD PROCEDURE.

8. Connect battery negative cable.

INSTALLATION-2.8L DIESEL
