Dodge Nitro. Manual - part 521





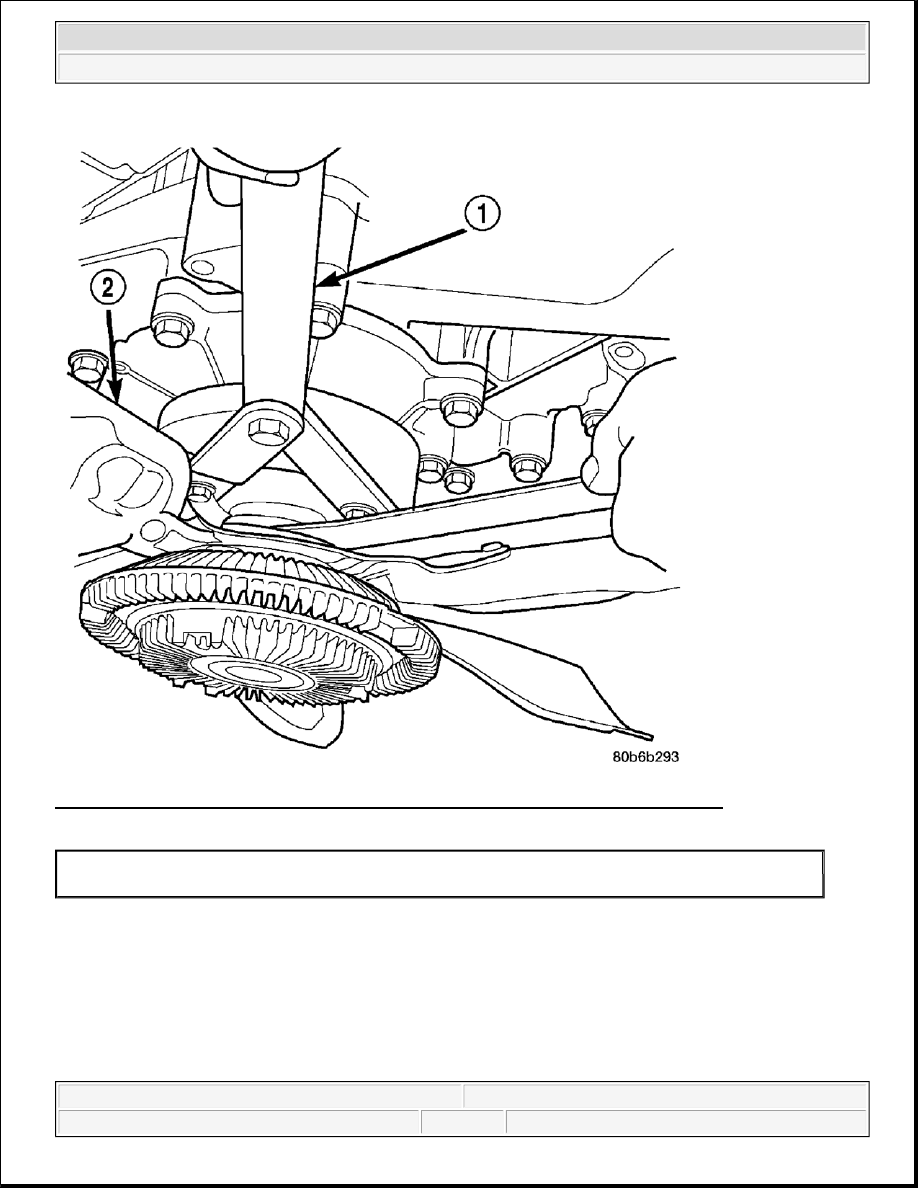

Fig. 52: Identifying Special Tool 6958 Spanner Wrench With Adapter Pins 8346 & Fan
Courtesy of CHRYSLER LLC

If the fan blade is bent, warped, cracked or damaged in any way, it must be replaced only with a replacement
fan blade. Do not attempt to repair a damaged fan blade.

1 - SPECIAL TOOL 6958 SPANNER WRENCH WITH ADAPTER PINS 8346
2 - FAN

NOTE:

For 3.7L Heavy Duty/Max Cool/Trailer Tow cooling package, the viscous fan
cannot be removed separate from the shroud. Both fan and shroud must be
removed together.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



1. Disconnect battery negative cable.

2. Using special tool 6958 spanner wrench and 8346 adapters, remove the viscous fan from the water pump.

See Fig. 52

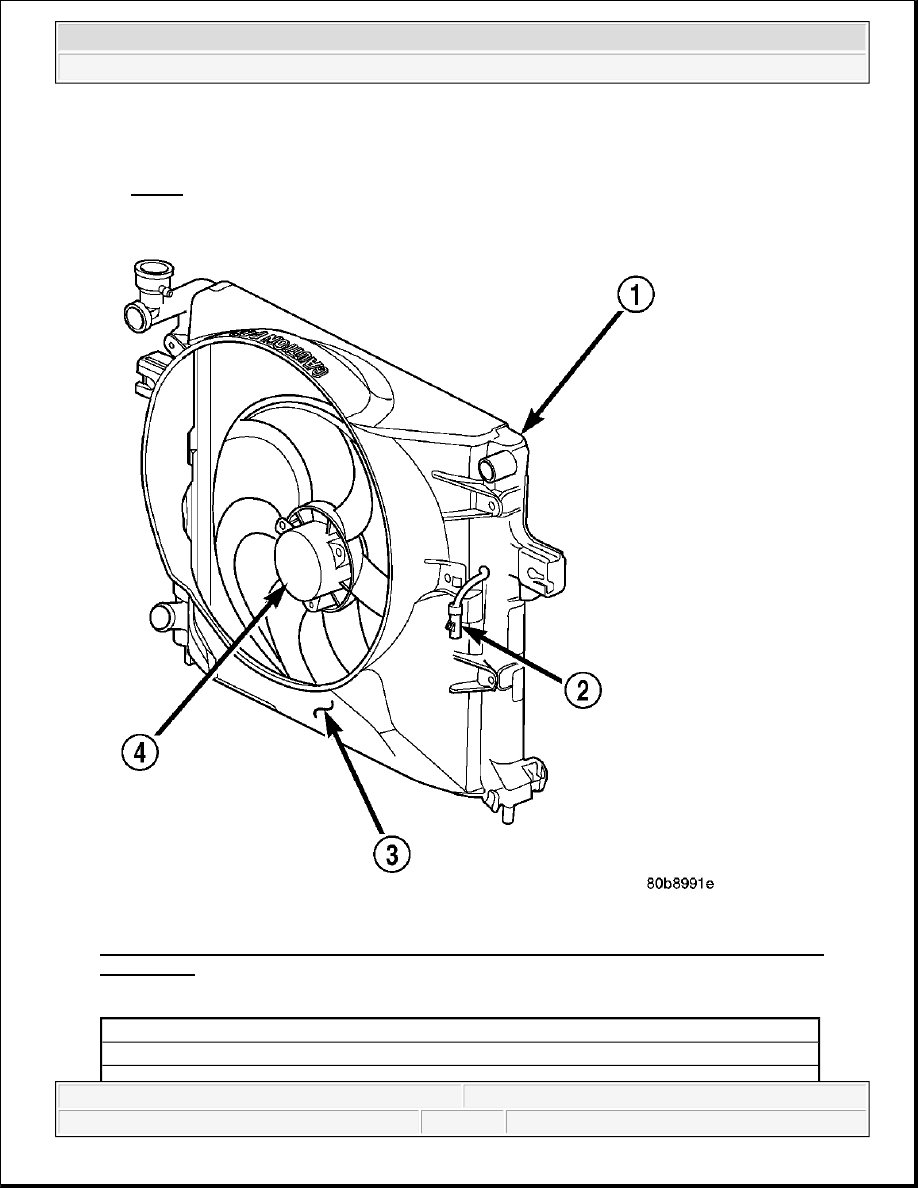

Fig. 53: Identifying Radiator, Electric Cooling Fan Connector, Fan Shroud & 2 Speed Electric
Cooling Fan

Courtesy of CHRYSLER LLC

1 - RADIATOR
2 - ELECTRIC COOLING FAN CONNECTOR



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



3. Gently lay fan into shroud.

4. Disconnect the electrical connector (2) for the electric fan, then disconnect connector from shroud.

5. Remove the two fan shroud mounting bolts connecting the fan shroud to the radiator. See Fig. 53.

6. Remove the shroud and fan from the vehicle.

INSTALLATION

INSTALLATION

3 - FAN SHROUD
4 - 2 SPEED ELECTRIC COOLING FAN



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



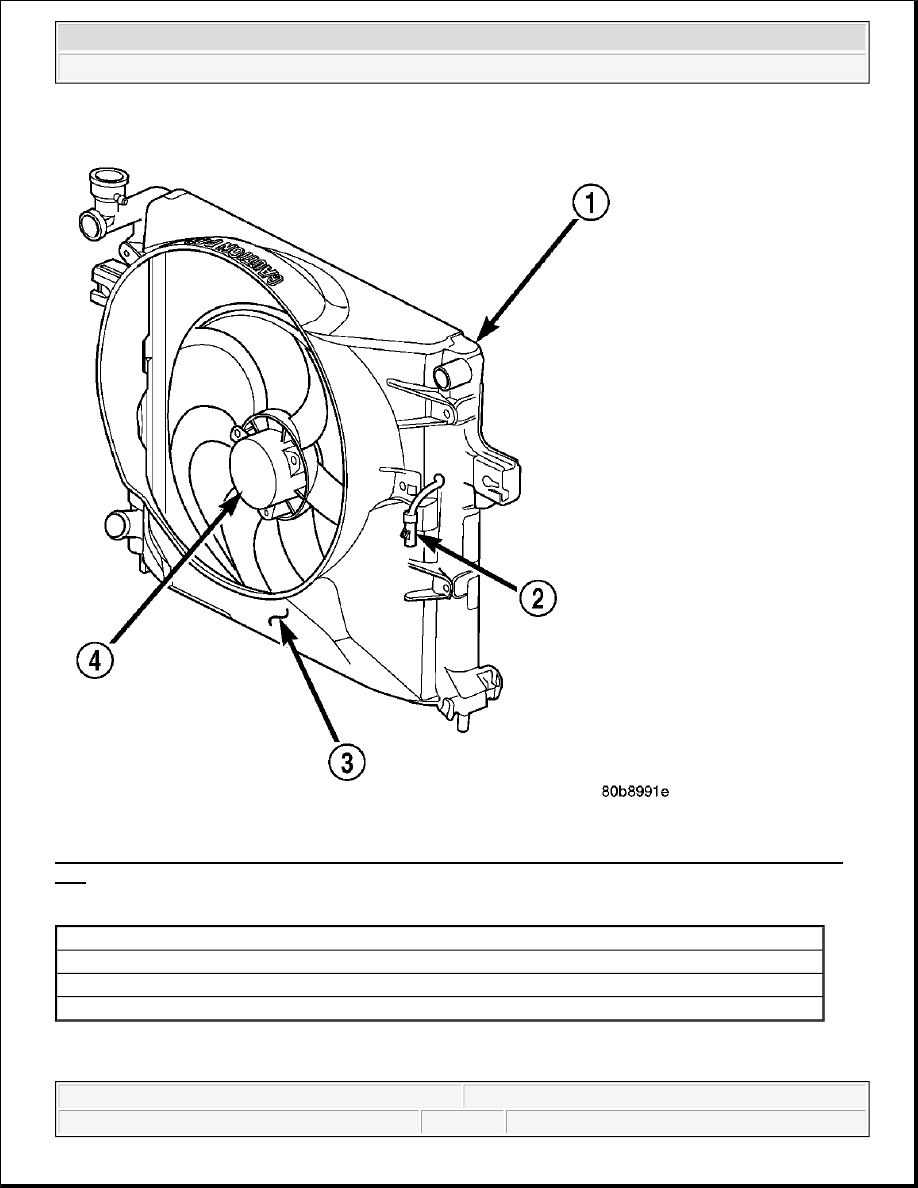

Fig. 54: Identifying Radiator, Electric Cooling Fan Connector, Fan Shroud & 2 Speed Electric Cooling
Fan

Courtesy of CHRYSLER LLC

1. Install fan shroud assembly into the vehicle. Tighten fan shroud to radiator bolts to (5.5 N.m (50 in. lbs.).

1 - RADIATOR
2 - ELECTRIC COOLING FAN CONNECTOR
3 - FAN SHROUD
4 - 2 SPEED ELECTRIC COOLING FAN



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro
