1. Remove combination coolant recovery/washer reservoir. See REMOVAL.

2. Insert a suitable square drive ratchet into the square hole on belt tensioner arm.

3. Rotate accessory drive belt tensioner clockwise to release belt tension.

4. Remove accessory drive belt.

REMOVAL-2.8L DIESEL

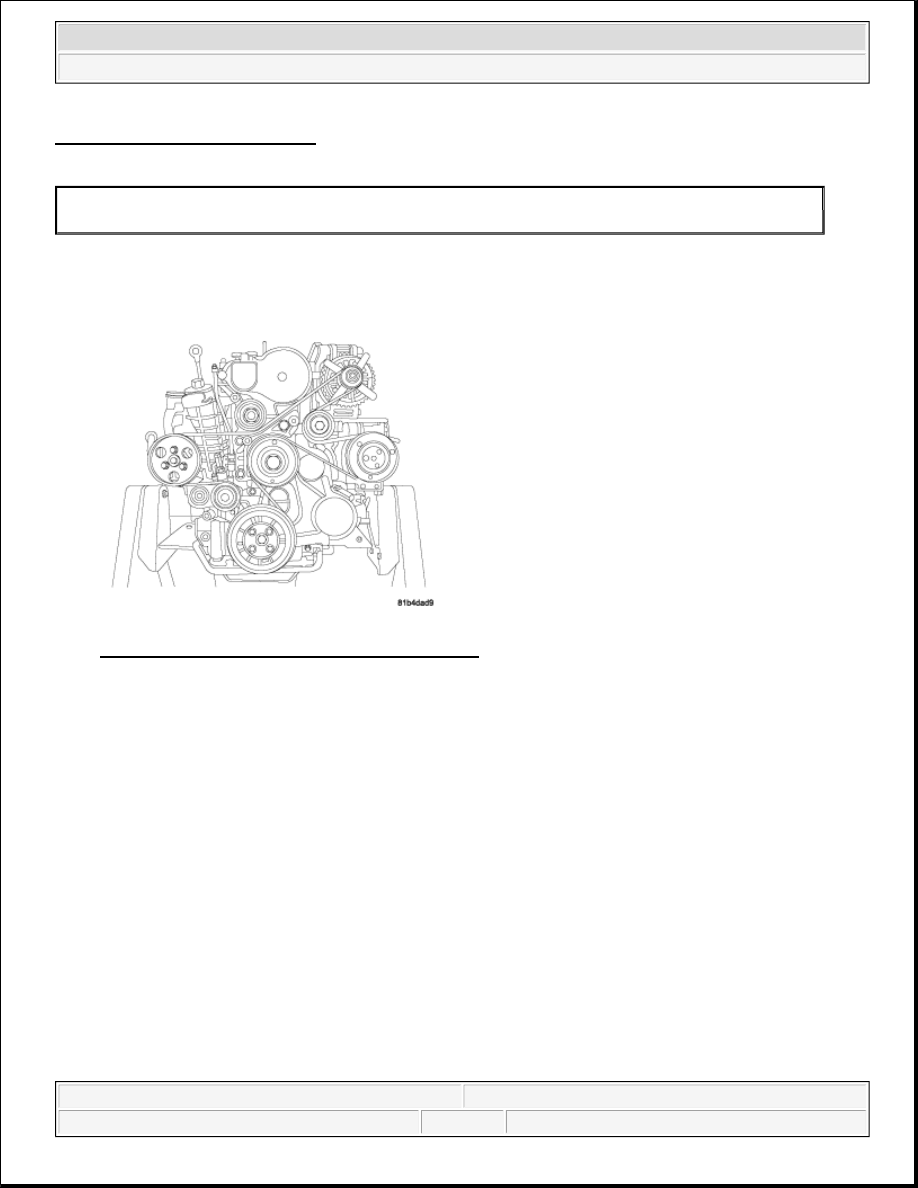

Fig. 13: Belt Routing - 2.8L Diesel
Courtesy of CHRYSLER LLC

1. Disconnect negative battery cable.

6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT

1 - WITH A/C
2 - WITHOUT A/C

CAUTION: Do not let tensioner arm snap back to the freearm position, severe damage

may occur to the tensioner.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro

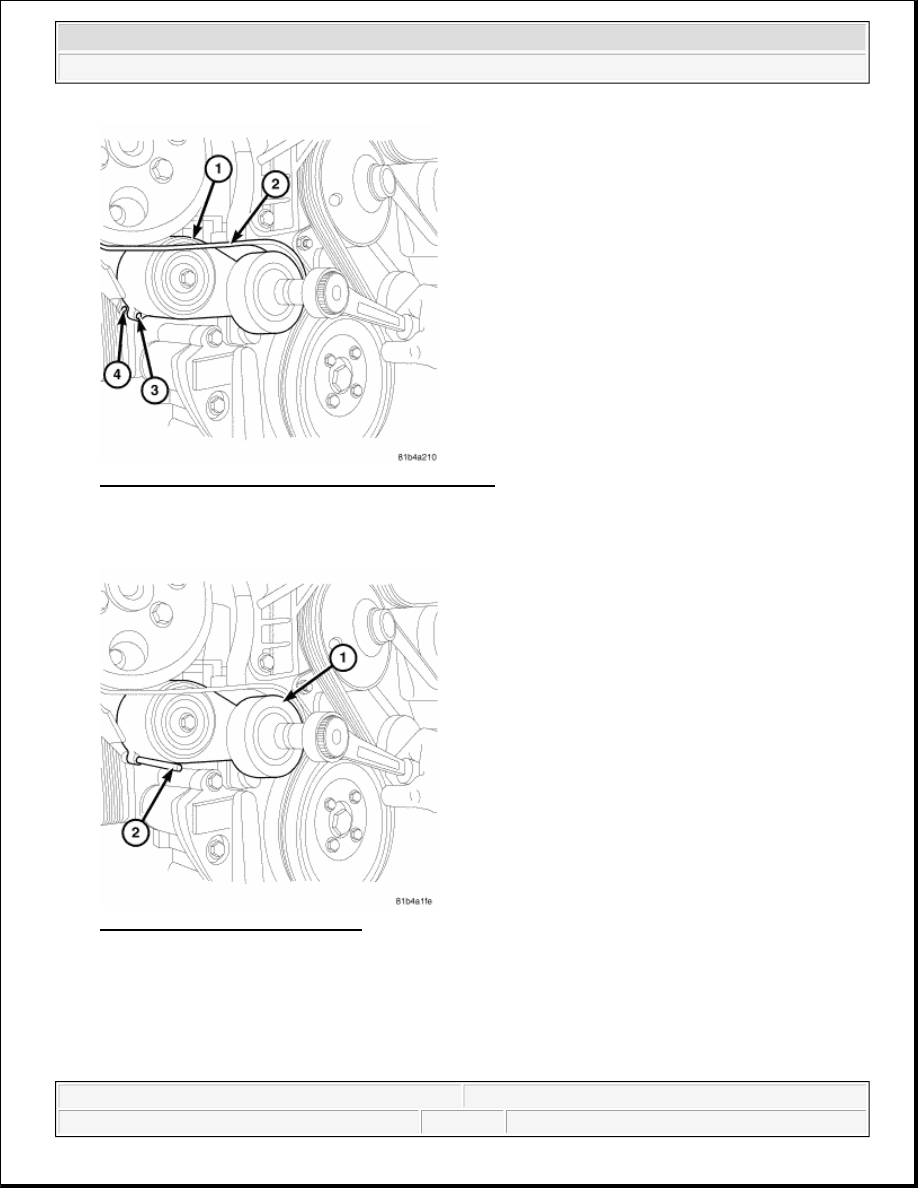

Fig. 14: Identifying Belt Tensioner & Locking Tabs
Courtesy of CHRYSLER LLC

2. Rotate the belt tensioner (1) until the position locking tabs (3 and 4) line up.

Fig. 15: Removing/Installing Drift
Courtesy of CHRYSLER LLC

3. Install a drift into the belt tensioner (1) at position 2.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro

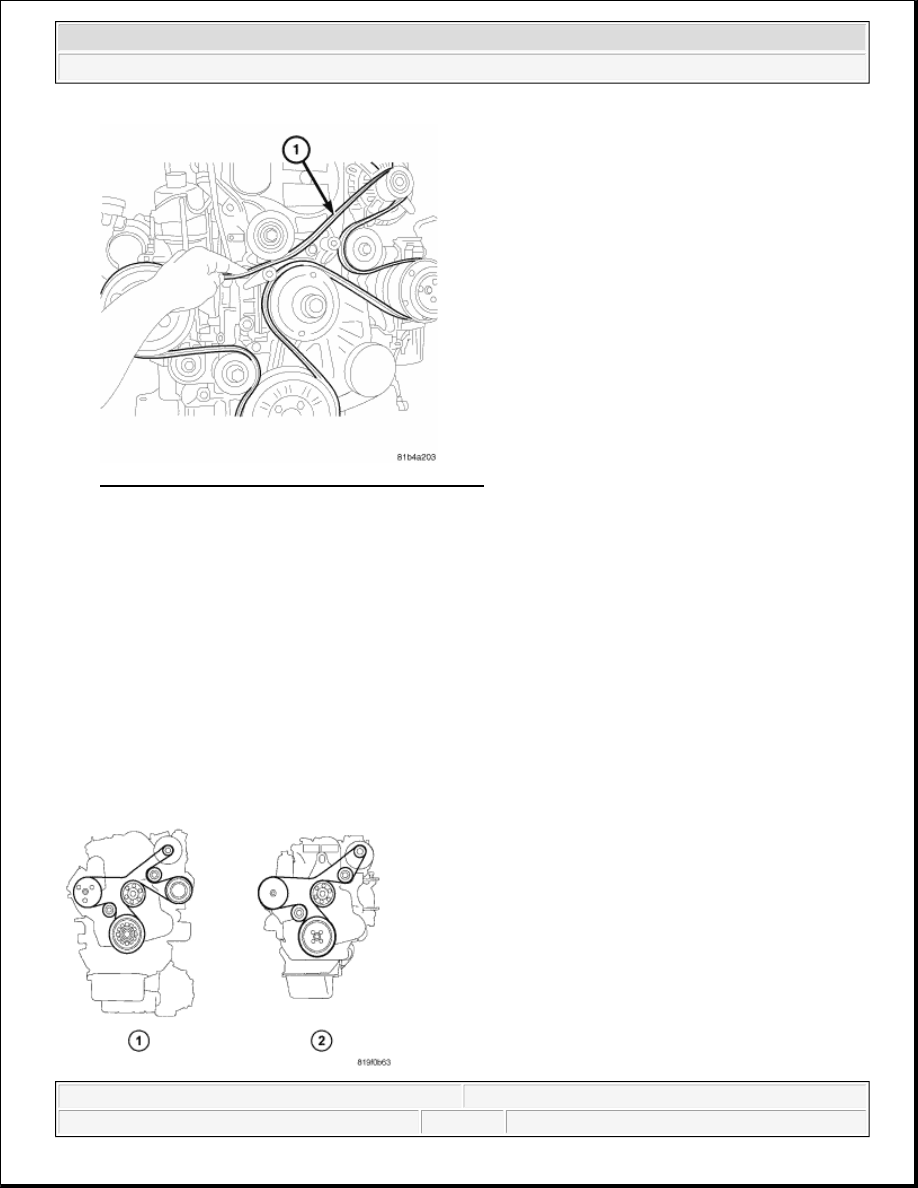

Fig. 16: Removing/Installing Accessory Drive Belt
Courtesy of CHRYSLER LLC

4. Remove the accessory drive belt (1).

CLEANING

CLEANING

Clean all foreign debris from belt pulley grooves. The belt pulleys must be free of oil, grease, and coolants
before installing the drive belt.

INSTALLATION

INSTALLATION-2.8L DIESEL



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



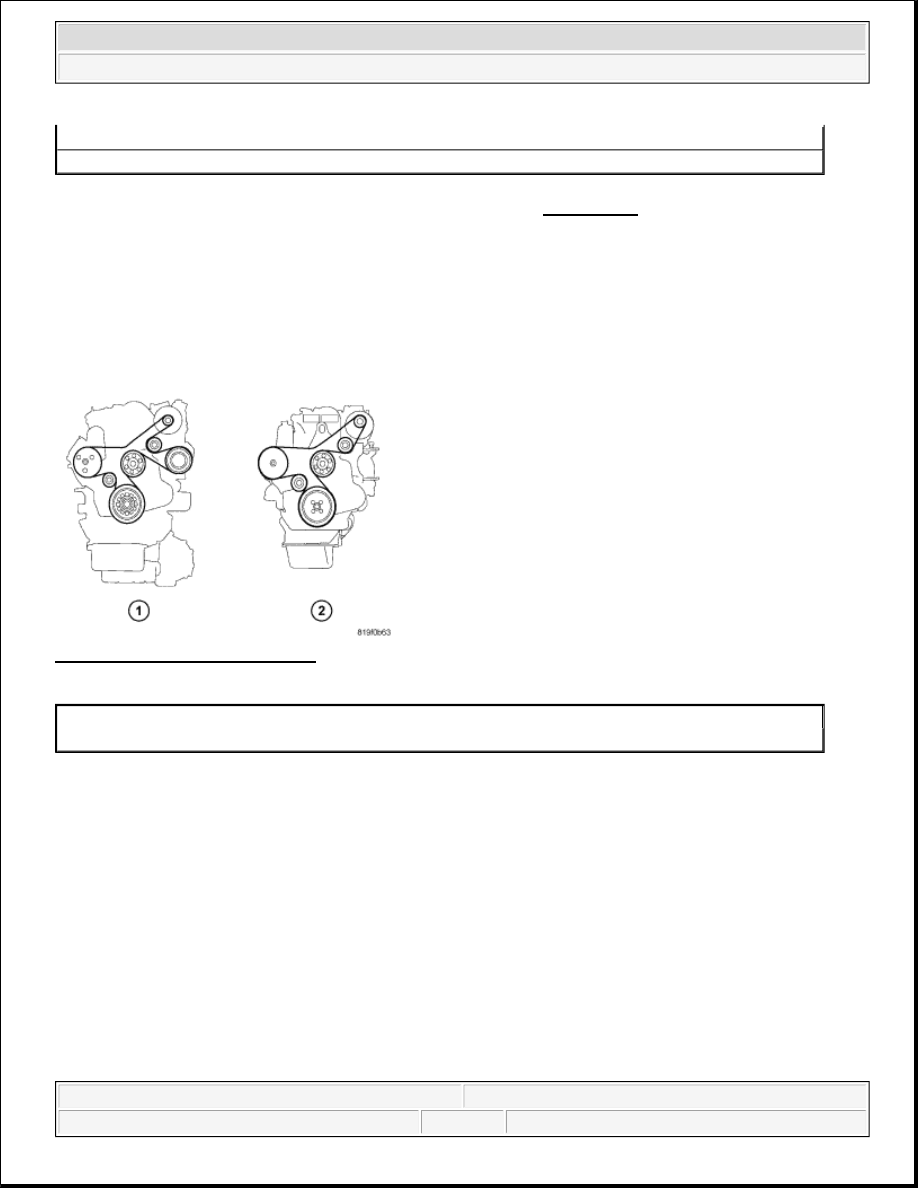

Fig. 17: Belt Routing - 2.8L Diesel
Courtesy of CHRYSLER LLC

1. Check condition of all pulleys.

Fig. 18: Identifying Pulley Assembly - 2.8L Diesel
Courtesy of CHRYSLER LLC

2. Install accessory drive belt. Route the belt around all pulleys (1 or 2) except the idler pulley.

1 - WITH A/C
2 - WITHOUT A/C

CAUTION: When installing the accessory drive belt, the belt MUST be routed

correctly. If not, the engine may overheat due to the water pump
rotating in the wrong direction.
