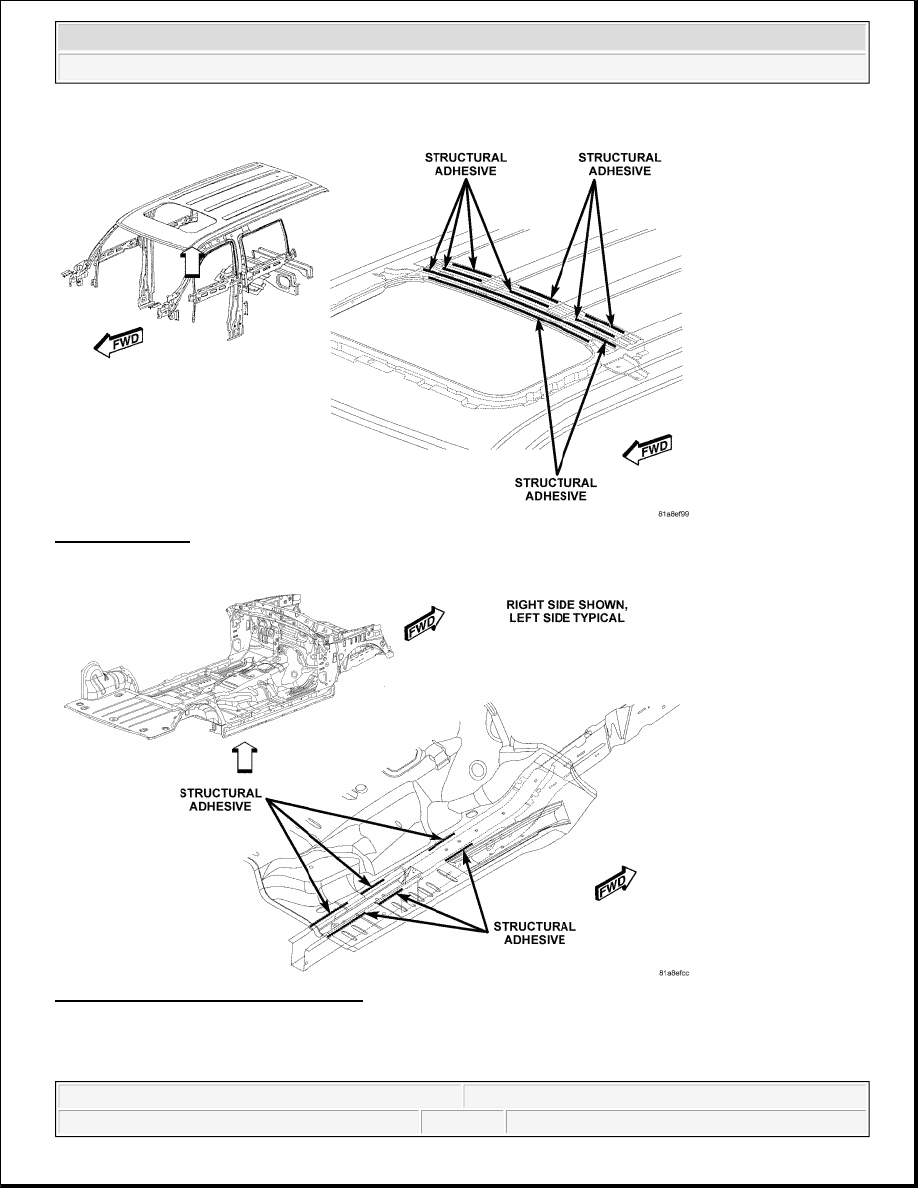

Fig. 653: Sunroof
Courtesy of CHRYSLER LLC

Fig. 654: Under Body Complete (1 Of 3)
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

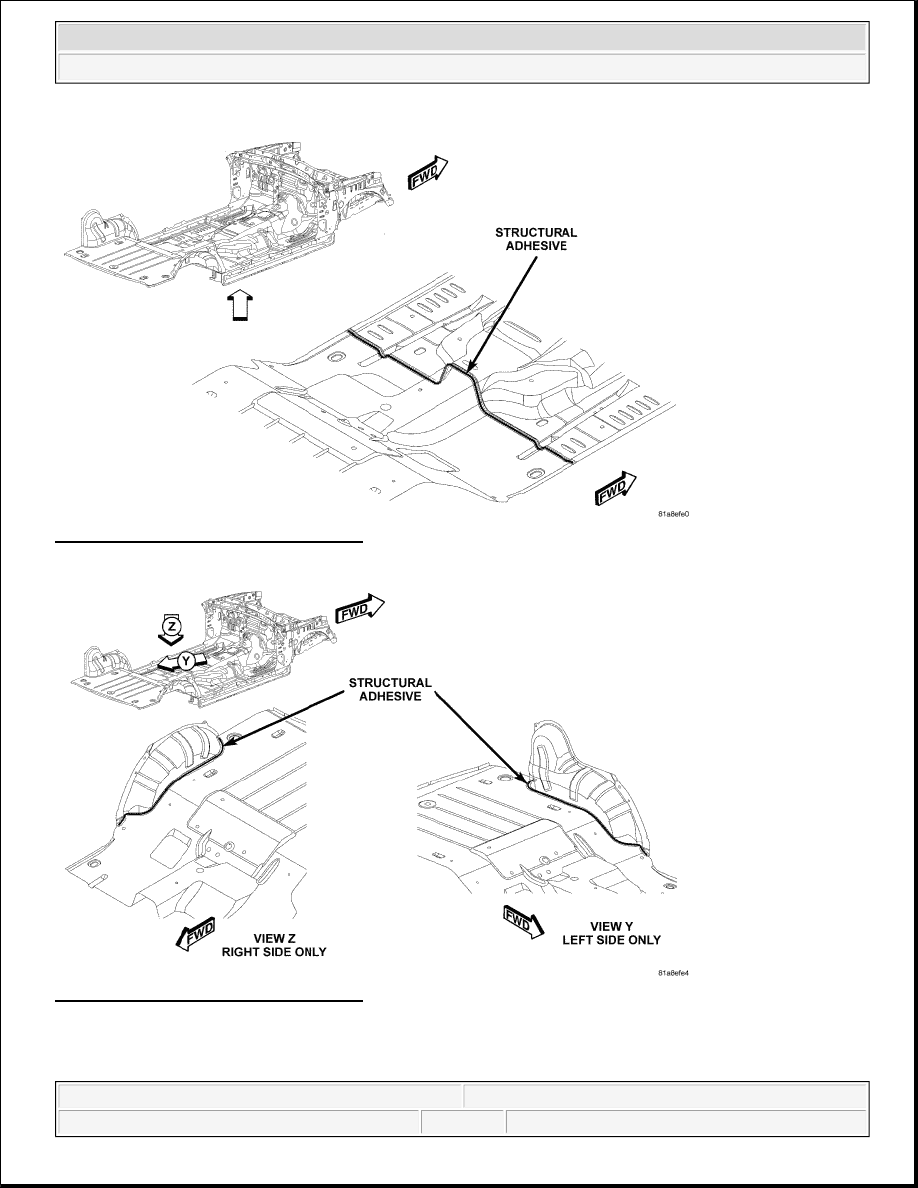

Fig. 655: Under Body Complete (2 Of 3)
Courtesy of CHRYSLER LLC

Fig. 656: Under Body Complete (3 Of 3)
Courtesy of CHRYSLER LLC

WELD AND STRUCTURAL ADHESIVE LOCATIONS



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



SPECIFICATIONS

WELD AND STRUCTURAL ADHESIVE LOCATIONS

INDEX

DESCRIPTION

FIGURE

FRONT RAILS (1 OF 10)

Fig. 657.

FRONT RAILS (2 OF 10)

Fig. 658.

FRONT RAILS (3 OF 10)

Fig. 659.

FRONT RAILS (4 OF 10)

Fig. 660.

FRONT RAILS (5 OF 10)

Fig. 661.

FRONT RAILS (6 OF 10)

Fig. 662.

FRONT RAILS (7 OF 10)

Fig. 663.

FRONT RAILS (8 OF 10)

Fig. 664.

FRONT RAILS (9 OF 10)

Fig. 665.

FRONT RAILS (10 OF 10)

Fig. 666.

FRONT WHEELHOUSE ASSEMBLY

Fig. 667.

MISCELLANEOUS BODY (1 OF 10)

Fig. 668.

MISCELLANEOUS BODY (2 OF 10)

Fig. 669.

MISCELLANEOUS BODY (3 OF 10)

Fig. 670.

MISCELLANEOUS BODY (4 OF 10)

Fig. 671.

MISCELLANEOUS BODY (5 OF 10)

Fig. 672.

MISCELLANEOUS BODY (6 OF 10)

Fig. 673.

MISCELLANEOUS BODY (7 OF 10)

Fig. 674.

MISCELLANEOUS BODY (8 OF 10)

Fig. 675.

MISCELLANEOUS BODY (9 OF 10)

Fig. 676.

MISCELLANEOUS BODY (10 OF 10)

Fig. 677.

DASH

Fig. 678.

PLENUM ASSEMBLY (1 OF 5)

Fig. 679.

PLENUM ASSEMBLY (2 OF 5)

Fig. 680.

PLENUM ASSEMBLY (3 OF 5)

Fig. 681.

PLENUM ASSEMBLY (4 OF 5)

Fig. 682.

PLENUM ASSEMBLY (5 OF 5)

Fig. 683.

FRONT FLOOR (1 OF 3)

Fig. 684.

FRONT FLOOR (2 OF 3)

Fig. 685.

FRONT FLOOR (3 OF 3)

Fig. 686.

FRONT FLOOR/DASH/PLENUM ASSEMBLY (1 OF 2)

Fig. 687.

FRONT FLOOR/DASH/PLENUM ASSEMBLY (2 OF 2)

Fig. 688.

REAR RAIL ASSEMBLY (1 OF 10)

Fig. 689.

REAR RAIL ASSEMBLY (2 OF 10)

Fig. 690.

REAR RAIL ASSEMBLY (3 OF 10)

Fig. 691.

REAR RAIL ASSEMBLY (4 OF 10)

Fig. 692.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



REAR RAIL ASSEMBLY (5 OF 10)

Fig. 693.

REAR RAIL ASSEMBLY (6 OF 10)

Fig. 694.

REAR RAIL ASSEMBLY (7 OF 10)

Fig. 695.

REAR RAIL ASSEMBLY (8 OF 10)

Fig. 696.

REAR RAIL ASSEMBLY (9 OF 10)

Fig. 697.

REAR RAIL ASSEMBLY (10 OF 10)

Fig. 698.

REAR FLOOR ASSEMBLY (1 OF 3)

Fig. 699.

REAR FLOOR ASSEMBLY (2 OF 3)

Fig. 700.

REAR FLOOR ASSEMBLY (3 OF 3)

Fig. 701.

REAR WHEELHOUSE (1 OF 2)

Fig. 702.

REAR WHEELHOUSE (2 OF 2)

Fig. 703.

REAR FLOOR COMPLETE (1 OF 11)

Fig. 704.

REAR FLOOR COMPLETE (2 OF 11)

Fig. 705.

REAR FLOOR COMPLETE (3 OF 11)

Fig. 706.

REAR FLOOR COMPLETE (4 OF 11)

Fig. 707.

REAR FLOOR COMPLETE (5 OF 11)

Fig. 708.

REAR FLOOR COMPLETE (6 OF 11)

Fig. 709.

REAR FLOOR COMPLETE (7 OF 11)

Fig. 710.

REAR FLOOR COMPLETE (8 OF 11)

Fig. 711.

REAR FLOOR COMPLETE (9 OF 11)

Fig. 712.

REAR FLOOR COMPLETE (10 OF 11)

Fig. 713.

REAR FLOOR COMPLETE (11 OF 11)

Fig. 714.

UNDERBODY COMPLETE (1 OF 12)

Fig. 715.

UNDERBODY COMPLETE (2 OF 12)

Fig. 716.

UNDERBODY COMPLETE (3 OF 12)

Fig. 717.

UNDERBODY COMPLETE (4 OF 12)

Fig. 718.

UNDERBODY COMPLETE (5 OF 12)

Fig. 719.

UNDERBODY COMPLETE (6 OF 12)

Fig. 720.

UNDERBODY COMPLETE (7 OF 12)

Fig. 721.

UNDERBODY COMPLETE (8 OF 12)

Fig. 722.

UNDERBODY COMPLETE (9 OF 12)

Fig. 723.

UNDERBODY COMPLETE (10 OF 12)

Fig. 724.

UNDERBODY COMPLETE (11 OF 12)

Fig. 725.

UNDERBODY COMPLETE (12 OF 12)

Fig. 726.

BODY SIDE APERTURE INNER (1 OF 4)

Fig. 727.

BODY SIDE APERTURE INNER (2 OF 4)

Fig. 728.

BODY SIDE APERTURE INNER (3 OF 4)

Fig. 729.

BODY SIDE APERTURE INNER (4 OF 4)

Fig. 730.

BODY SIDE APERTURE OUTER (1 OF 5)

Fig. 731.

BODY SIDE APERTURE OUTER (2 OF 5)

Fig. 732.

BODY SIDE APERTURE OUTER (3 OF 5)

Fig. 733.
