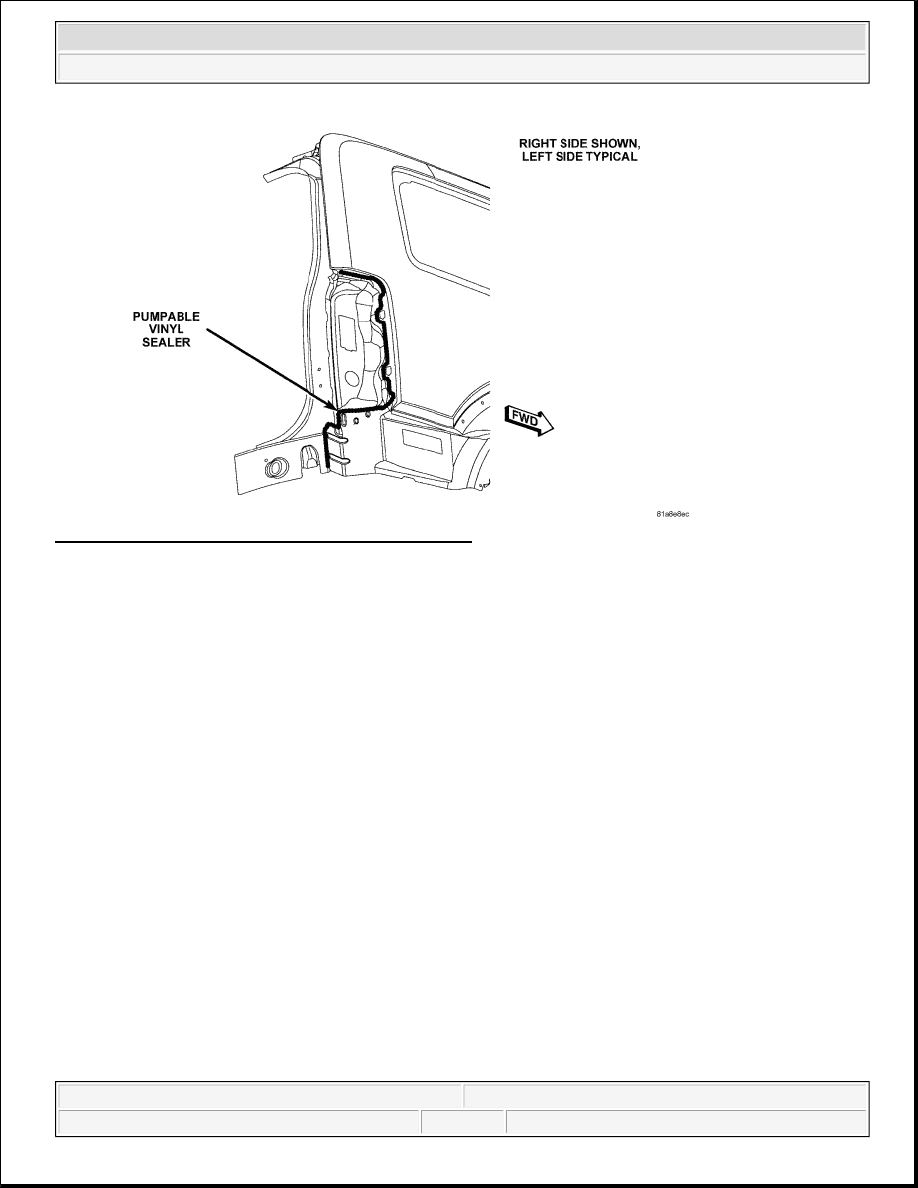

Fig. 640: Tail Lamp Mounting To Body Side Aperture
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



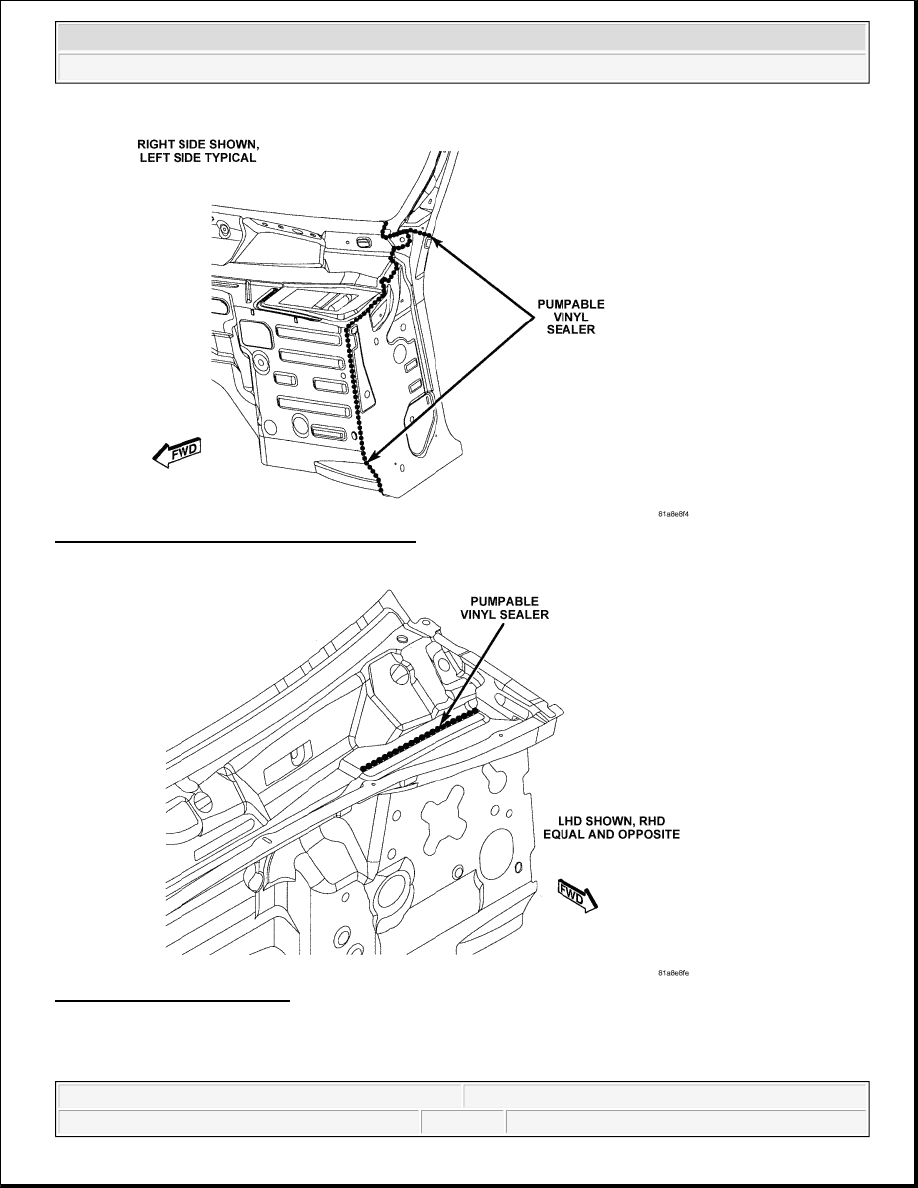

Fig. 641: Upper Dash To Lower Plenum Panel
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 642: Upper Dash To Plenum To Cowl Side
Courtesy of CHRYSLER LLC

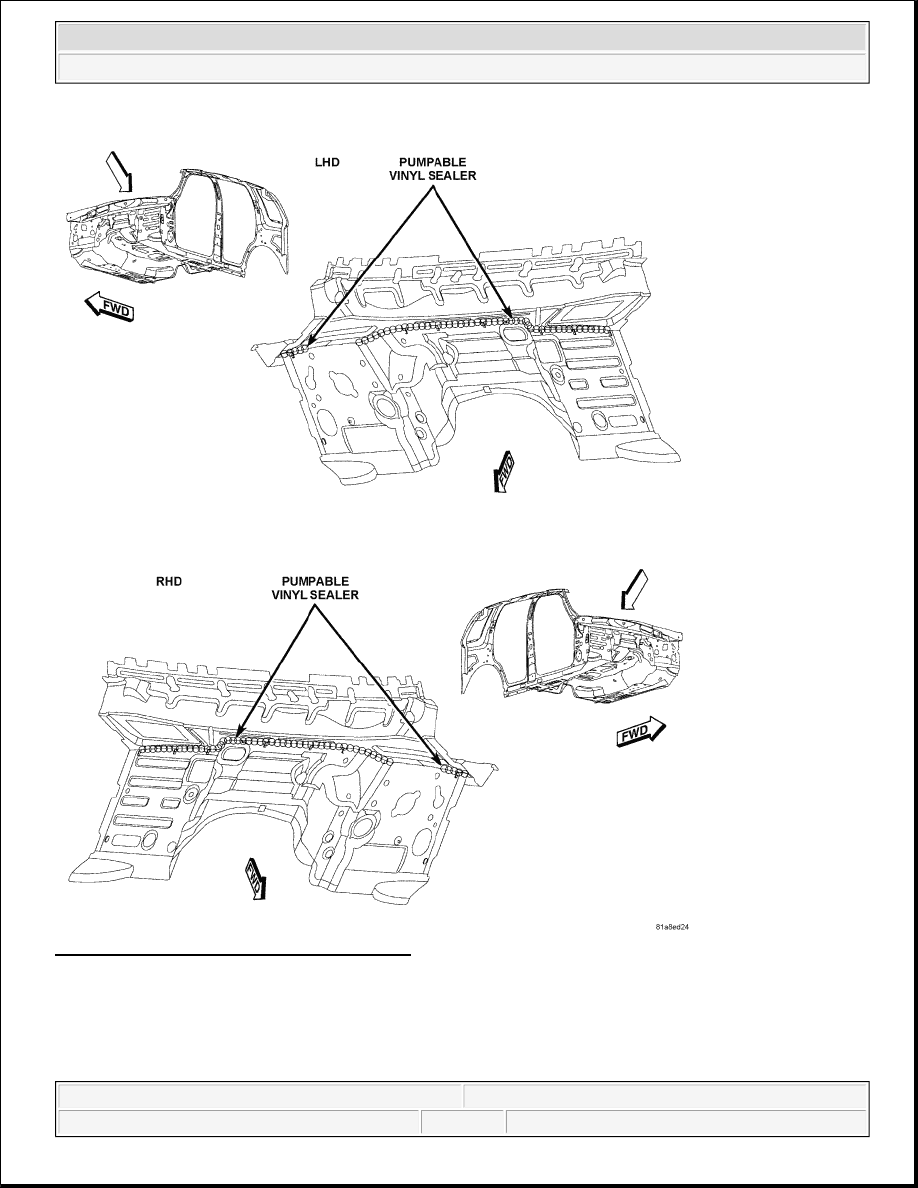

Fig. 643: Upper Plenum Baffle
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



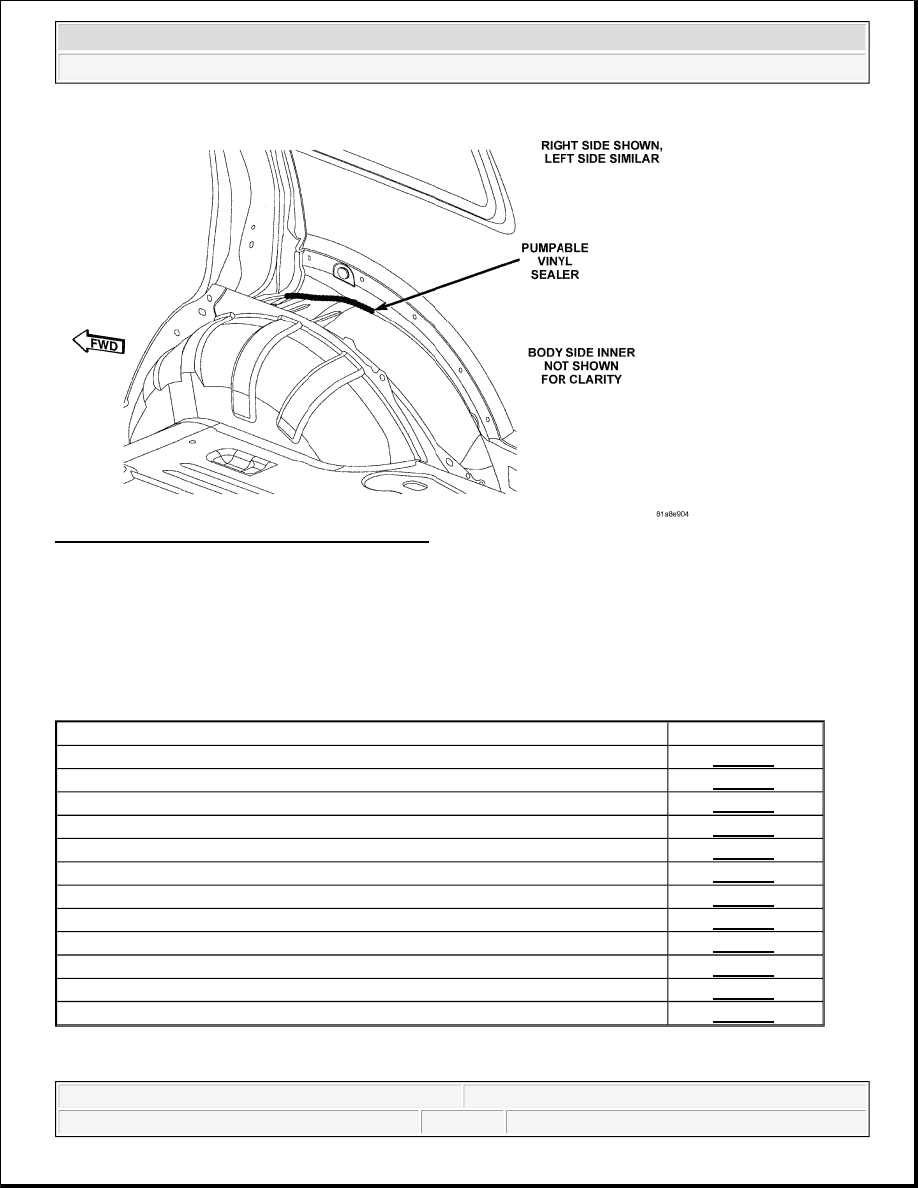

Fig. 644: Wheelhouse Outer To Body Side Outer
Courtesy of CHRYSLER LLC

STRUCTURAL ADHESIVE LOCATIONS

SPECIFICATIONS

STRUCTURAL ADHESIVE LOCATIONS

INDEX

DESCRIPTION

FIGURE

BODY SIDE APERTURE COMPLETE

Fig. 645.

BODY IN WHITE COMPLETE

Fig. 646.

BODY IN WHITE WITHOUT ROOF (1 OF 2)

Fig. 647.

BODY IN WHITE WITHOUT ROOF (2 OF 2)

Fig. 648.

FRONT FLOOR/DASH/PLENUM

Fig. 649.

OUTER BODY SIDE APERTURE

Fig. 650.

PLENUM ASSEMBLY

Fig. 651.

REAR FLOOR COMPLETE

Fig. 652.

SUNROOF

Fig. 653.

UNDER BODY COMPLETE (1 OF 3)

Fig. 654.

UNDER BODY COMPLETE (2 OF 3)

Fig. 655.

UNDER BODY COMPLETE (3 OF 3)

Fig. 656.
