Fig. 583: Disconnecting/Connecting Rear Drain Tube At Sunroof
Courtesy of CHRYSLER LLC

11. Connect the rear drain tube at the sunroof (1).

Fig. 584: Disconnecting/Connecting Front Drain Tube At Sunroof
Courtesy of CHRYSLER LLC

12. Connect the front drain tube (3) at the sunroof (2).

13. Install the wire harness.

14. Connect battery negative cable.

15. If equipped, install the overhead console, refer to INSTALLATION .

16. Perform the sunroof motor teach procedure, refer to STANDARD PROCEDURE .

17. Test sunroof operation, adjust glass as necessary, see ADJUSTMENTS.

18. Install the headliner, see INSTALLATION.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



SUNSHADE - SUNROOF

REMOVAL

SUNSHADE - SUNROOF

Fig. 585: Removing/Installing Drain Channel
Courtesy of CHRYSLER LLC

1. Remove the drain trough, see REMOVAL.

2. Push up the front center of the sunshade (1) to pop out the front two feet.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

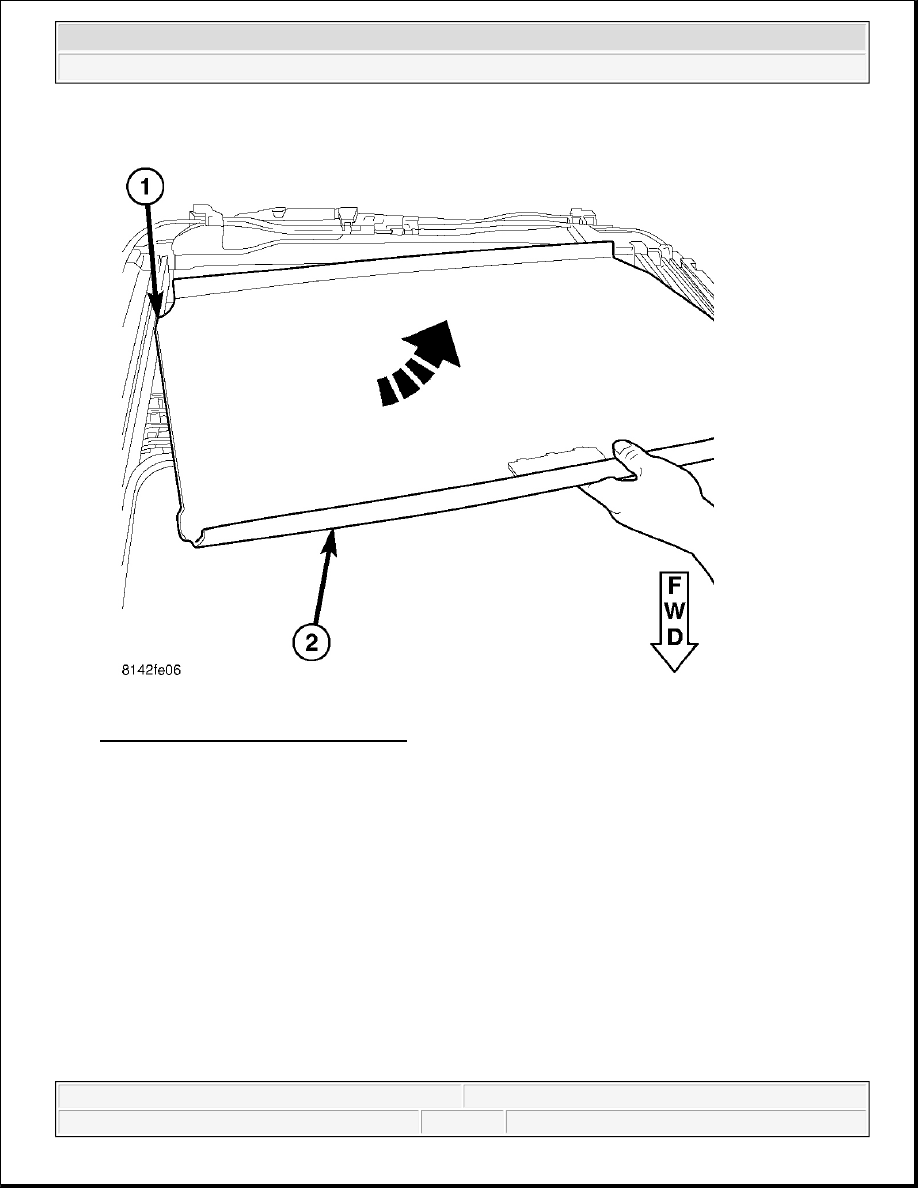

Fig. 586: Removing/Installing Sunshade
Courtesy of CHRYSLER LLC

3. Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.

INSTALLATION

SUNSHADE - SUNROOF



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

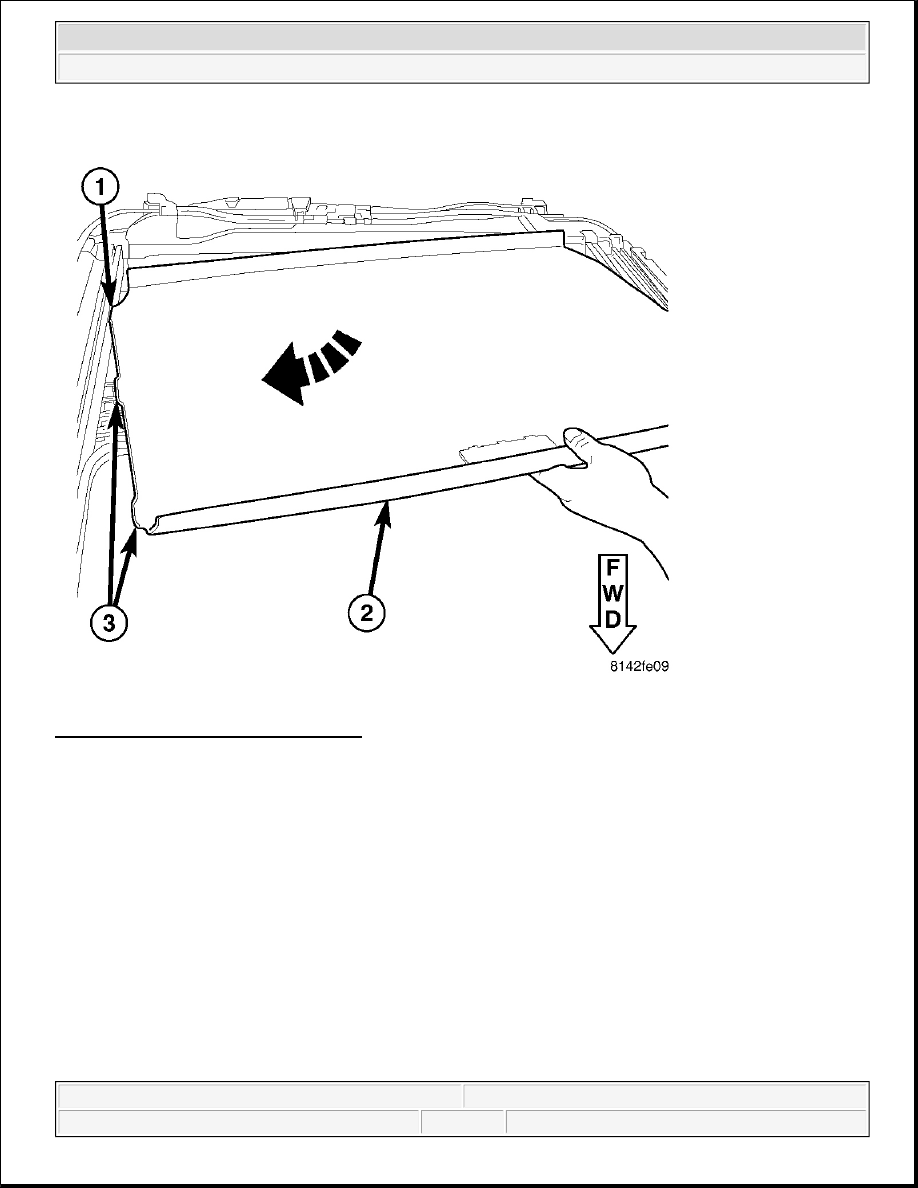

Fig. 587: Removing/Installing Sunshade
Courtesy of CHRYSLER LLC

1. Verify the sunshade track is free of obstructions like the trim lace/ring.

2. Start with sunshade (2) at an angle with one foot (1) in the track.

3. Rotate the sunshade so the other rear foot is in the track as well as the 2 other feet (3) on the same side as

the first foot.
