Fig. 530: Removing/Installing Nuts Attaching 40 60 Seat Back Frames
Courtesy of CHRYSLER LLC

7. Install the 40 seat back frame to the 60 seat back frames and tighten to 47.5 N.m (35 ft. lbs.).

Fig. 531: Removing/Installing 40/60 Seat
Courtesy of CHRYSLER LLC

8. Install the trim covering and screw and tighten to 3 N.m (26.5 in. lbs.).

9. Install the 40 and 60 seat, see INSTALLATION.

60/40 Seat Back - 60



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

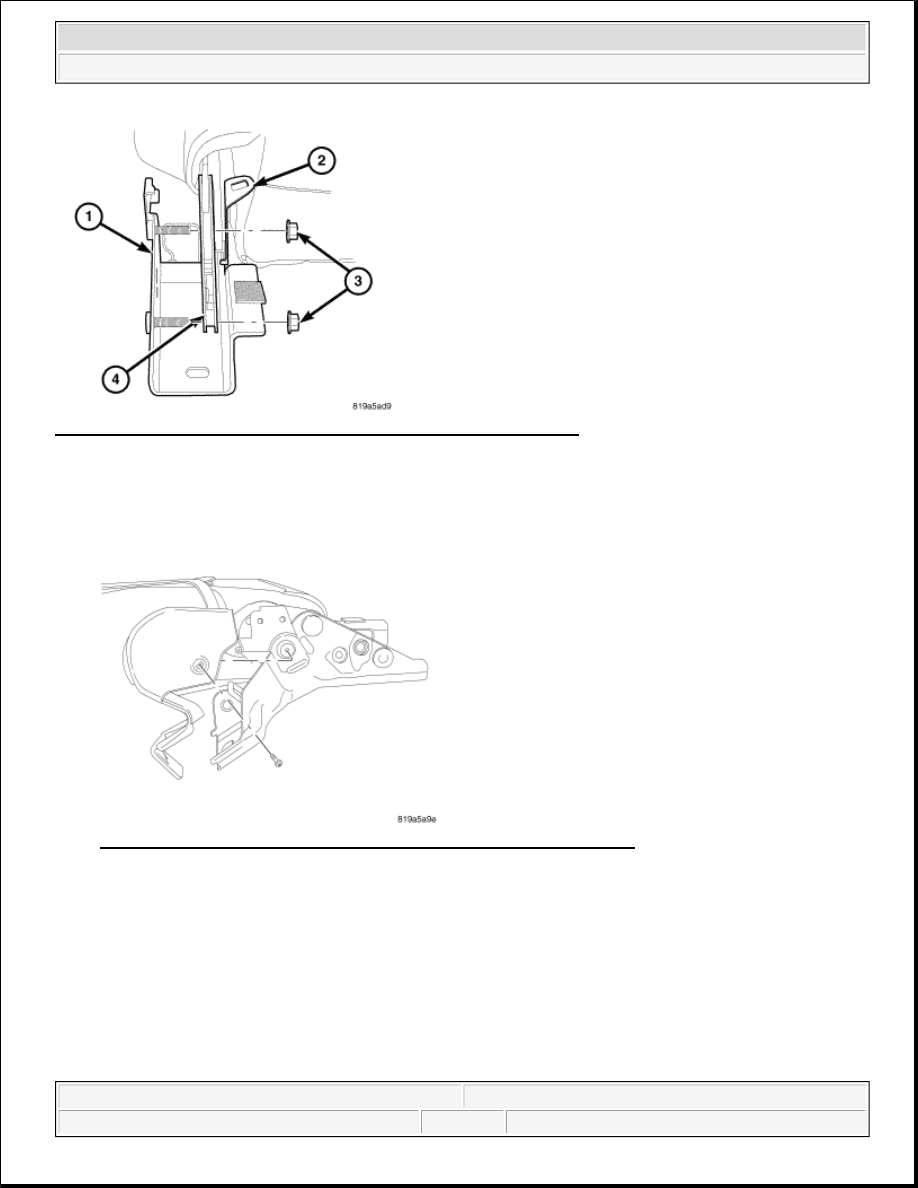

Fig. 532: Bracket, Trim Attachment Bracket, Bracket Nuts & Hinge
Courtesy of CHRYSLER LLC

1. Install the bracket (1), trim attachment bracket (2) and bracket nuts (3) to the hinge (4) and tighten to 47.5

N.m (35 ft. lbs.).

Fig. 533: Removing/Installing Screw And Trim Covering From Hinge
Courtesy of CHRYSLER LLC

2. Install screw and trim covering to the hinge and tighten to 3 N.m (26.5 in. lbs.).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

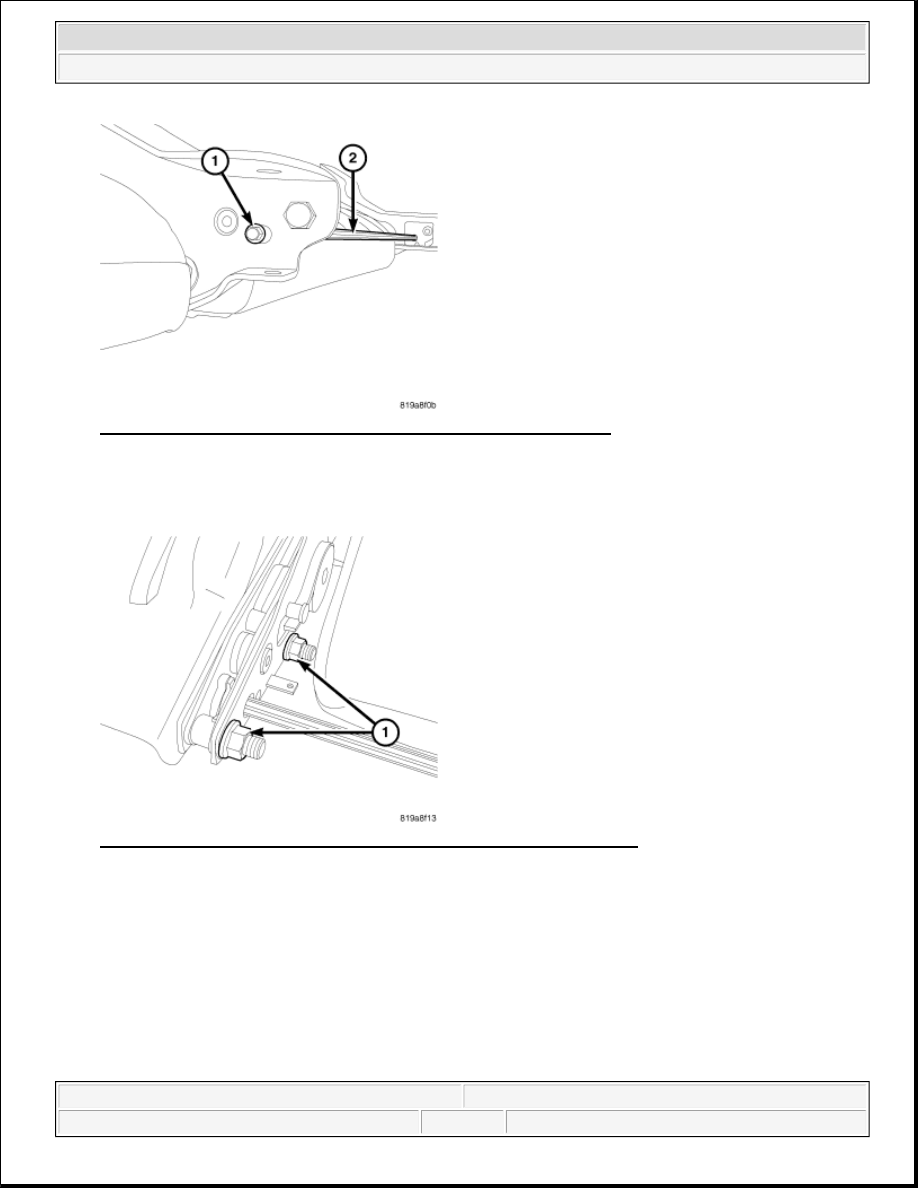

Fig. 534: Removing/Installing Recliner Rod Nut And Recliner Rod
Courtesy of CHRYSLER LLC

3. Install the recliner rod (2), recliner rod nut (1) to the position noted during removal and tighten to 7 N.m

(62 in. lbs.).

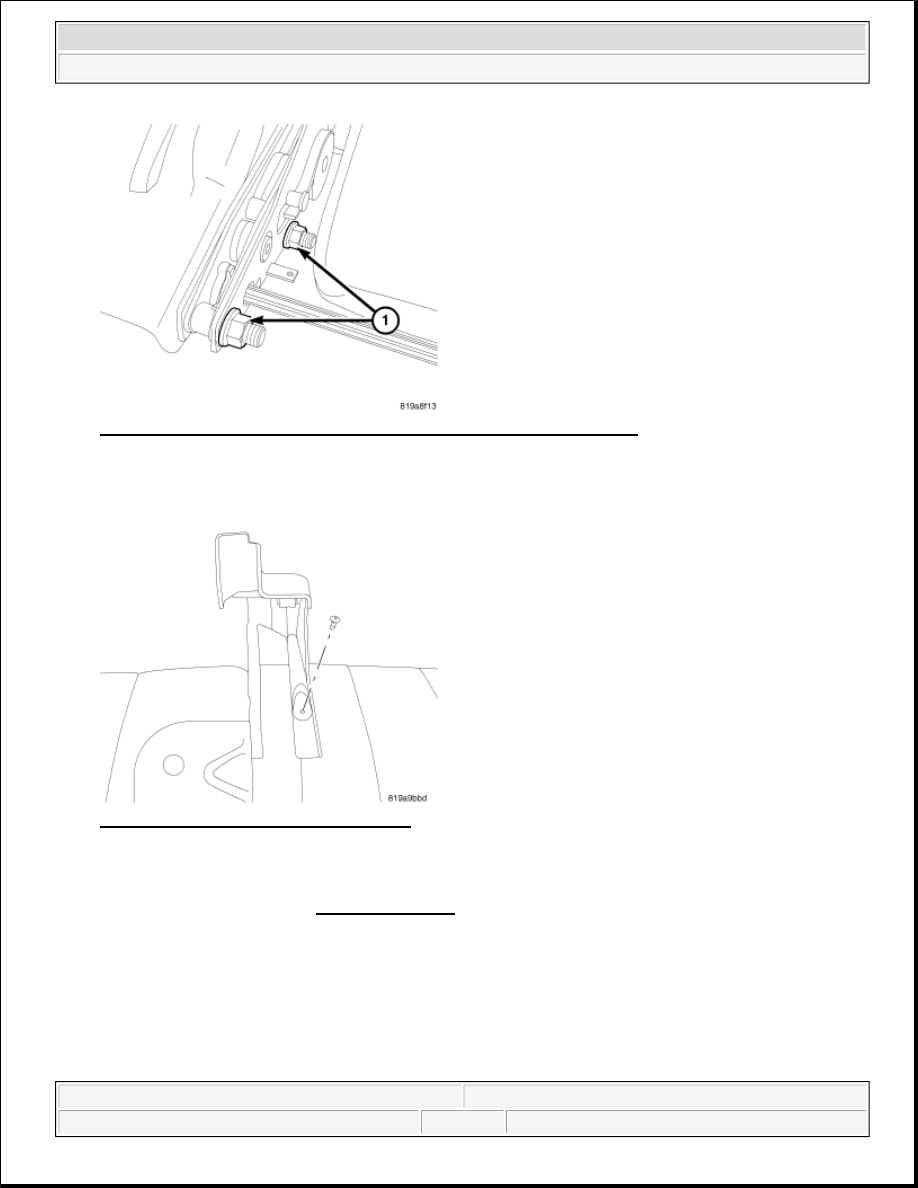

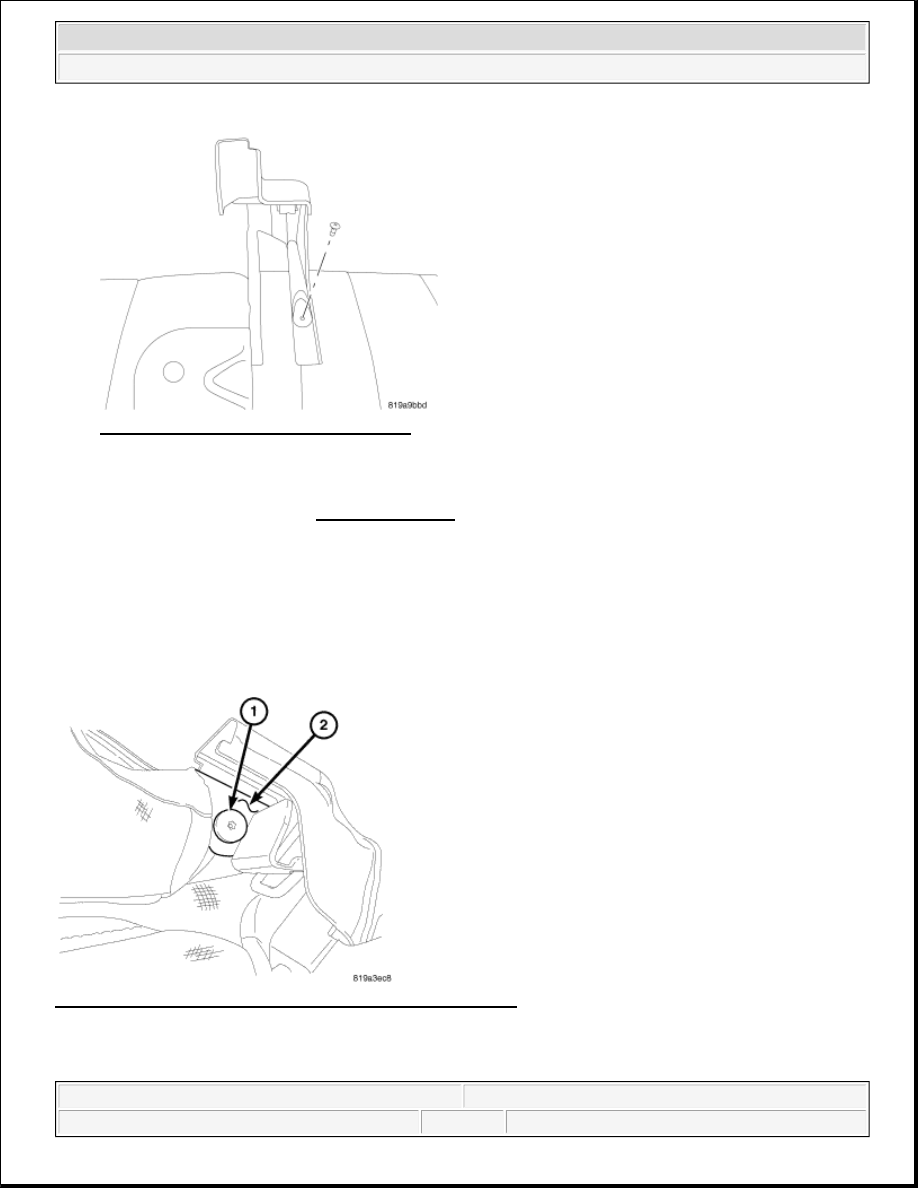

Fig. 535: Removing/Installing Nuts Attaching 40 60 Seat Back Frames
Courtesy of CHRYSLER LLC

4. Install the 40 seat back frame to the 60 seat back frames and tighten to 47.5 N.m (35 ft. lbs.).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 536: Removing/Installing 40/60 Seat
Courtesy of CHRYSLER LLC

5. Install the trim covering and screw and tighten to 3 N.m (26.5 in. lbs.).

6. Install the 40 and 60 seat, see INSTALLATION.

SEAT CUSHION - REAR

REMOVAL

SEAT CUSHION - REAR

60/40 Split Seat - 40

Fig. 537: Removing/Installing Seat Bolt From Floor Bracket
Courtesy of CHRYSLER LLC

CAUTION: Relieve the tension on the cable by positioning the seat correctly. Failure



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
