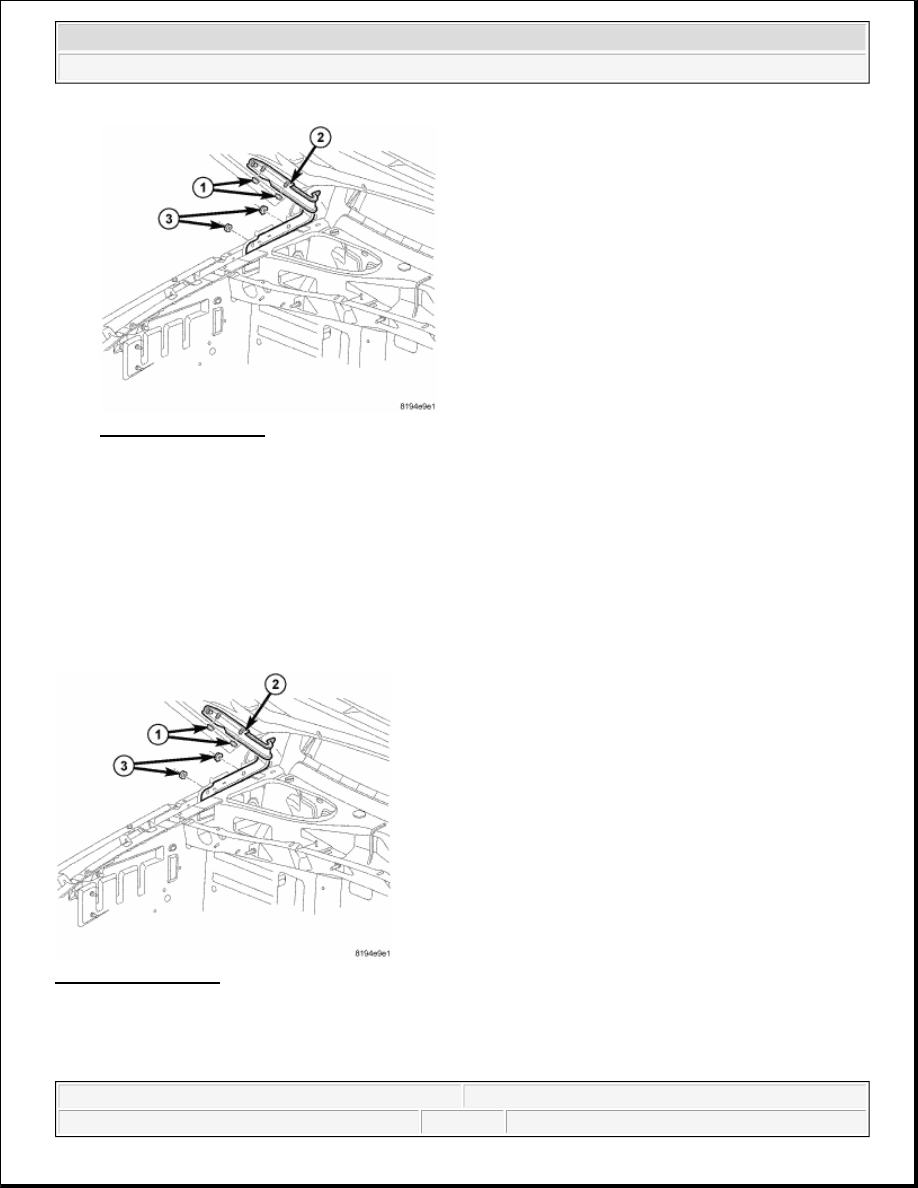

Fig. 281: Hood Hinge
Courtesy of CHRYSLER LLC

5. Using a grease pencil or equivalent, mark position of hinge (2).

6. Remove nuts (3) attaching hinge (2) to the body.

7. Remove nuts (1) attaching hinge (2) to hood.

8. Remove hinge (2) from the vehicle.

INSTALLATION

HINGE - HOOD

Fig. 282: Hood Hinge
Courtesy of CHRYSLER LLC

1. Install the hinge (2) to the vehicle use the reference position made during removal.

2. Install nuts (3) attaching hinge (2) to the body and tighten to 20 N.m (15 ft. lbs.).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



3. Install nuts (1) attaching hinge (2) to hood and tighten to 20 N.m (15 ft. lbs.).

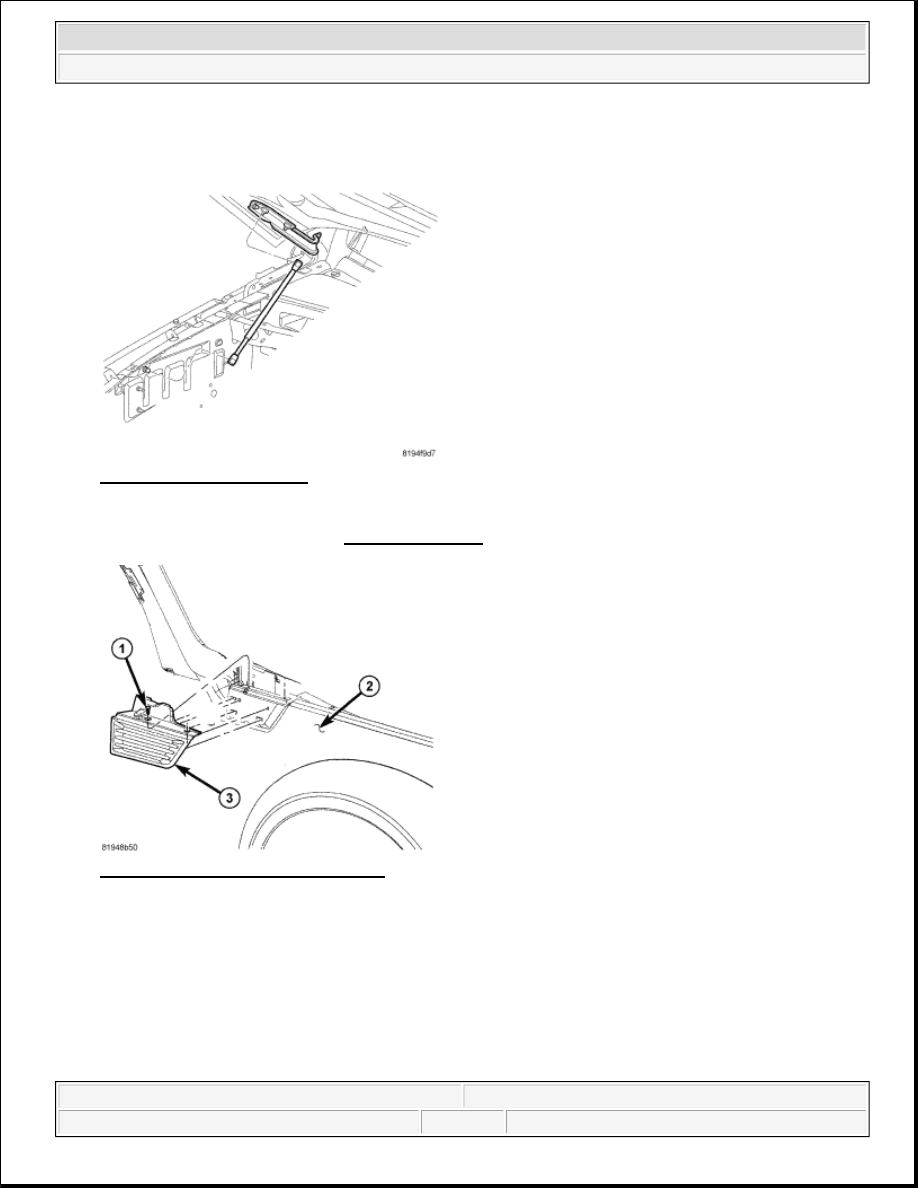

Fig. 283: Support Cylinder
Courtesy of CHRYSLER LLC

4. Install hood support cylinder, see INSTALLATION

Fig. 284: Screws, Fender & Applique
Courtesy of CHRYSLER LLC

5. Install the two screws (1) to the fender applique.

HOOD

REMOVAL

HOOD



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



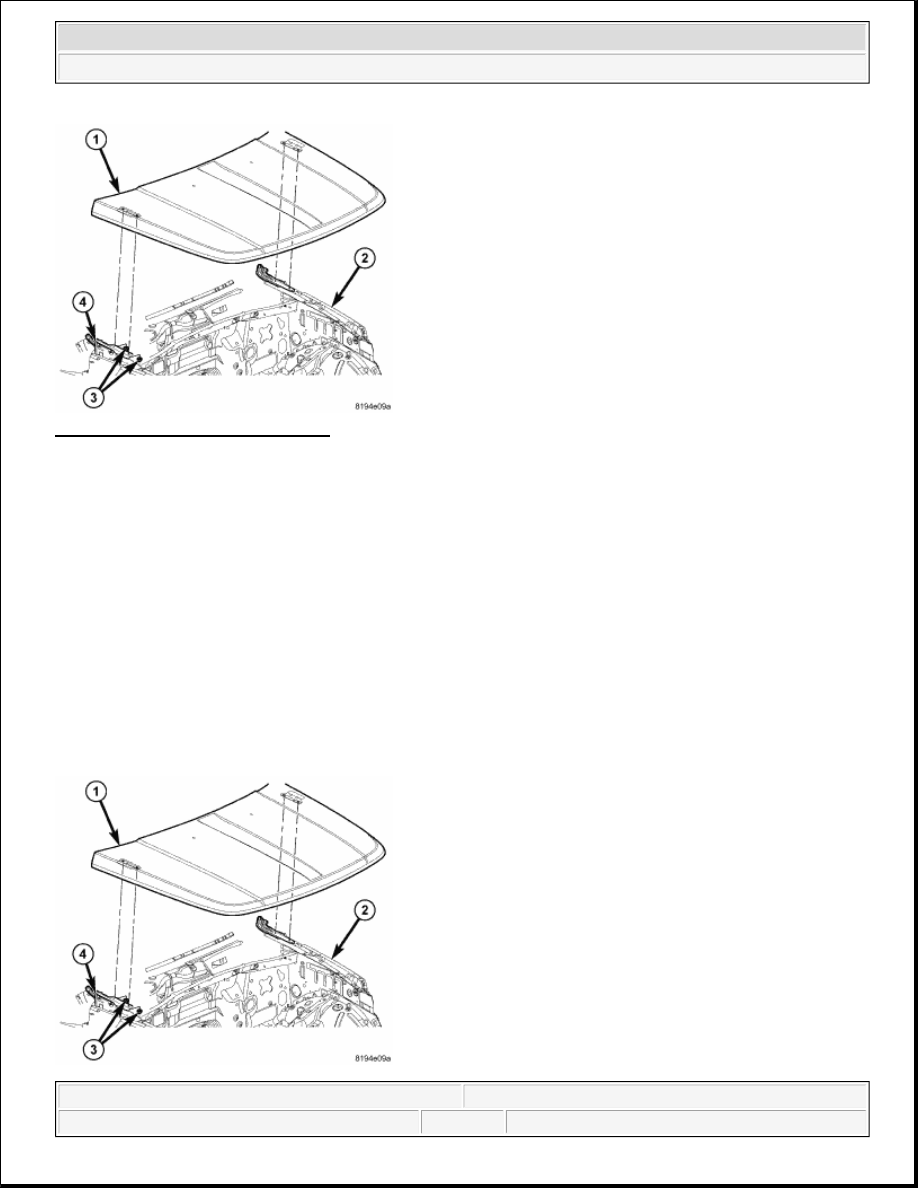

Fig. 285: Removing/Installing Hood
Courtesy of CHRYSLER LLC

1. Remove nuts (3) attaching hinges (4) to hood (1).

2. With the aid of a helper, remove hood from vehicle.

INSTALLATION

HOOD

WARNING:

Before removal of the nuts on the hood hinges get a helper to hold the
hood in position to keep from the hood falling from the vehicle causing
personal injury and/or damage to the vehicle.

NOTE:

Use a grease pencil or equivalent, mark location of hood hinges on the hood for
installation and alignment purposes.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 286: Removing/Installing Hood
Courtesy of CHRYSLER LLC

1. With the aid of a helper, the position hood (1) onto the hinges (4).

2. Install nuts (3) finger-tight.

3. Align hinges with installation reference marks made previously and tighten bolts to 20 N.m (15 ft. lbs.).

4. Inspect hood for proper alignment and adjust as necessary, see ADJUSTMENTS.

ADJUSTMENTS

HOOD

1. If hood is low in relation to cowl panel, insert shims between hinge and hood.

2. Adjust hood bumper in or out to adjust hood-to-fender height alignment.

3. Adjust the hood latch as necessary. Tighten the bolts to 13.5 N.m (10 ft. lbs.).

4. Align the latch striker so that striker enters the latch squarely and without binding.

LATCH - HOOD

REMOVAL

LATCH - HOOD

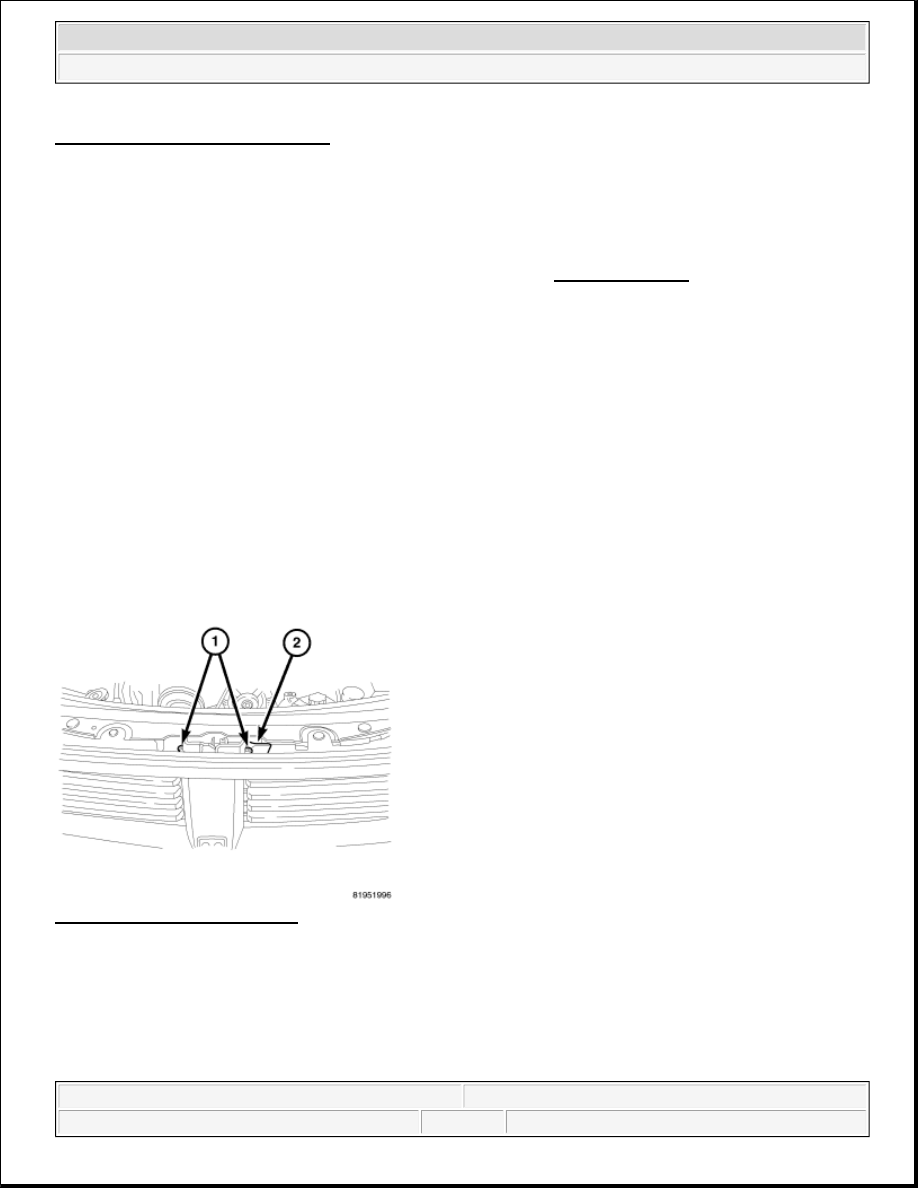

Fig. 287: Release Cable & Bolts
Courtesy of CHRYSLER LLC

1. Remove the bolts (1) from the latch.

2. Disconnect the release cable (2) and remove the latch from the vehicle.

NOTE:

Mark the location of the latch with a grease marker prior to removal from the
vehicle.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
