Dodge Nitro. Manual - part 413





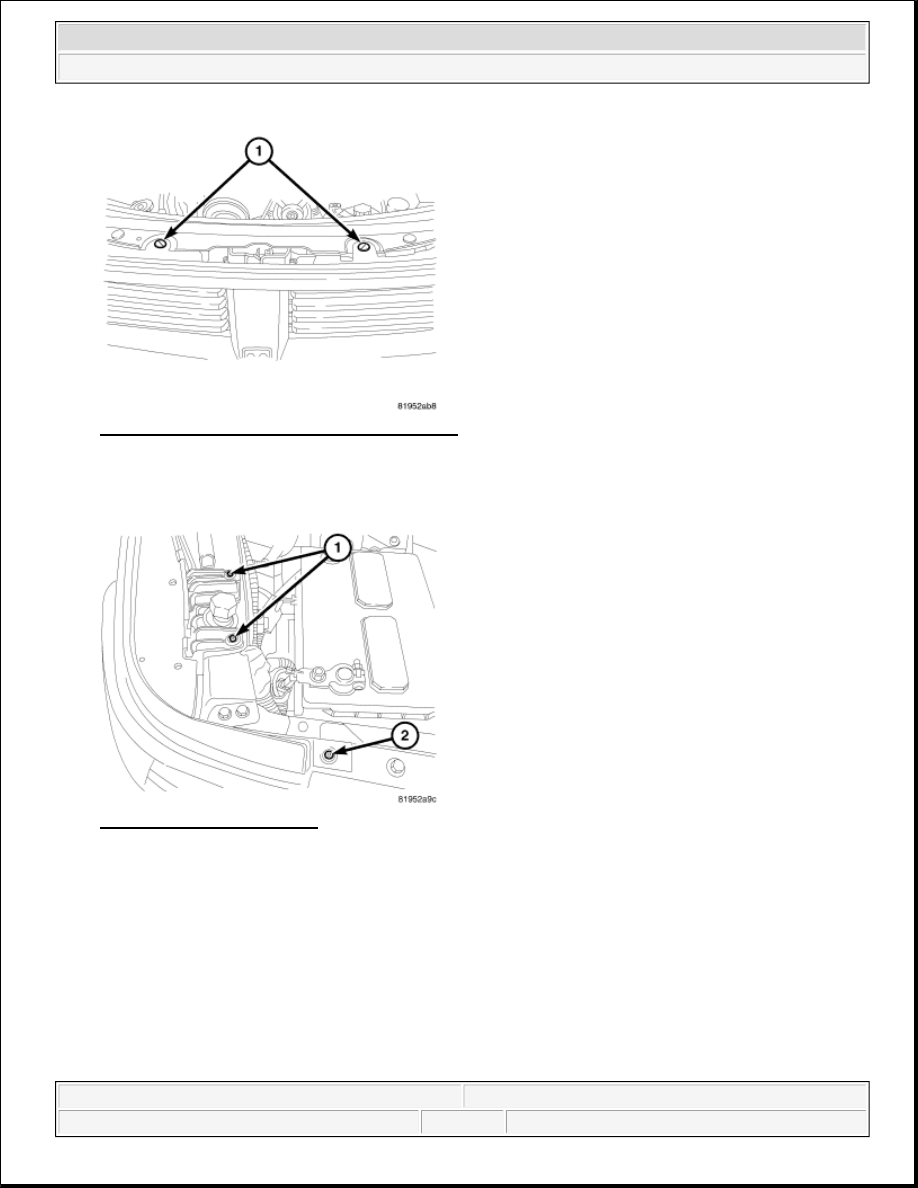

Fig. 242: Removing/Installing Grille Push Pins
Courtesy of CHRYSLER LLC

5. Install the push pins (1) to the grille.

Fig. 243: Grille Torx Screws
Courtesy of CHRYSLER LLC

6. Install the torx screw (2) to the left side of the grille and fender.

7. Install the torx screws (1) to the left side of the grille and the radiator support.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



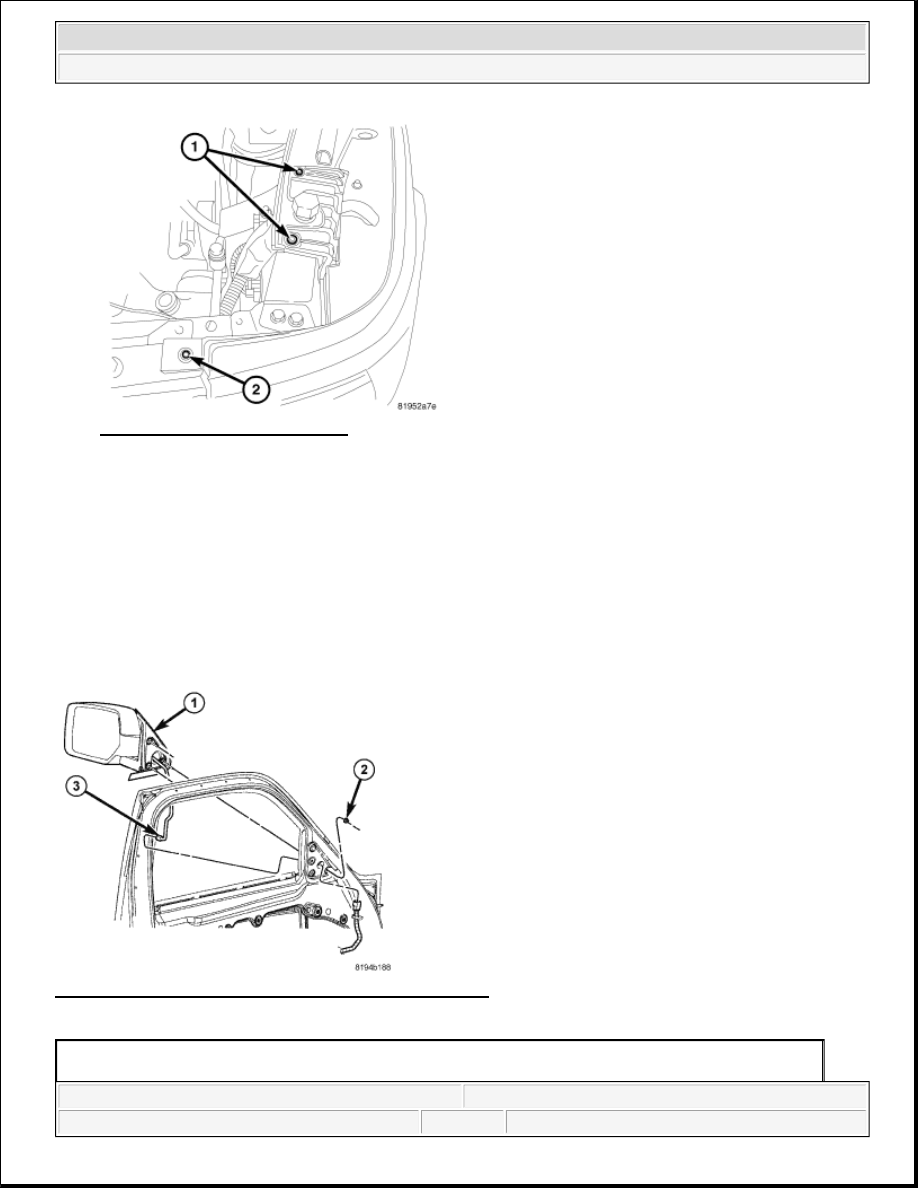

Fig. 244: Grille Torx Screws RT
Courtesy of CHRYSLER LLC

8. Install the torx screw (2) to the right side of the grille and fender.

9. Install the torx screws (1) to the right side of the grille and the radiator support.

10. Lower the hood.

MIRROR - OUTSIDE REARVIEW

REMOVAL

MIRROR - OUTSIDE REARVIEW

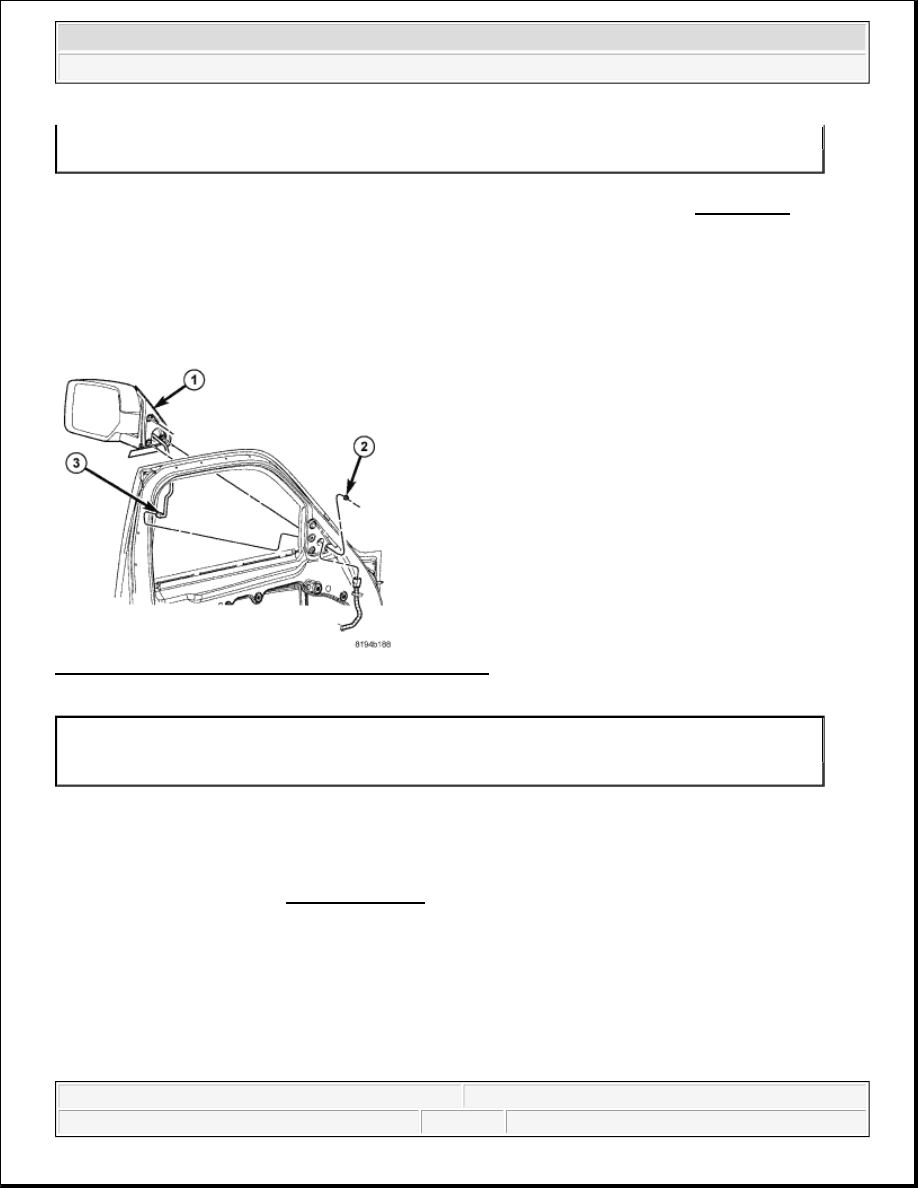

Fig. 245: Mirror Assembly, Nuts & Electrical Connector
Courtesy of CHRYSLER LLC

1 - MIRROR ASSEMBLY



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1. Partially remove the door trim panel as necessary to gain access to the mirror. See REMOVAL.

2. Disconnect the electrical connector (3).

3. Remove the three nuts (2) and remove the mirror assembly (1).

INSTALLATION

MIRROR - OUTSIDE REARVIEW

Fig. 246: Mirror Assembly, Nuts & Electrical Connector
Courtesy of CHRYSLER LLC

1. Install the mirror assembly (1).

2. Install the three nuts (2) and tighten to 7 N.m (65 in. lbs.).

3. Connect the electrical connector (3).

4. Install the trim panel, see INSTALLATION.

MOLDING - FRONT AND REAR DOOR

REMOVAL

MOLDING - FRONT AND REAR DOOR

2 - NUTS (3)
3 - ELECTRICAL CONNECTOR

1 - MIRROR ASSEMBLY
2 - NUTS (3)
3 - ELECTRICAL CONNECTOR



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



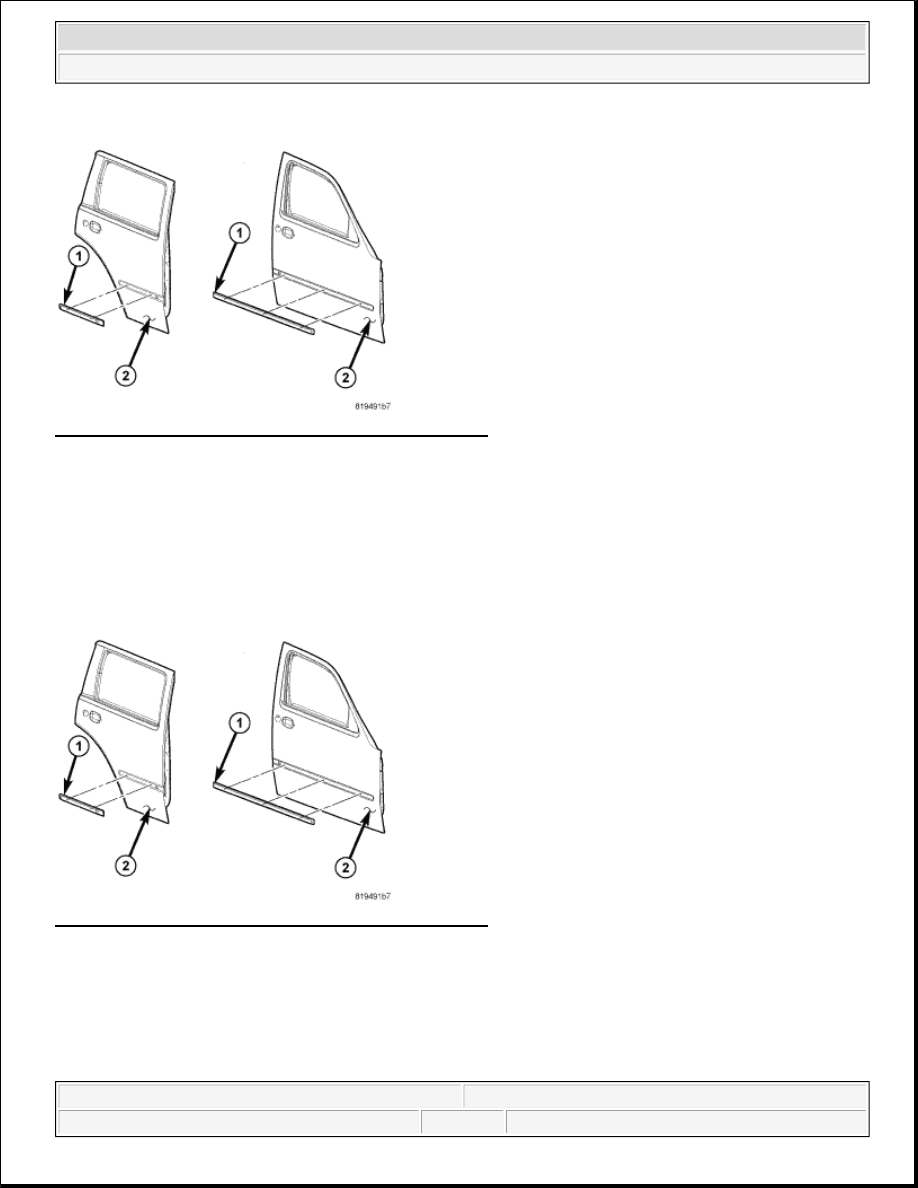

Fig. 247: Removing/Installing Front/Rear Door Molding
Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, remove and discard the molding (1) from the outside of the door

(2).

INSTALLATION

MOLDING - FRONT AND REAR DOOR

Fig. 248: Removing/Installing Front/Rear Door Molding
Courtesy of CHRYSLER LLC

1. Thoroughly clean all residue from the body side molding attachment area of the door.

2. Wipe area clean with a 50% solution of water and alcohol and wipe dry.

3. Apply new body side molding (1) using the locators in the door (2) and apply pressure of approximately

40 psi. over the entire surface of the molding.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
