REMOVAL

CROSSMEMBER - RADIATOR CLOSURE

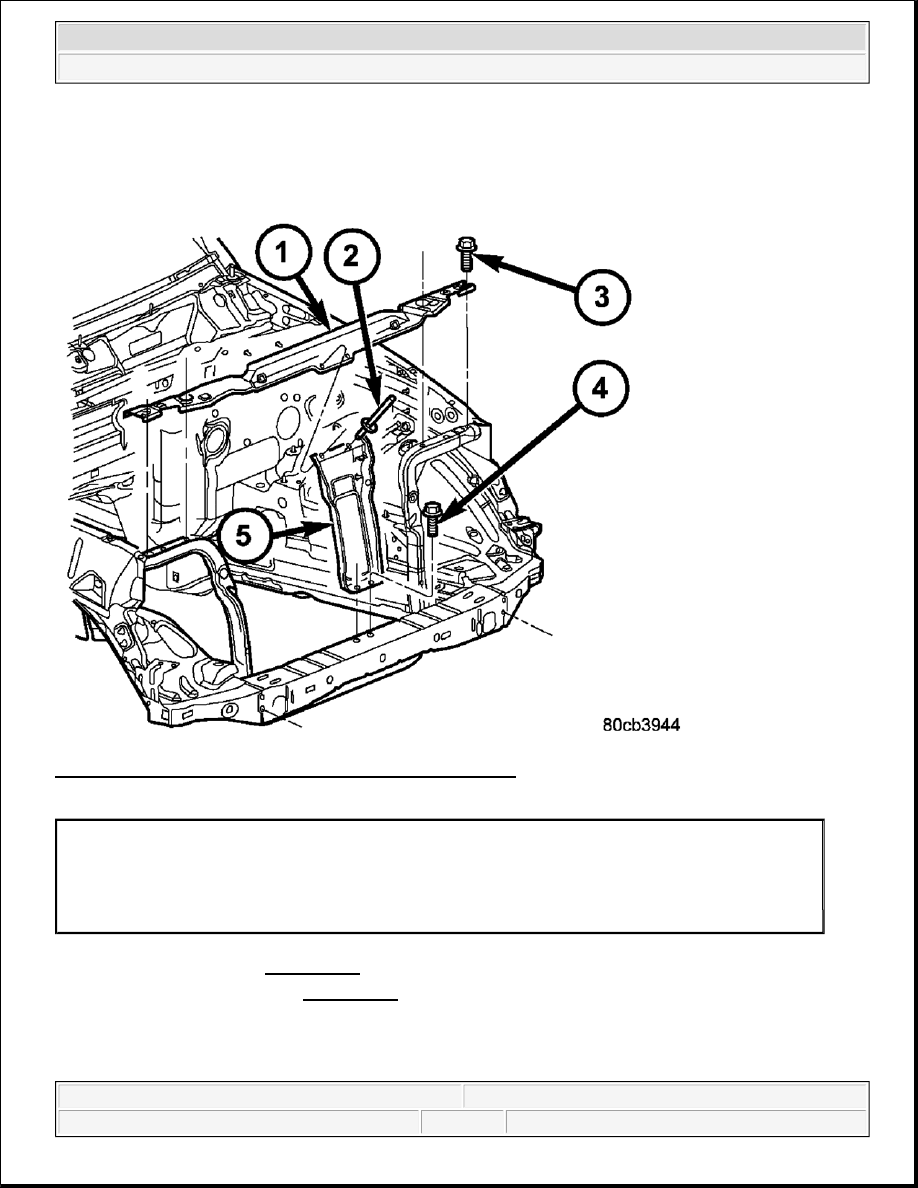

Fig. 225: Crossmember, Rivet, Bolts & Hood Latch Support
Courtesy of CHRYSLER LLC

1. Remove the grille, see REMOVAL.

2. Remove the hood latch, see REMOVAL.

3. Remove the rivet securing the washer bottle to the crossmember.

4. Remove the rivets attaching the hood latch support to the crossmember.

5. Remove the bolts (4) and remove the hood latch support (5).

1 - CROSSMEMBER
2 - RIVETS
3 - BOLTS (4)
4 - BOLTS (2)
5 - HOOD LATCH SUPPORT



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



6. Remove the bolts (3) and remove the crossmember (1).

INSTALLATION

CROSSMEMBER - RADIATOR CLOSURE

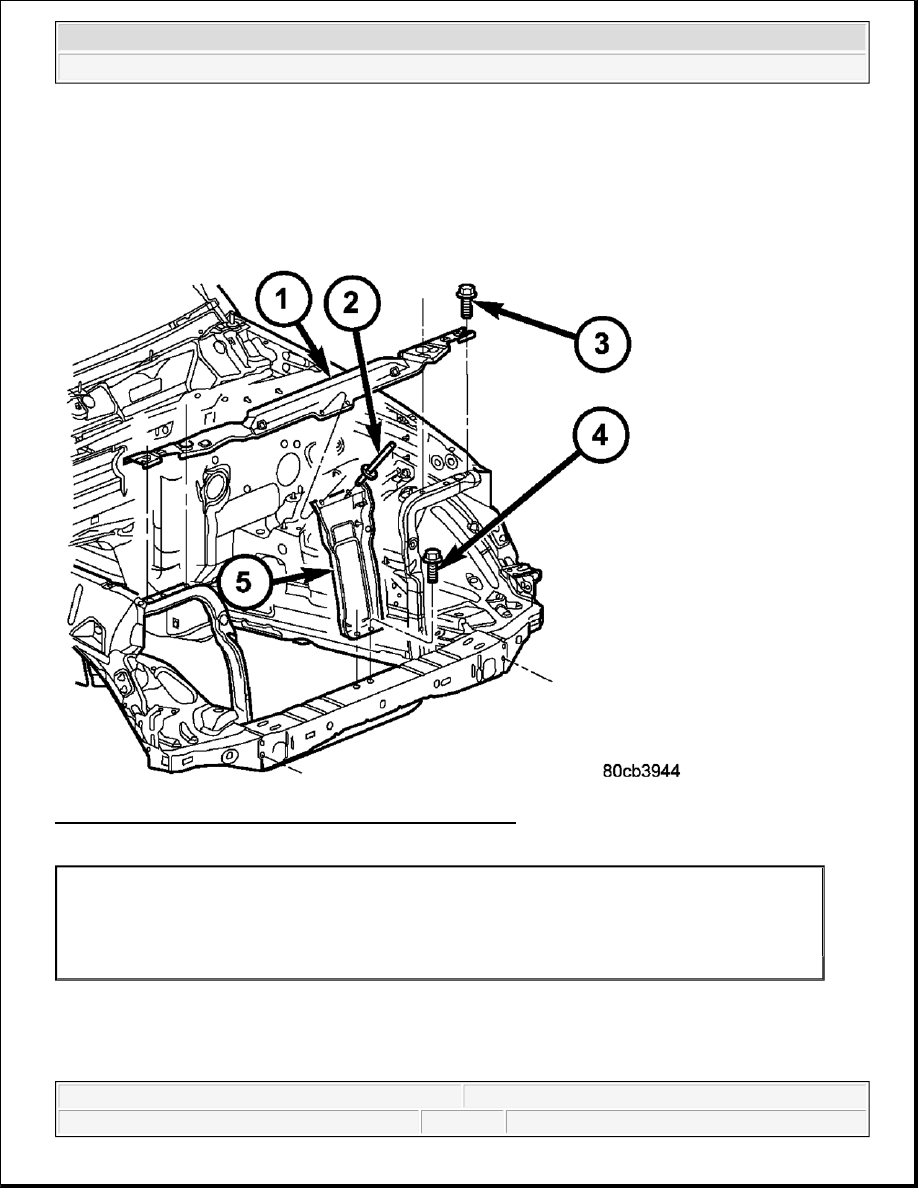

Fig. 226: Crossmember, Rivet, Bolts & Hood Latch Support
Courtesy of CHRYSLER LLC

1. Install the crossmember (1) and install the bolts (3).

2. Tighten the bolts to 10 N.m (85 in. lbs.).

3. Install the hood latch support (5) and install the bolts (4).

1 - CROSSMEMBER
2 - RIVETS
3 - BOLTS (4)
4 - BOLTS (2)
5 - HOOD LATCH SUPPORT



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



4. Tighten the bolts to 10 N.m (85 in. lbs.).

5. Install new rivets (2) attaching the hood latch support to the crossmember.

6. Install the hood latch, see INSTALLATION.

7. Install the grille, see INSTALLATION.

8. Install a new rivet securing the washer bottle to the crossmember.

DOOR - FUEL FILL

REMOVAL

DOOR - FUEL FILL

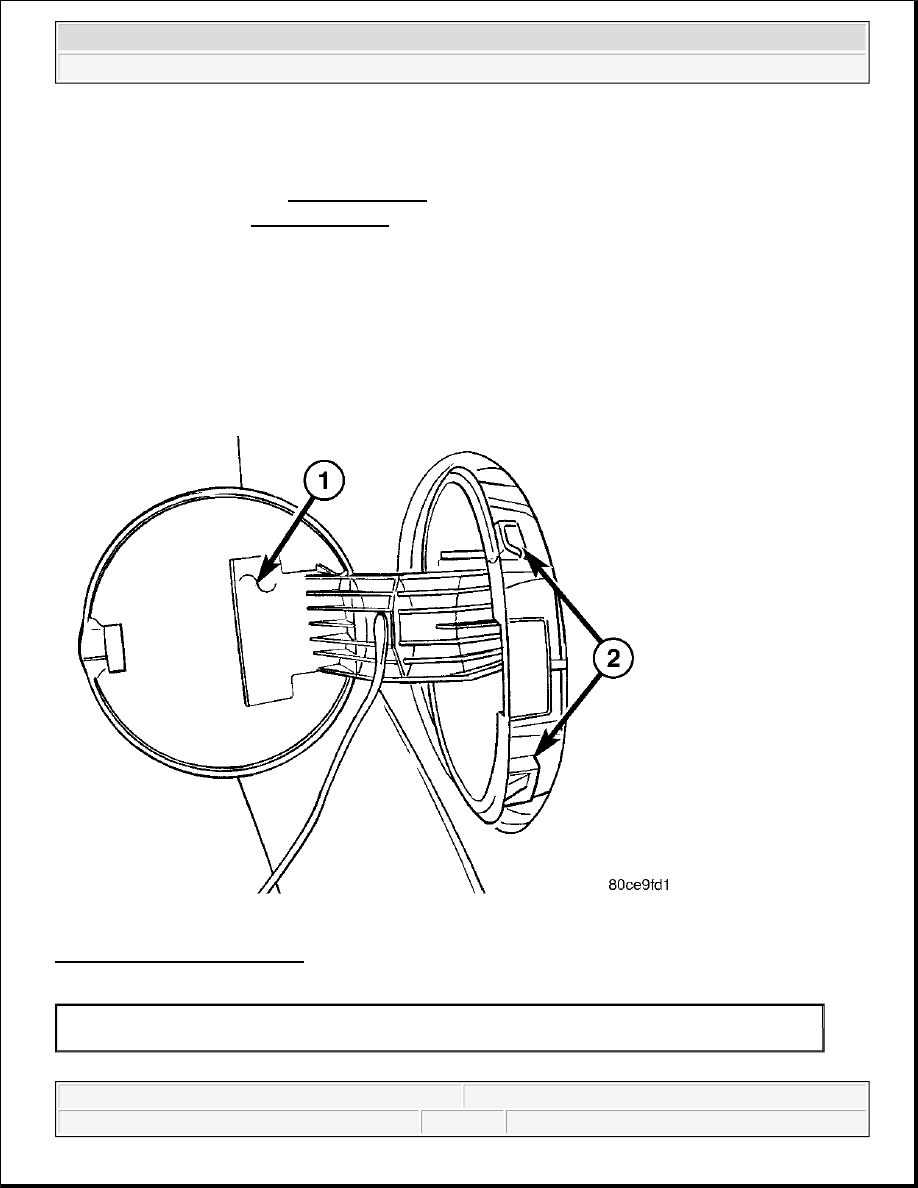

Fig. 227: Fuel Fill Door/Housing
Courtesy of CHRYSLER LLC

1 - FUEL FILL DOOR
2 - HOUSING TABS



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1. Remove the fuel cap.

2. Remove the three screws connecting the fuel door/housing to the filler neck.

3. Reach in through the opening and depress the tabs (2) at the upper and bottom right of the door/housing.

4. Remove the fuel door/housing from the vehicle.

INSTALLATION

DOOR - FUEL FILL

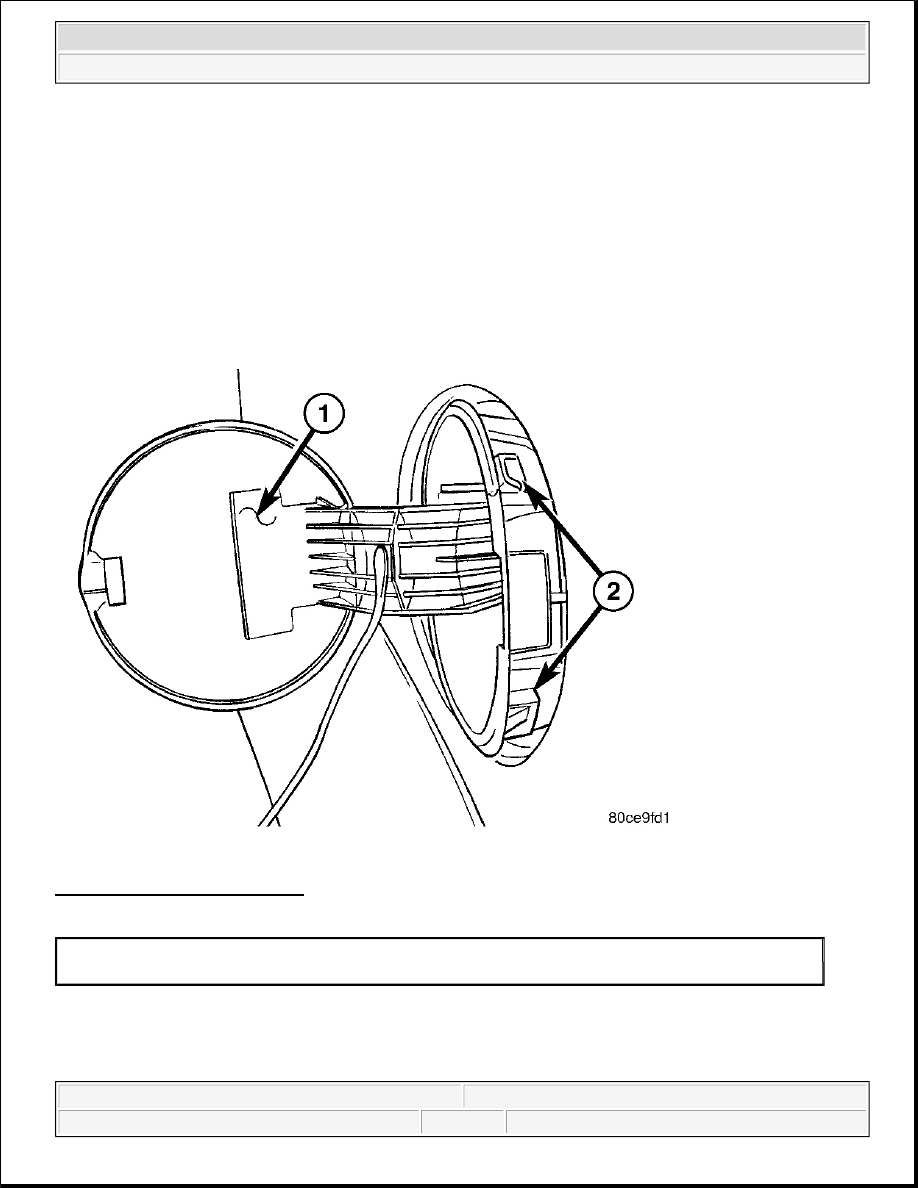

Fig. 228: Fuel Fill Door/Housing
Courtesy of CHRYSLER LLC

1. Position the fuel filler door/housing into the vehicle and fully seat the tabs (2).

2. Install the three screws.

3. Install the fuel cap.

1 - FUEL FILL DOOR
2 - HOUSING TABS



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
