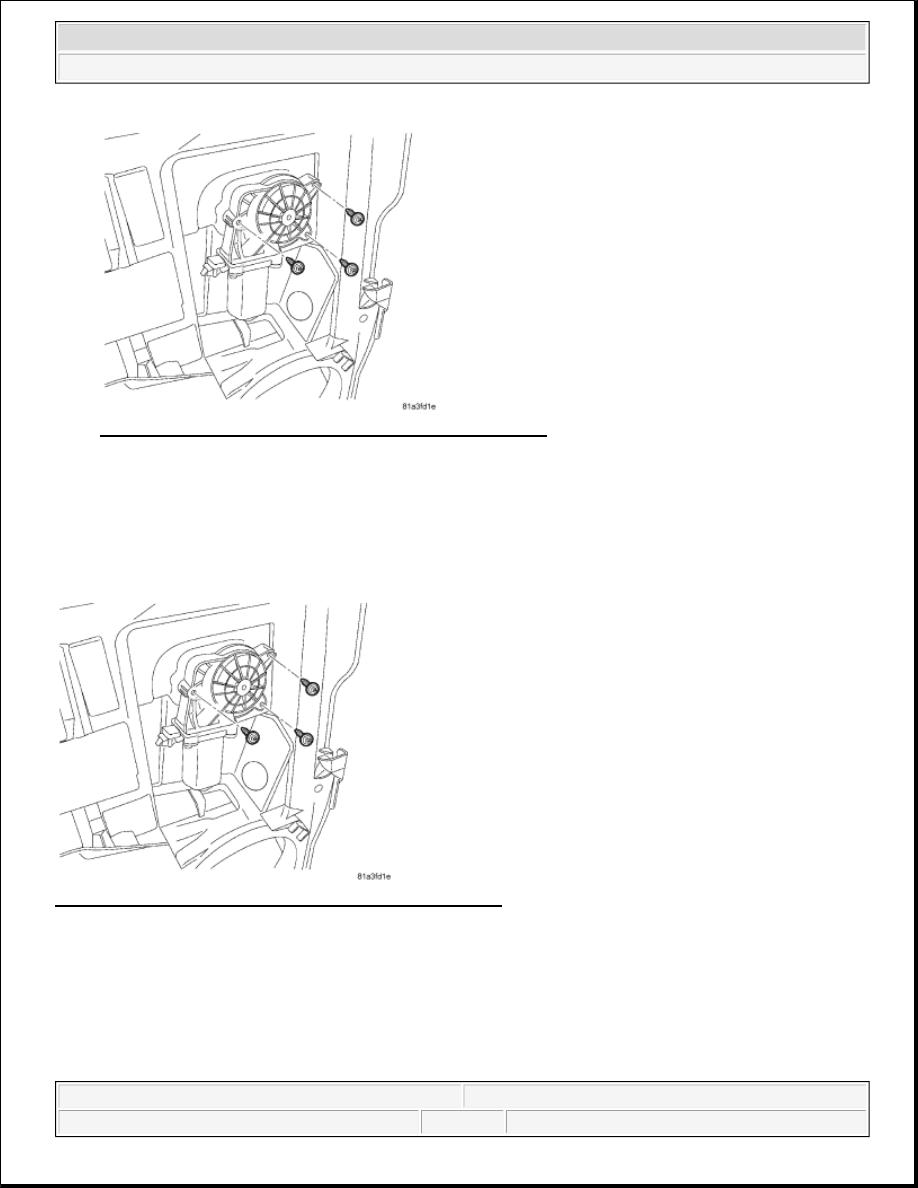

Fig. 144: Removing/Installing Screws And Window Motor
Courtesy of CHRYSLER LLC

27. Remove the screws and window motor from the carrier plate.

INSTALLATION

CARRIER PLATE - REAR DOOR

Fig. 145: Removing/Installing Screws And Window Motor
Courtesy of CHRYSLER LLC

1. Install the motor and screws to the carrier plate and tighten to 3.5 N.m (31 in. lbs.).

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

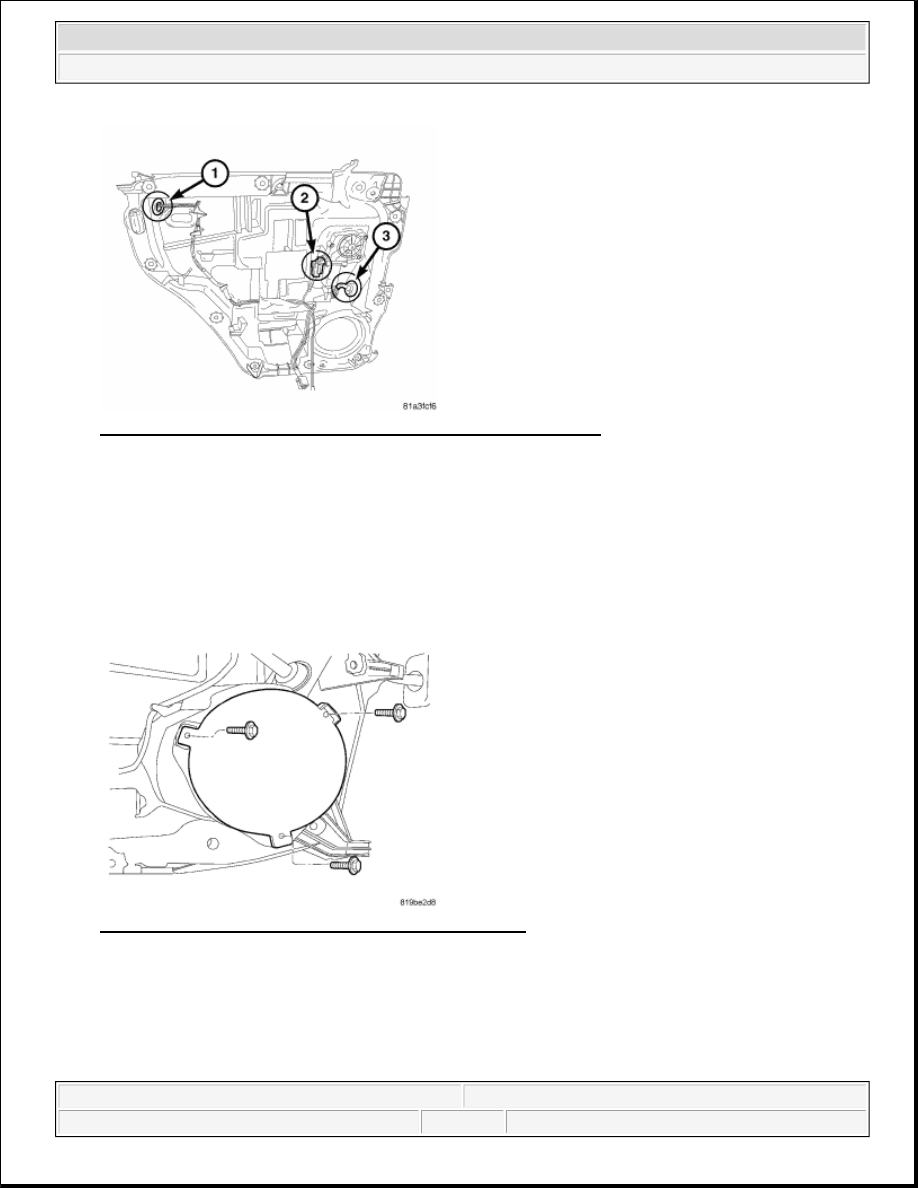

Fig. 146: Carrier Plate Electrical Harnesses & Motor Connectors
Courtesy of CHRYSLER LLC

2. Install the harness to the carrier plate.

3. Install the electrical harness (3) and seat the rubber grommet into the carrier plate.

4. Connect the electrical connector (2) to the motor.

5. Route the harness through all of the hooks in the carrier plate.

6. Install the electrical harness (1) and seat the rubber grommet into the carrier plate.

Fig. 147: Removing/Installing Speaker Bolts & Speaker
Courtesy of CHRYSLER LLC

7. Install the speaker and bolts to the carrier and tighten to 1.5 N.m (13 in. lbs.).

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

Fig. 148: Disconnecting/Connecting Speaker Electrical Connector
Courtesy of CHRYSLER LLC

8. Connect the speaker electrical connector.

9. Install speaker wire to wire clip.

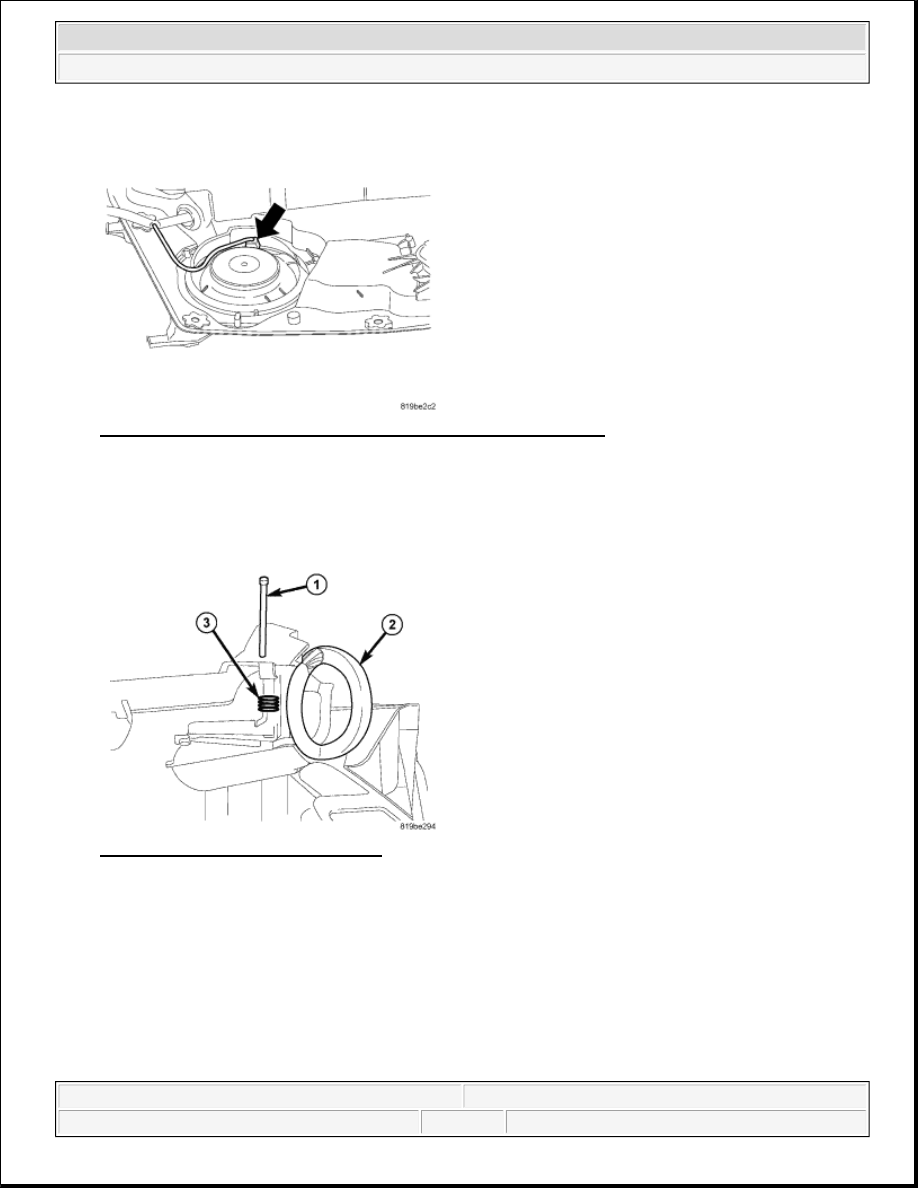

Fig. 149: Push Pin, Handle & Spring
Courtesy of CHRYSLER LLC

10. Install the handle (2) and spring (3) to the carrier.

11. Install the push pin (1) into the carrier, spring and the handle.

NOTE:

Make sure that the push pin is seated flush with the carrier.

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

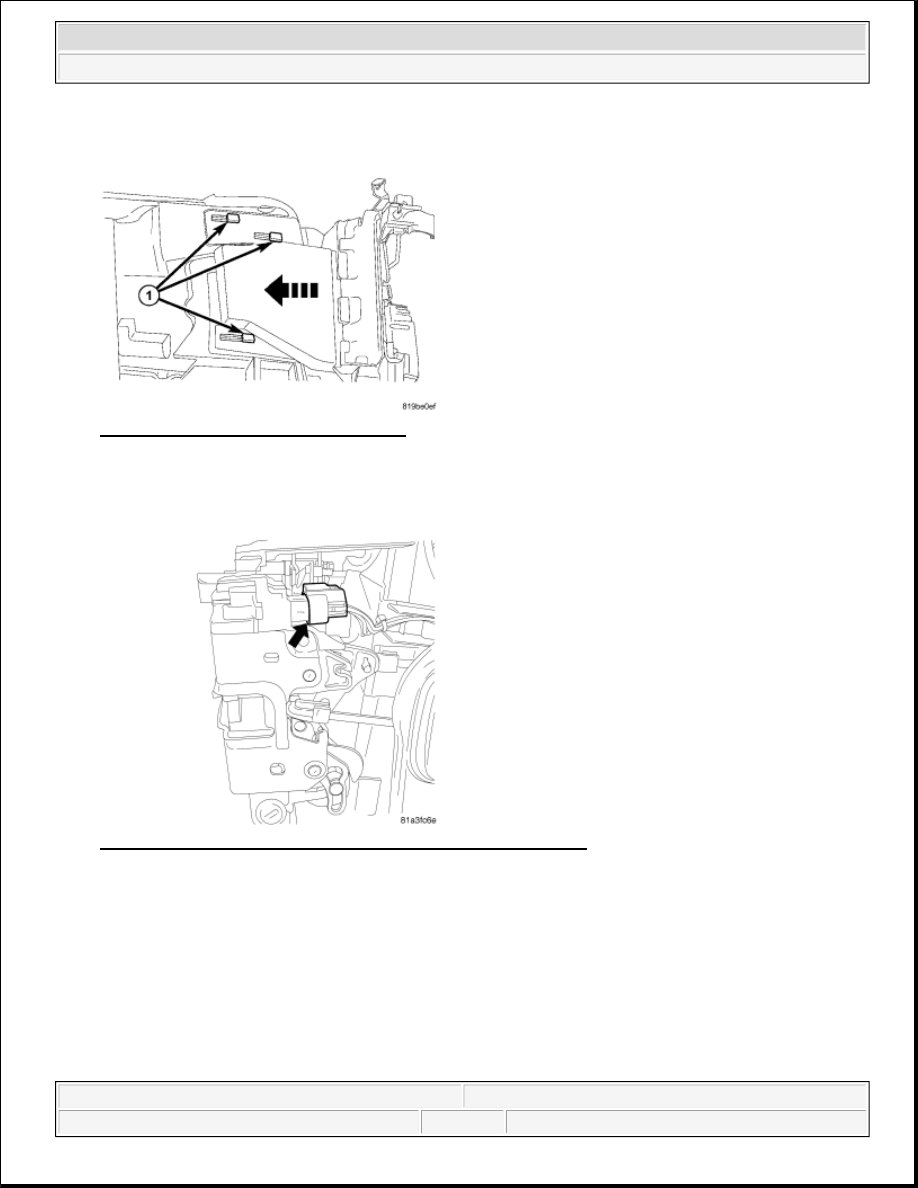

Fig. 150: Identifying Carrier Plate Slots
Courtesy of CHRYSLER LLC

12. Install the latch bracket assembly to the carrier plate slots (1) then slide the latch bracket until fully

seated.

Fig. 151: Disconnecting/Connecting Latch Electrical Connector
Courtesy of CHRYSLER LLC

13. Connect the latch electrical connector.
