Fig. 75: Removing/Installing Inner Door Weatherstrip
Courtesy of CHRYSLER LLC

10. Install the inner door weatherstrip. See INSTALLATION.

Fig. 76: Door Plug & Rear Exterior Handle Nut
Courtesy of CHRYSLER LLC

11. Install the rear nut (1) to the exterior handle and tighten to 4.5 N.m (40 in. lbs.).

12. Install the door plug (2) to the door.

13. Install the trim panel to the door. See INSTALLATION.

HANDLE - EXTERIOR DOOR

NOTE:

The door glass must be in the full up position in order to access the rear
exterior handle nut. Use light and a magnetic socket on the rear nut to
prevent from dropping the nut into the door assembly.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



REMOVAL

HANDLE - EXTERIOR DOOR

Fig. 77: Removing/Installing Trim Panel
Courtesy of CHRYSLER LLC

1. Remove the trim panel from the door. See REMOVAL.

Fig. 78: Door Plug & Rear Exterior Handle Nut
Courtesy of CHRYSLER LLC

2. Remove the door plug (2).

3. Remove rear exterior handle nut (1).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

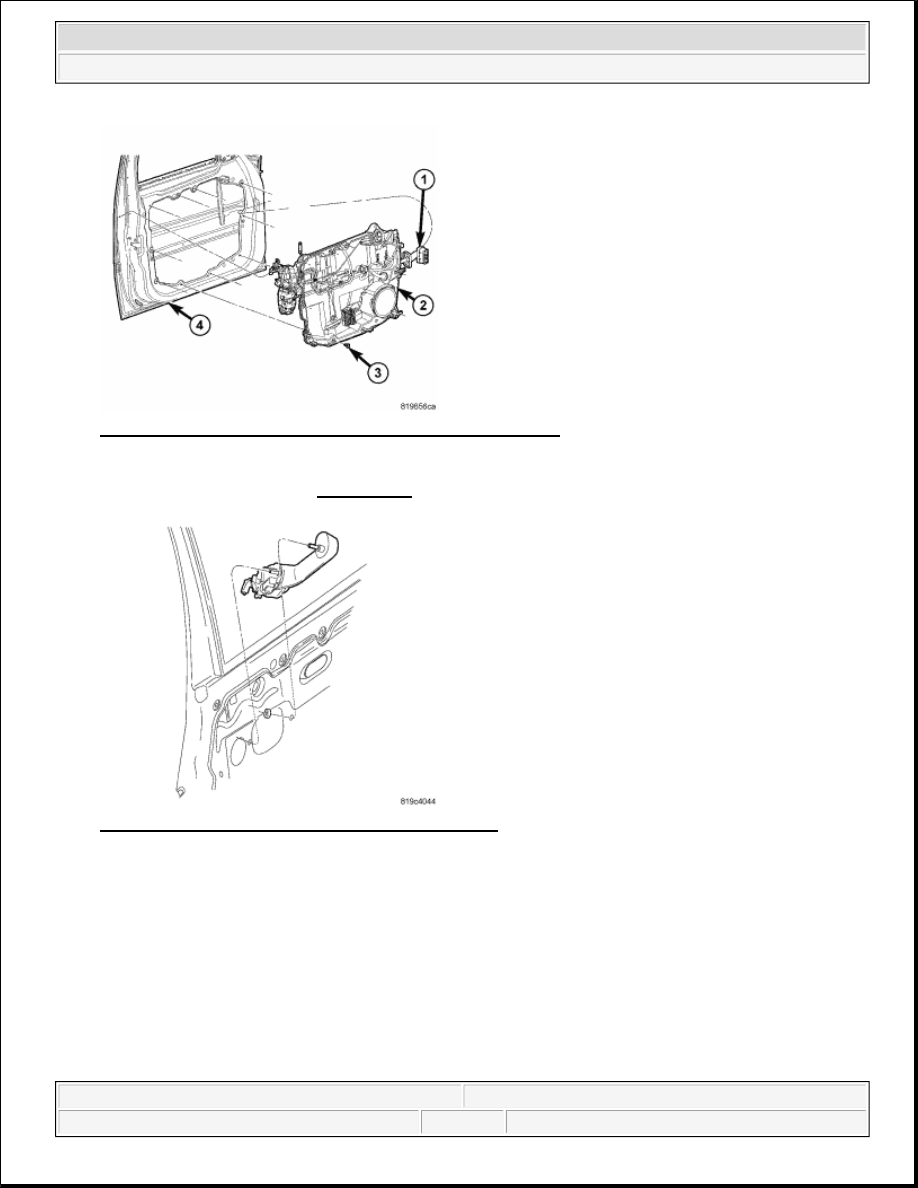

Fig. 79: Electrical Connector, Carrier Plate, Screws & Door
Courtesy of CHRYSLER LLC

4. Remove the carrier plate. See REMOVAL.

Fig. 80: Removing/Installing Front Exterior Handle
Courtesy of CHRYSLER LLC

5. Remove the front exterior handle nut and remove the handle from the door.

INSTALLATION

HANDLE - EXTERIOR DOOR



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

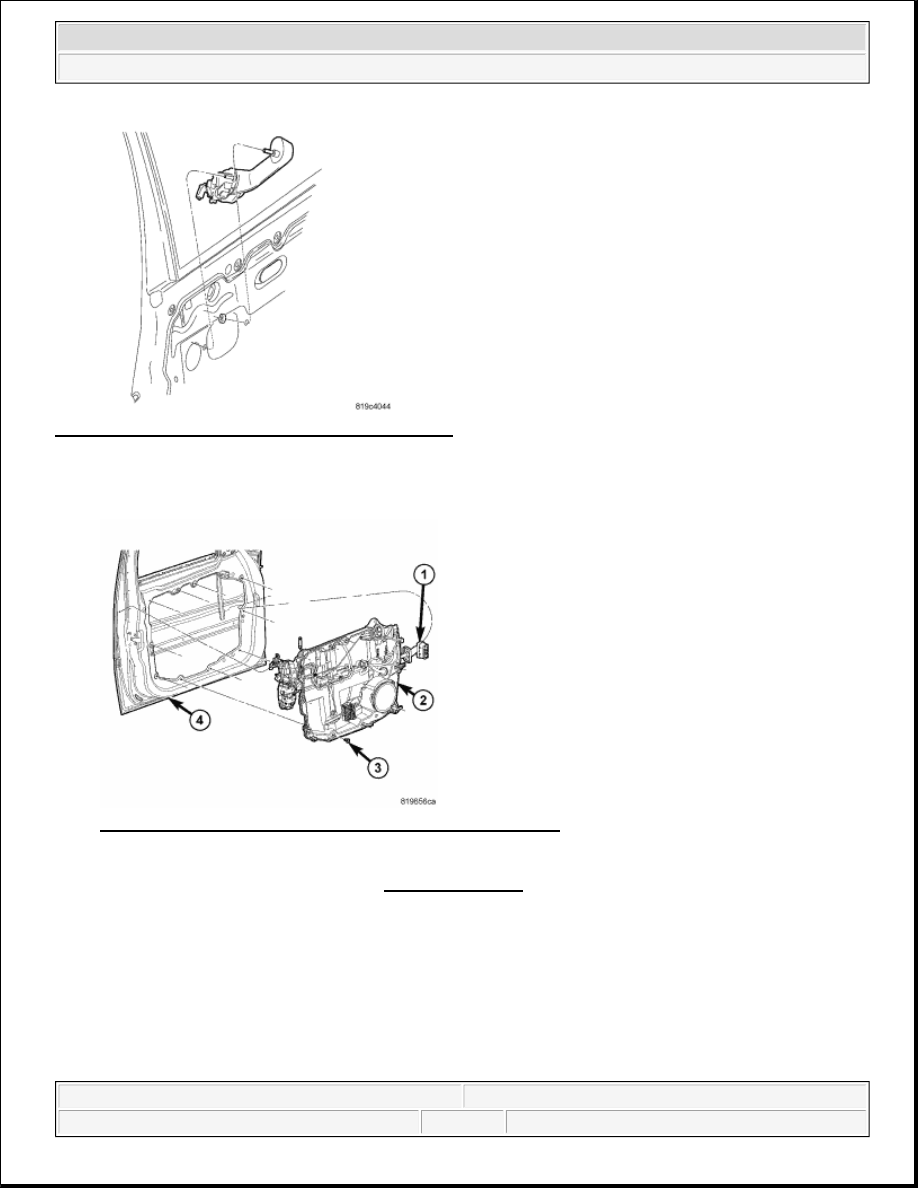

Fig. 81: Removing/Installing Front Exterior Handle
Courtesy of CHRYSLER LLC

1. Position the handle on the door and install the front nut and tighten to 4.5 N.m (40 in. lbs.).

Fig. 82: Electrical Connector, Carrier Plate, Screws & Door
Courtesy of CHRYSLER LLC

2. Install the carrier plate to the door. See INSTALLATION.
