The caliper should be replaced if the bore is severely corroded, rusted, scored, or if polishing would increase
bore diameter more than 0.025 mm (0.001 inch).

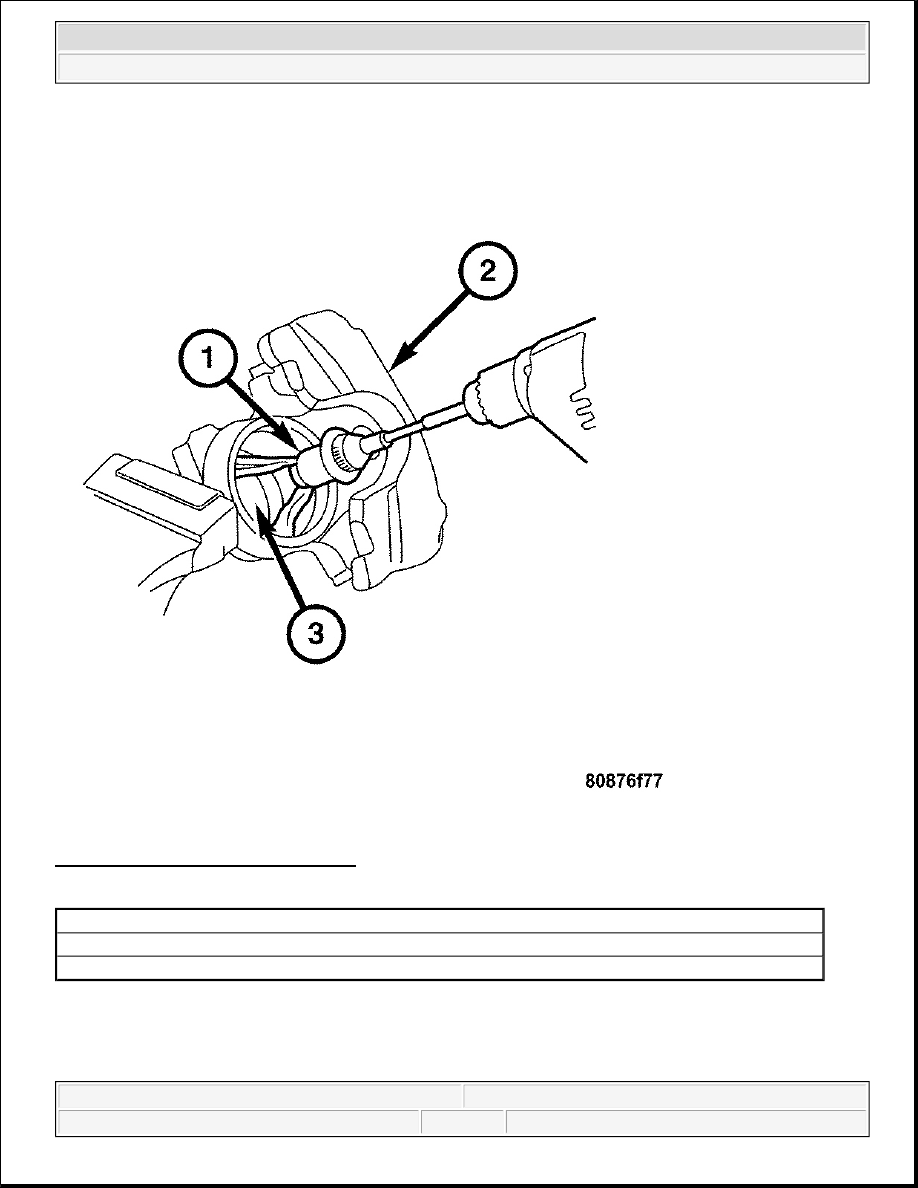

Fig. 27: Polishing Piston Bore - Typical
Courtesy of CHRYSLER LLC

ASSEMBLY

DISC BRAKE CALIPER

1 - SPECIAL HONE
2 - CALIPER
3 - PISTON BORE



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



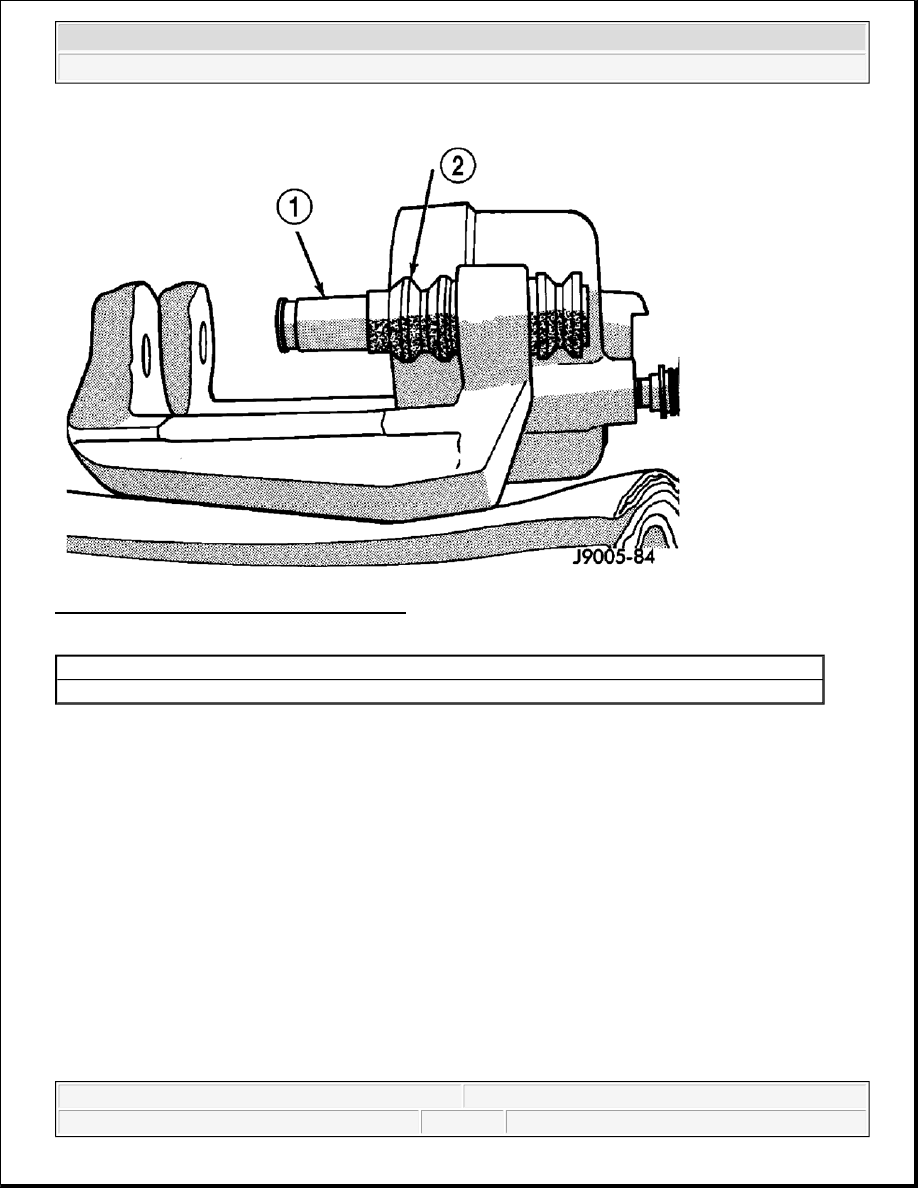

Fig. 28: Installing Bushings & Boots - Typical
Courtesy of CHRYSLER LLC

1. Lubricate caliper piston bore, new piston seal and piston with clean brake fluid.

2. Lubricate caliper bushings and interior of bushing boots with silicone grease.

3. Install bushing boots (2) in caliper, then insert bushing into boot and push bushing (1) into place.

1 - BUSHING
2 - BOOT

CAUTION: Dirt, oil, and solvents can damage caliper seals. Insure assembly area is

clean and dry.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



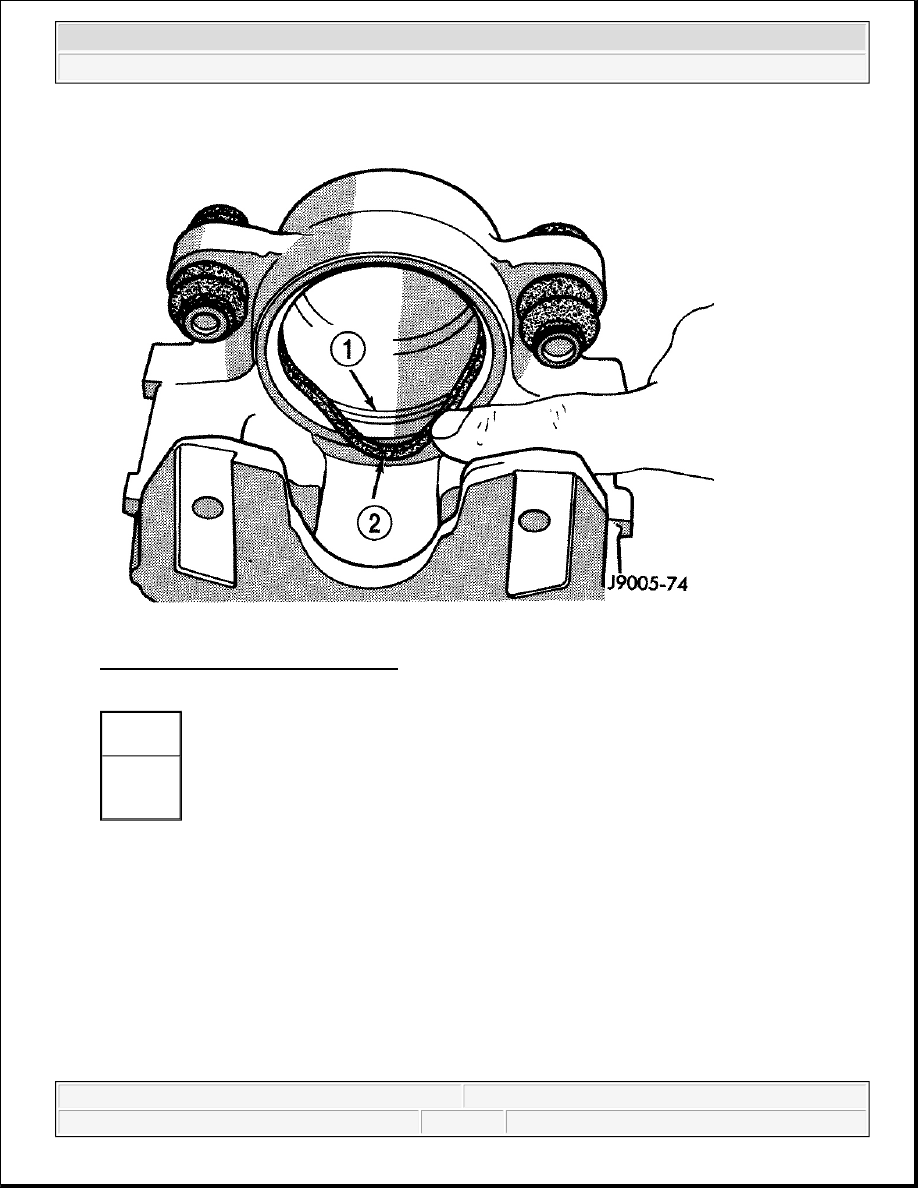

Fig. 29: Installing Piston Seal - Typical
Courtesy of CHRYSLER LLC

4. Install new piston seal into seal groove (1) with finger.

1 - SEAL
GROOVE
2 -
PISTON
SEAL



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



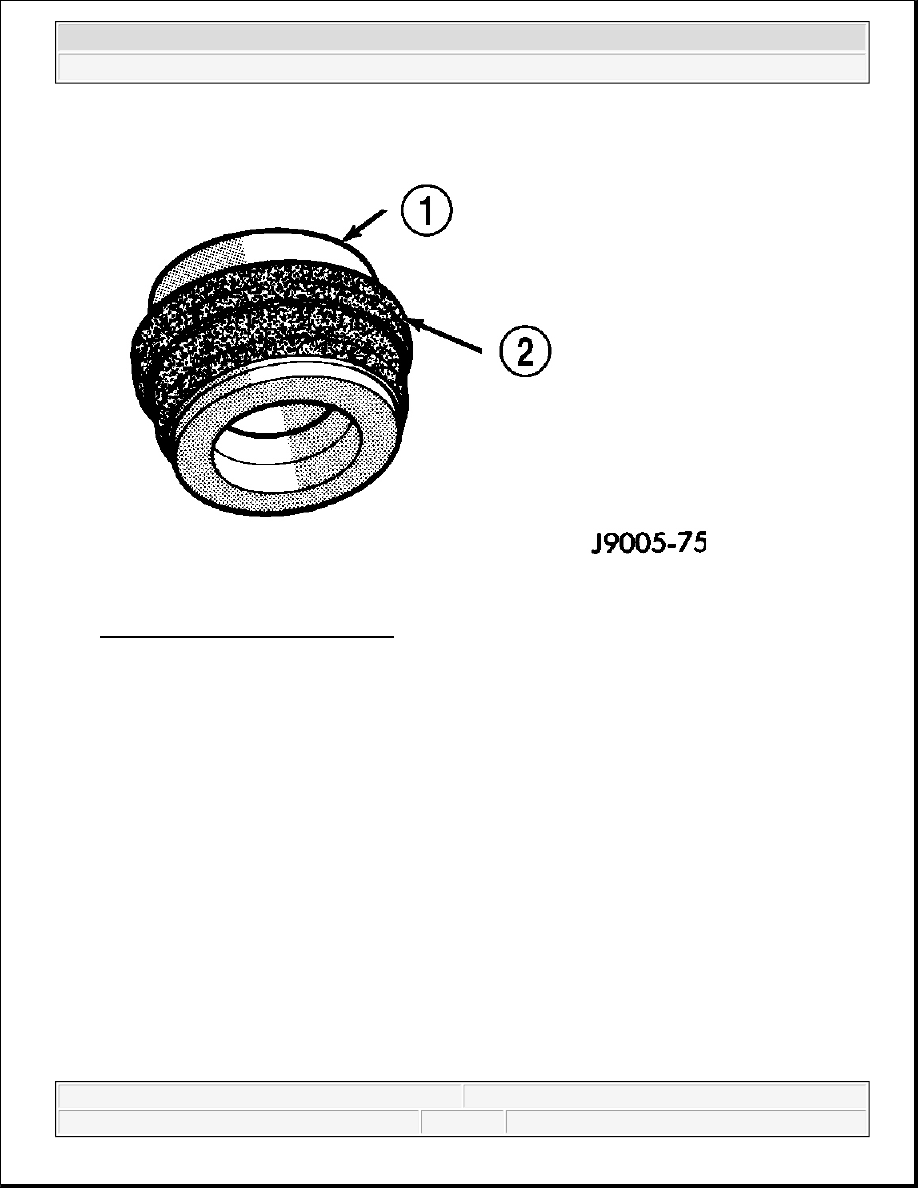

Fig. 30: Dust Boot On Piston - Typical
Courtesy of CHRYSLER LLC

5. Install new dust boot on caliper piston and seat boot in piston groove (1).



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro
