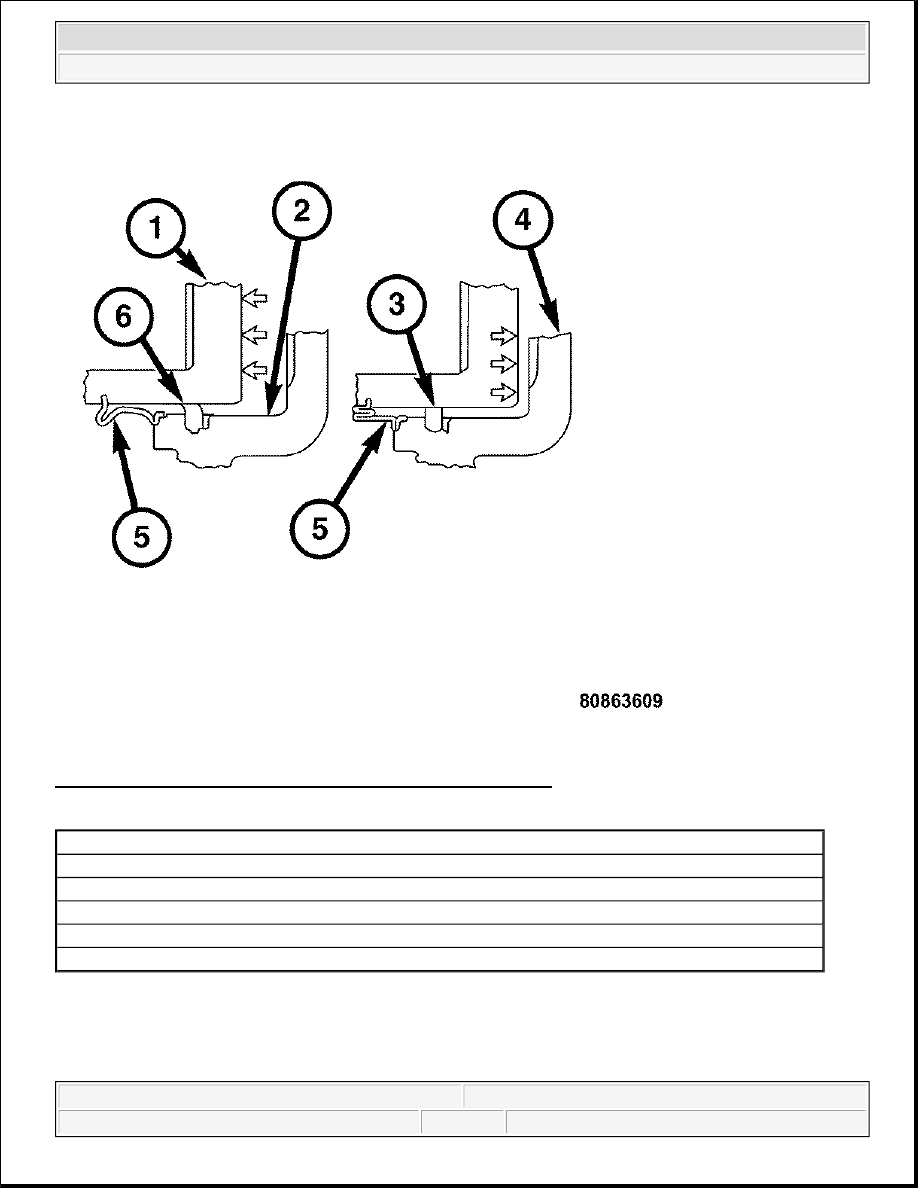

Fig. 19: Caliper Piston Seal Function For Automatic Adjustment
Courtesy of CHRYSLER LLC

REMOVAL

CALIPER-DISC BRAKE-REAR

1 - PISTON
2 - CYLINDER BORE
3 - PISTON SEAL BRAKE PRESSURE OFF
4 - CALIPER HOUSING
5 - DUST BOOT
6 - PISTON SEAL BRAKE PRESSURE ON



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



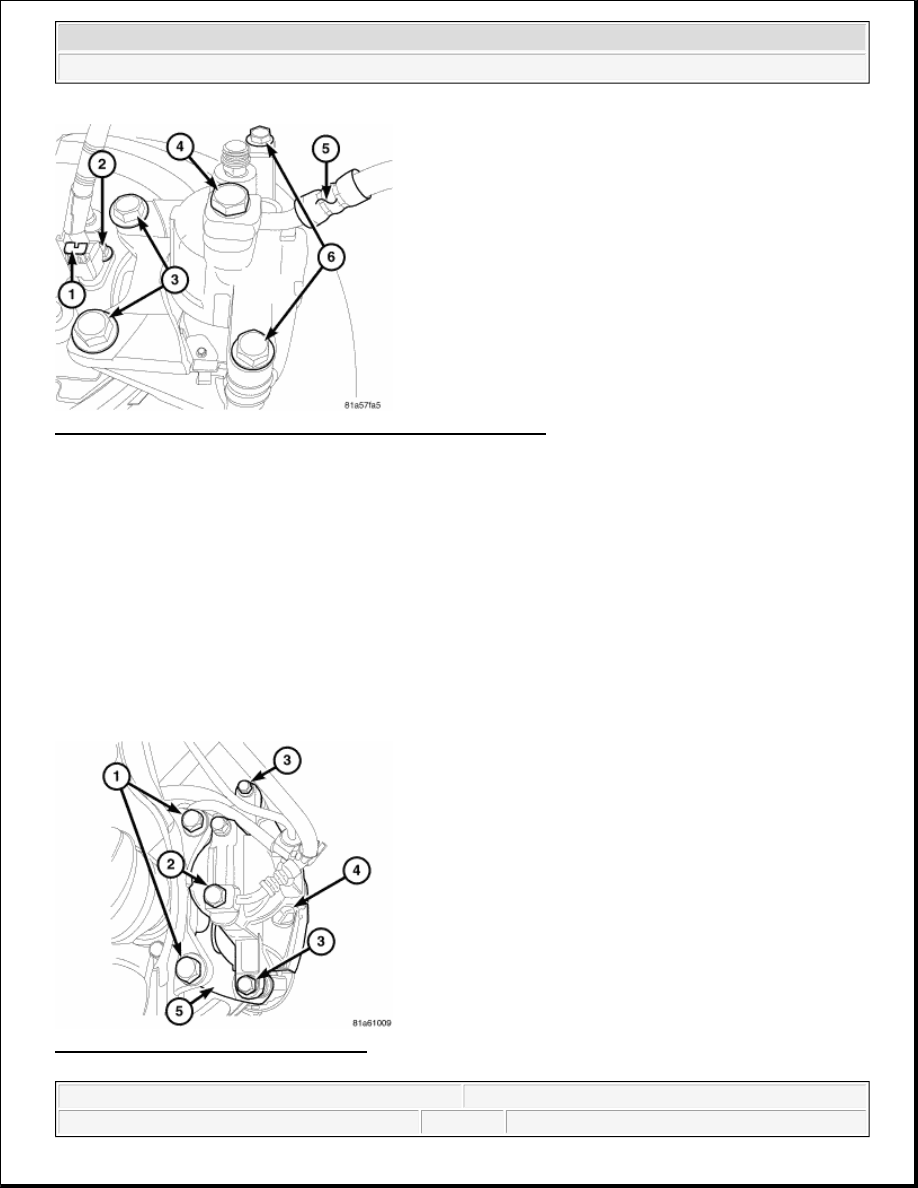

Fig. 20: Identifying Bolts, Brake Hose & Brake Hose Banjo Bolt
Courtesy of CHRYSLER LLC

1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position

will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of
brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead
of the entire system.

2. Raise and support vehicle.

3. Remove the wheel and tire assembly.

4. Remove the brake hose banjo bolt (4) if replacing caliper.

5. Remove the caliper mounting bolts (6).

6. Remove the caliper from vehicle.

CALIPER- DISC BRAKE-FRONT

Fig. 21: Disc Brake Caliper Components
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position

will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of
brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead
of the entire system.

2. Raise and support vehicle.

3. Remove front wheel and tire assembly.

4. Remove the brake hose banjo bolt (2) if replacing caliper.

5. Remove the caliper mounting bolts (3).

6. Remove the caliper (4) from vehicle.

DISASSEMBLY

DISC BRAKE CALIPER



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



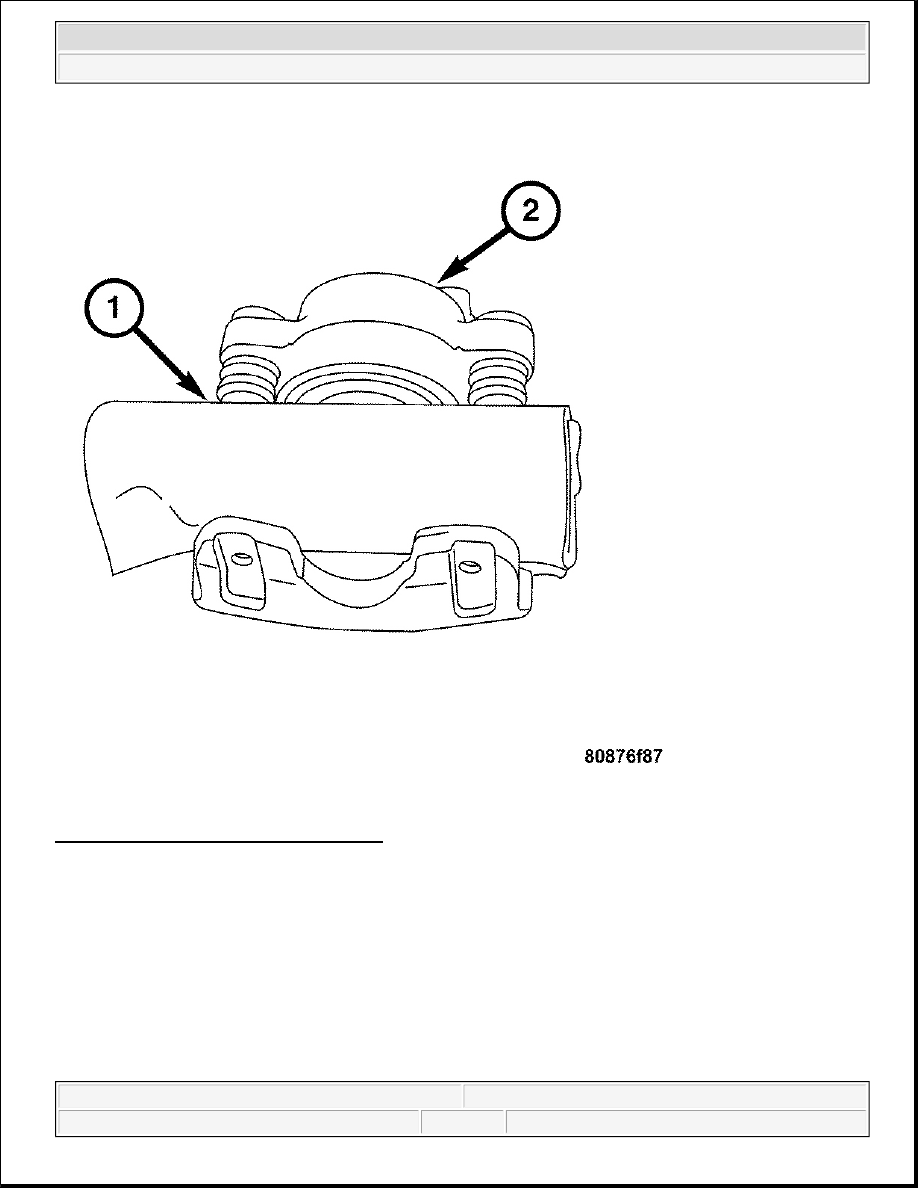

Fig. 22: Padding Caliper Interior - Typical
Courtesy of CHRYSLER LLC

1. Remove brake shoes from caliper.

2. Drain brake fluid out of caliper.

3. Take a piece of wood and pad it with one-inch thickness of shop towels (1). Place this piece in the

outboard shoe side of the caliper in front of the piston. This will cushion and protect caliper piston during
removal.
