1. Raise and support the vehicle.

2. Remove the front wheel and tire assembly.

3. Drain a small amount of fluid from the master cylinder brake reservoir with a clean suction gun.

4. Bottom the caliper pistons into the caliper by prying the caliper over.

5. Remove the caliper mounting bolts (1).

6. Remove the disc brake caliper (2) from the adapter (4).

7. Remove the inboard and outboard pads (3).

INSTALLATION

PADS-DISC BRAKE-REAR

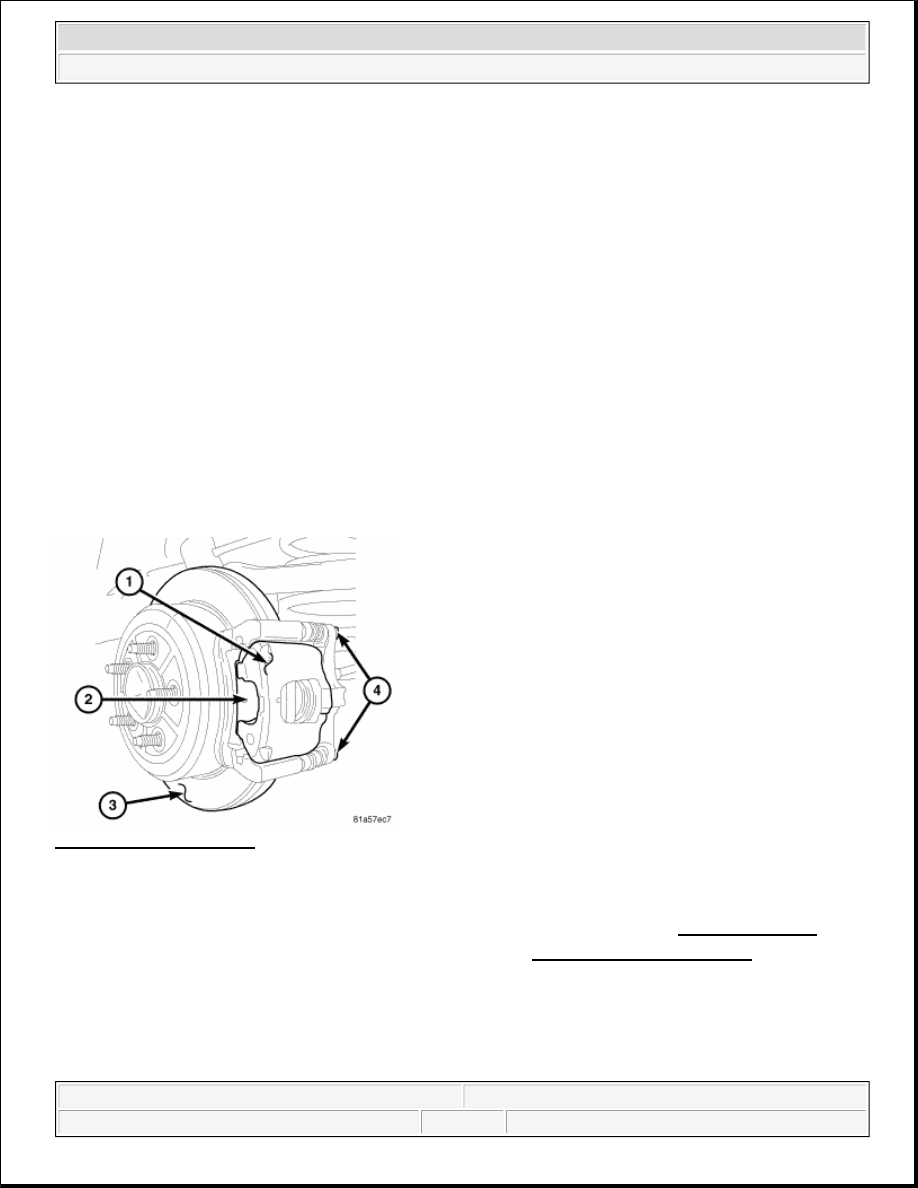

Fig. 16: Caliper Assembly
Courtesy of CHRYSLER LLC

1. Install the brake pads (2) to the caliper adapter.

2. Install caliper (1) to the rotor and then install the caliper mounting bolts (4), see INSTALLATION.

3. Install wheel and tire assemblies and lower vehicle, refer to STANDARD PROCEDURE .

4. Apply brakes several times to seat caliper pistons and brake shoes and obtain firm pedal.

5. Top off master cylinder fluid level.

PADS-DISC BRAKE-FRONT

CAUTION: Never allow the disc brake caliper to hang from the brake hose.

Damage to the brake hose will result. Provide a suitable support to
hang the caliper securely.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



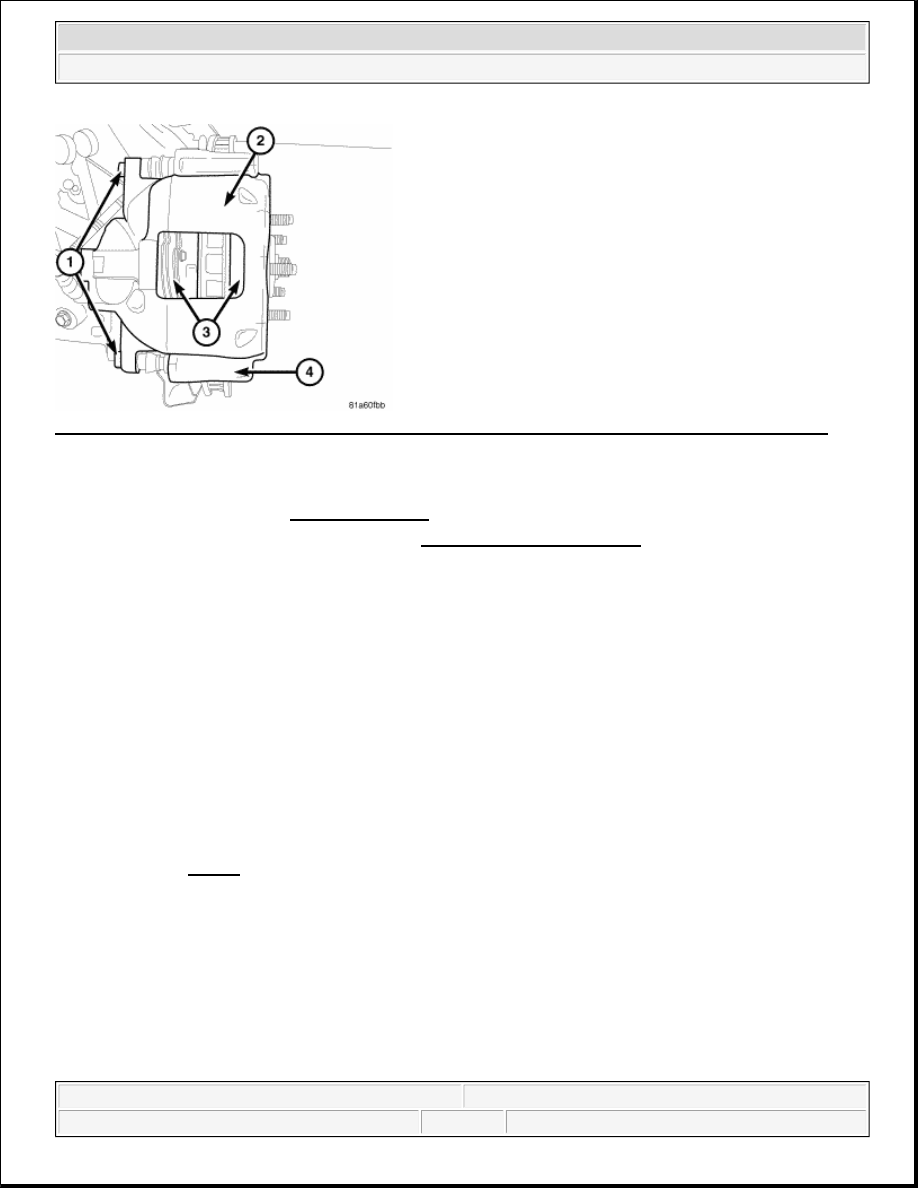

Fig. 17: Identifying Caliper Mounting Bolts, Disc Brake Caliper, Inboard/Outboard Pads & Adapter
Courtesy of CHRYSLER LLC

1. Install the inboard and outboard pads (3).

2. Install the caliper (2). See INSTALLATION.

3. Install the tire and wheel assembly. Refer to STANDARD PROCEDURE .

DISC BRAKE CALIPERS

DESCRIPTION

DISC BRAKE CALIPER

The calipers are a single piston type. The calipers are free to slide laterally, this allows continuous
compensation for lining wear.

OPERATION

DISC BRAKE CALIPER

When the brakes are applied fluid pressure is exerted against the caliper piston. The fluid pressure is exerted
equally and in all directions. This means pressure exerted against the caliper piston and within the caliper bore
will be equal. See Fig. 18.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



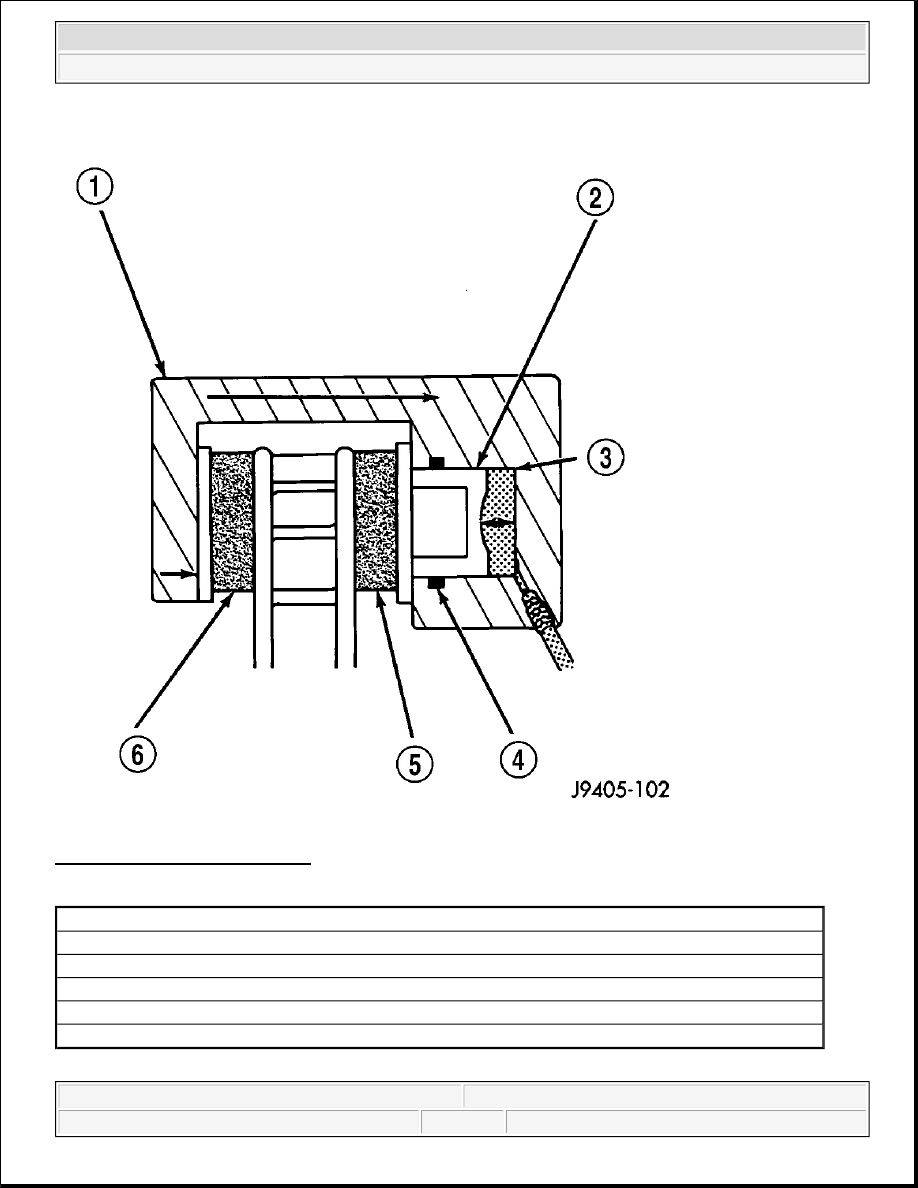

Fig. 18: Brake Caliper Operation
Courtesy of CHRYSLER LLC

1 - CALIPER
2 - PISTON
3 - PISTON BORE
4 - SEAL
5 - INBOARD SHOE
6 - OUTBOARD SHOE



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Fluid pressure applied to the piston is transmitted directly to the inboard brake shoe. This forces the shoe lining
against the inner surface of the disc brake rotor. At the same time, fluid pressure within the piston bore forces
the caliper to slide inward on the mounting bolts. This action brings the outboard brake shoe lining into contact
with the outer surface of the disc brake rotor.

In summary, fluid pressure acting simultaneously on both piston and caliper, produces a strong clamping action.
When sufficient force is applied, friction will attempt to stop the rotors from turning and bring the vehicle to a
stop.

Application and release of the brake pedal generates only a very slight movement of the caliper and piston.
Upon release of the pedal, the caliper and piston return to a rest position. The brake shoes do not retract an
appreciable distance from the rotor. In fact, clearance is usually at, or close to zero. The reasons for this are to
keep road debris from getting between the rotor and lining and in wiping the rotor surface clear each revolution.

The caliper piston seal controls the amount of piston extension needed to compensate for normal lining wear.

During brake application, the seal is deflected outward by fluid pressure and piston movement. See Fig. 19.
When the brakes (and fluid pressure) are released, the seal relaxes and retracts the piston.

The amount of piston retraction is determined by the amount of seal deflection. Generally the amount is just
enough to maintain contact between the piston and inboard brake shoe.
