The HCU provides four channel pressure control to the front and rear brakes. Two channels control the rear
wheel brakes individually. The two remaining channels control the front wheel brakes individually.

During antilock braking, the solenoid valves are opened and closed as needed. The valves are not static. They
are cycled rapidly and continuously to modulate pressure and control wheel slip and deceleration.

During normal braking, the HCU solenoid valves and pump are not activated. The master cylinder and power
booster operate the same as a vehicle without an ABS brake system.

During antilock braking, solenoid valve pressure modulation occurs in three stages, pressure increase, pressure
hold, and pressure decrease. The valves are all contained in the valve body portion of the HCU.

PRESSURE DECREASE

The outlet valve is opened and the inlet valve is closed during the pressure decrease cycle.

A pressure decrease cycle is initiated when speed sensor signals indicate high wheel slip at one or more wheels.
At this point, the ABM closes the inlet then opens the outlet valve, which also opens the return circuit to the
accumulators. Fluid pressure is allowed to bleed off (decrease) as needed to prevent wheel lock.

Once the period of high wheel slip has ended, the ABM closes the outlet valve and begins a pressure increase or
hold cycle as needed.

PRESSURE HOLD

Both solenoid valves are closed in the pressure hold cycle. Fluid apply pressure in the control channel is
maintained at a constant rate. The ABM maintains the hold cycle until sensor inputs indicate a pressure change
is necessary.

PRESSURE INCREASE

The inlet valve is open and the outlet valve is closed during the pressure increase cycle. The pressure increase
cycle is used to counteract unequal wheel speeds. This cycle controls re-application of fluid apply pressure due
to changing road surfaces or wheel speed.

REMOVAL

HYDRAULIC CONTROL UNIT

1. Install prop rod on the brake pedal to keep pressure on the brake system.

2. Remove negative battery cable from the battery.

3. Pull up on the ABM harness connector release and remove connector.



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



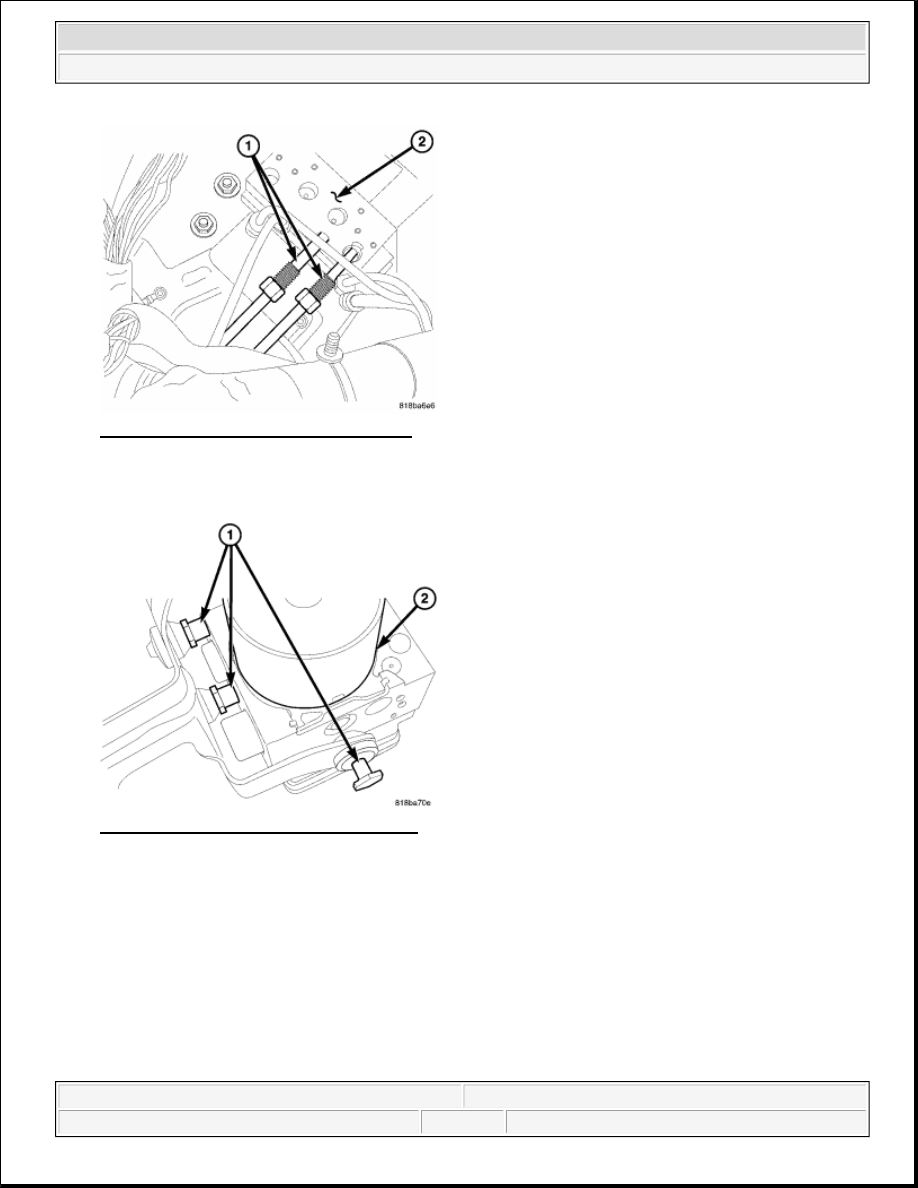

Fig. 11: Identifying Brake Lines & ABM
Courtesy of CHRYSLER LLC

4. Remove brake lines (1) from the ABM (2).

Fig. 12: Identifying Bracket & ABM Unit
Courtesy of CHRYSLER LLC

5. Remove the ABM unit (2) by pulling the unit from the bracket (1).

DISASSEMBLY

HYDRAULIC CONTROL UNIT



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



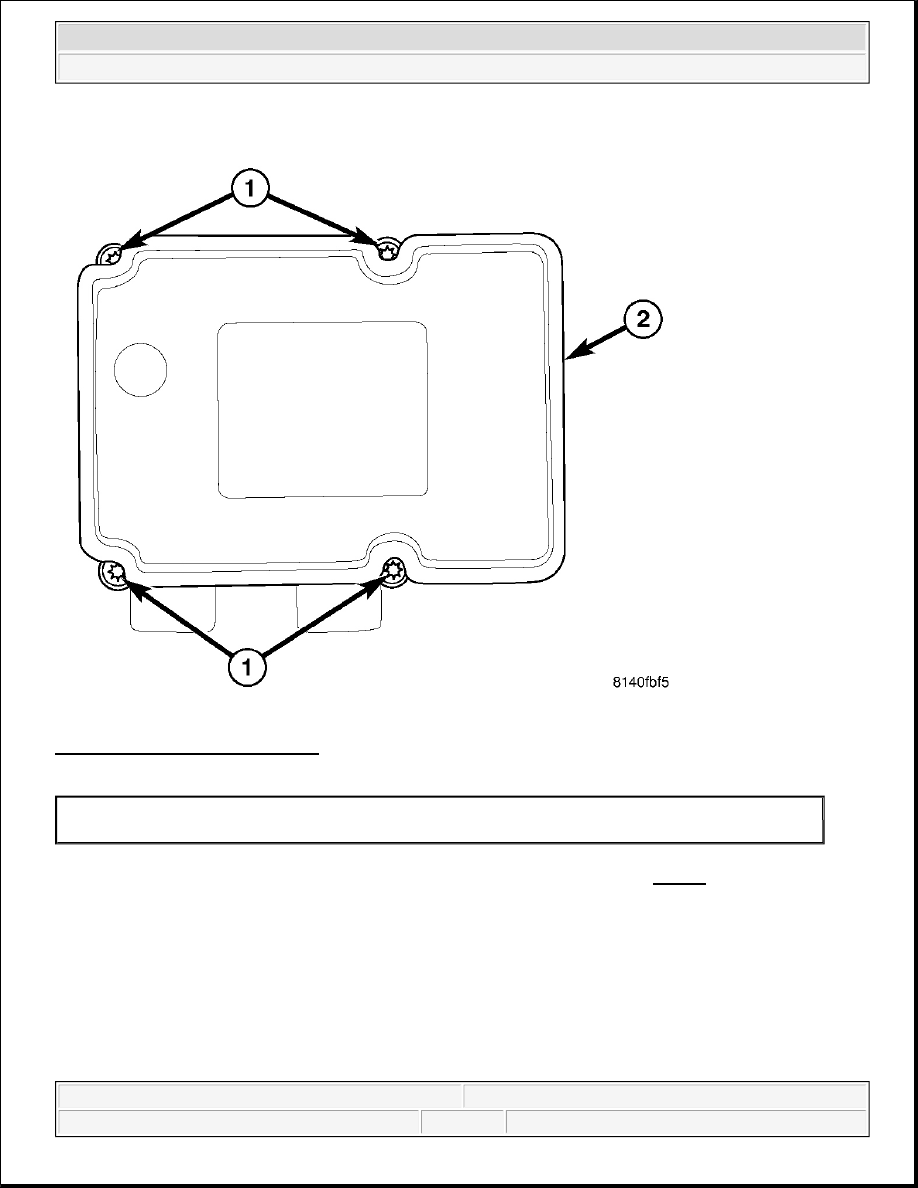

Fig. 13: ABM & Mounting Screws
Courtesy of CHRYSLER LLC

1. Remove the four screws (1) attaching the ABM module to the HCU (2). See Fig. 13.

1 - MOUNTING SCREWS
2 - ABM



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



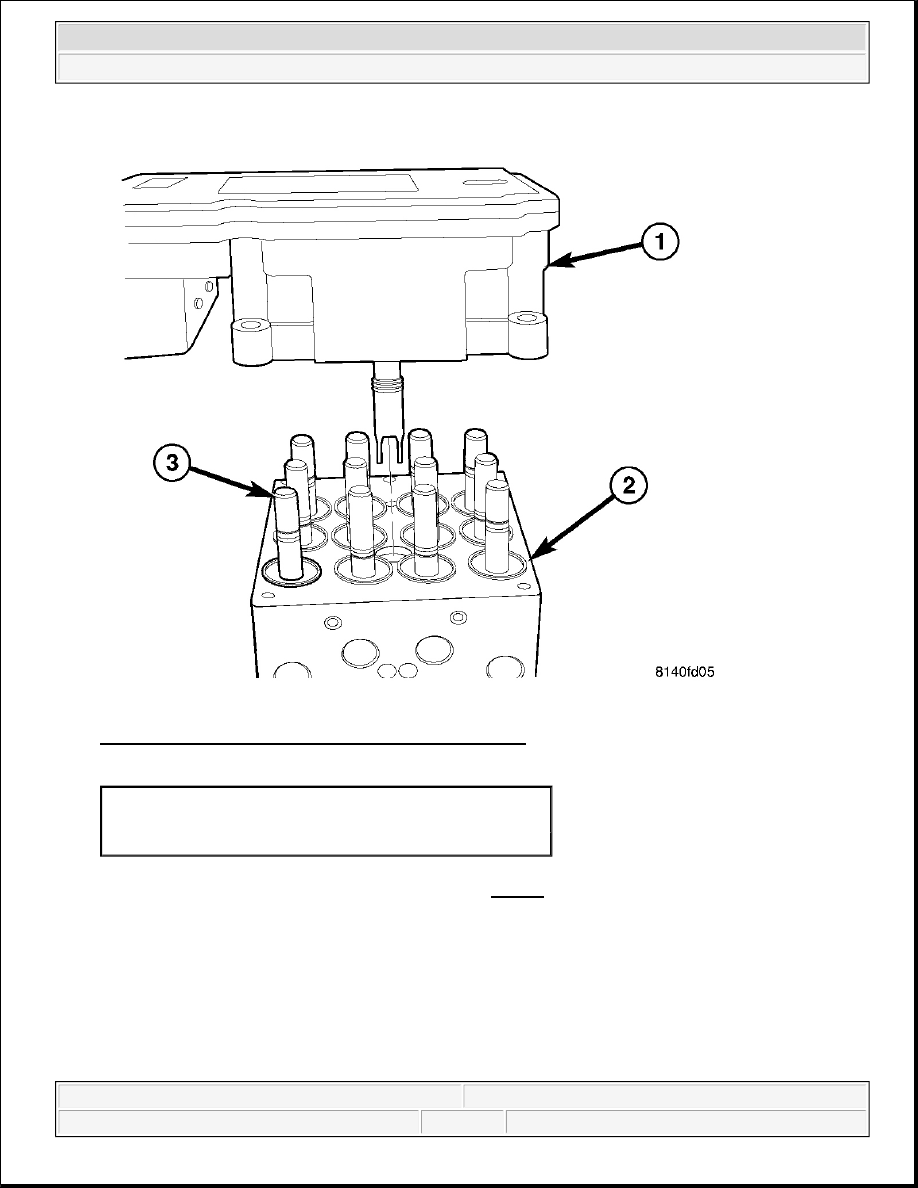

Fig. 14: Identifying ABM, HCU & Solenoid Valve Stem
Courtesy of CHRYSLER LLC

2. Separate the ABM module (1) from the HCU (2). See Fig. 14.

ASSEMBLY

HYDRAULIC CONTROL UNIT

1 - ABM
2 - HCU
3 - SOLENOID VALVE STEM
