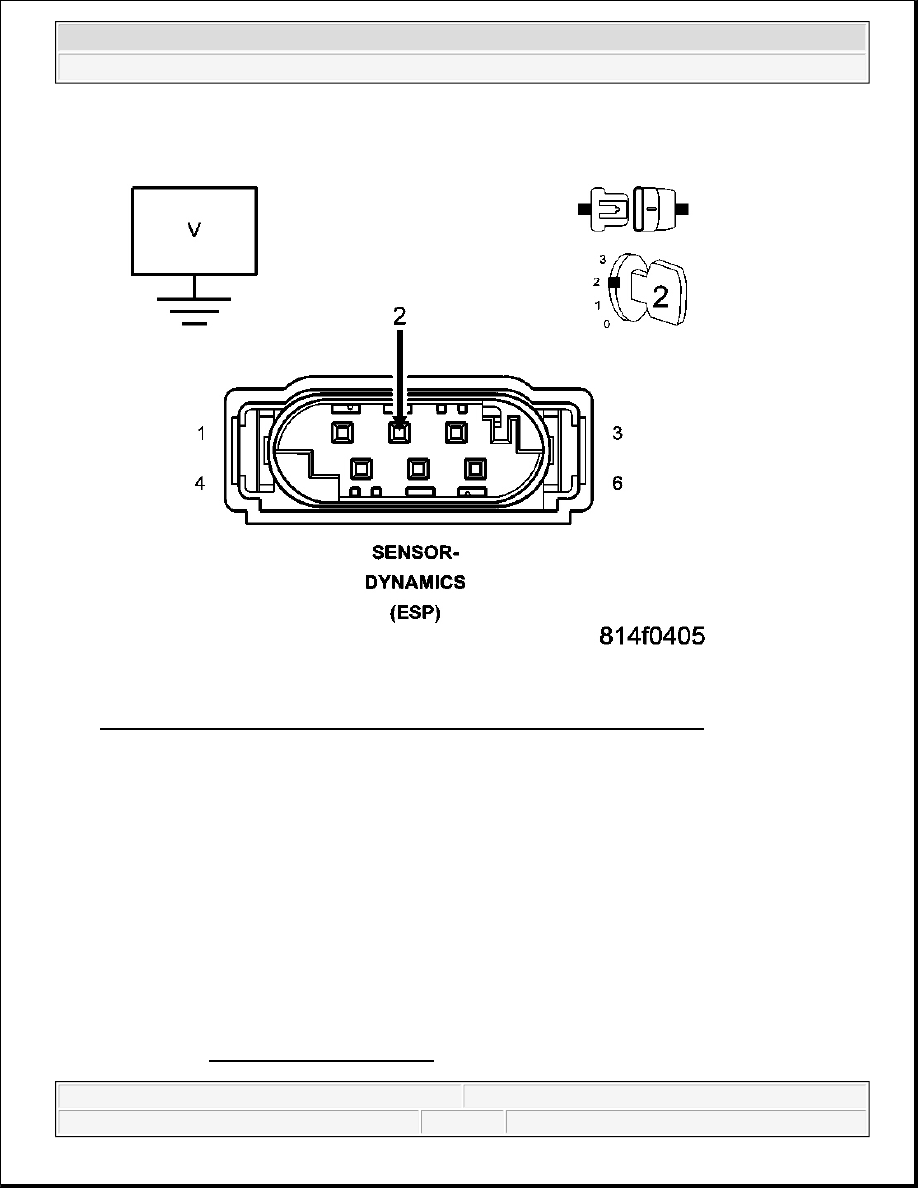

Fig. 67: Measuring Voltage Of (D52) Dynamics Sensor High Data Link Circuit
Courtesy of CHRYSLER LLC

Disconnect the Anti-Lock Brakes Module harness connector.

Disconnect the Dynamics Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (D52) Dynamics Sensor High Data Link circuit.

Is there any voltage present?

Yes

Repair the (D52) Dynamics Sensor High Data Link circuit for a short to voltage.

Perform ABS VERIFICATION TEST.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



No

Go to 4).

4) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO
GROUND

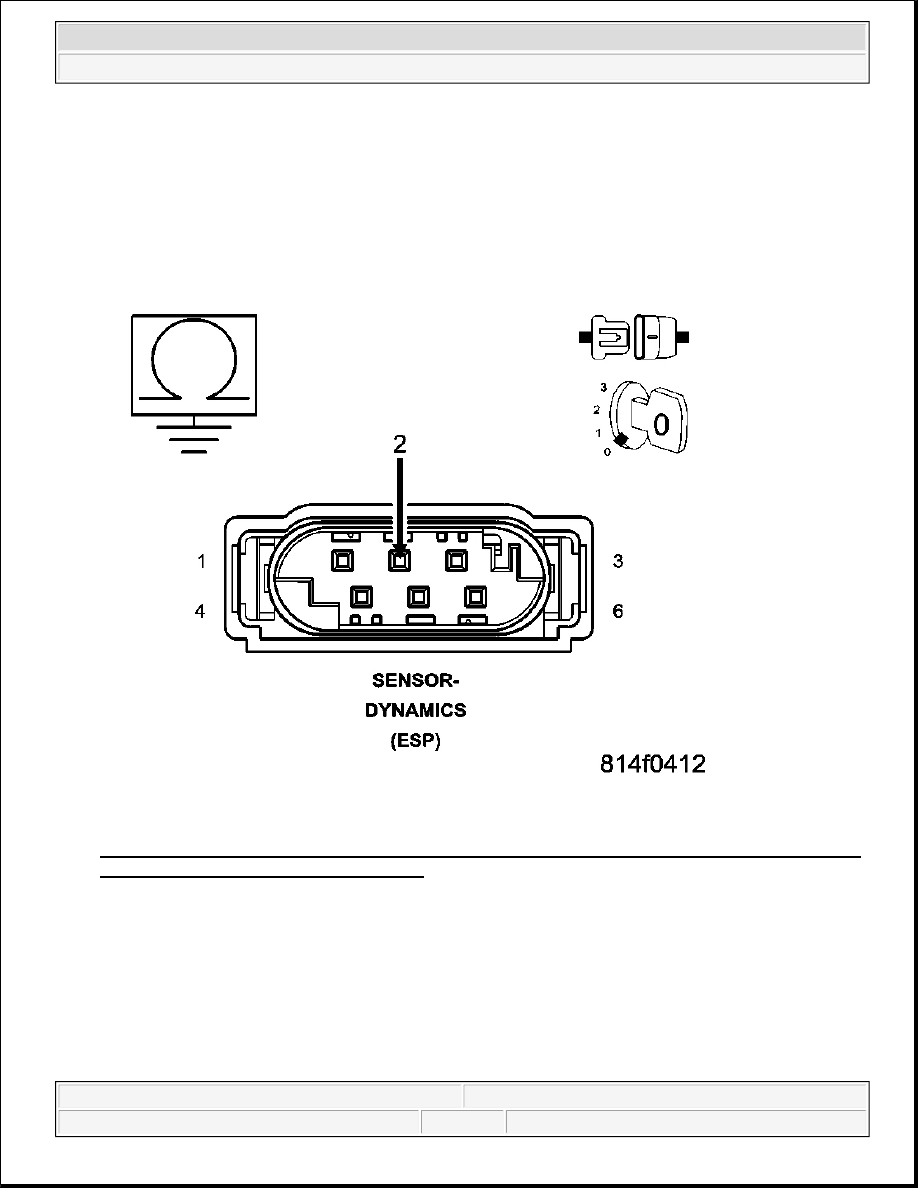

Fig. 68: Measuring Resistance Of (D52) Dynamics Sensor High Data Link Circuit Between Ground
And Dynamics Sensor Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Measure the resistance of the (D52) Dynamics Sensor High Data Link circuit between ground and the
Dynamics Sensor harness connector.

Is the resistance below 5.0 ohms?

Yes



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Repair the (D52) Dynamics Sensor High Data Link circuit for a short to ground.

Perform ABS VERIFICATION TEST.

No

Go to 5).

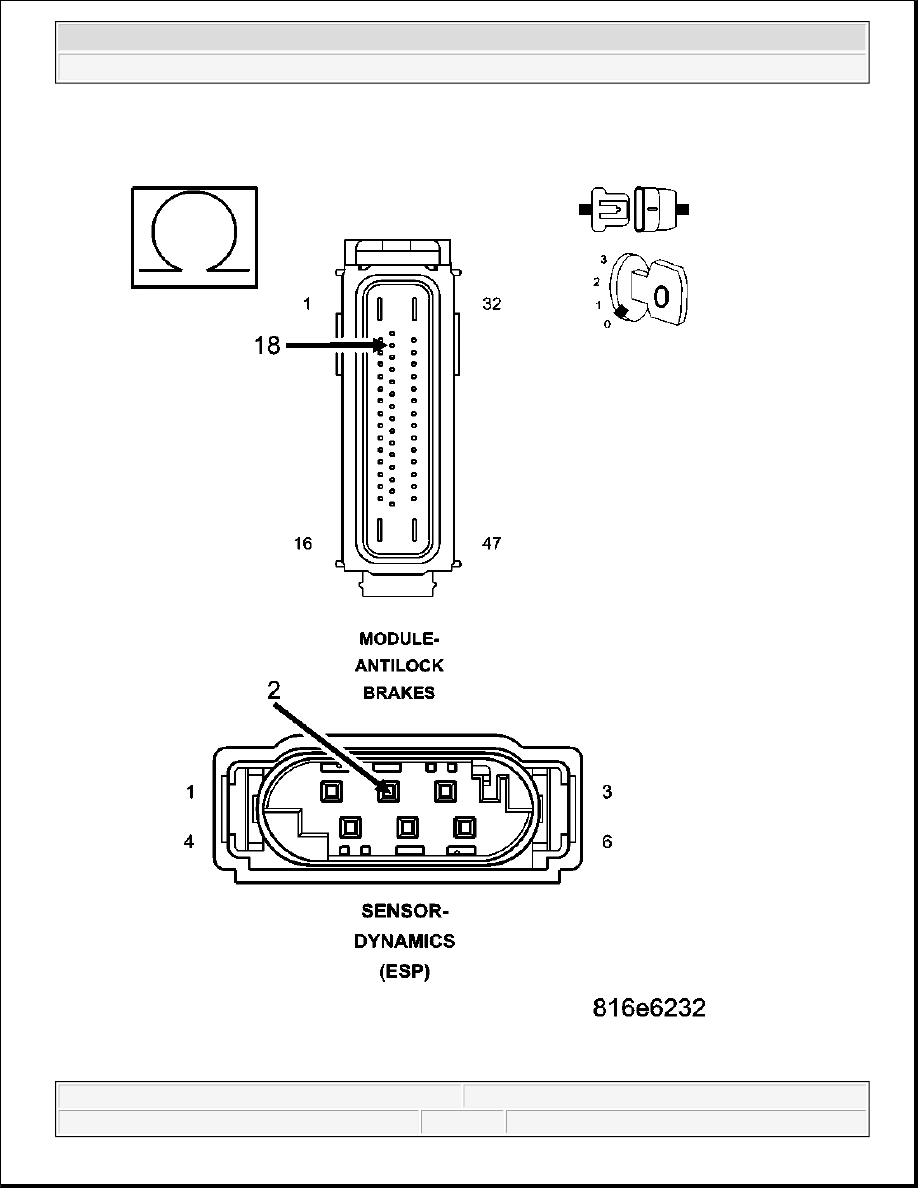

5) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR AN OPEN



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro
