Replace/update the TCM in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Replace the Anti-Lock Brakes Module in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

U0125-LOST COMMUNICATION WITH DYNAMICS SENSOR



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

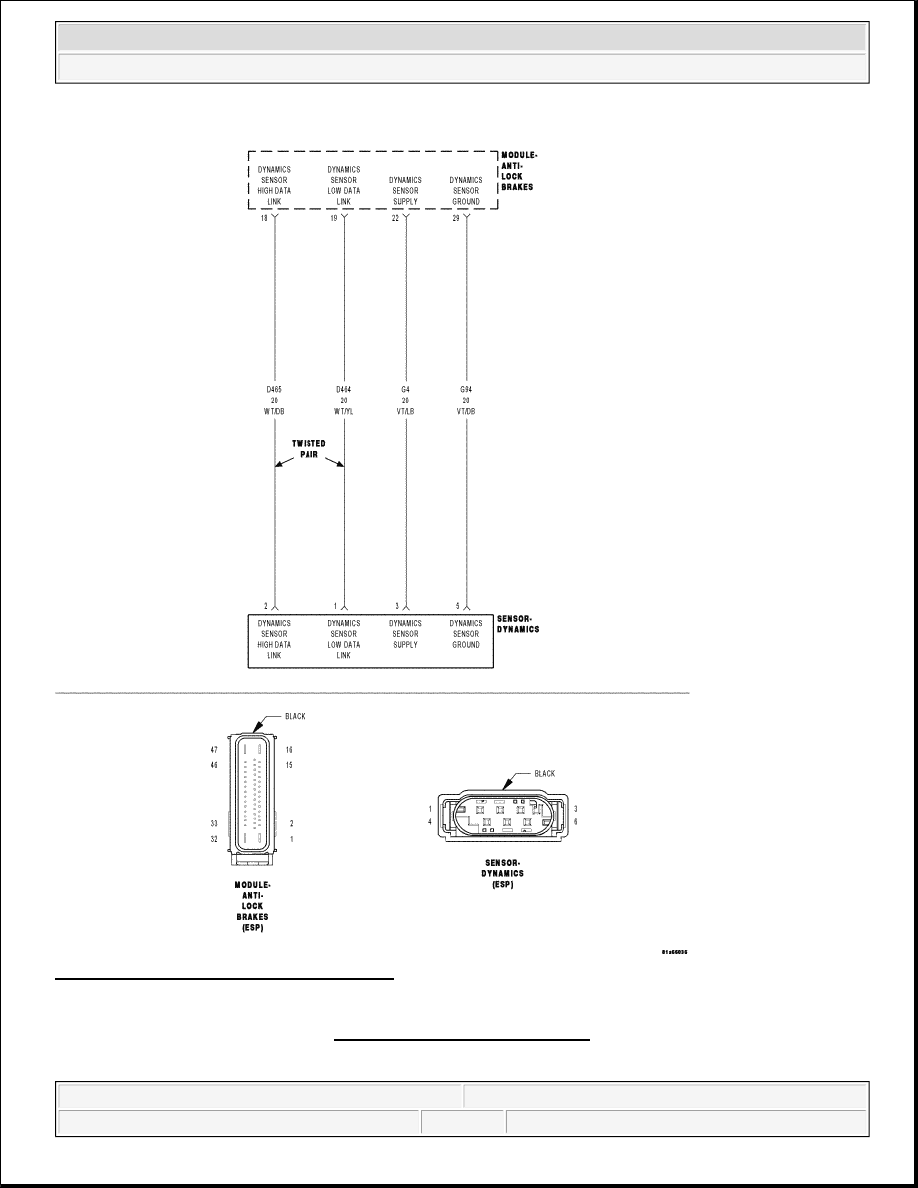

Fig. 66: Dynamics Sensor Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



With the ignition on.

Set Condition:

If the Anti-Lock Brakes Module fails to receive bus messages from the Dynamics Sensor.

Diagnostic Test

1) VERIFY DTC IS ACTIVE

Turn the ignition on.

With the scan tool, read and record ABS DTCs.

With the scan tool, read and record Environmental Data (EV Data).

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

Go to 2).

No

The condition that caused the symptom is currently not present. Inspect the related wiring for a
possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE
(D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT SHORTED TO GROUND, SHORTED
TO VOLTAGE, OR OPEN
(D51) DYNAMICS SENSOR LOW DATA LINK CIRCUIT SHORTED TO GROUND, SHORTED TO
VOLTAGE, OR OPEN
DYNAMICS SENSOR
ANTI-LOCK BRAKES MODULE

NOTE:

If present, diagnose and repair DTC C2114-DYNAMICS SENSOR SUPPLY
VOLTAGE LOW or DTC C2115-DYNAMICS SENSOR SUPPLY VOLTAGE
HIGH before proceeding.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Refer to the ABS INTERMITTENT CONDITION.

2) INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS

Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken
wires.

Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded
terminals.

Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO
VOLTAGE
