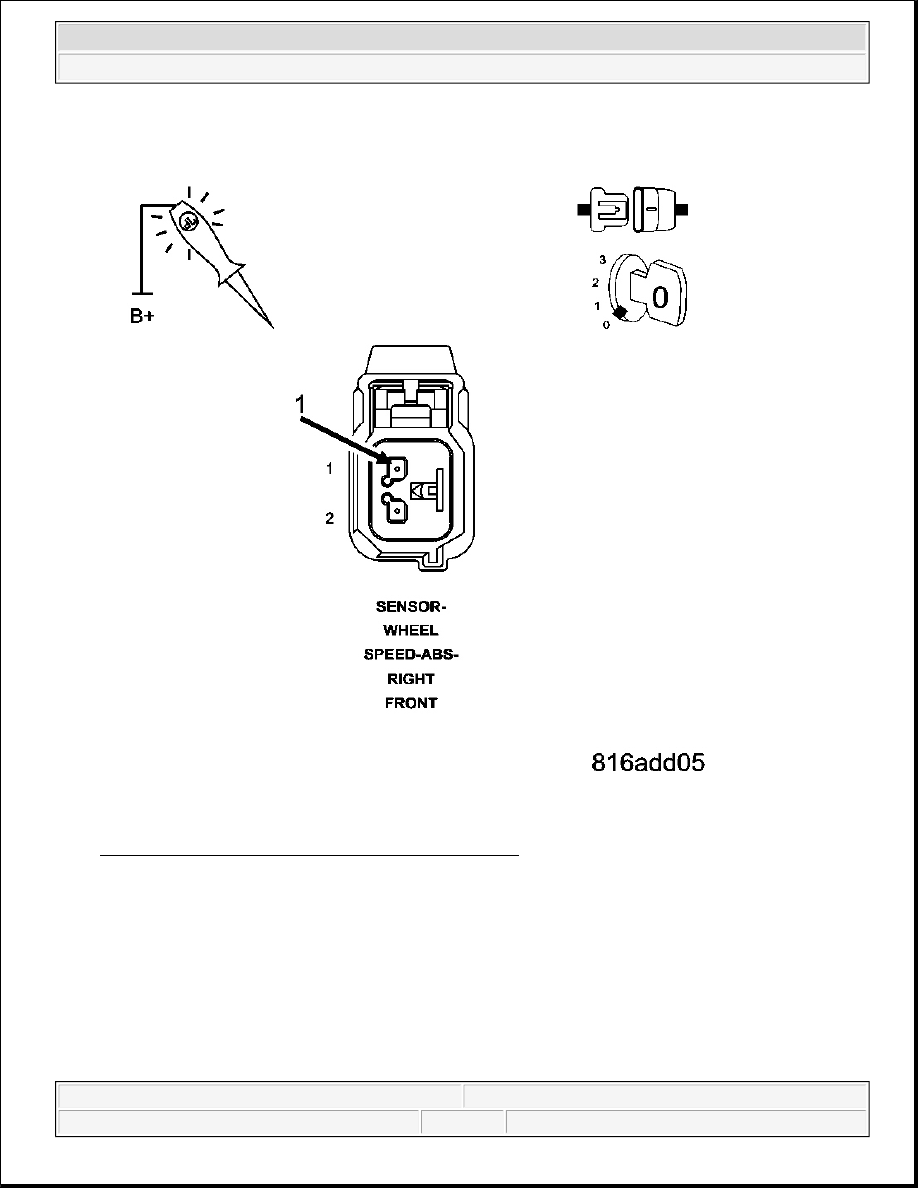

Fig. 16: Probing (B7) Right Front WSS Supply Circuit
Courtesy of CHRYSLER LLC

Connect a jumper wire between ground and the (B7) Right Front WSS Supply circuit in the Anti-Lock
Brakes Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B7) Right Front WSS Supply circuit.

Does the test light illuminate brightly?

Yes



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST.

No

Repair the (B7) Right Front WSS Supply circuit for an open.

Perform ABS VERIFICATION TEST.

6) CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT SHORT TO GROUND

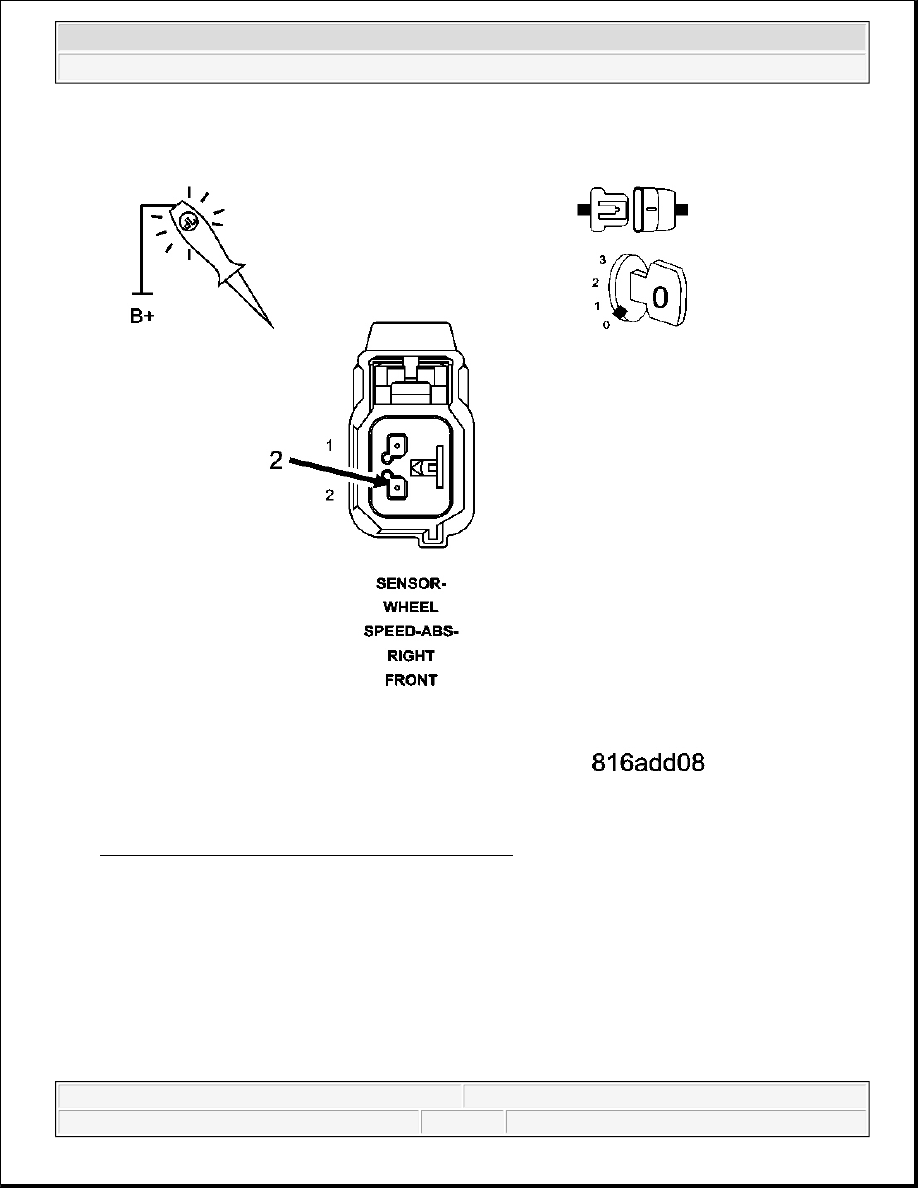

Fig. 17: Probing (B6) Right Front WSS Signal Circuit
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B6) Right Front WSS Signal circuit.

Does the test light illuminate brightly?

Yes

Repair the (B6) Right Front WSS Signal circuit for a short to ground.

Perform ABS VERIFICATION TEST.

No

Go to 7).

7) CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT OPEN



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



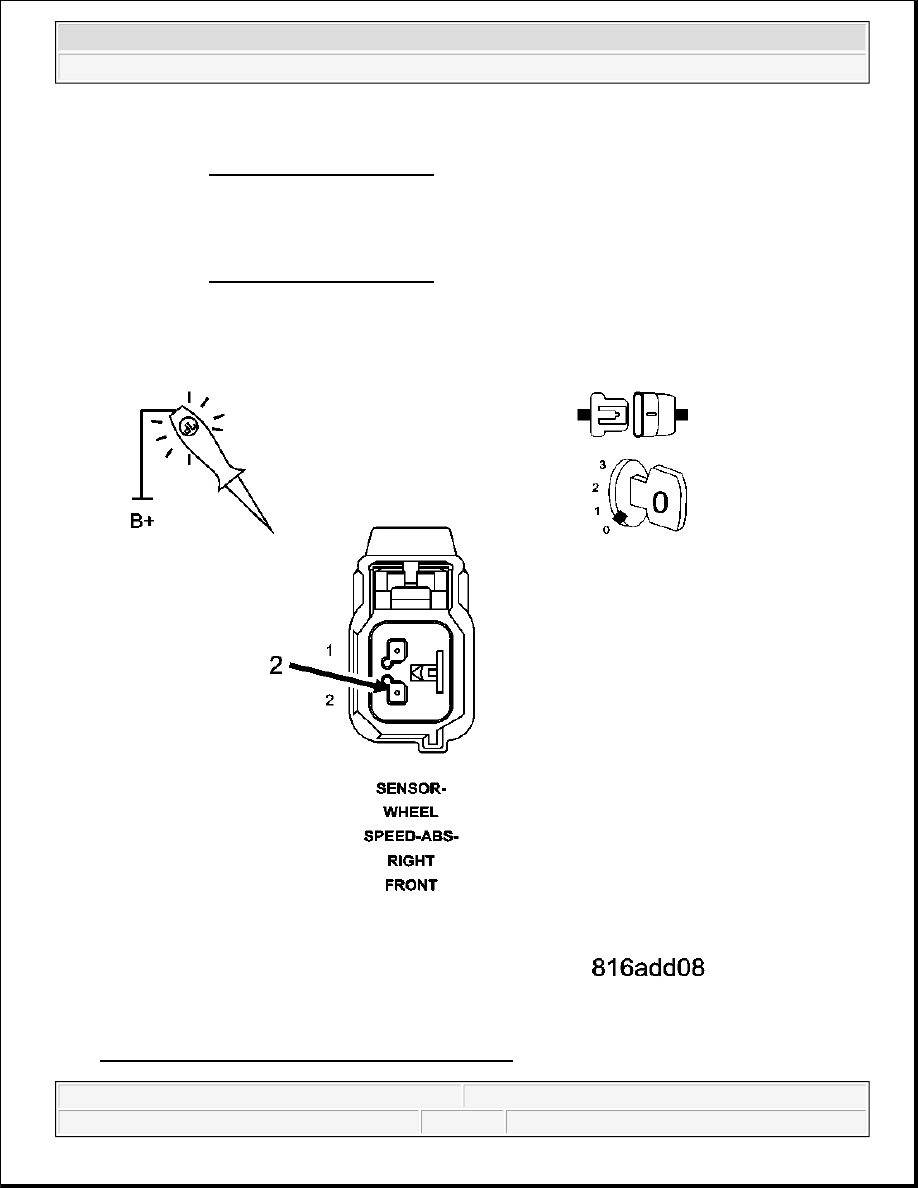

Fig. 18: Probing (B6) Right Front WSS Signal Circuit
Courtesy of CHRYSLER LLC

Connect a jumper wire between ground and the (B6) Right Front WSS Signal circuit in the Anti-Lock
Brakes Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B6) Right Front WSS Signal circuit.

Does the test light illuminate brightly?

Yes
