Turn the ignition off.

Inspect the Anti-Lock Brake Module harness connector, Right Front WSS, and Right Front WSS harness
connector.

Is the Right Front WSS or any of the connectors/terminals damaged?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) CHECK (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT VOLTAGE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

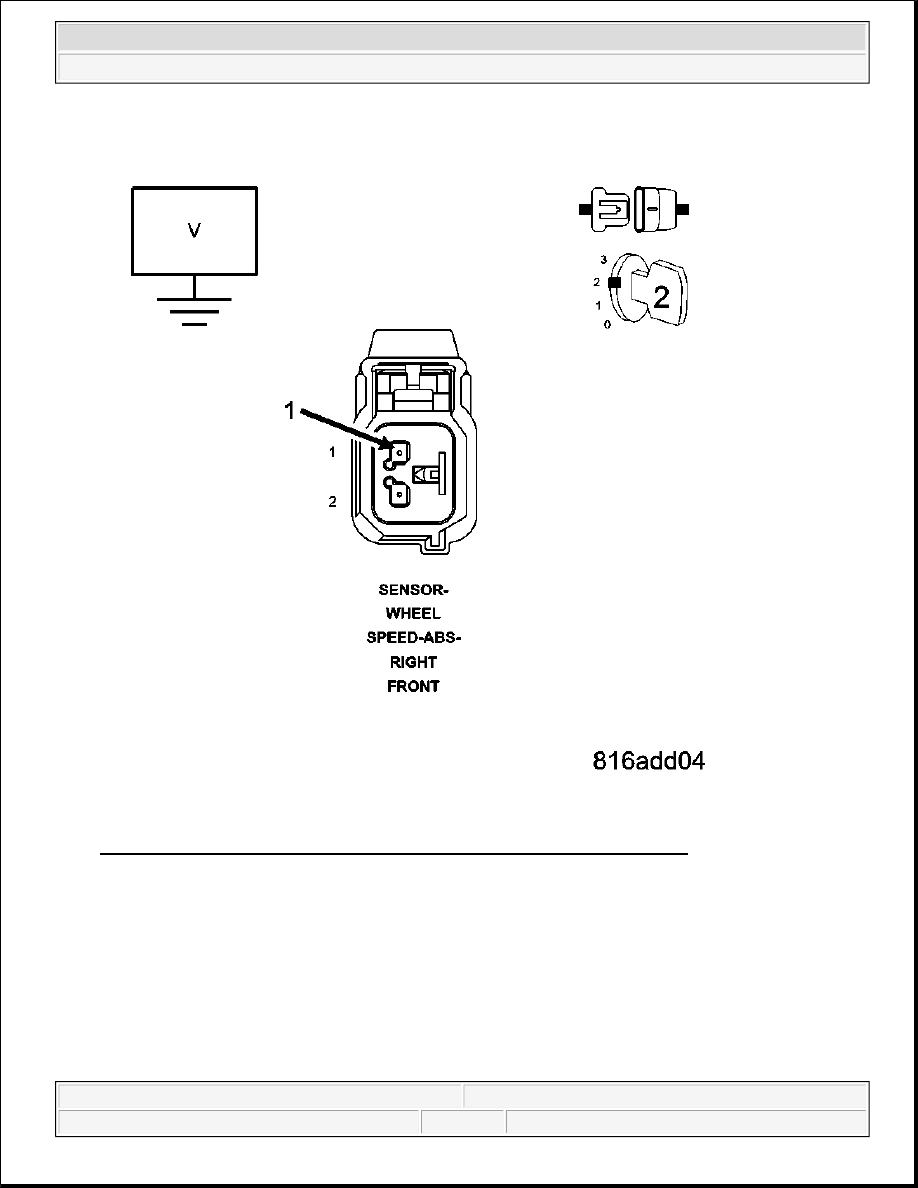

Fig. 14: Measuring Voltage Of (B7) Right Front WSS 12 Volt Supply Circuit
Courtesy of CHRYSLER LLC

Disconnect the Right Front WSS harness connector.

Turn the ignition on.

Measure the voltage of the (B7) Right Front WSS 12 Volt Supply circuit.

Is the voltage above 10.0 volts?

Yes



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Go to 6).

No

Go to 4).

4) CHECK (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT FOR A SHORT TO
GROUND

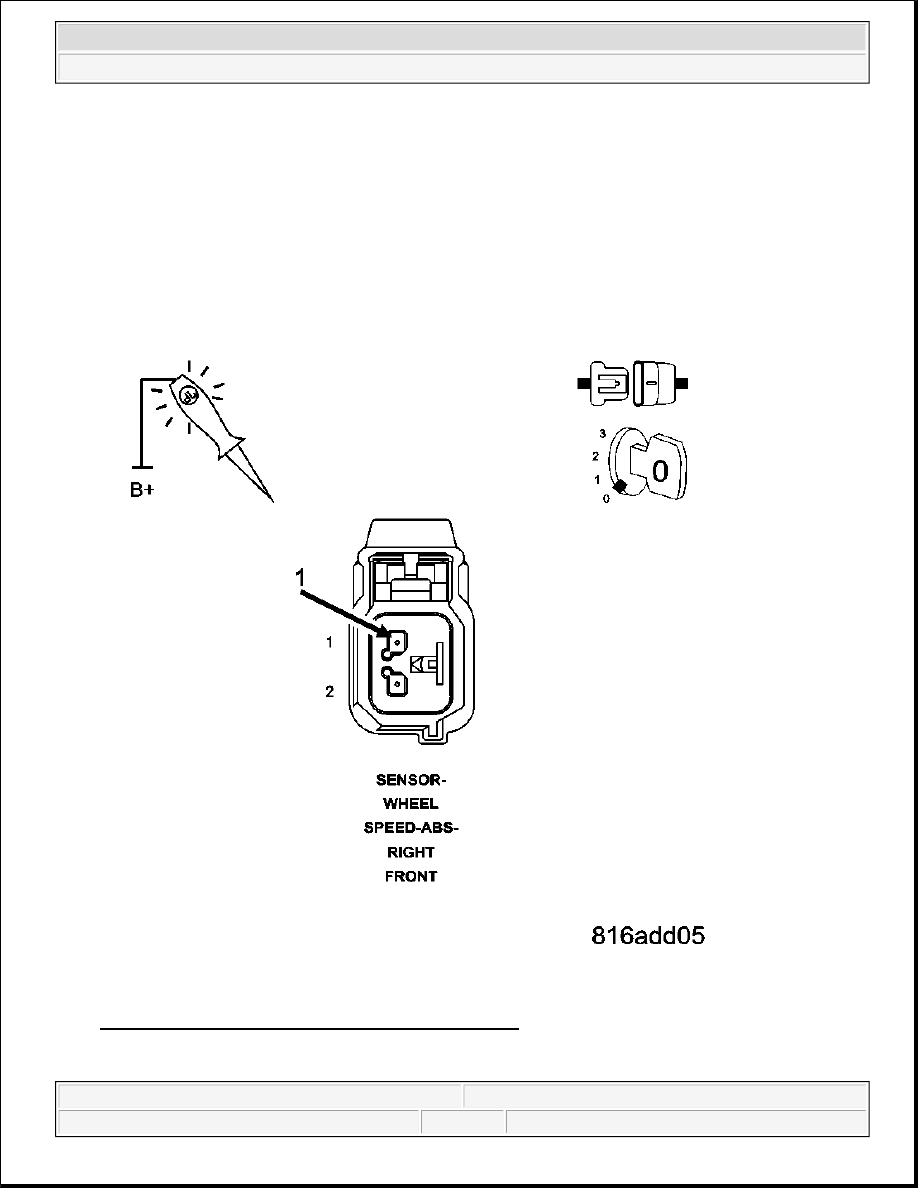

Fig. 15: Probing (B7) Right Front WSS Supply Circuit
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Turn the ignition off.

Disconnect the Right Front WSS harness connector.

Disconnect the Anti-Lock Brake Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B7) Right Front WSS Supply circuit.

Does the test light illuminate brightly?

Yes

Repair the (B7) Right Front WSS Supply circuit for a short to ground.

Perform ABS VERIFICATION TEST.

No

Go to 5).

5) CHECK (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT FOR AN OPEN



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro
