1. Perform fuel pressure release procedure. Refer to STANDARD PROCEDURE .

2. Drain the cooling system.

3. Disconnect the upper radiator hose from the thermostat housing.

4. Remove the upper intake manifold. See REMOVAL.

5. Reposition power steering fluid reservoir and bracket.

6. Disconnect the electrical connectors to fuel injectors and coolant temperature sensor.

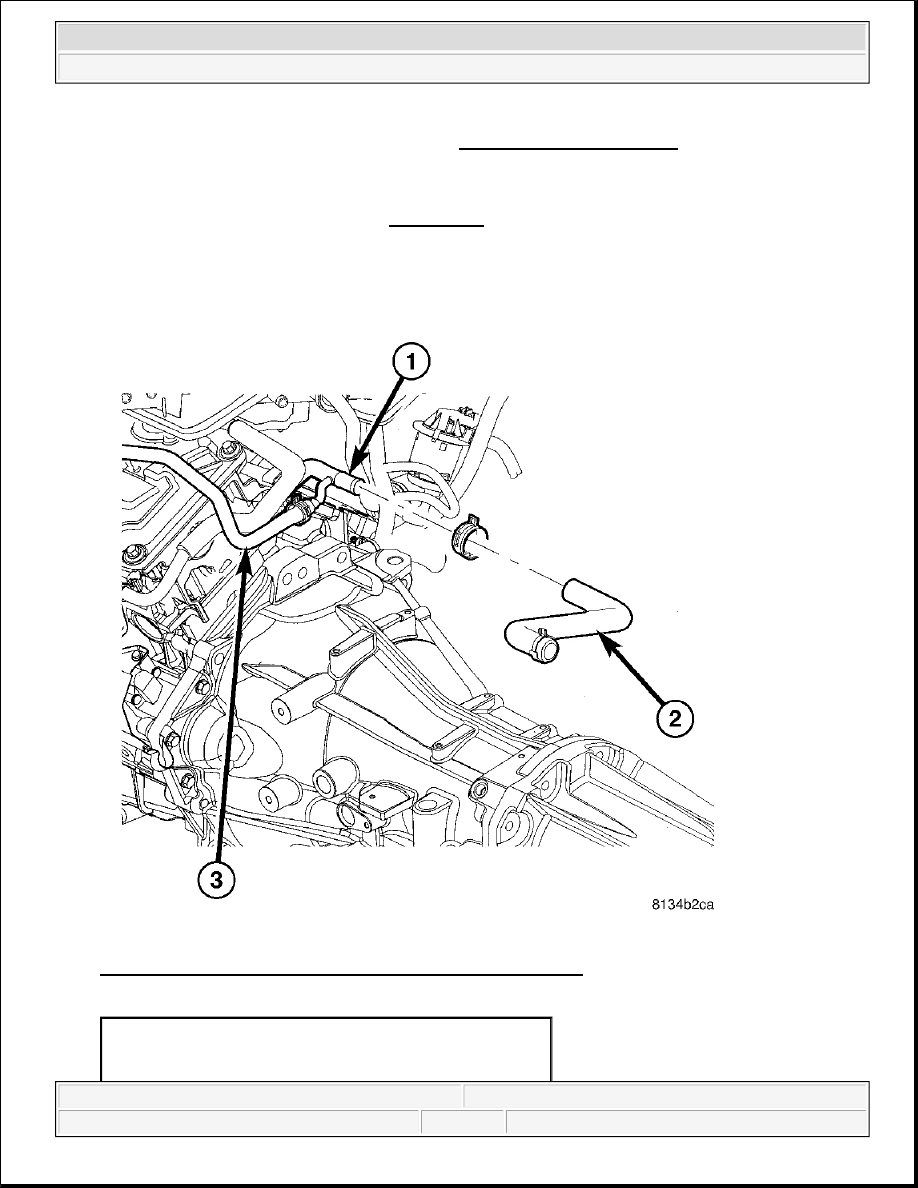

Fig. 273: Coolant Pipe, Heater Hose & Coolant Reservoir Hose
Courtesy of CHRYSLER LLC

1 - COOLANT PIPE
2 - HEATER HOSE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



7. Disconnect heater hose from the rear intake manifold. See Fig. 273.

8. Disconnect the coolant container hose at the rear intake manifold. See Fig. 273.

Fig. 274: Fuel Rail, Ignition Coil, Lower Intake Manifold & PCV Valve
Courtesy of CHRYSLER LLC

3 - COOLANT RESERVOIR HOSE

1 - FUEL RAIL
2 - IGNITION COIL
3 - LOWER INTAKE MANIFOLD



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



9. Disconnect the fuel supply hose from fuel rail (Refer to FUEL LINES ). See Fig. 274.

10. Remove the bolts attaching fuel rail.

11. Remove fuel rail and injectors as an assembly.

12. Remove bolts attaching lower intake and remove intake manifold. See Fig. 272.

MANIFOLD-INTAKE-UPPER

Fig. 275: Removing/Installing Inlet Hose And IAT Sensor Harness Connector
Courtesy of CHRYSLER LLC

1. Disconnect negative battery cable.

2. Disconnect the IAT sensor electrical connector.

3. Remove air inlet hose from the throttle body. See Fig. 275.

4 - PCV VALVE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



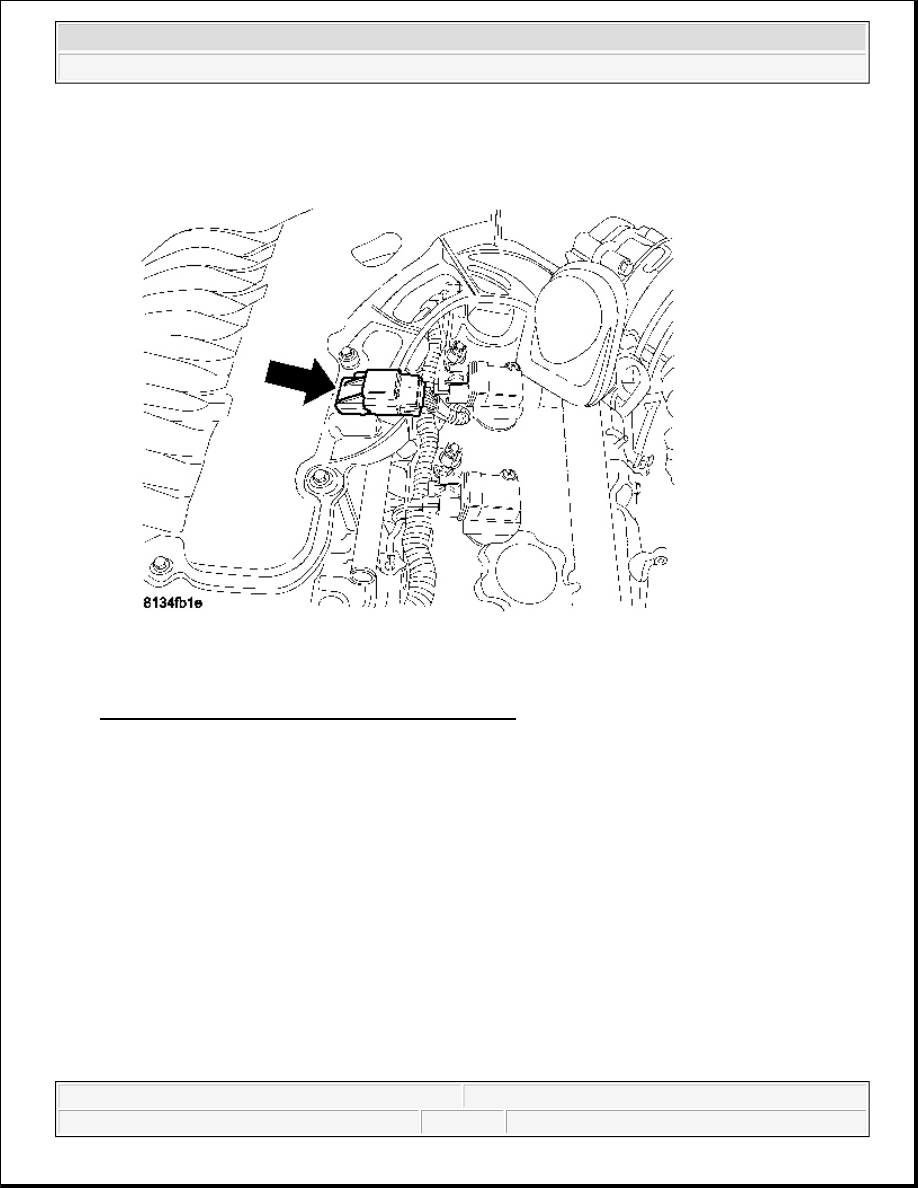

Fig. 276: Locating Manifold Absolute Pressure Sensor
Courtesy of CHRYSLER LLC

4. Disconnect the MAP sensor electrical connector.
