INSTALLATION

PUMP-OIL

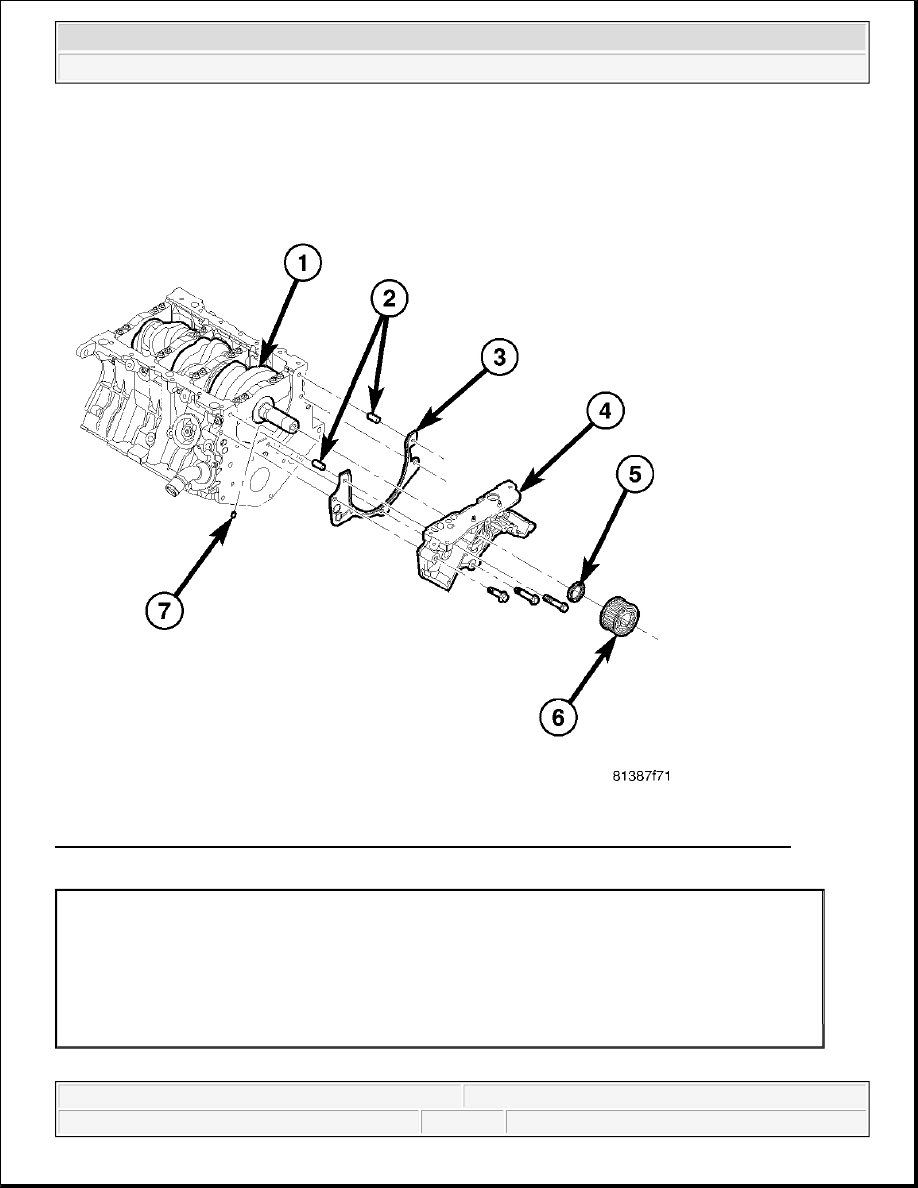

Fig. 269: Crankshaft, Dowel, Gasket, Oil Pump, Front Crankshaft Seal, Crankshaft Gear & Pin
Courtesy of CHRYSLER LLC

1 - CRANKSHAFT
2 - DOWEL
3 - GASKET
4 - OIL PUMP
5 - FRONT CRANKSHAFT SEAL
6 - CRANKSHAFT GEAR
7 - PIN



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Prime oil pump (4) before installation by filling rotor cavity with clean engine oil.

2. Install oil pump (4) and gasket (3) carefully over the crankshaft. Position pump onto block and tighten

bolts to 28 N.m (250 in. lbs.).

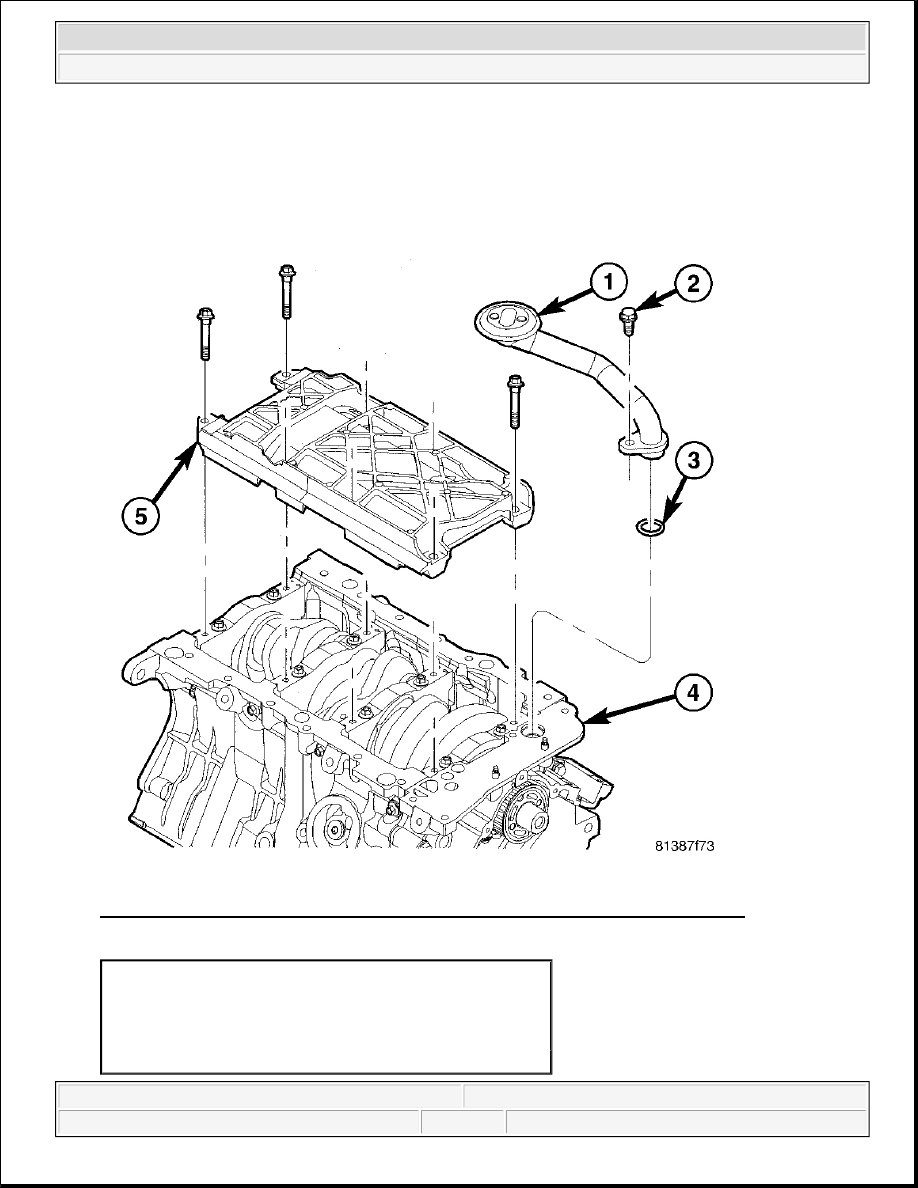

Fig. 270: Oil Pick Up Tube With Strainer, Bolt, O-Ring, Oil Pump & Windage Tray
Courtesy of CHRYSLER LLC

1 - OIL PICK UP TUBE WITH STRAINER
2 - BOLT
3 - O-RING
4 - OIL PUMP
5 - WINDAGE TRAY



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



3. Install new O-ring (3) on oil pickup tube (1).

4. Install oil pickup tube (1).

5. Install oil pan. (Refer to INSTALLATION )

6. Install crankshaft sprocket. (Refer to INSTALLATION )

7. Install timing belt. (Refer to INSTALLATION )

8. Install the timing belt covers. (Refer to INSTALLATION for Front and INSTALLATION for Rear )

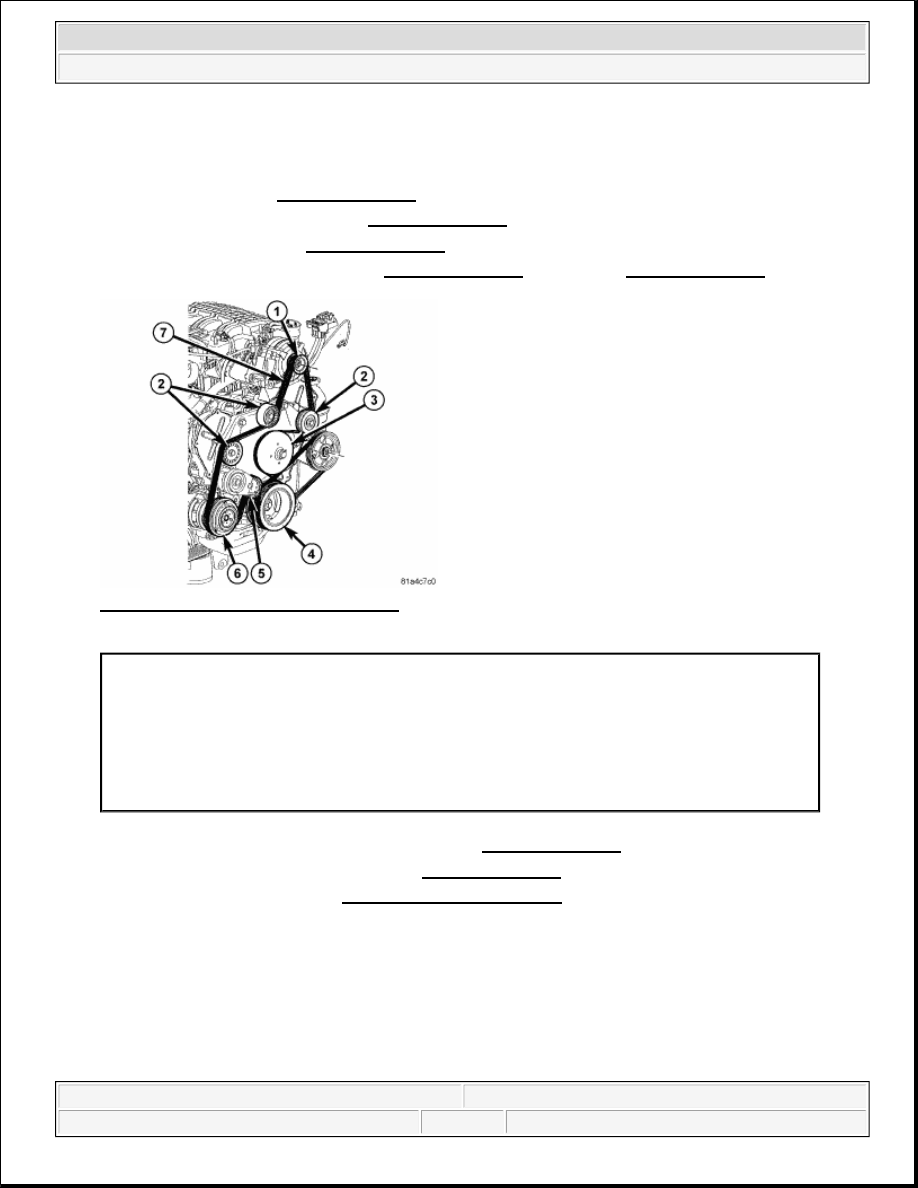

Fig. 271: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC

9. Install the crankshaft vibration damper (4). (Refer to INSTALLATION )

10. Install the accessory drive belt (7). (Refer to INSTALLATION )

11. Fill the cooling system. (Refer to STANDARD PROCEDURE )

12. Fill engine crankcase with proper oil to the correct level.

MANIFOLDS

MANIFOLD - INTAKE

REMOVAL

1 - GENERATOR
2 - IDLER PULLEY
3 - WATER PUMP PULLEY
4 - CRANKSHAFT PULLEY
5 - ACCESSORY DRIVE BELT TENSIONER
6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



INTAKE MANIFOLD-LOWER

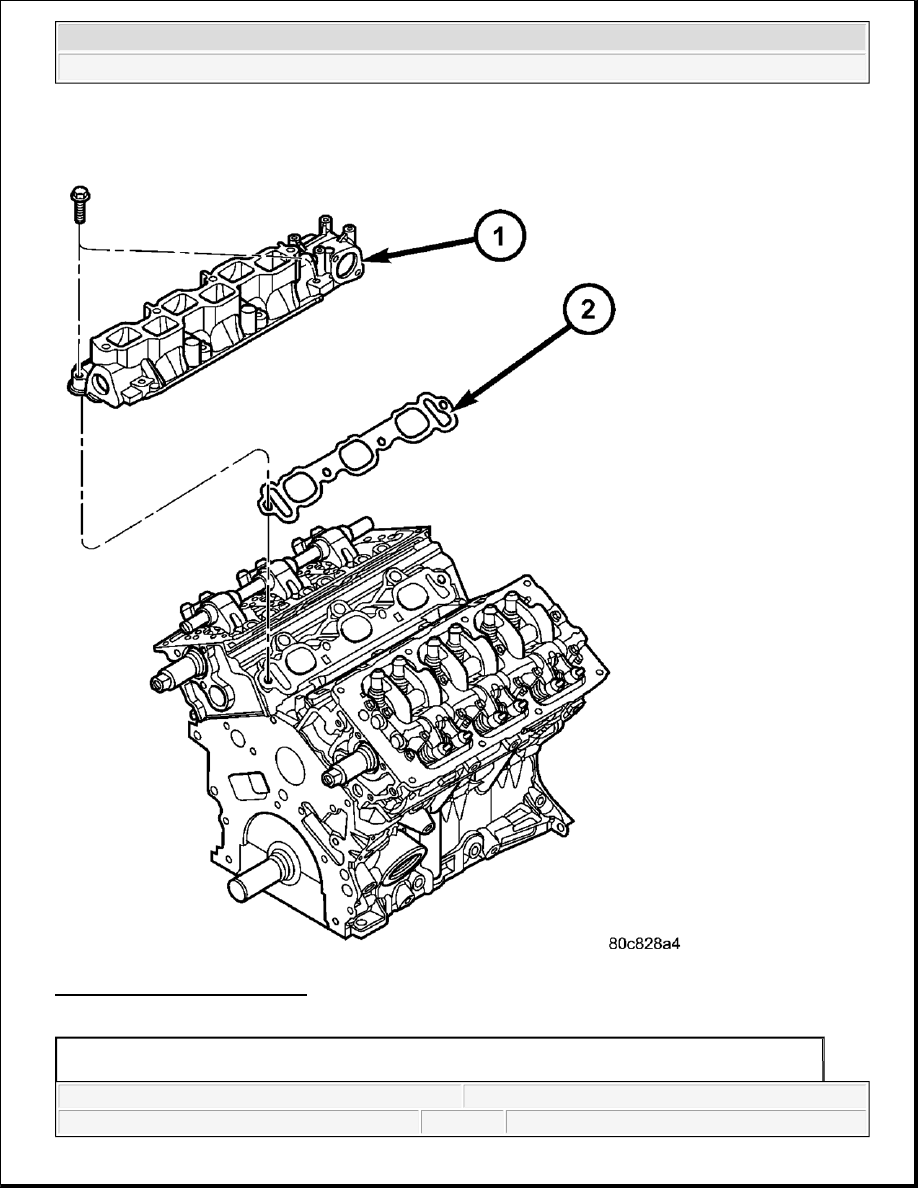

Fig. 272: Lower Intake Manifold
Courtesy of CHRYSLER LLC

1 - LOWER INTAKE MANIFOLD
2 - GASKET
