Fig. 234: Transmission Mount - 2.4L Manual Trans
Courtesy of CHRYSLER LLC

Fig. 235: Transmission Mount - 3.7L Manual Trans 2WD
Courtesy of CHRYSLER LLC

1 - TRANSMISSION MOUNT
2 - MOUNTING BOLT

1 - NUT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Install the transmission mount (1) to the transmission. Install the bolts (2) and tighten.

2. Position the crossmember in the vehicle. Install the crossmember to mount through bolt and nut.

3. Install crossmember-to-sill bolts and tighten to 41 N.m (30 ft. lbs.)

4. Remove the transmission support.

5. Lower the vehicle.

6. Connect negative cable to battery.

AUTOMATIC TRANSMISSION:

2 - BOLT
3 - TRANS MOUNT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



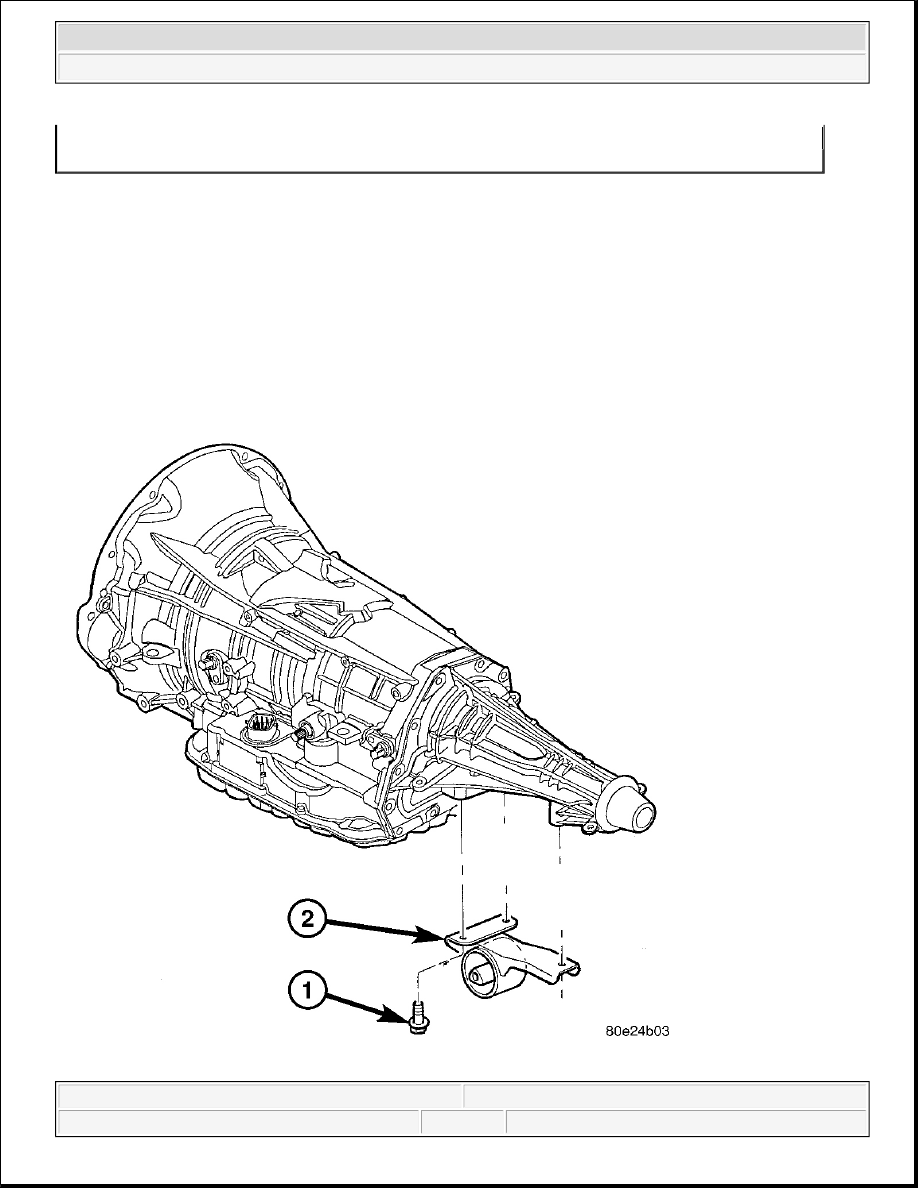

Fig. 236: Transmission Mount - 3.7L 2WD Auto Trans
Courtesy of CHRYSLER LLC

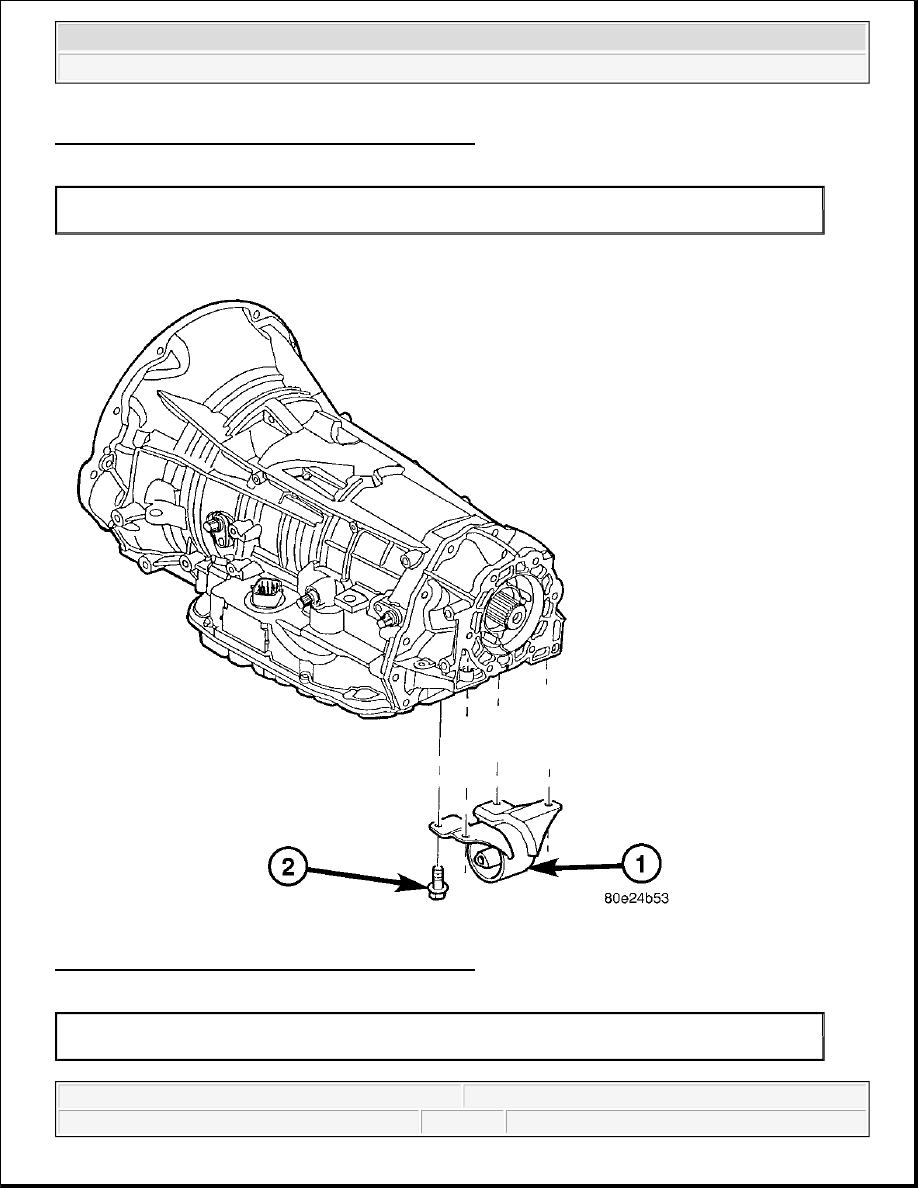

Fig. 237: Transmission Mount - 3.7L 4WD Auto Trans
Courtesy of CHRYSLER LLC

1 - BOLT
2 - MOUNT

1 - MOUNT
2 - BOLT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Install the transmission mount to transmission and See Fig. 236 and Fig. 237. Install the bolts.

2. Position the crossmember in the vehicle. Install the crossmember to mount through bolt and nut.

3. Remove the transmission support.

4. Lower the vehicle.

5. Connect negative cable to battery.

LUBRICATION

DESCRIPTION

ENGINE LUBRICATION SYSTEM

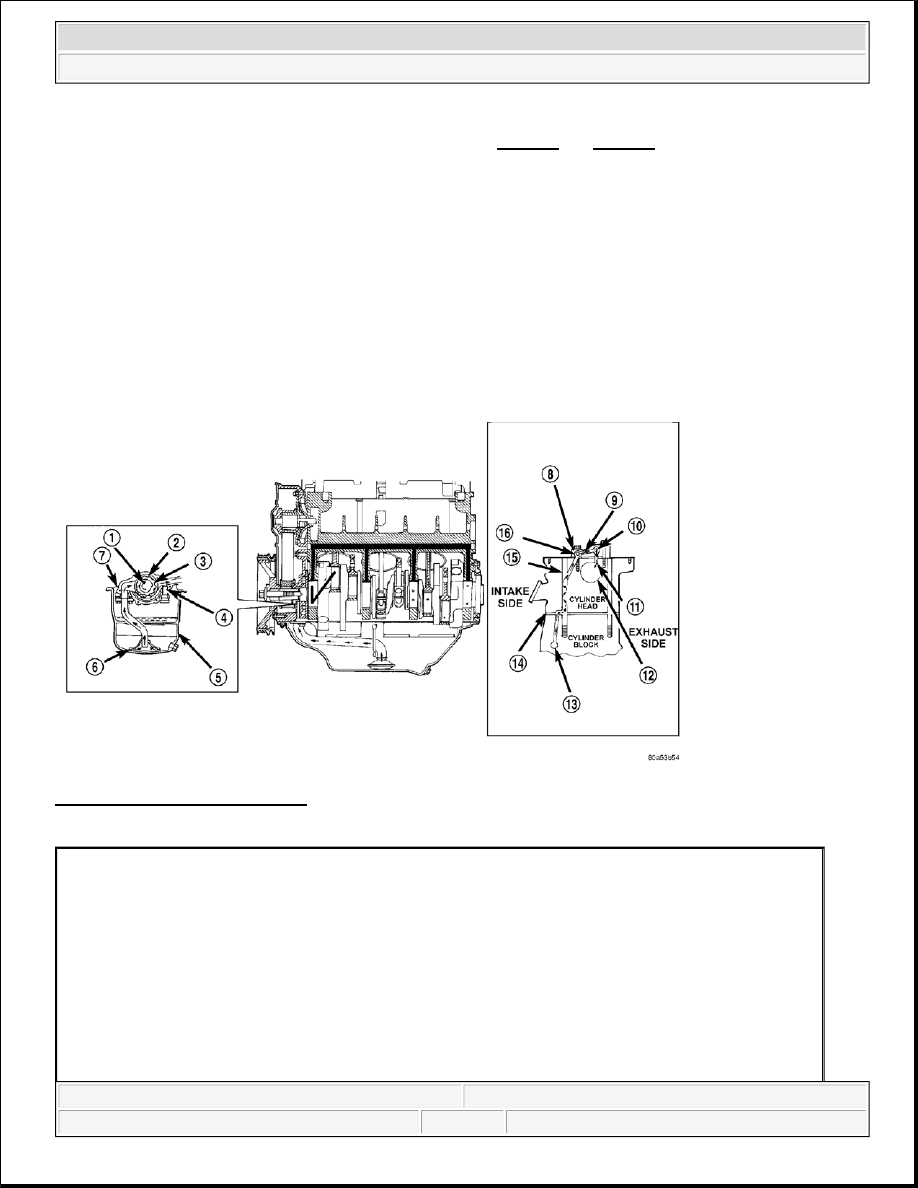

Fig. 238: Oil Lubrication System
Courtesy of CHRYSLER LLC

1 - CRANKSHAFT

9 - PEDESTAL DRILLED PASSAGE

2 - OUTER ROTOR

10 - EXHAUST ROCKER SHAFT

3 - INNER ROTOR

11 - SHAFT/PEDESTAL DOWEL PASSAGE

4 - RELIEF VALVE

12 - CAMSHAFT BEARING BORE

5 - OIL PAN

13 - CYLINDER BLOCK OIL GALLERY

6 - OIL SCREEN

14 - CYLINDER HEAD GASKET

7 - OIL PUMP CASE

15 - HEAD BOLT HOLE

8 - OIL FLOWS TO ONLY ONE PEDESTAL ON
EACH HEAD - SECOND FROM REAR ON
RIGHT HEAD - SECOND FROM FRONT ON

16 - INTAKE ROCKER SHAFT
