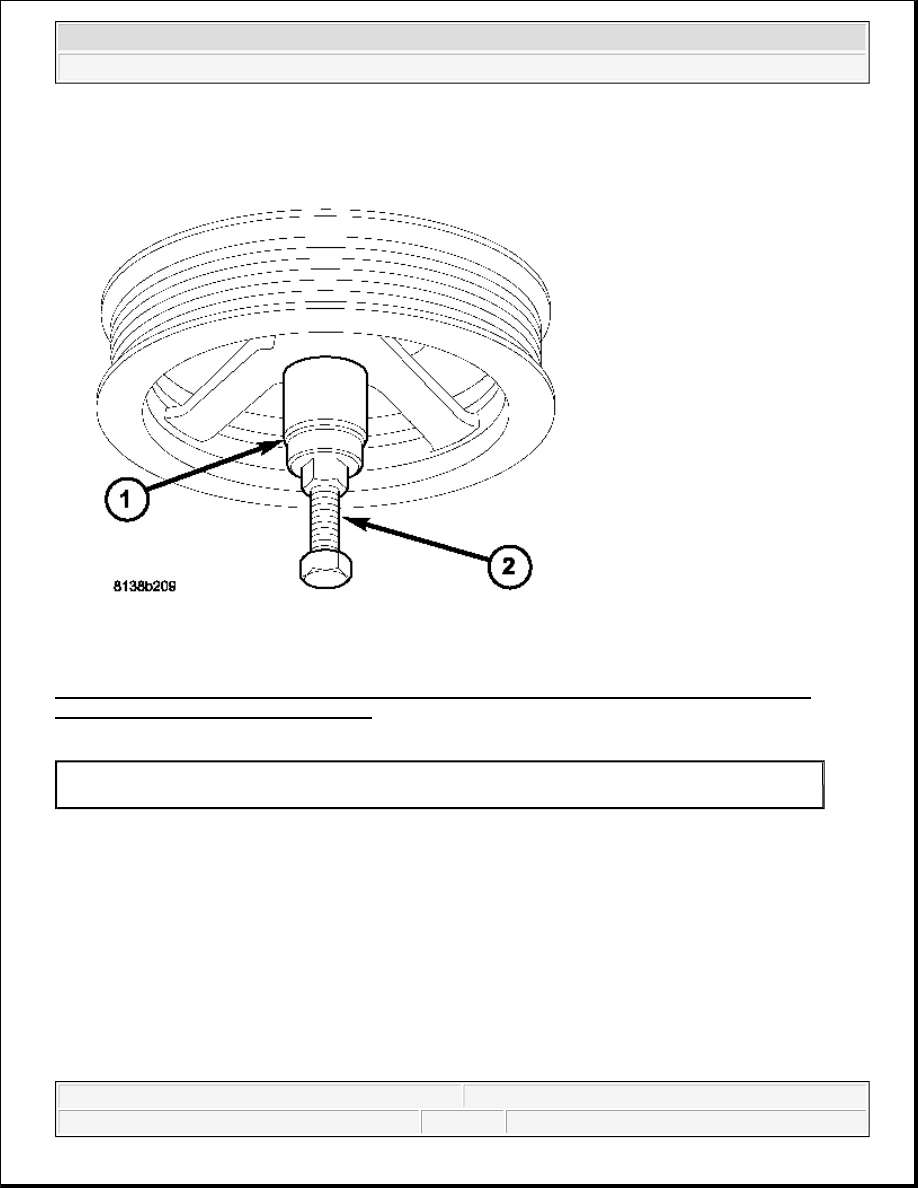

Fig. 227: Installing Crankshaft Damper Using Special Tools C-4685-C1 Bolt With Nut And Thrust
Bearing From 6792, And 6792-1 Installer
Courtesy of CHRYSLER LLC

1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bearing

from 6792, and 6792-1 Installer.

1 - SPECIAL TOOL 6792-1
2 - SPECIAL TOOL C-4685-C1



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 228: Installing Crankshaft Damper Bolt
Courtesy of CHRYSLER LLC

2. Install crankshaft damper bolt. Torque bolt to 95 N.m (70 ft. lbs.) while holding damper with Special

Tool 9365.

3. Lower vehicle.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



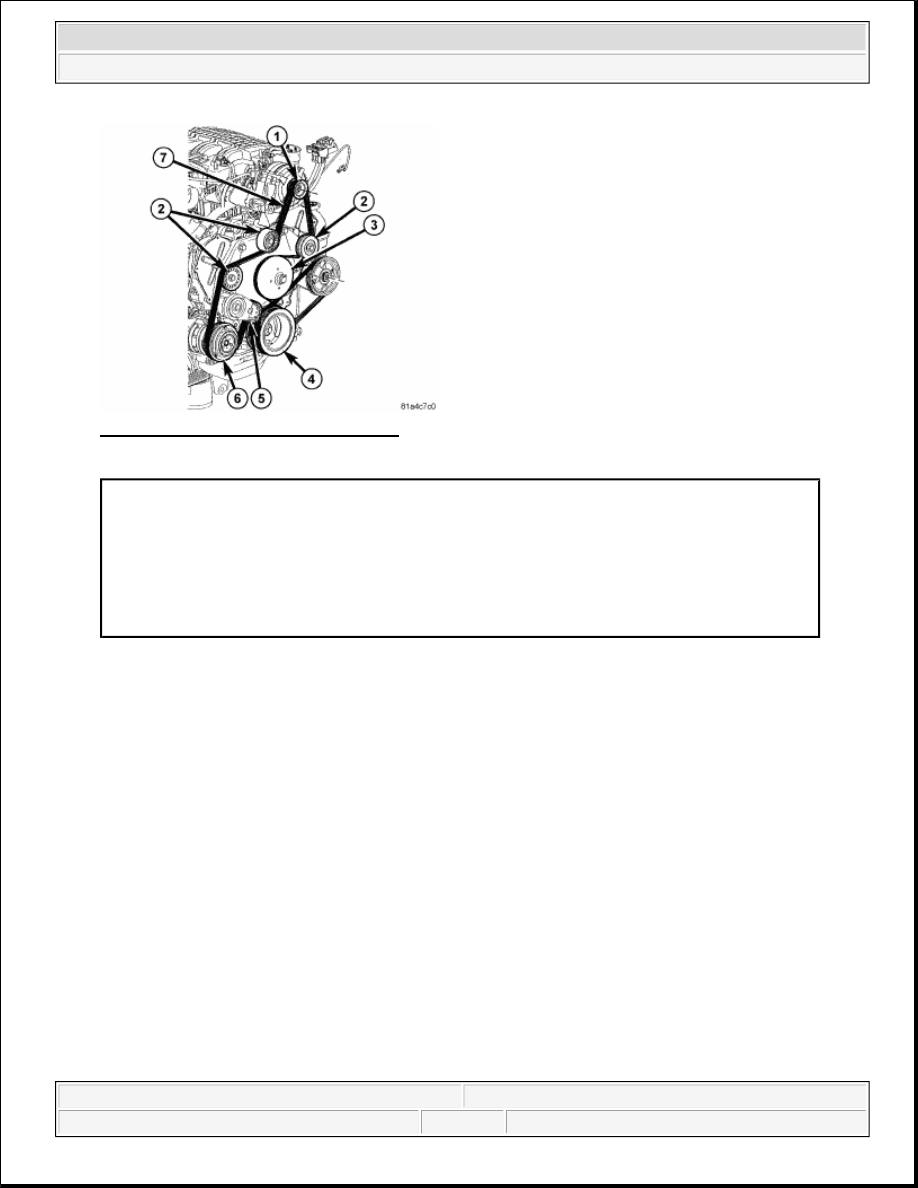

Fig. 229: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC

4. Install accessory drive belt (7).

5. Connect negative battery cable.

ENGINE MOUNTING

DESCRIPTION

ENGINE MOUNTS

The engine mounting system are of molded rubber material and consist of two mounts; right and a left side
support the powertrain, and control powertrain torque.

MOUNT -LEFT

REMOVAL

MOUNT-LEFT

1 - GENERATOR
2 - IDLER PULLEY
3 - WATER PUMP PULLEY
4 - CRANKSHAFT PULLEY
5 - ACCESSORY DRIVE BELT TENSIONER
6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



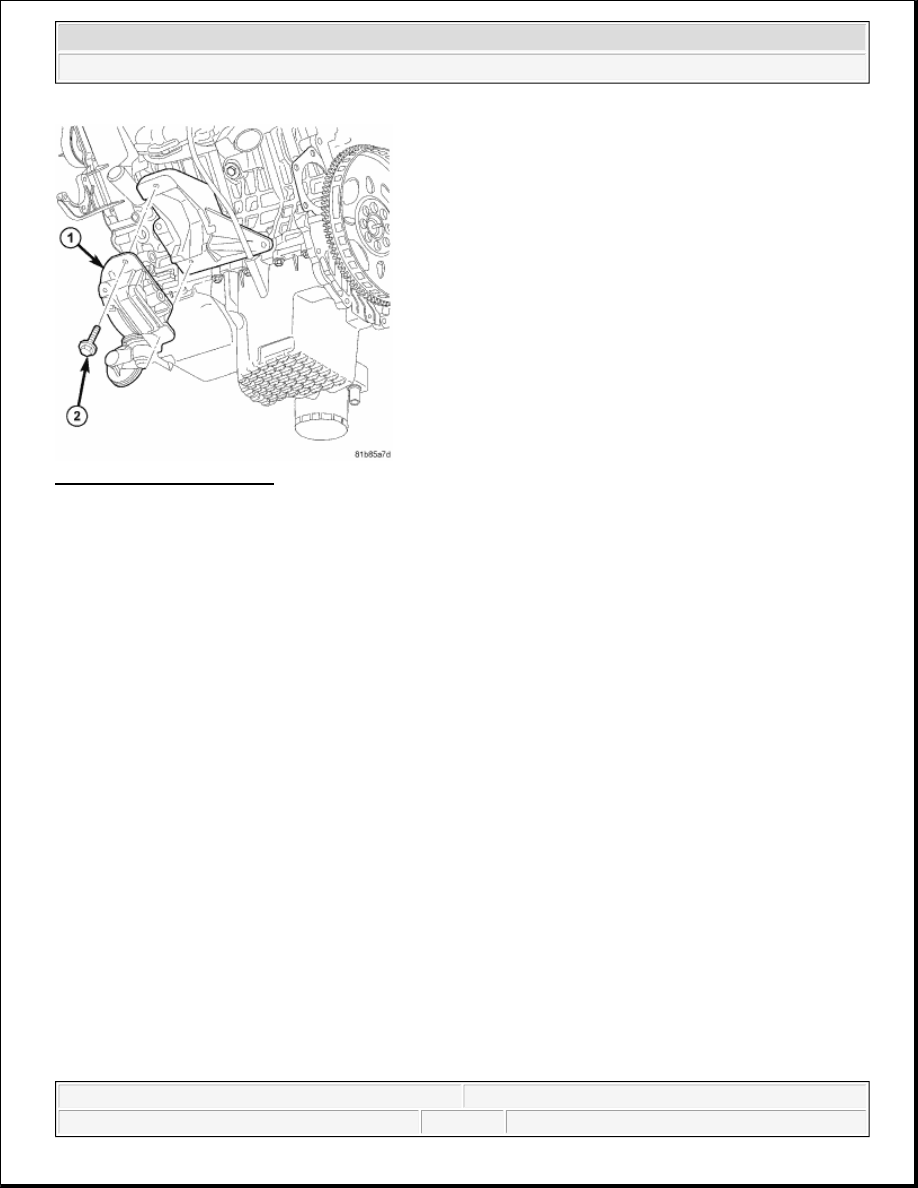

Fig. 230: Left Engine Mount
Courtesy of CHRYSLER LLC

1. Disconnect the negative battery cable.

2. Raise and support the vehicle.

3. Remove both engine mount to frame nuts and remove the left engine mount bolts (2).

4. Using a suitable jack and a block of wood under the oil pan, raise the engine until the weight is off of the

mounts (approximately 5mm).

5. Remove the engine mount bolts and remove the mount.

INSTALLATION

MOUNT-LEFT
