Dodge Nitro. Manual - part 119

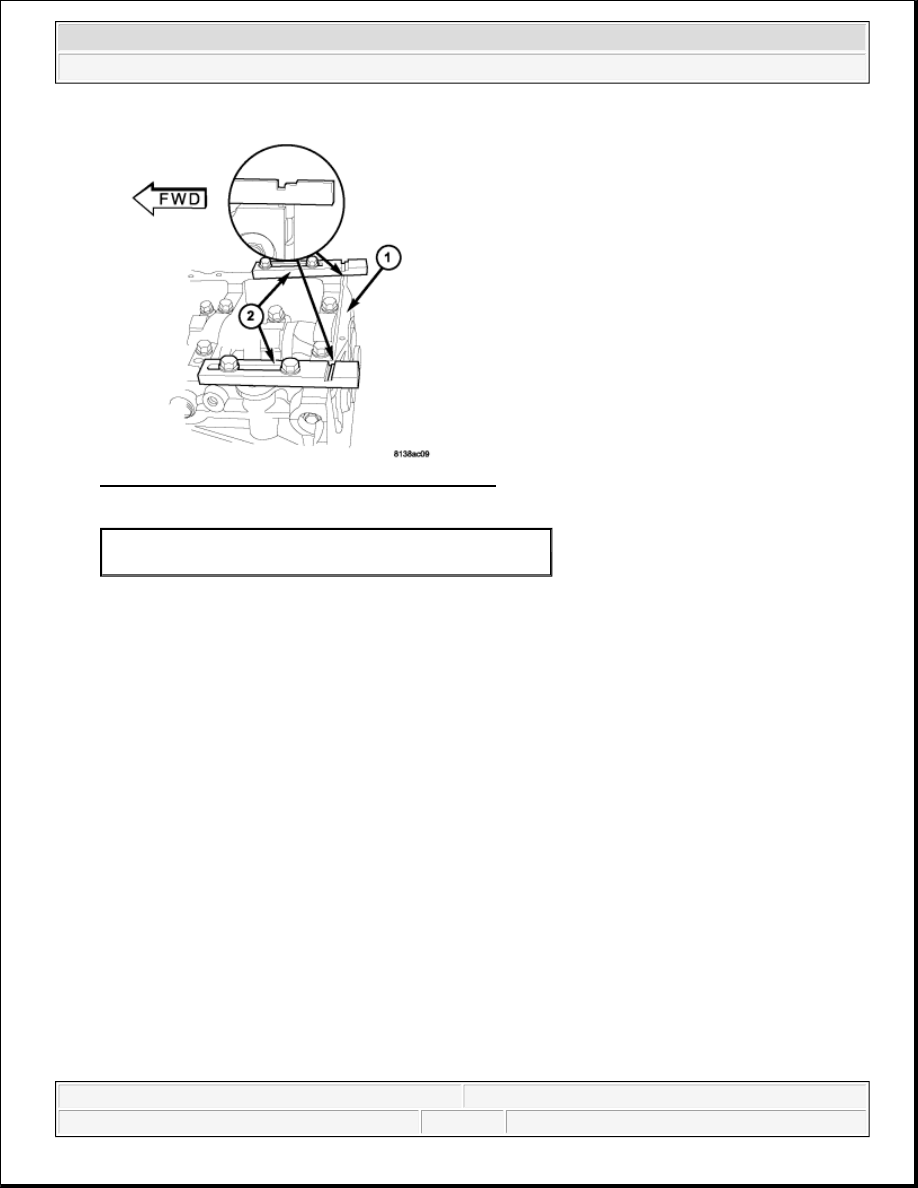

Fig. 205: Rear Crankshaft Seal Retainer Alignment
Courtesy of CHRYSLER LLC

4. Attach Special Tools 8225 (1) to pan rail using the oil pan fasteners.

5. While applying firm pressure to the seal retainer against Special Tools 8225 (1), tighten seal retainer

screws to 12 N.m (105 in. lbs.).

6. Remove special tool #8225 (1).

7. Install oil pan. Tighten the 6mm fasteners to 12N.m (105 in.lbs.) and the 8mm fasteners to 28N.m (250

in.lbs.).

8. Install the flex plate and transmission.

PLATE - FLEX

1 - SEAL RETAINER
2 - SPECIAL TOOLS 8225

NOTE:

The following steps must be performed to prevent oil leaks at sealing
joints.

NOTE:

Special Tools 8225 (1), are use to assist with the fit of the flush mount rear
main seal retainer. The notch on tool should be located away the seal
retainer.

NOTE:

Make sure that the seal flange is flush with the block oil pan sealing
surface.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



REMOVAL

PLATE - FLEX

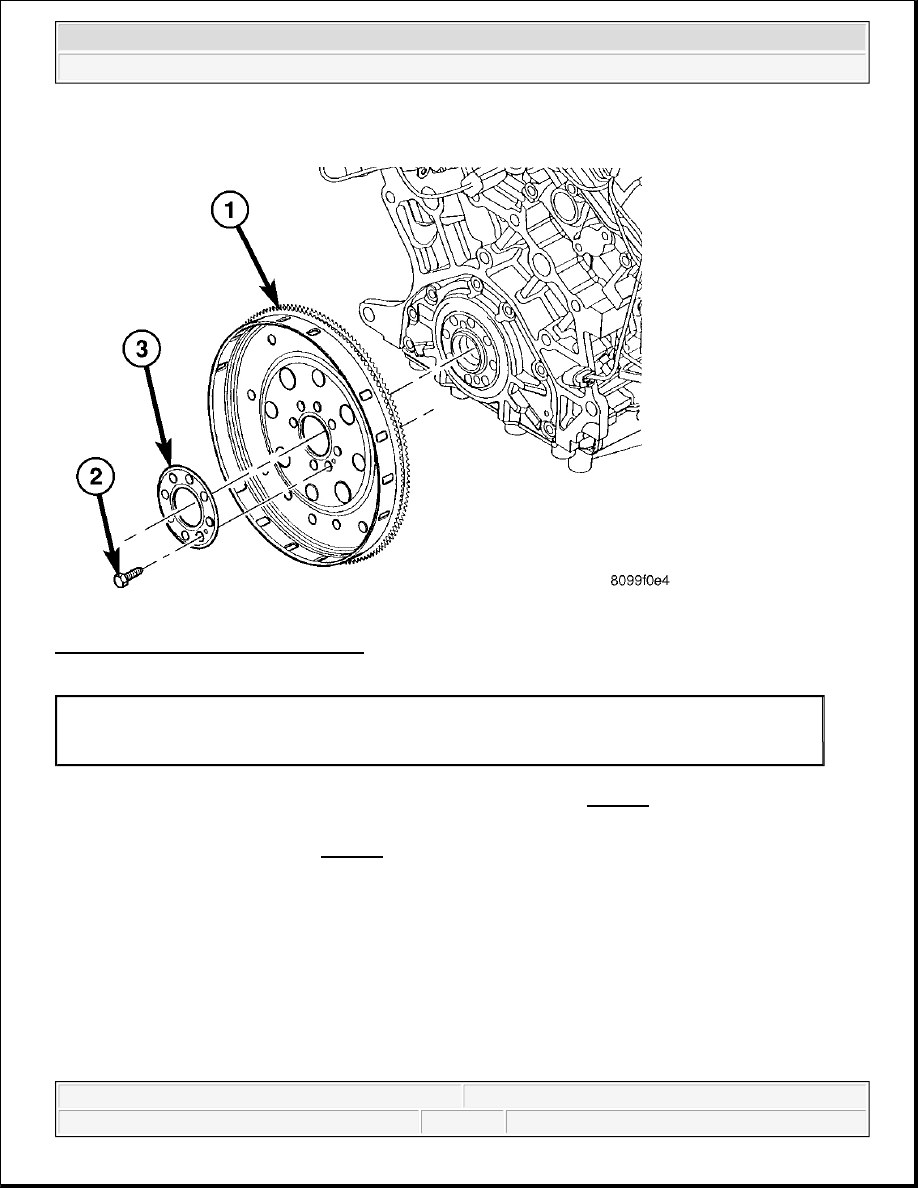

Fig. 206: Removing/Installing Flex Plate
Courtesy of CHRYSLER LLC

1. Remove the transmission.

2. Remove flex plate attaching bolts (2).

3. Remove the flex plate (1). See Fig. 206.

INSTALLATION

PLATE-FLEX

1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



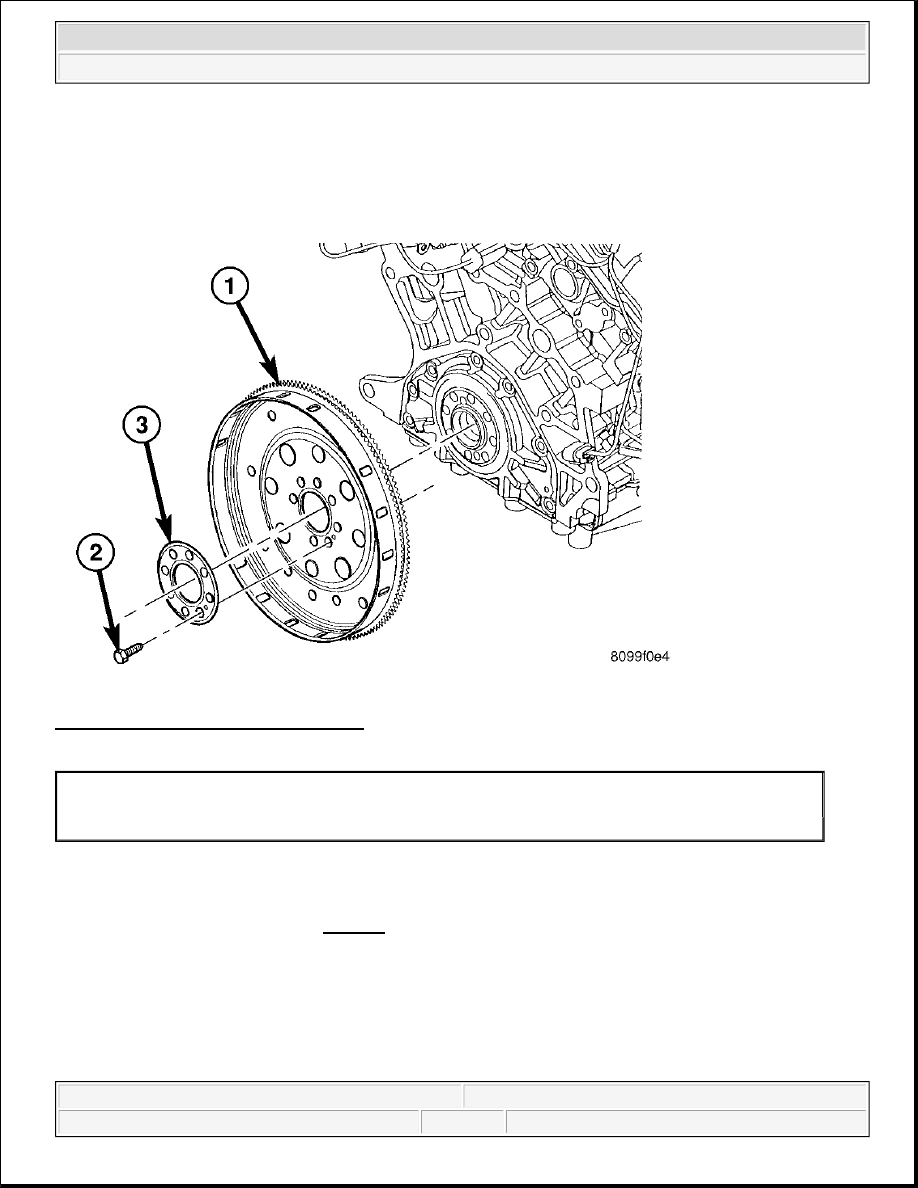

Fig. 207: Removing/Installing Flex Plate
Courtesy of CHRYSLER LLC

1. Position flex plate (1) with backing plate (3) on the crankshaft. See Fig. 207.

2. Apply Mopar® Lock & Seal Adhesive to the flex plate bolts (2).

3. Install flex plate bolts (2). See Fig. 207. Tighten bolts to 95 N.m (70 ft. lbs.).

4. Install the transmission.

ROD - PISTON & CONNECTING

DESCRIPTION

ROD-PISTON & CONNECTING

The pistons are made of a high strength aluminum alloy. Top land height has been decreased to reduce
emissions. Piston skirts are coated with a solid lubricant for scuff resistance. Connecting rod is forged steel with
a fractured connecting rod cap design. The connecting rod is also equipped with a squirt hole and attaches to the

1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



piston with a full floating pin retained by lock rings.

OPERATION

ROD-PISTON & CONNECTING

The piston and connecting rod assembly is the link between the combustion force and the crankshaft.

STANDARD PROCEDURE

FITTING PISTONS

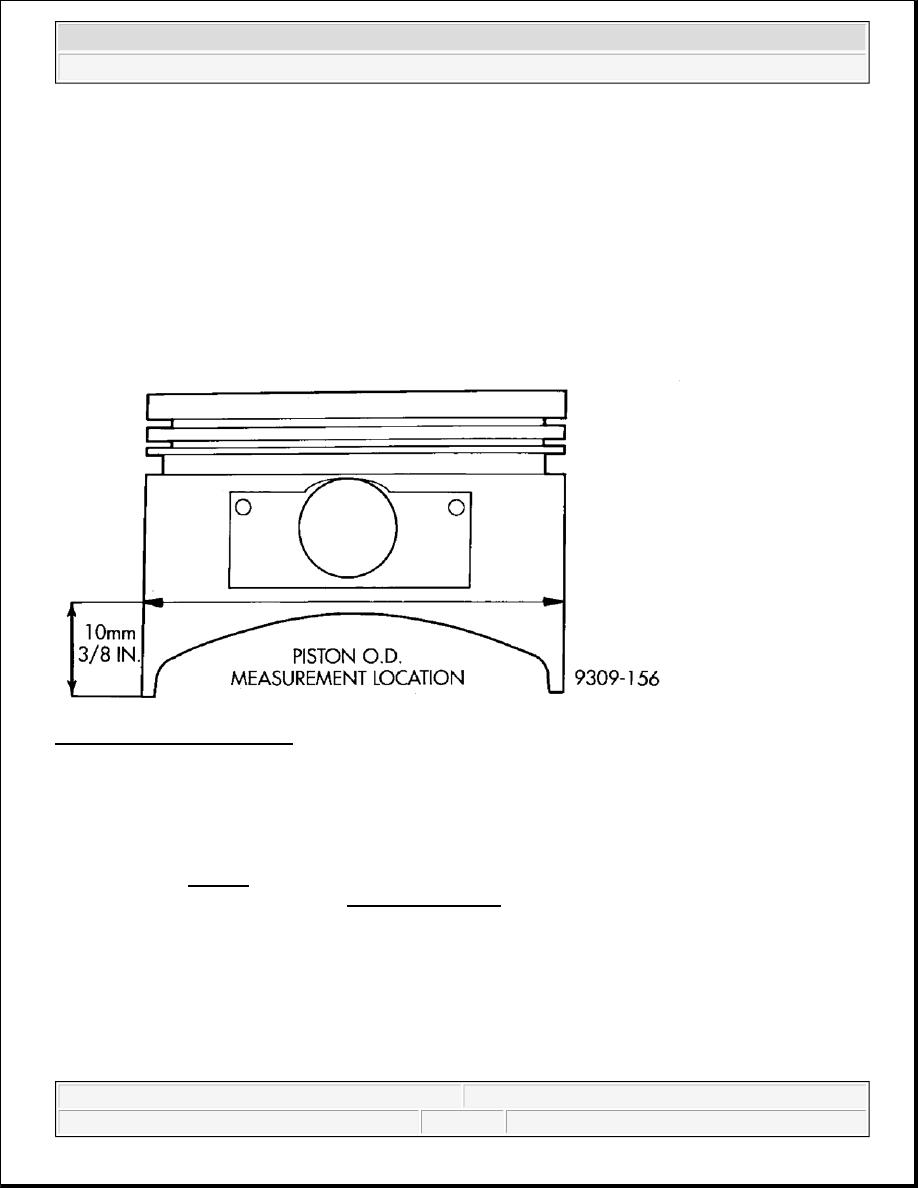

Fig. 208: Piston Measurements
Courtesy of CHRYSLER LLC

The pistons are machined to two different weight specifications and matched to rods based on weight. All piston
and rod assemblies weigh the same to maintain engine balance.

Piston and cylinder wall must be clean and dry. Piston diameter should be measured 90° to piston pin at size
location shown in Fig. 208. Cylinder bores should be measured halfway down the cylinder bore and transverse
to the engine crankshaft center line. See SPECIFICATIONS. Pistons and cylinder bores should be
measured at normal room temperature, 70°F (21°C).

REMOVAL

ROD-PISTON & CONNECTING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro
