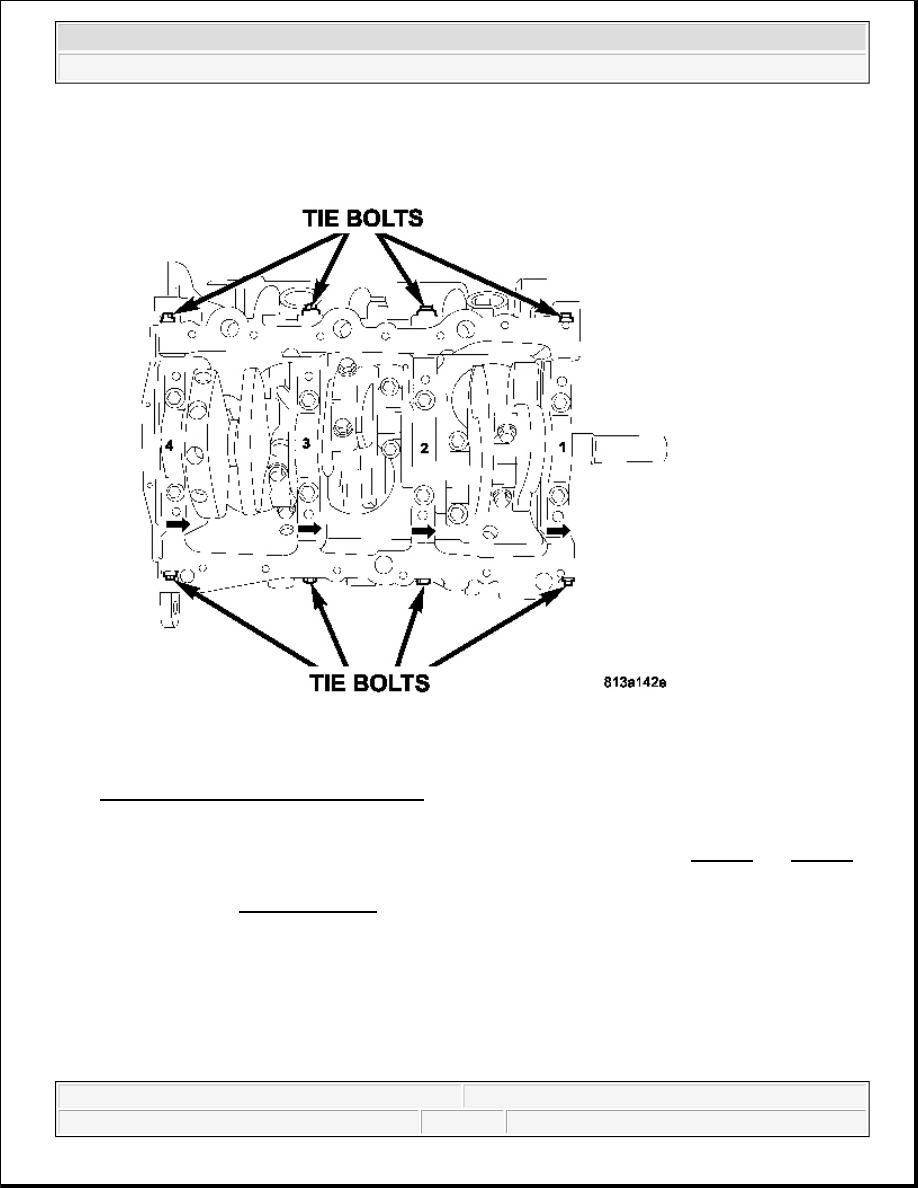

Fig. 196: Main Bearing Cap Identification
Courtesy of CHRYSLER LLC

10. Install the main cap tie (horizontal) bolts and tighten to 28 N.m (250 in. lbs.). See Fig. 196. See Fig. 195

11. Install oil pick-up tube.

12. Install oil pan. See INSTALLATION.

13. Fill engine crankcase with proper oil to correct level.

SEAL -CRANKSHAFT OIL FRONT

REMOVAL

SEAL-CRANKSHAFT OIL FRONT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

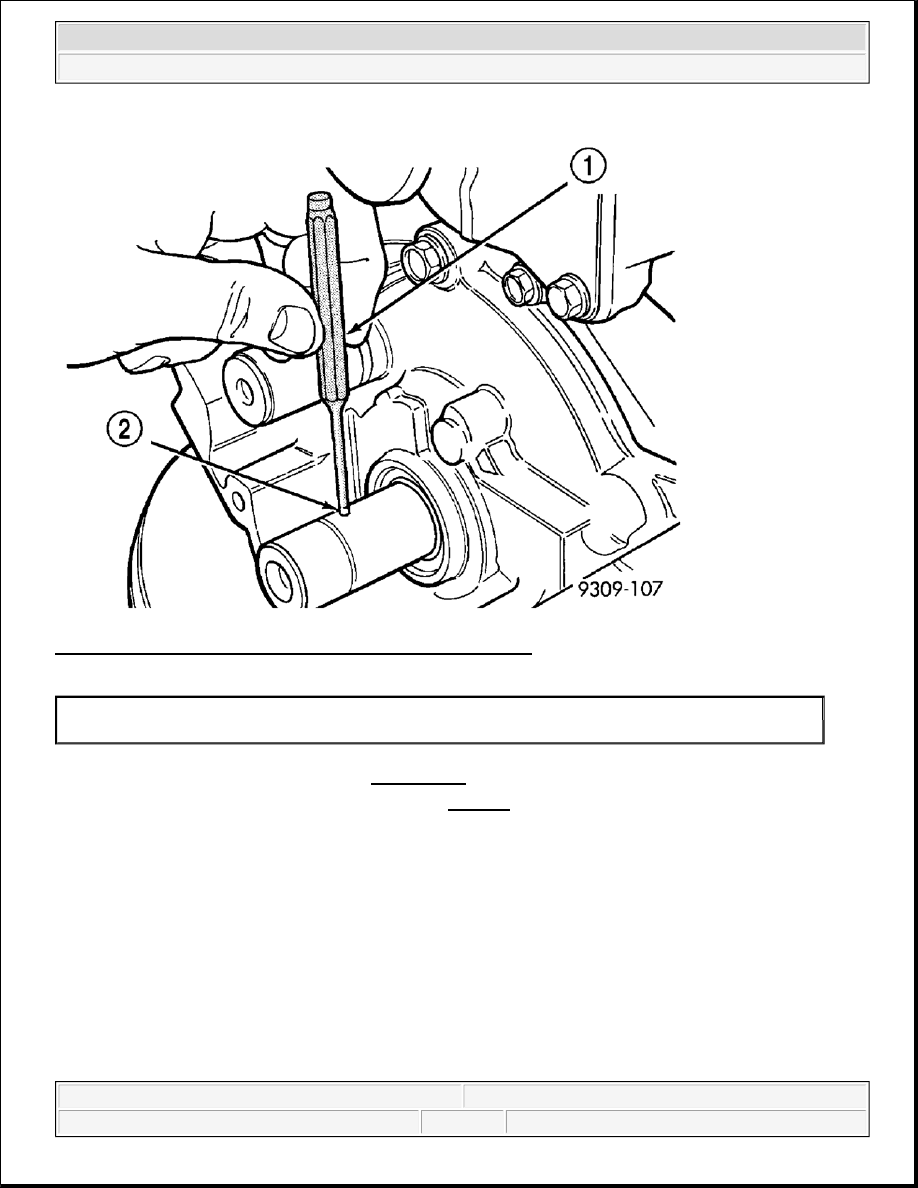

Fig. 197: Removing/Installing Crankshaft Sprocket Dowel Pin
Courtesy of CHRYSLER LLC

1. Remove the crankshaft sprocket. See REMOVAL.

2. Tap the dowel pin (2) out of the crankshaft. See Fig. 197.

1 - PIN PUNCH
2 - DOWEL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

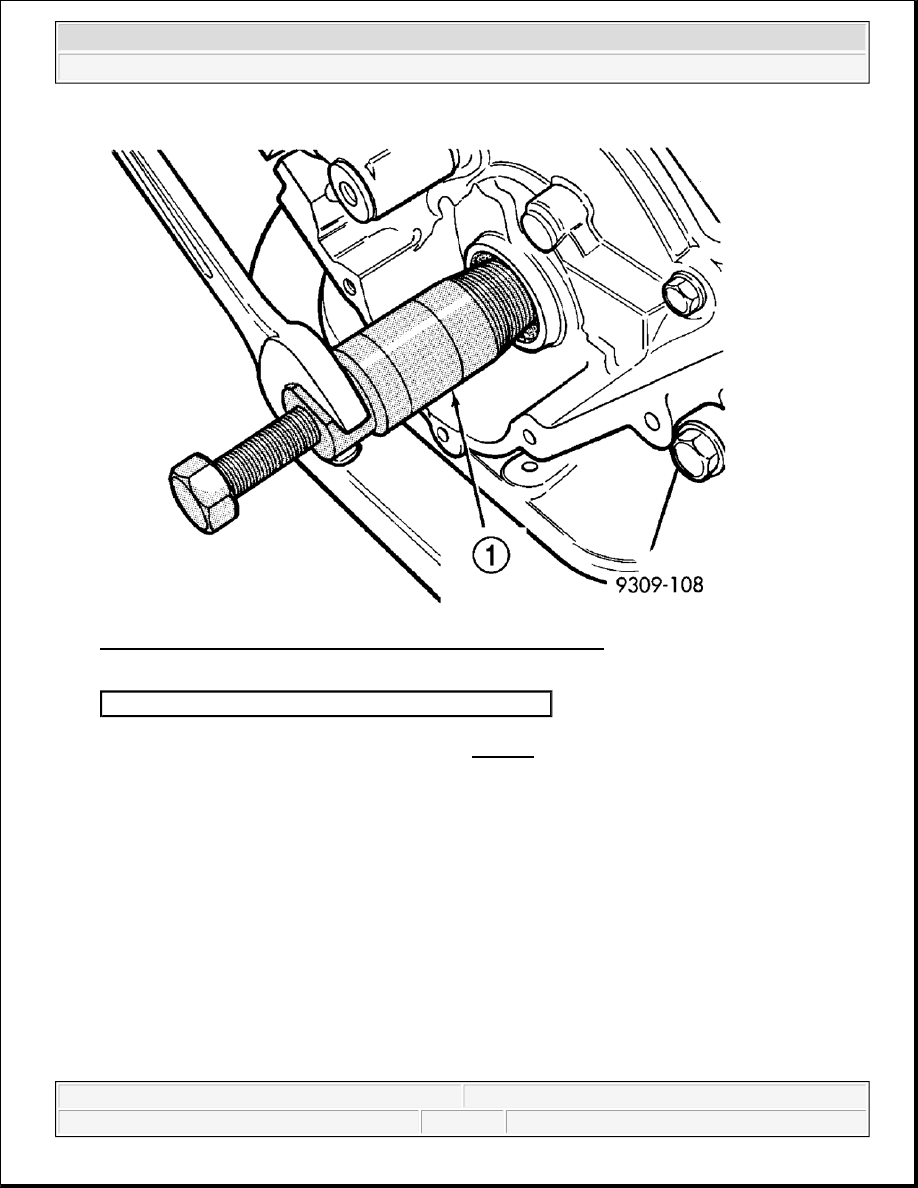

Fig. 198: Removing Crankshaft Oil Seal With Special Tool 6341A
Courtesy of CHRYSLER LLC

3. Remove crankshaft seal using Tool 6341A (1). See Fig. 198.

4. Shaft seal lip surface must be free of varnish, dirt or nicks. Polish with 400 grit paper if necessary.

INSTALLATION

SEAL-CRANKSHAFT OIL FRONT

1 - SPECIAL TOOL 6341A

CAUTION: Do not nick shaft seal surface or seal bore.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

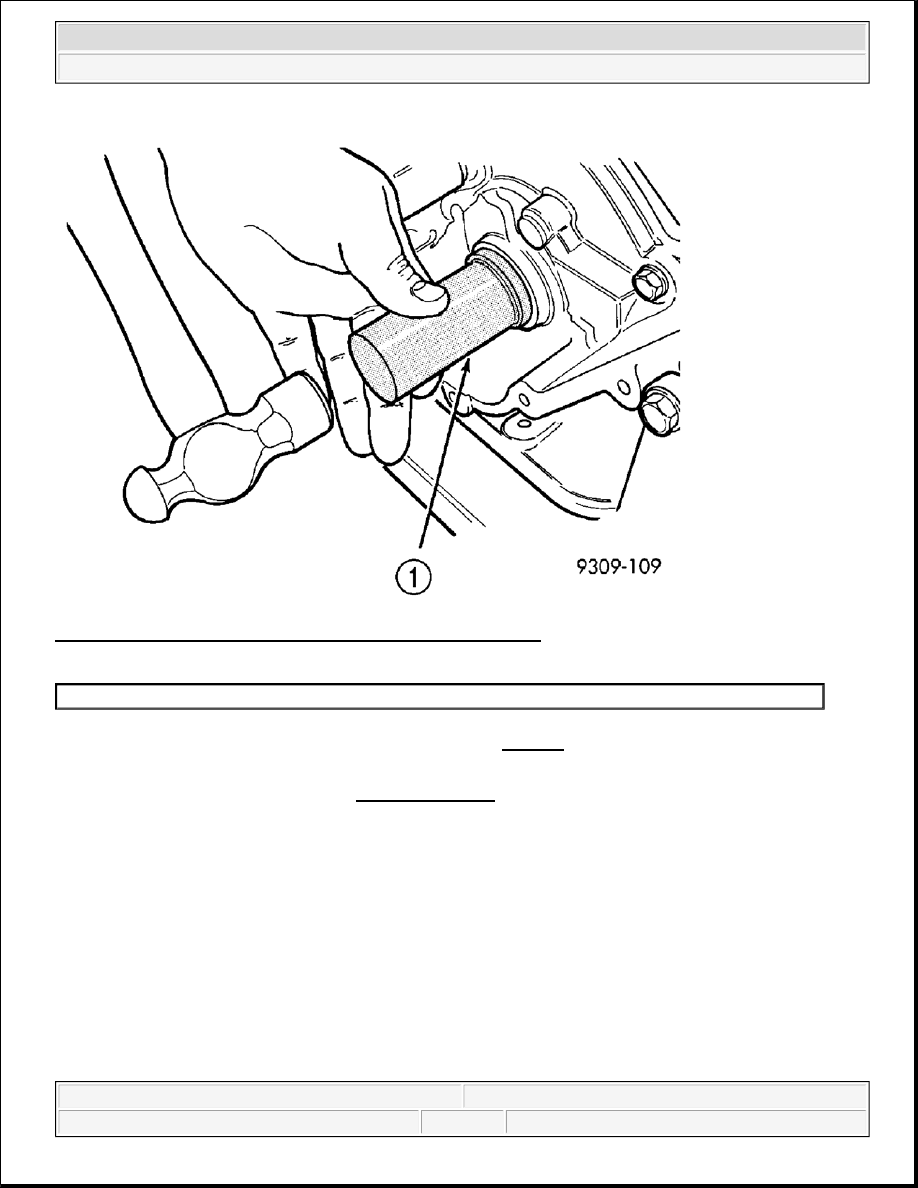

Fig. 199: Installing Crankshaft Oil Seal With Special Tool 6342
Courtesy of CHRYSLER LLC

1. Install crankshaft seal using Special Tool 6342 (1). See Fig. 199.

2. Install the dowel pin into the crankshaft to 1.2 mm (0.047 in.) protrusion.

3. Install the crankshaft sprocket. See INSTALLATION.

SEAL - CRANKSHAFT OIL REAR

DESCRIPTION

SEAL-CRANKSHAFT OIL REAR

1 - SPECIAL TOOL 6342
