6. Remove Special Tool (2) from the camshaft.

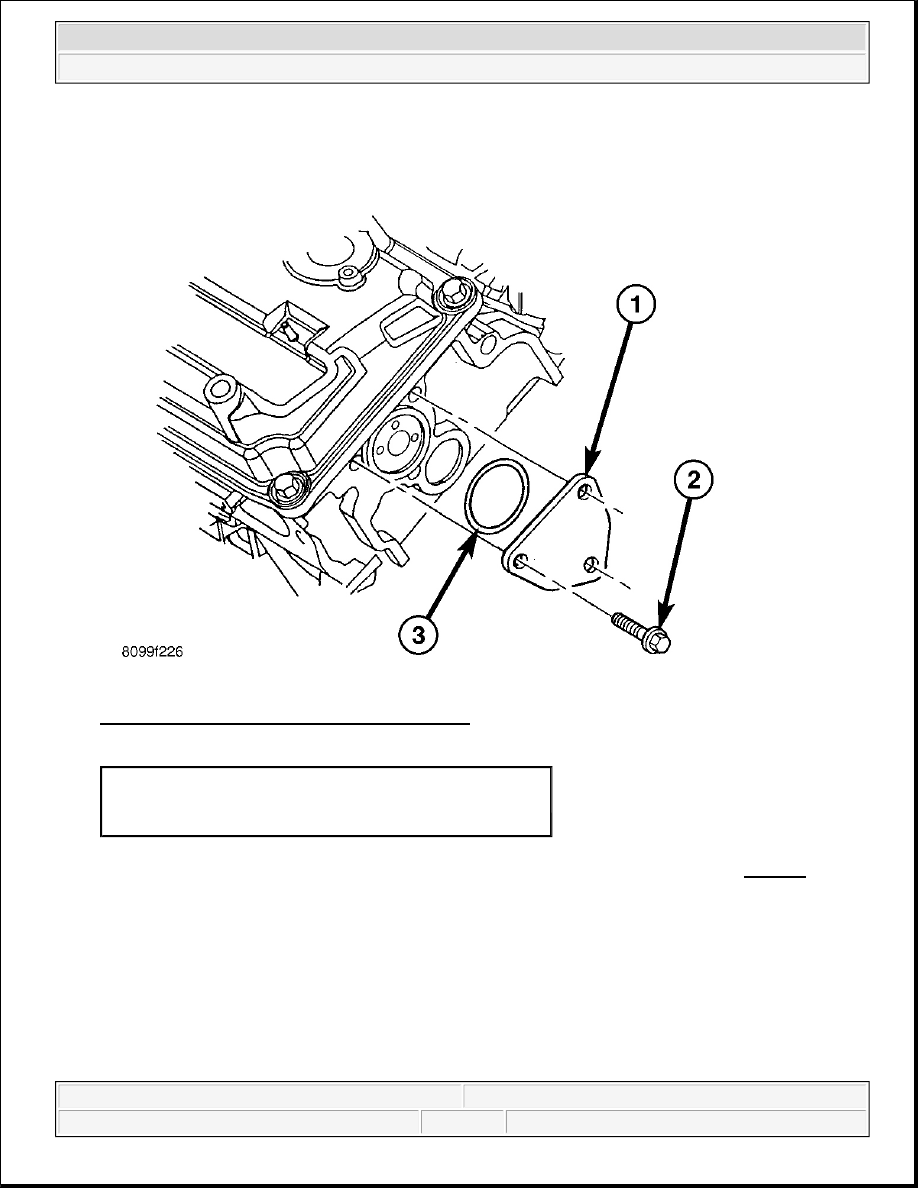

Fig. 125: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

7. Install the camshaft thrust plate (1), and new seal (3) to the rear of the cylinder head. See Fig. 125.

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



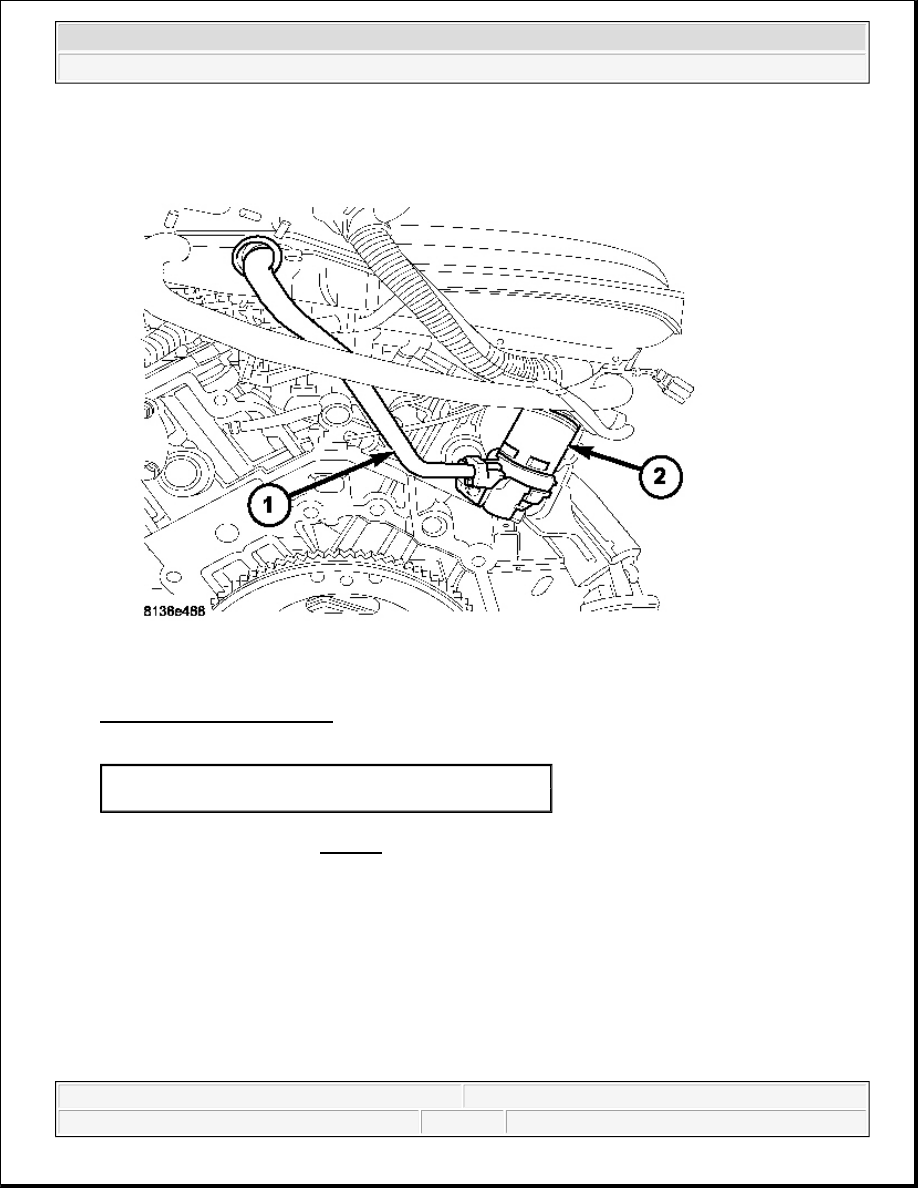

Fig. 126: Installing EGR valve
Courtesy of CHRYSLER LLC

8. Install the EGR valve (2). See Fig. 126.

1 - TUBE
2 - EGR VALVE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 127: Removing/Installing Camshaft Sprocket
Courtesy of CHRYSLER LLC

9. Install camshaft sprocket (2) and tighten the camshaft sprocket bolt to 102 N.m (75 ft.lbs.).



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



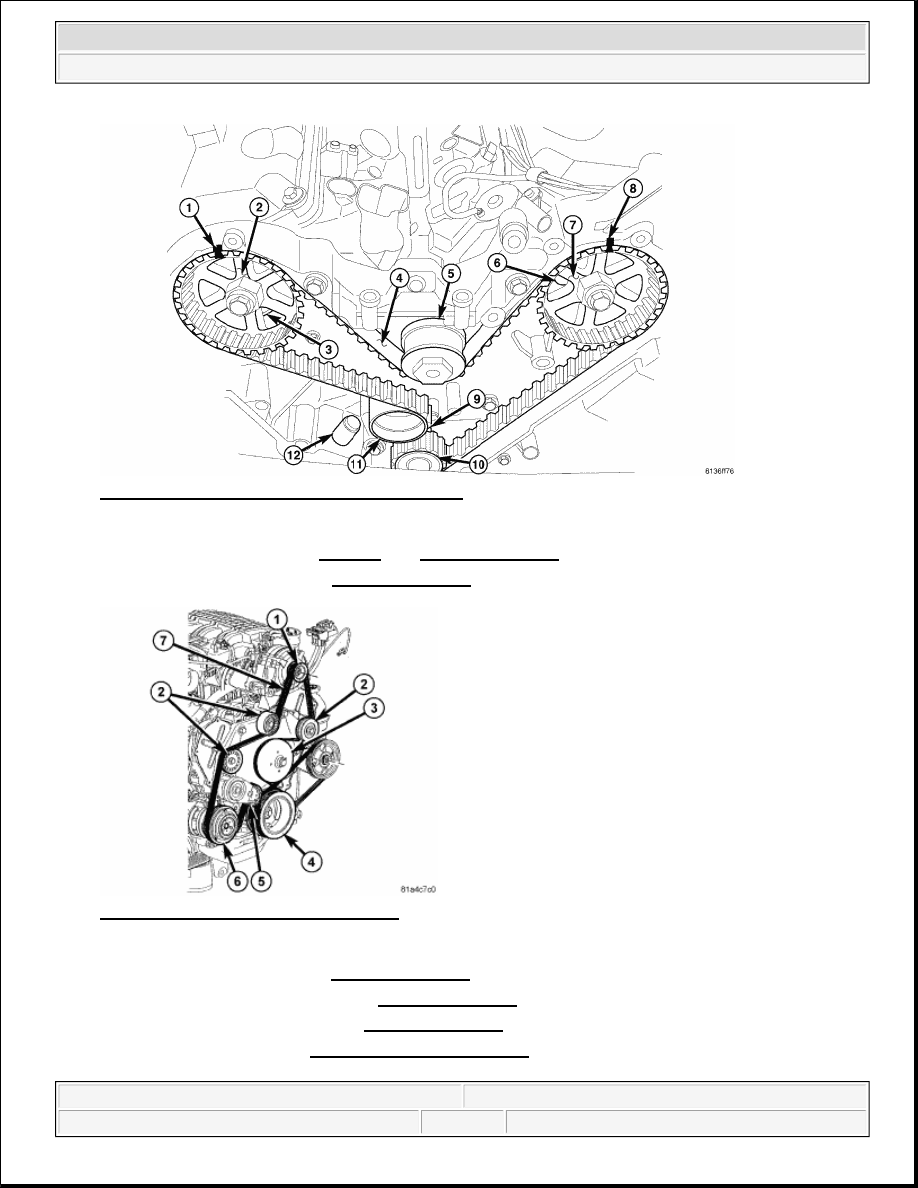

Fig. 128: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

10. Install the timing belt (4). See Fig. 128. See INSTALLATION.

11. Install rocker assembly (1). See INSTALLATION.

Fig. 129: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC

12. Install cylinder head cover. See INSTALLATION

13. Install the front timing belt cover. See INSTALLATION.

14. Install the vibration damper (4). See INSTALLATION.

15. Fill cooling system. Refer to STANDARD PROCEDURE .

16. Connect the negative battery cable.
