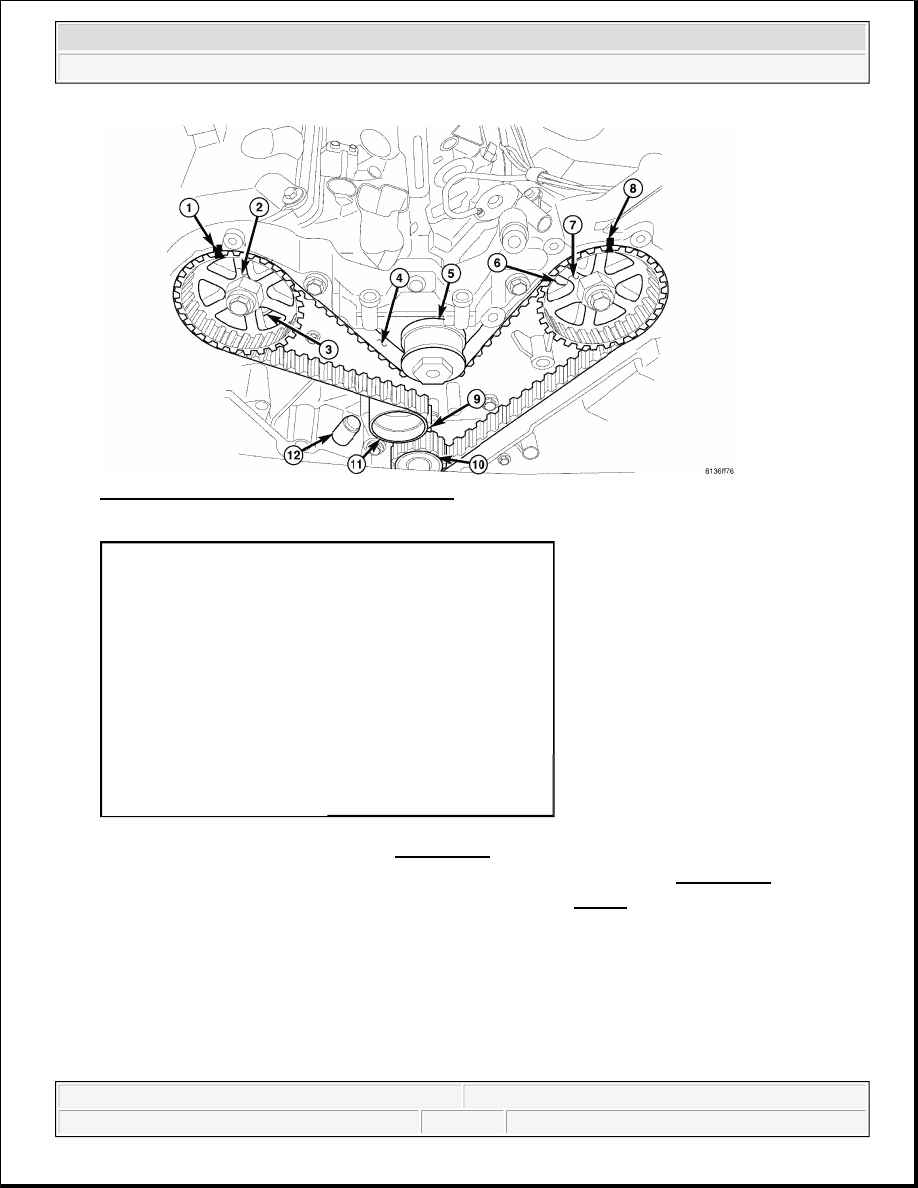

Fig. 90: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

15. Remove the outer timing belt cover. See REMOVAL).

16. Remove the timing belt tensioner (12), timing belt (4), then reset tensioner. See REMOVAL.

17. Rotate the engine to TDC and align the timing marks (1,8,9). See Fig. 90.

18. Remove the left cylinder head cover to cylinder head ground strap.

19. Remove the left cylinder head cover.

1 - RIGHT CAMSHAFT
GEAR ALIGNMENT MARK

7 - LEFT CAMSHAFT
GEAR

2 - RIGHT CAMSHAFT
GEAR

8 - LEFT CAMSHAFT
GEAR ALIGNMENT MARK

3 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - RIGHT

9 - CRANKSHAFT GEAR
ALIGNMENT MARK

4 - TIMING BELT

10 - CRANKSHAFT GEAR

5 - WATER PUMP PULLEY 11 - TIMING BELT

TENSIONER PULLEY

6 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - LEFT

12 - TIMING BELT
TENSIONER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 91: Cylinder Head, Camshaft, & Rocker Arms
Courtesy of CHRYSLER LLC

20. Remove the left rocker arm assembly (2). See Fig. 91.

1 - SPARK PLUG TUBE
2 - ROCKER ARM ASSEMBLY
3 - CAMSHAFT
4 - SEAL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 92: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

21. Remove the left camshaft thrust plate (1).

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



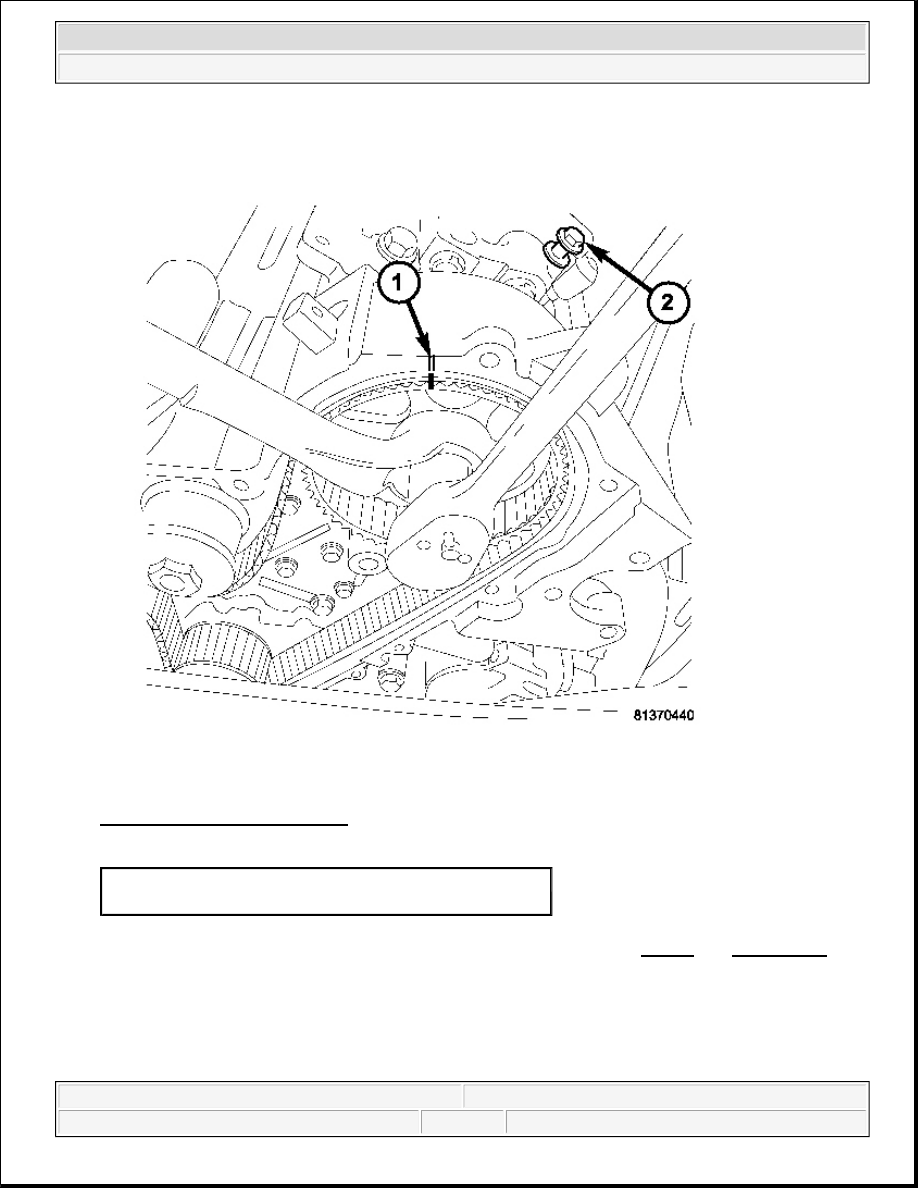

Fig. 93: Left Camshaft Sprocket
Courtesy of CHRYSLER LLC

22. Counterhold the left cam gear and remove the cam gear retaining bolt. See Fig. 93. See REMOVAL.

23. Push the camshaft out of the back of the cylinder head approximately 3.5 inches and remove the cam

gear.

Remove the front timing belt housing to cylinder head bolts.

1 - LEFT CAMSHAFT TDC
2 - LOOSENED ROCKER ASSEMBLY
