Dodge Nitro. Manual - part 87





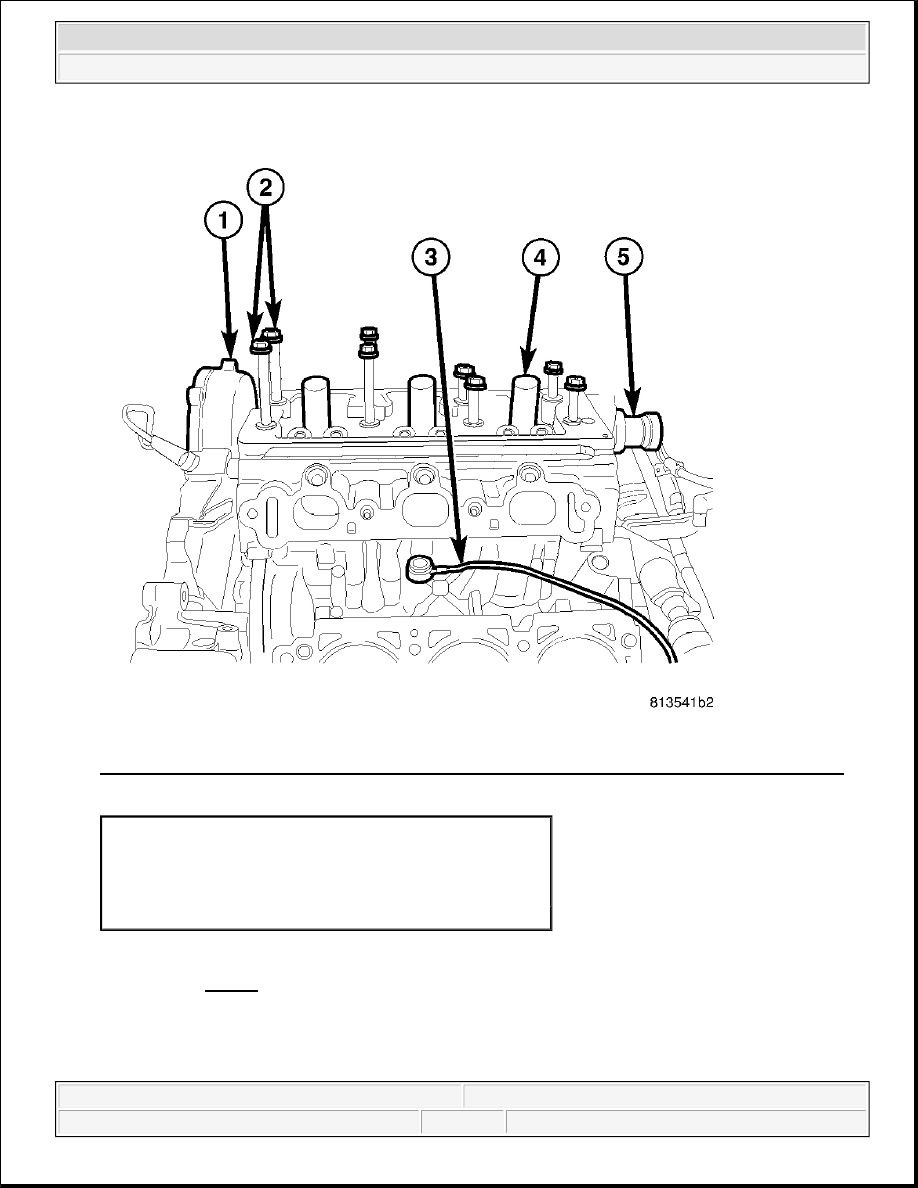

Fig. 84: Timing Chain Cover, Cylinder Head Bolts, Knock Sensor, Spark Plug Tube & Camshaft
Courtesy of CHRYSLER LLC

23. Push the camshaft (5) out of the back of the cylinder head approximately 3.5 inches and remove the right

cam gear. See Fig. 84

1 - TIMING CHAIN COVER
2 - CYLINDER HEAD BOLTS
3 - KNOCK SENSOR
4 - SPARK PLUG TUBE
5 - CAMSHAFT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



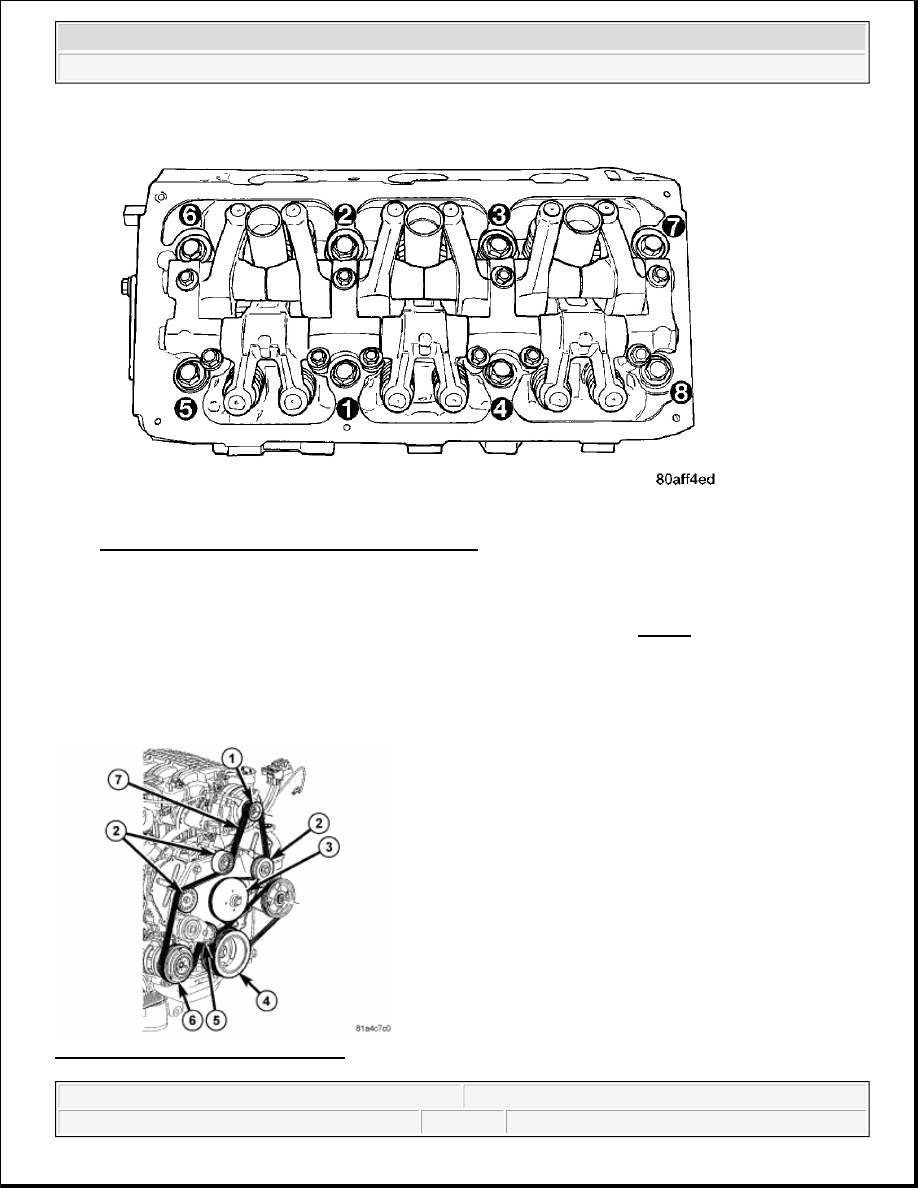

Fig. 85: Cylinder Head Bolt Tightening Sequence
Courtesy of CHRYSLER LLC

24. Remove the inner timing cover to cylinder head retaining bolts.

25. Remove the cylinder head bolts in REVERSE of tightening sequence. See Fig. 85.

26. Remove the cylinder head.

27. Clean and inspect all mating surfaces.

LEFT CYLINDER HEAD

Fig. 86: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Perform the fuel relief procedure.

2. Disconnect the negative battery cable.

3. Drain cooling system (Refer to STANDARD PROCEDURE ).

4. Remove the upper intake manifold.

5. Remove the lower intake manifold (Refer to REMOVAL ).

6. Remove the accessory drive belt (7).

7. Remove the belt tensioner.

8. Remove the accessory drive idler pulley.

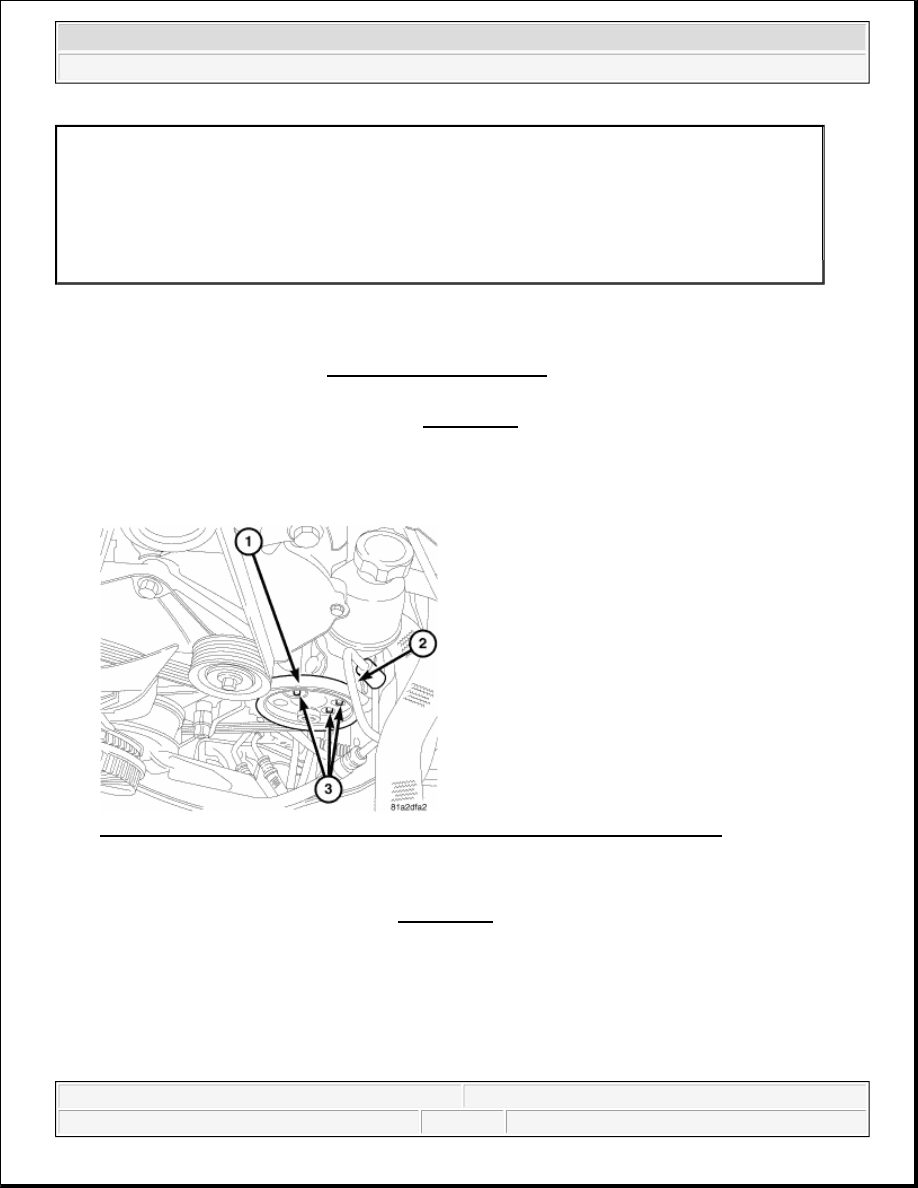

Fig. 87: Removing Power Steering Mounting Bolts, Pump & Crankshaft Damper
Courtesy of CHRYSLER LLC

9. Remove the power steering mounting bolts (3) and set pump (2) aside.

10. Remove the crankshaft damper (Refer to REMOVAL

1 - GENERATOR
2 - IDLER PULLEY
3 - WATER PUMP PULLEY
4 - CRANKSHAFT PULLEY
5 - ACCESSORY DRIVE BELT TENSIONER
6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



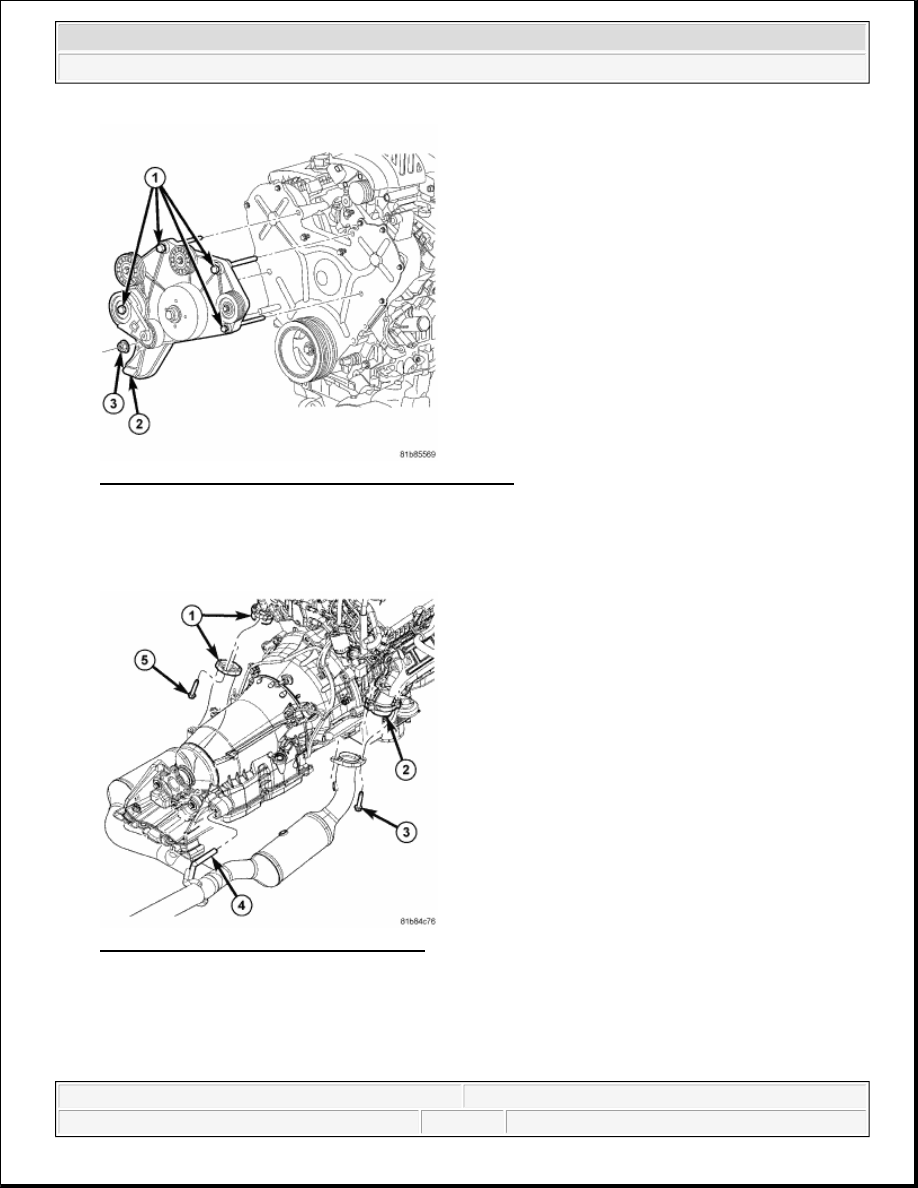

Fig. 88: Removing/Installing Accessory Drive Bracket
Courtesy of CHRYSLER LLC

11. Remove the accessory drive bracket (2).

12. Remove the outer timing belt cover bolts and cover.

Fig. 89: Removing/Installing Exhaust Pipe
Courtesy of CHRYSLER LLC

13. Remove the front exhaust pipe to exhaust manifold mounting bolts (3,5).

14. Disconnect both oxygen sensor harness connectors.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro
