Dodge Nitro. Manual - part 73

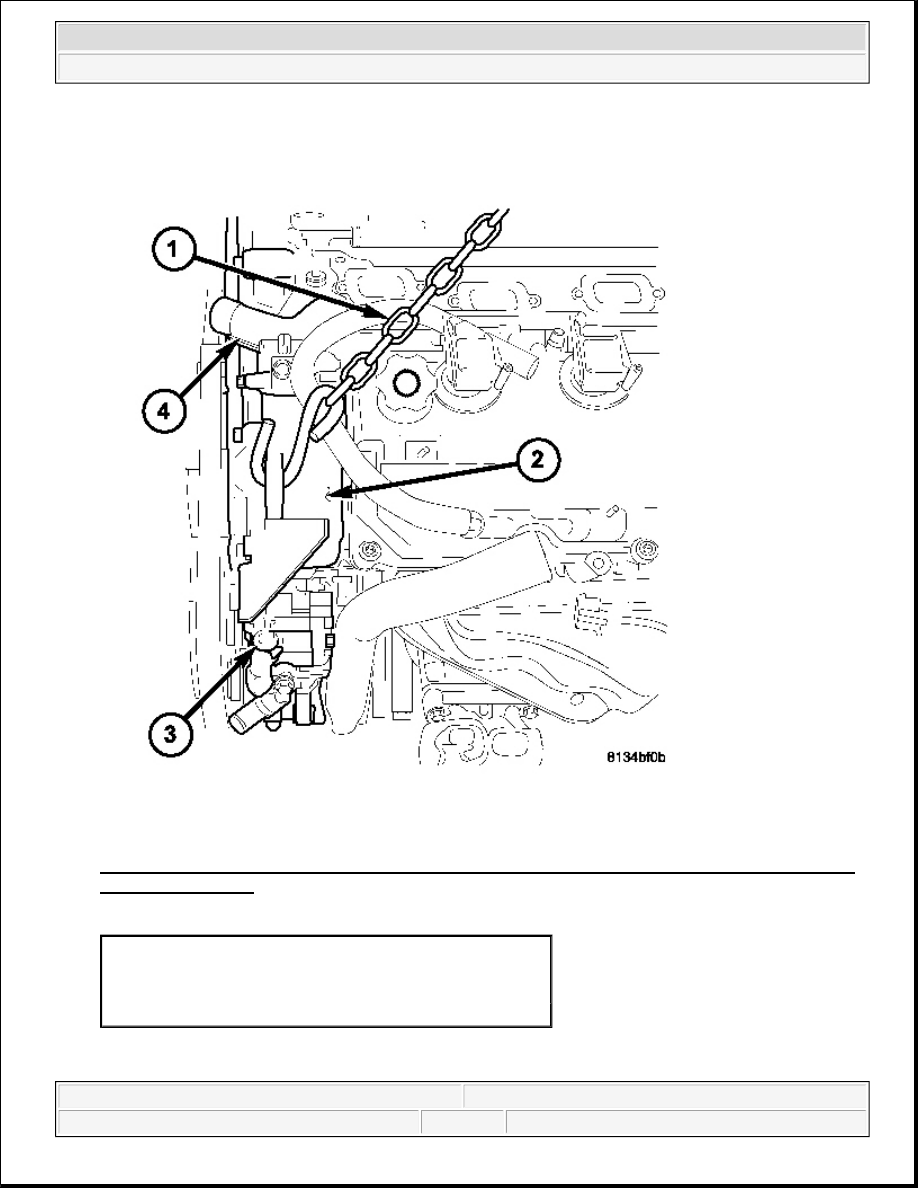

Fig. 27: Connecting Engine Hoisting Chain To Left Timing Chain Cover Engine Lifting Point And
Engine Lift Bracket
Courtesy of CHRYSLER LLC

2. Connect a engine hoisting chain (1) to the left timing chain cover (2) lifting point and the engine lifting

1 - LIFTING CHAIN
2 - UPPER TIMING CHAIN COVER
3 - POWER STEERING PUMP
4 - THERMOSTAT HOUSING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



bracket. See Fig. 27.

3. Carefully install the engine into the engine bay area and complete the union with the transmission.

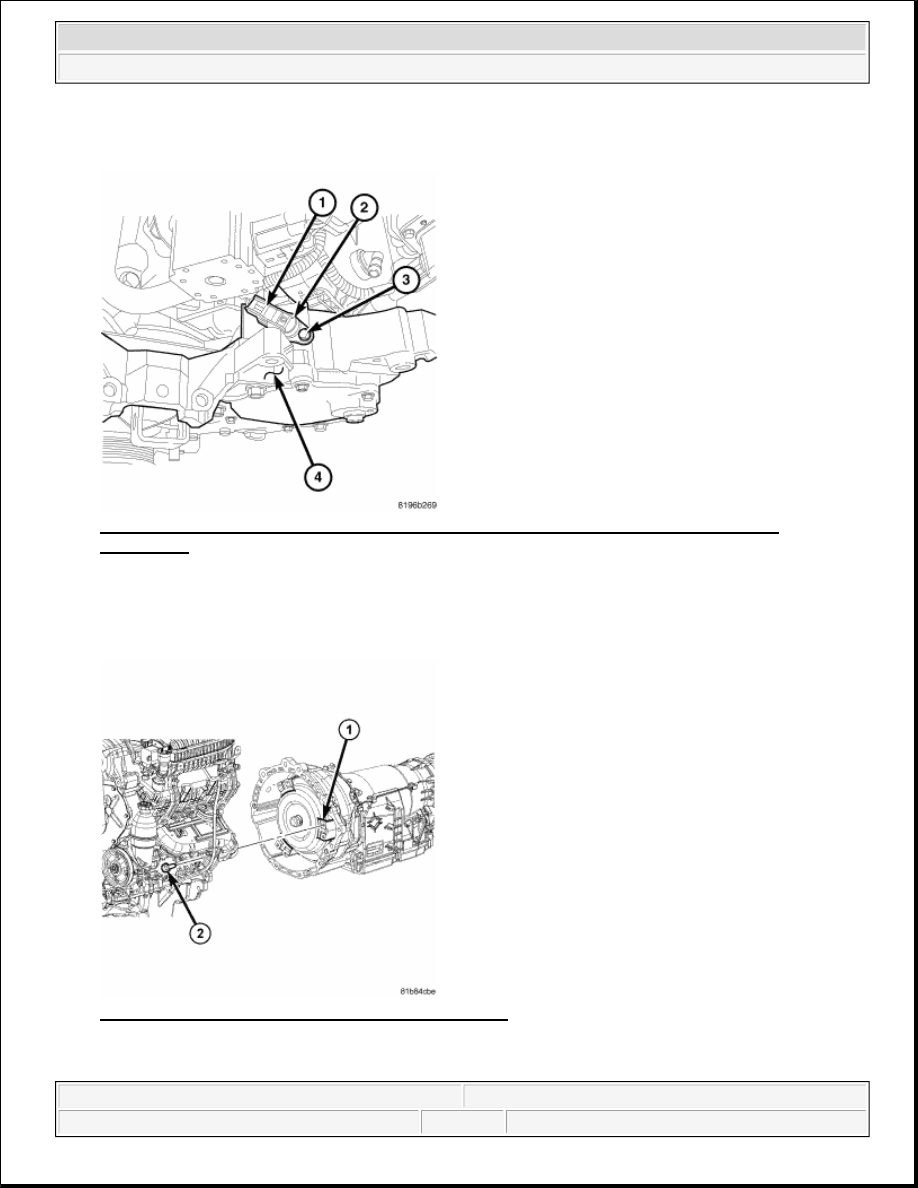

Fig. 28: Ground Strap & Transmission Housing Bolts
Courtesy of CHRYSLER LLC

4. Properly route the engine wiring harness behind the engine and tighten the accessible transmission bolts

to 68 N.m (50 ft.lbs.).

5. Connect the ground strap (1) at the transmission housing.

6. Install the remaining transmission housing bolts (2) and tighten to 68 N.m (50 ft.lbs.).



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 29: Removing/Installing Engine Mounting To Frame Fasteners
Courtesy of CHRYSLER LLC

7. Install the engine mounting fasteners (1) and tighten to 101 N.m (75 lbs.ft.).

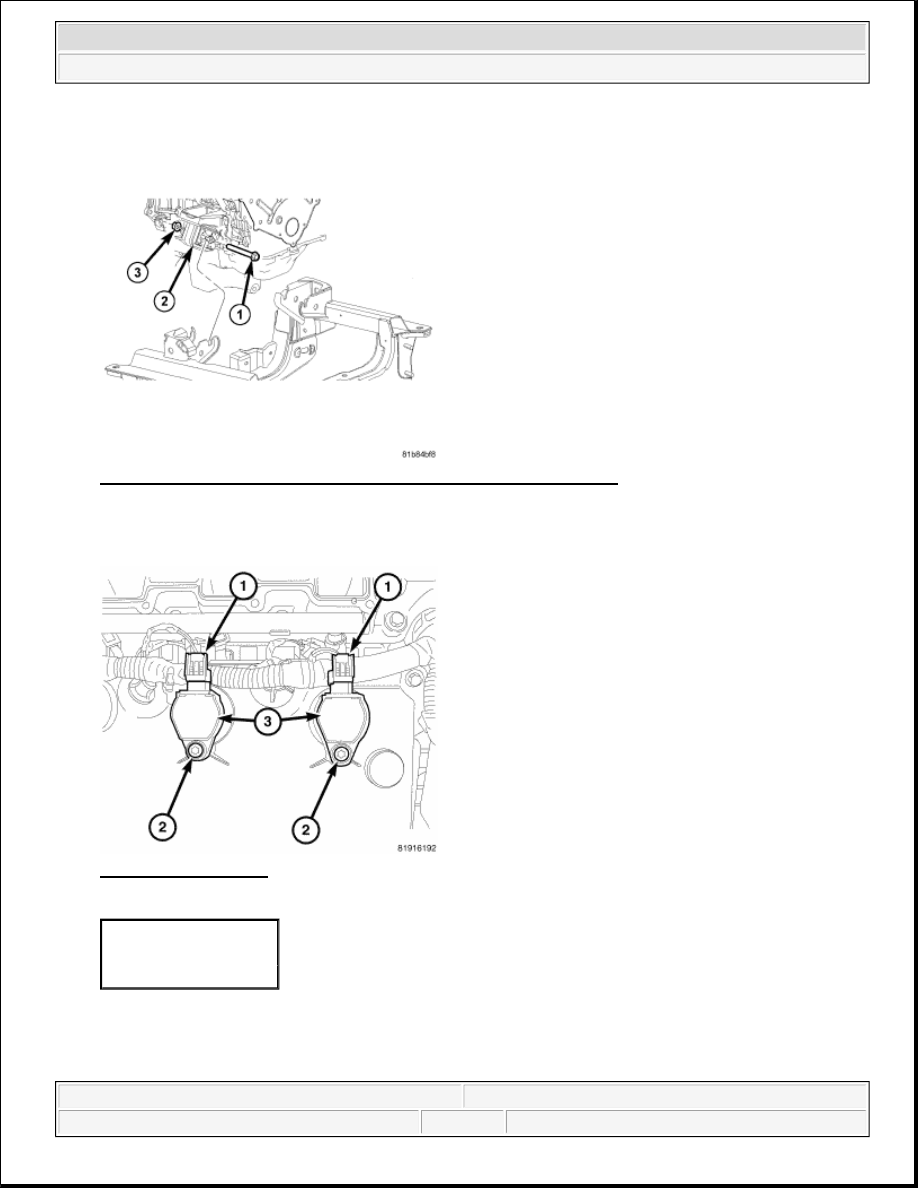

Fig. 30: Ignition Coils
Courtesy of CHRYSLER LLC

8. Properly position the right engine harness and connect the oxygen sensor, knock sensor, EGR, fuel

injector and ignition coil harness connectors (1).

9. Connect the capacitor (3) and ground strap (3) to the right cylinder head cover.

1 - Electrical Connector
2 - Mounting Bolt
3 - Coil



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



10. Properly position the left engine harness and fuel injector harness connectors.

Fig. 31: Connecting Coolant Temperature, Cam Position & Oil Pressure Sensor Harness
Connectors
Courtesy of CHRYSLER LLC

11. Connect the coolant temperature, cam position (1), oil pressure sensor harness connectors.

12. Connect the oxygen sensor, and the ground wire, to the cylinder head cover.

Fig. 32: Removing/Installing Torque Converter Bolts
Courtesy of CHRYSLER LLC

13. Install the torque converter bolts (2). Tighten bolts to 75 N.m (55 lbs.ft.).
