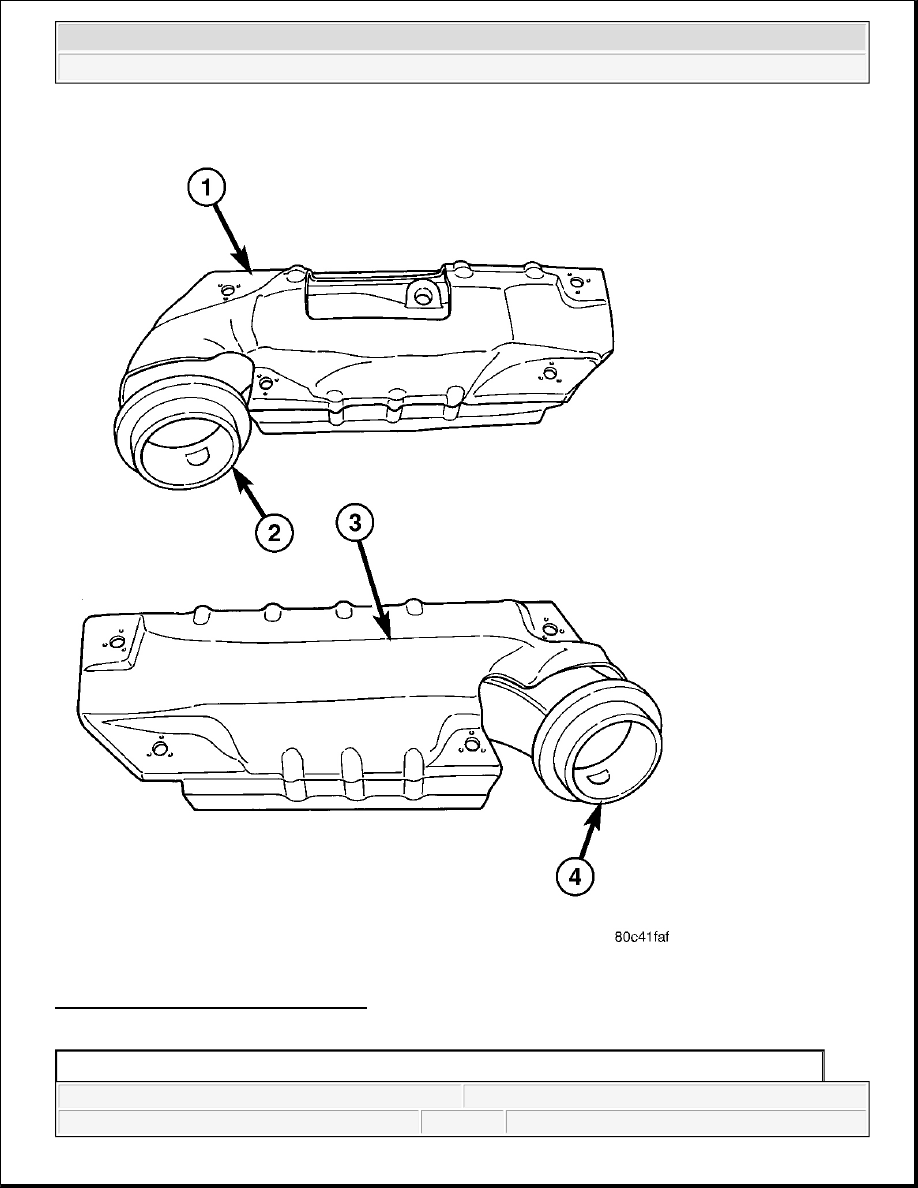

Fig. 166: Exhaust Manifold Heat Shields
Courtesy of CHRYSLER LLC

1 - RIGHT SIDE EXHAUST MANIFOLD HEAT SHIELD



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



The exhaust manifolds. See Fig. 166 (1,2) are log style with a patented flow enhancing design to maximize
performance. The exhaust manifolds are made of high silicon molybdenum cast iron. A perforated core graphite
exhaust manifold gasket is used to improve sealing to the cylinder head. The exhaust manifolds are covered by
a three layer laminated heat shield (3) for thermal protection and noise reduction. The heat shields are fastened
with a torque prevailing nut that is backed off slightly to allow for the thermal expansion of the exhaust
manifold.

REMOVAL

EXHAUST MANIFOLD

RIGHT EXHAUST MANIFOLD

2 - RIGHT SIDE EXHAUST MANIFOLD FLANGE
3 - LEFT SIDE EXHAUST MANIFOLD HEAT SHIELD
4 - LEFT SIDE EXHAUST MANIFOLD FLANGE



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro

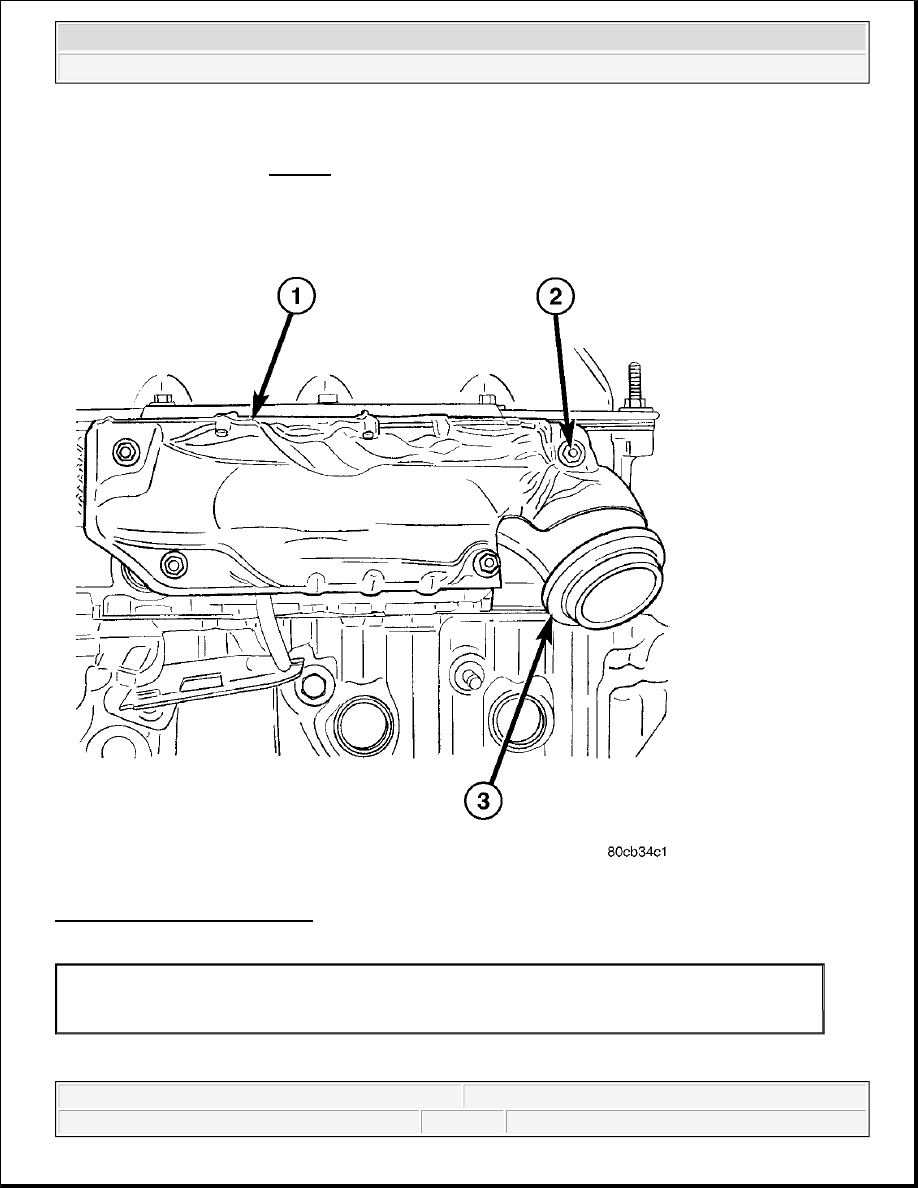

Fig. 167: Exhaust Manifold - Right
Courtesy of CHRYSLER LLC

1. Disconnect the negative cable from the battery.

2. Raise and support the vehicle.

3. Remove the bolts and nuts attaching the exhaust pipe to the engine exhaust manifold.

4. Lower the vehicle.

5. Remove the exhaust heat shield (1).

1 - HEAT SHIELD
2 - NUTS
3 - MANIFOLD FLANGE



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



6. Remove bolts, nuts and washers attaching manifold to cylinder head.

7. Remove manifold. See Fig. 167 and gasket from the cylinder head.

LEFT EXHAUST MANIFOLD

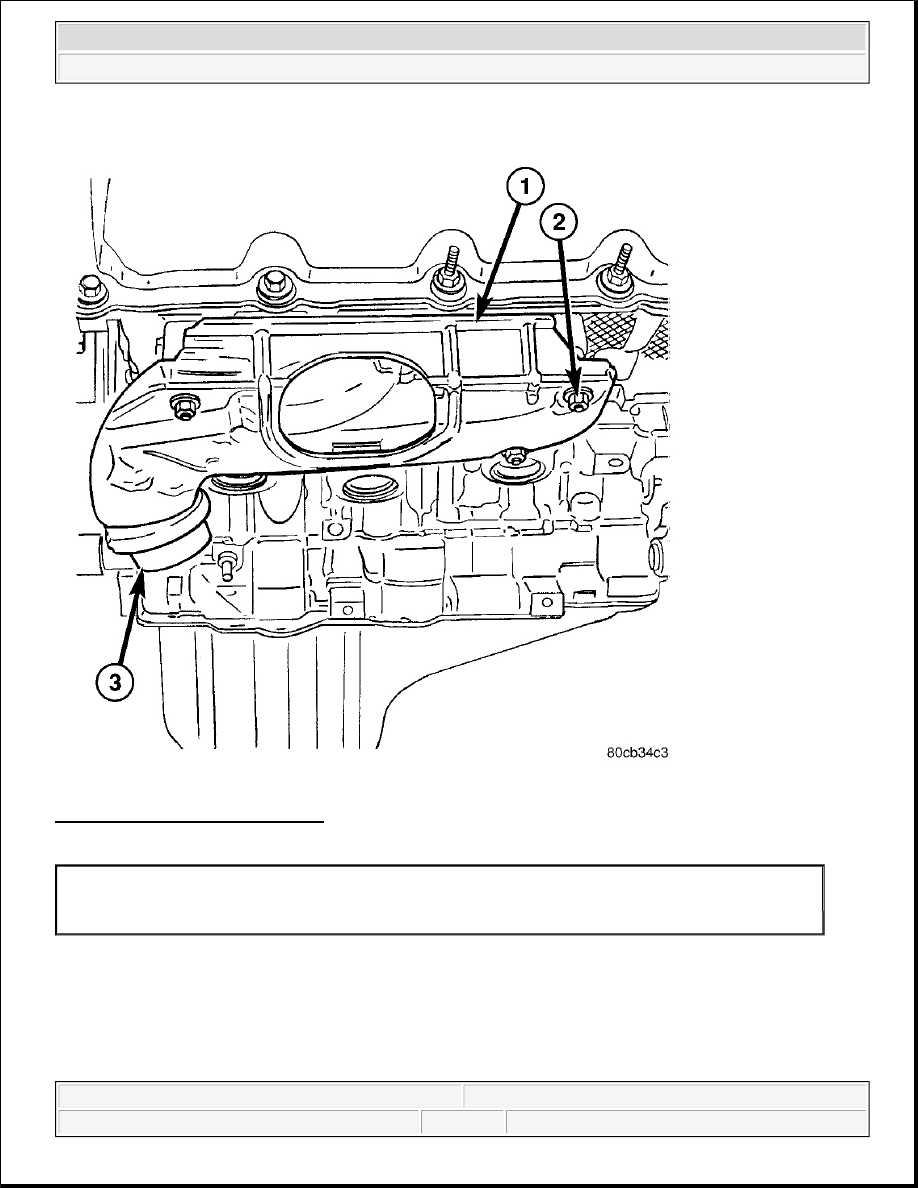

Fig. 168: Exhaust Manifold - Left
Courtesy of CHRYSLER LLC

1. Disconnect the negative cable from the battery.

1 - HEAT SHIELD
2 - NUTS
3 - MANIFOLD FLANGE
