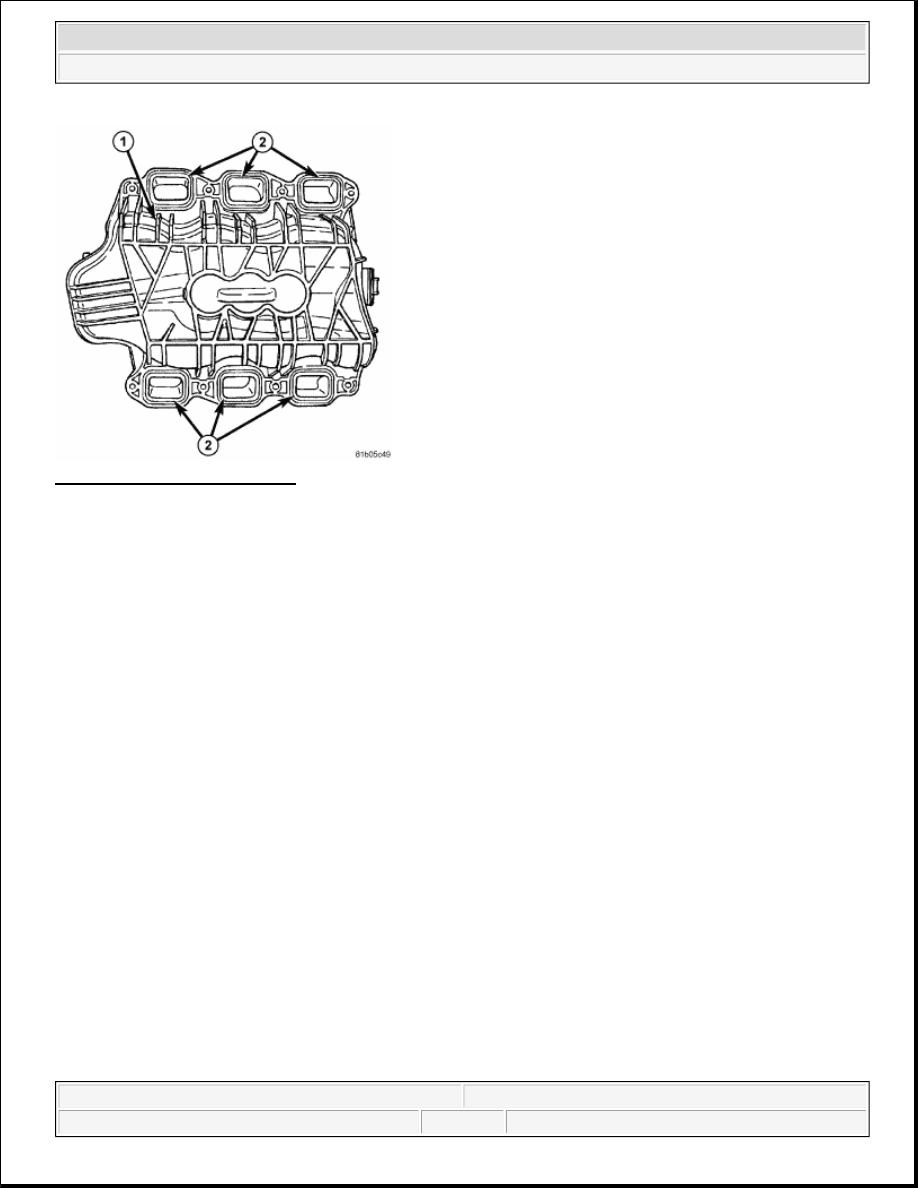

Fig. 155: Intake Manifold Seals
Courtesy of CHRYSLER LLC

The intake manifold uses single plane sealing which consist of six individual press in place port gaskets (2) to
prevent leaks. The throttle body attaches directly to the intake manifold.

DIAGNOSIS AND TESTING

INTAKE MANIFOLD LEAKS

An intake manifold air leak is characterized by lower than normal manifold vacuum. Also, one or more
cylinders may not be functioning.

1. Start the engine.

2. Spray a small stream of water (spray bottle) at the suspected leak area.

3. If engine RPM'S change, the area of the suspected leak has been found.

4. Repair as required.

REMOVAL

INTAKE MANIFOLD

WARNING:

USE EXTREME CAUTION WHEN THE ENGINE IS OPERATING. DO NOT
STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS
NEAR THE PULLEYS, BELTS OR THE FAN. DO NOT WEAR LOOSE
CLOTHING.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



Fig. 156: Throttle Body 3.7L, Mounting Bolts & Elec. Connector
Courtesy of CHRYSLER LLC

1. Bleed the fuel system. Refer to STANDARD PROCEDURE .

2. Disconnect the negative cable from battery.

3. Remove the resonator assembly and air inlet hose.

4. Drain the cooling system below coolant temperature sensor level.

5. Disconnect the electronic throttle control (ETC) connector (3).

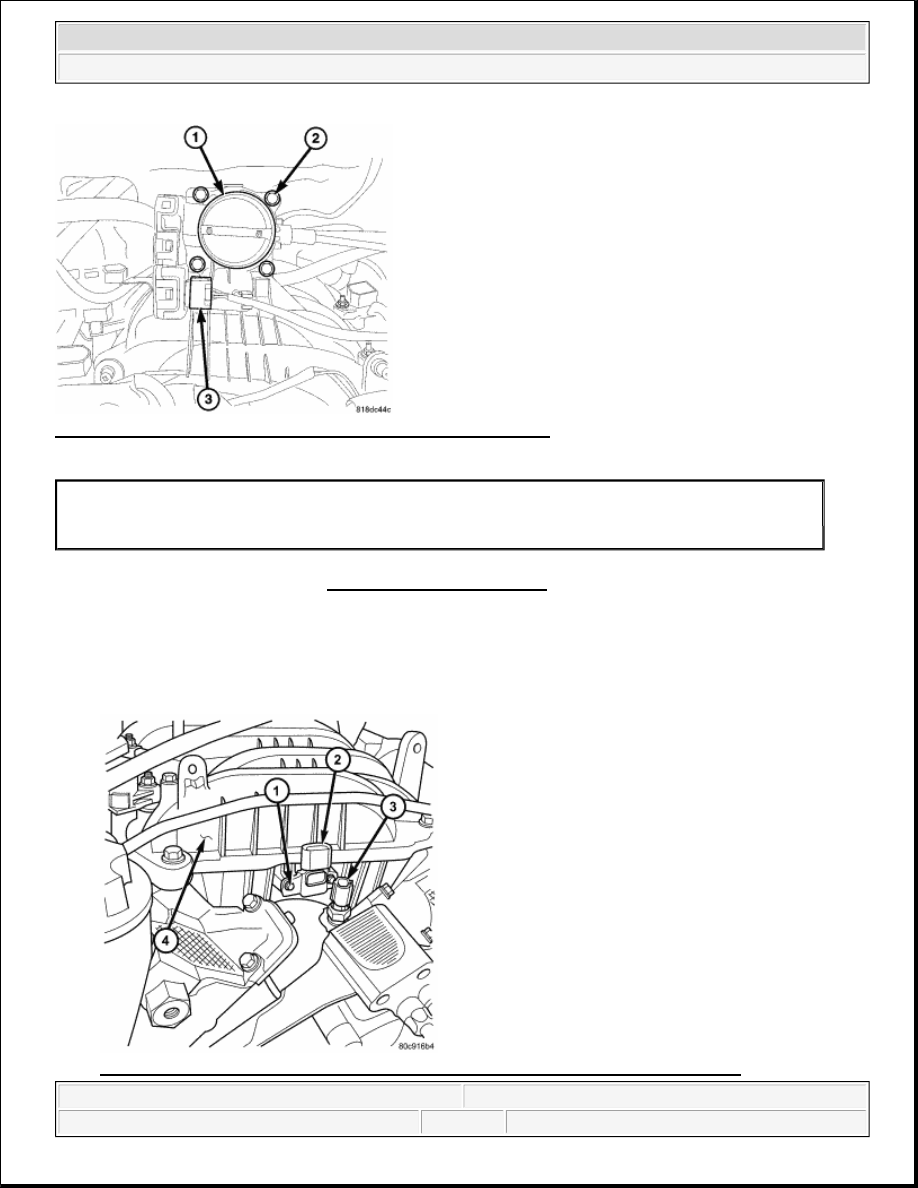

Fig. 157: Map Sensor - 3.7L, Map Sensor, ECT Sensor & Front Of Intake Manifold

1 - THROTTLE BODY
2 - MOUNTING BOLTS
3 - ELEC. CONNECTOR



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



Courtesy of CHRYSLER LLC

6. Disconnect electrical connectors for the following components:

Coolant Temperature Sensor

Manifold Absolute Pressure (MAP) Sensor (2)

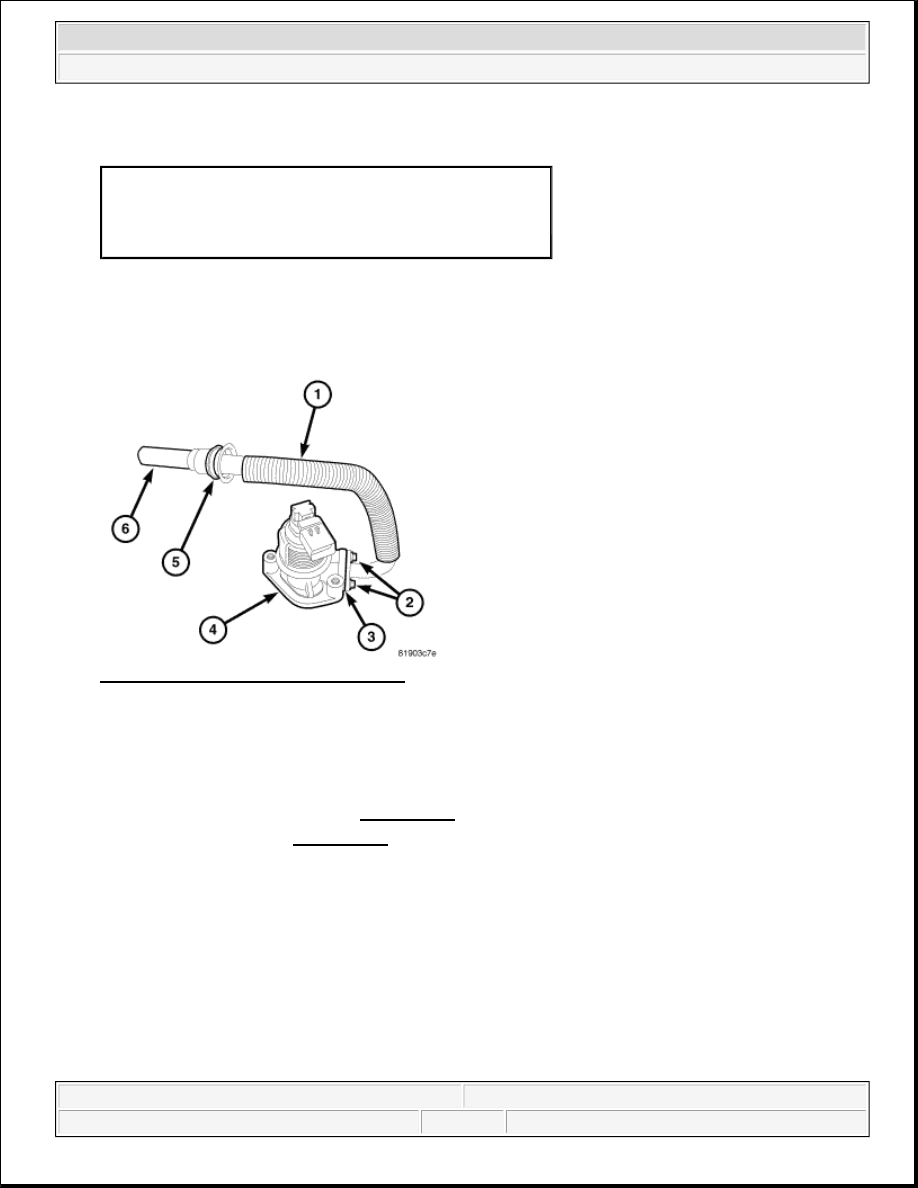

Fig. 158: EGR Solenoid/Tube Assembly
Courtesy of CHRYSLER LLC

7. Disconnect vapor purge hose, brake booster hose, and positive crankcase ventilation (PCV) hose.

8. Disconnect and remove ignition coil towers.

9. Remove the top oil dipstick tube retaining bolt.

10. Remove the EGR tube (1). Refer to REMOVAL .

11. Remove fuel rail. Refer to REMOVAL .

1 - MOUNTING SCREWS
2 - MAP SENSOR
3 - ECT SENSOR
4 - FRONT OF INTAKE MANIFOLD



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



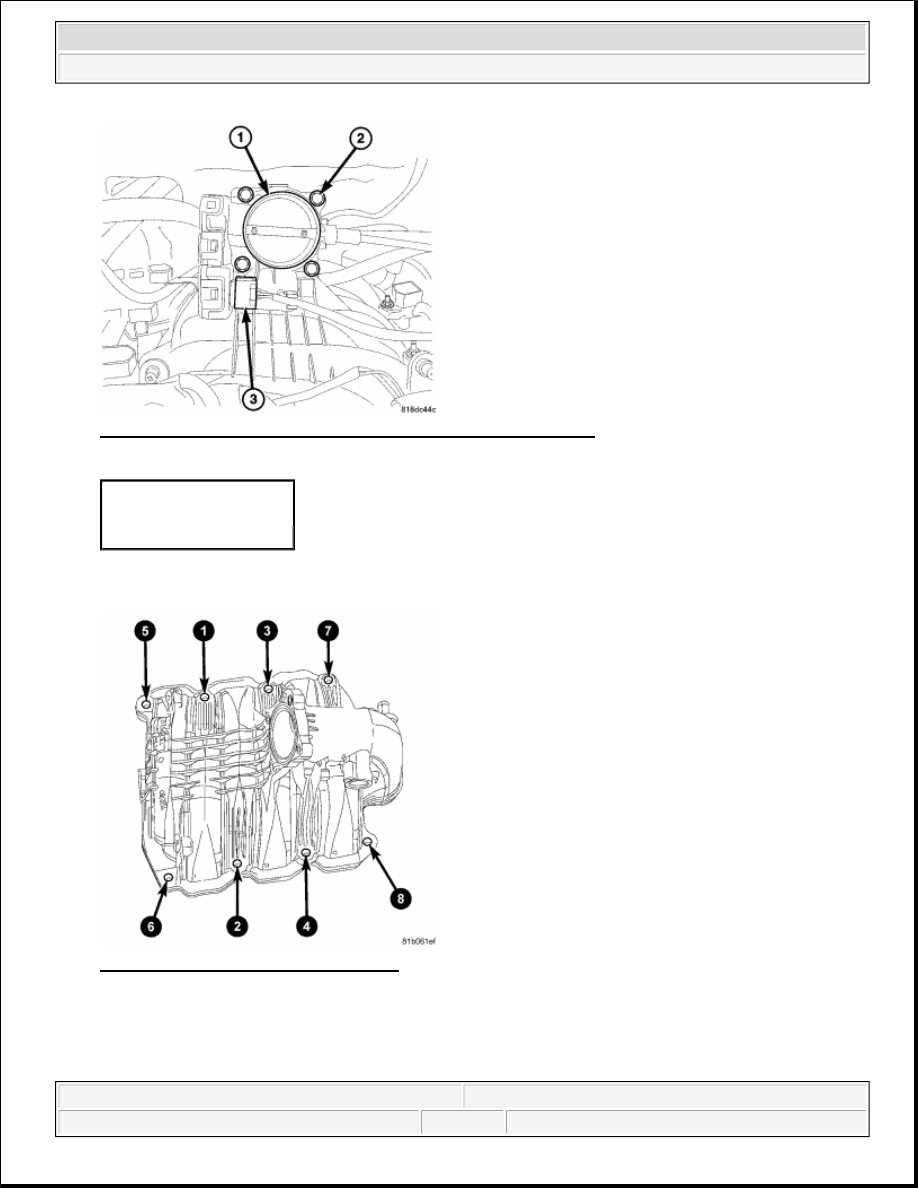

Fig. 159: Throttle Body 3.7L, Mounting Bolts & Elec. Connector
Courtesy of CHRYSLER LLC

12. Remove throttle body assembly (1).

Fig. 160: 3.7L Intake Torque Sequence
Courtesy of CHRYSLER LLC

13. Remove the intake manifold retaining fasteners in reverse order of tightening sequence.

14. Remove the intake manifold.

1 - THROTTLE BODY
