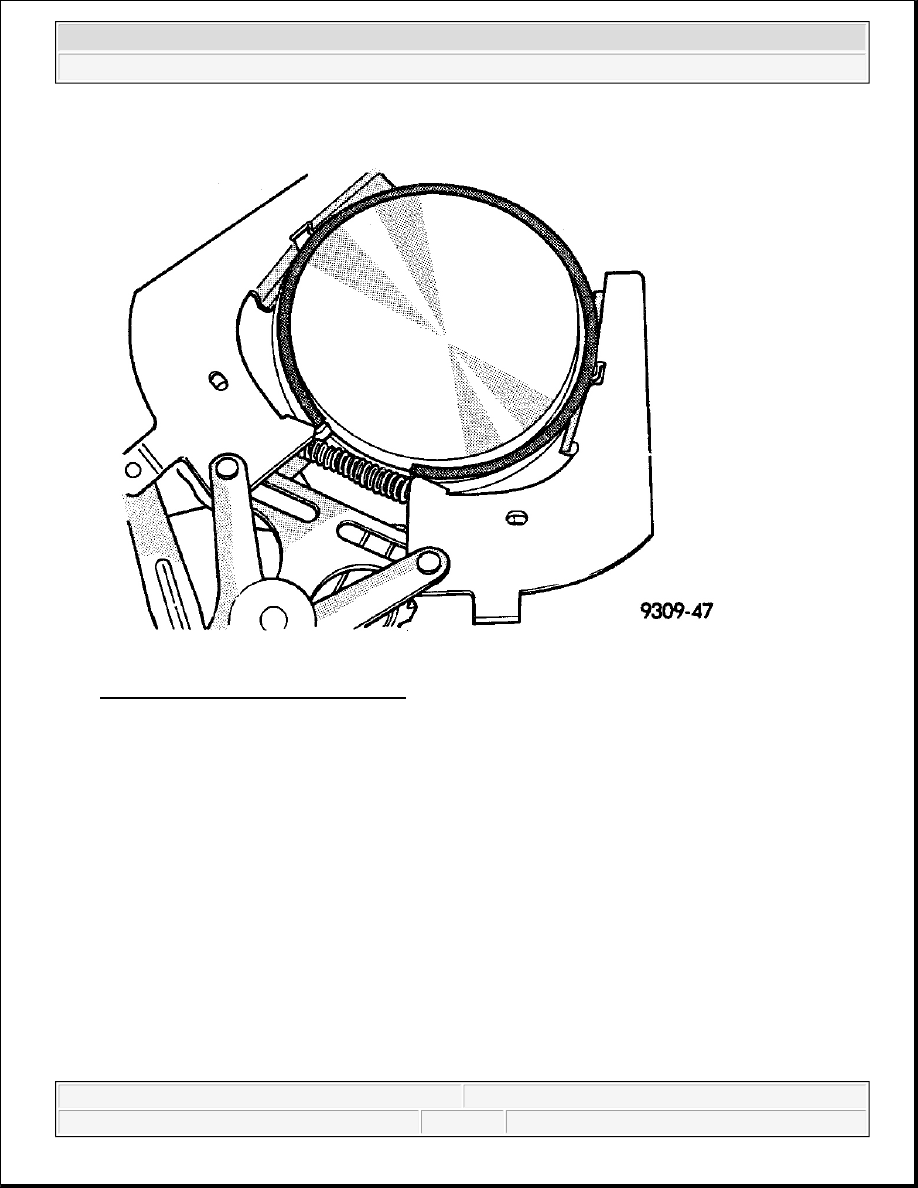

Fig. 125: Piston Ring Remover/Installer
Courtesy of CHRYSLER LLC

10. Install No. 2 intermediate piston ring using a piston ring installer.

11. Install No. 1 upper piston ring using a piston ring installer.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



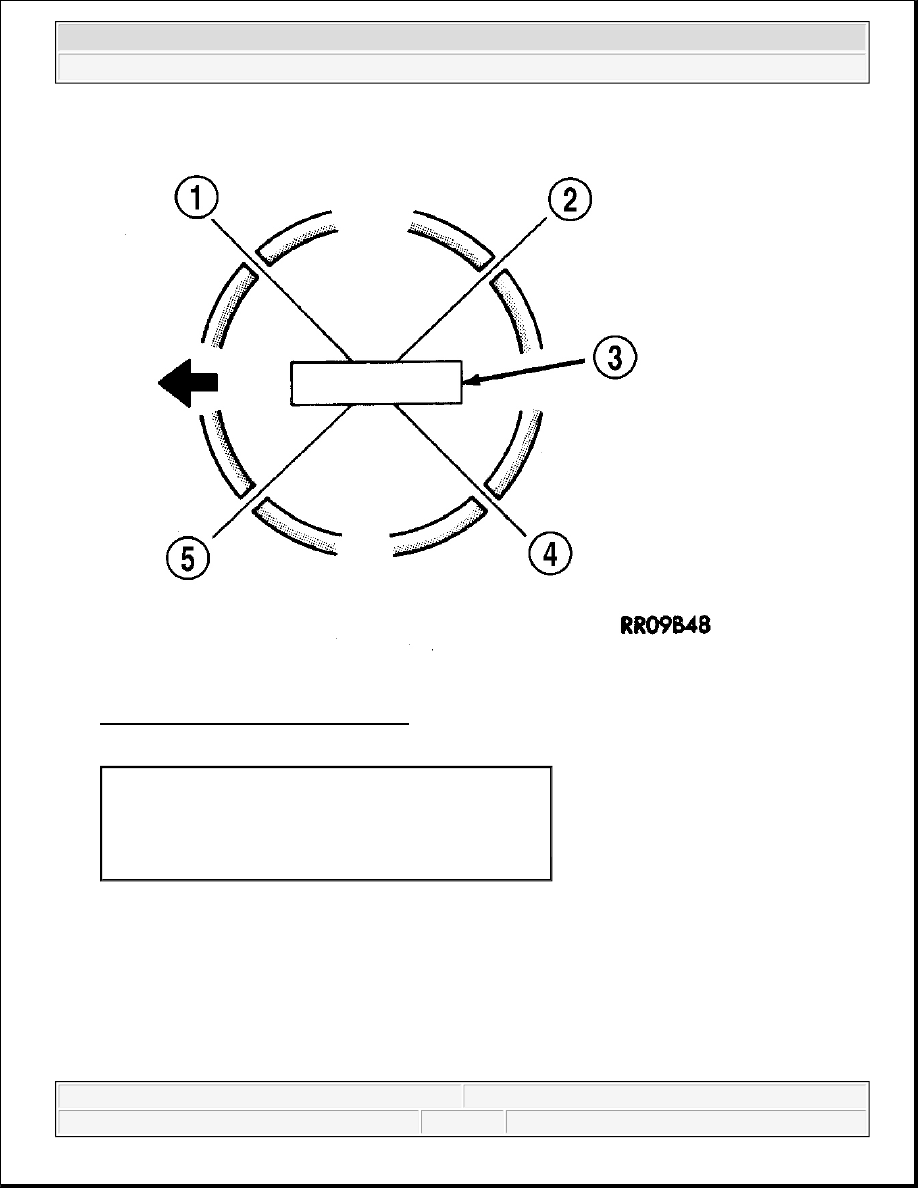

Fig. 126: Piston Ring End Gap Positions
Courtesy of CHRYSLER LLC

12. Position piston ring end gaps as shown. It is important that expander ring gap (5) is at least 45° from the

side rail gaps, but not on the piston pin center or on the thrust direction.

DAMPER-CRANKSHAFT

REMOVAL

CRANKSHAFT DAMPER

1 - SIDE RAIL UPPER
2 - NO. 1 RING GAP
3 - PISTON PIN
4 - SIDE RAIL LOWER
5 - NO. 2 RING GAP AND SPACER EXPANDER GAP



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



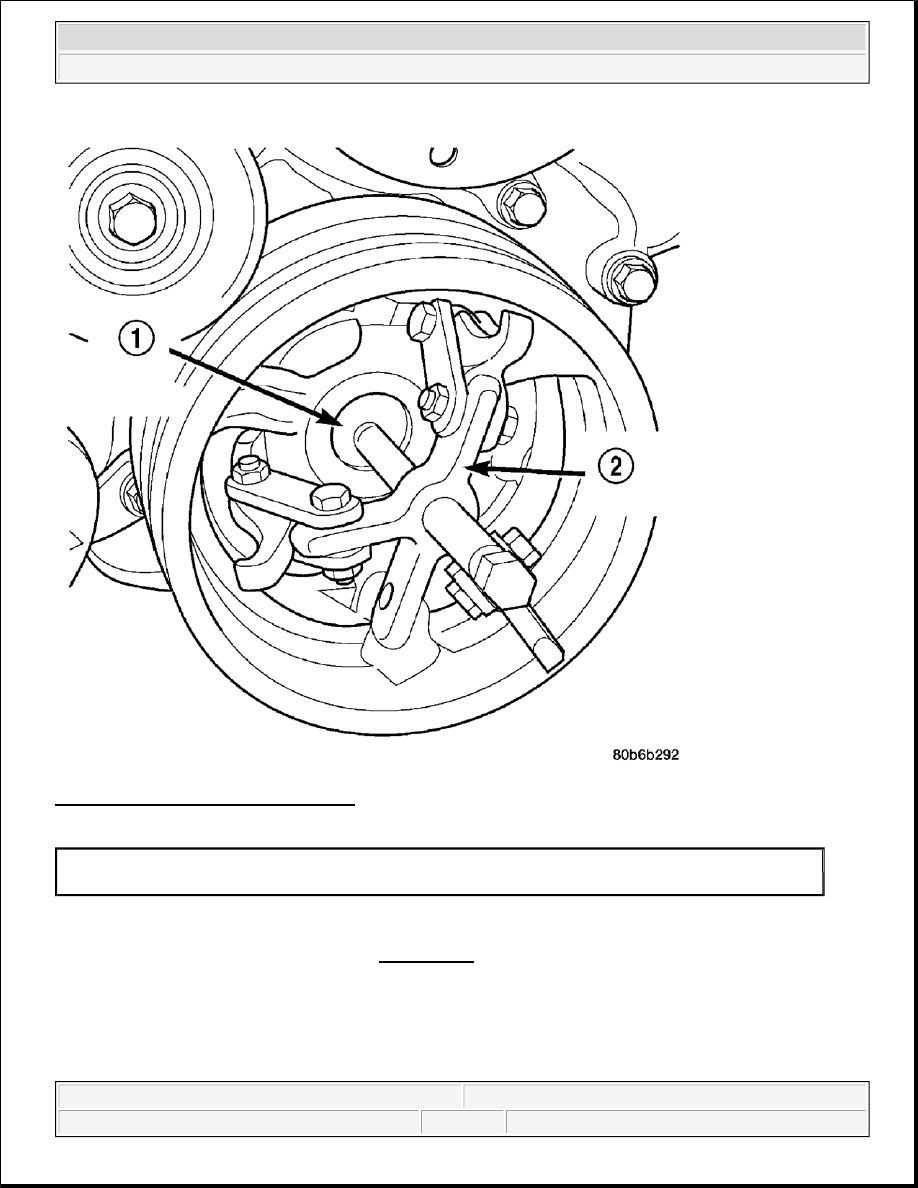

Fig. 127: Crankshaft Damper Removal
Courtesy of CHRYSLER LLC

1. Disconnect negative cable from battery.

2. Remove accessory drive belt. Refer to REMOVAL .

3. Remove crankshaft damper bolt.

4. Remove damper using Crankshaft Insert 8513A (1) and Three Jaw Puller 1026(2).

1 - SPECIAL TOOL 8513 I INSERT
2 - SPECIAL TOOL 1026

NOTE:

Transmission cooler line snaps into shroud lower right hand corner.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



INSTALLATION

CRANKSHAFT DAMPER

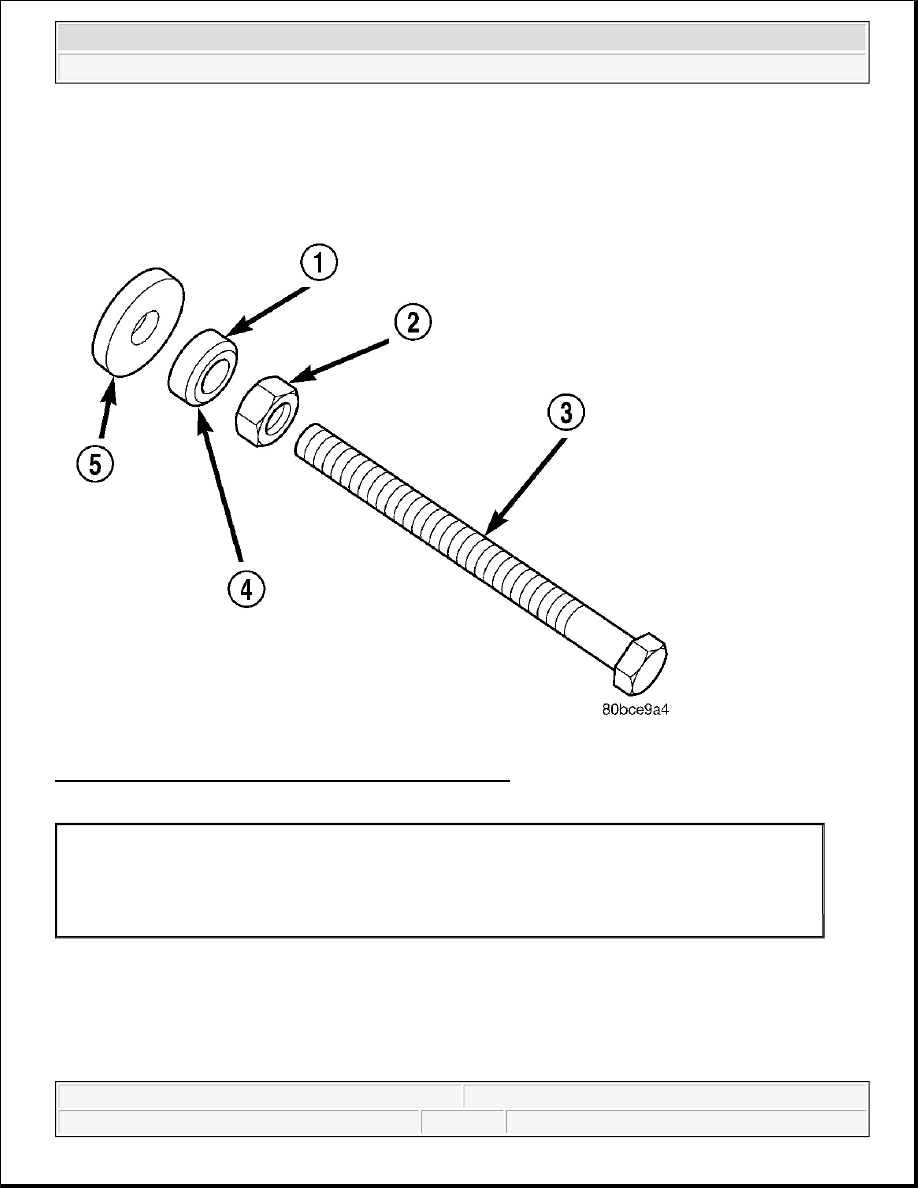

Fig. 128: Proper Assembly Method for Special Tool 8512-A
Courtesy of CHRYSLER LLC

1. Align crankshaft damper slot with key in crankshaft. Slide damper onto crankshaft slightly.

1 - BEARING
2 - NUT
3 - THREADED ROD
4 - BEARING HARDENED SURFACE (FACING NUT)
5 - HARDENED WASHER

CAUTION: To prevent severe damage to the Crankshaft, Damper or Special Tool 8512,

thoroughly clean the damper bore and the crankshaft nose before
installing Damper.
