Dodge Nitro. Manual - part 41

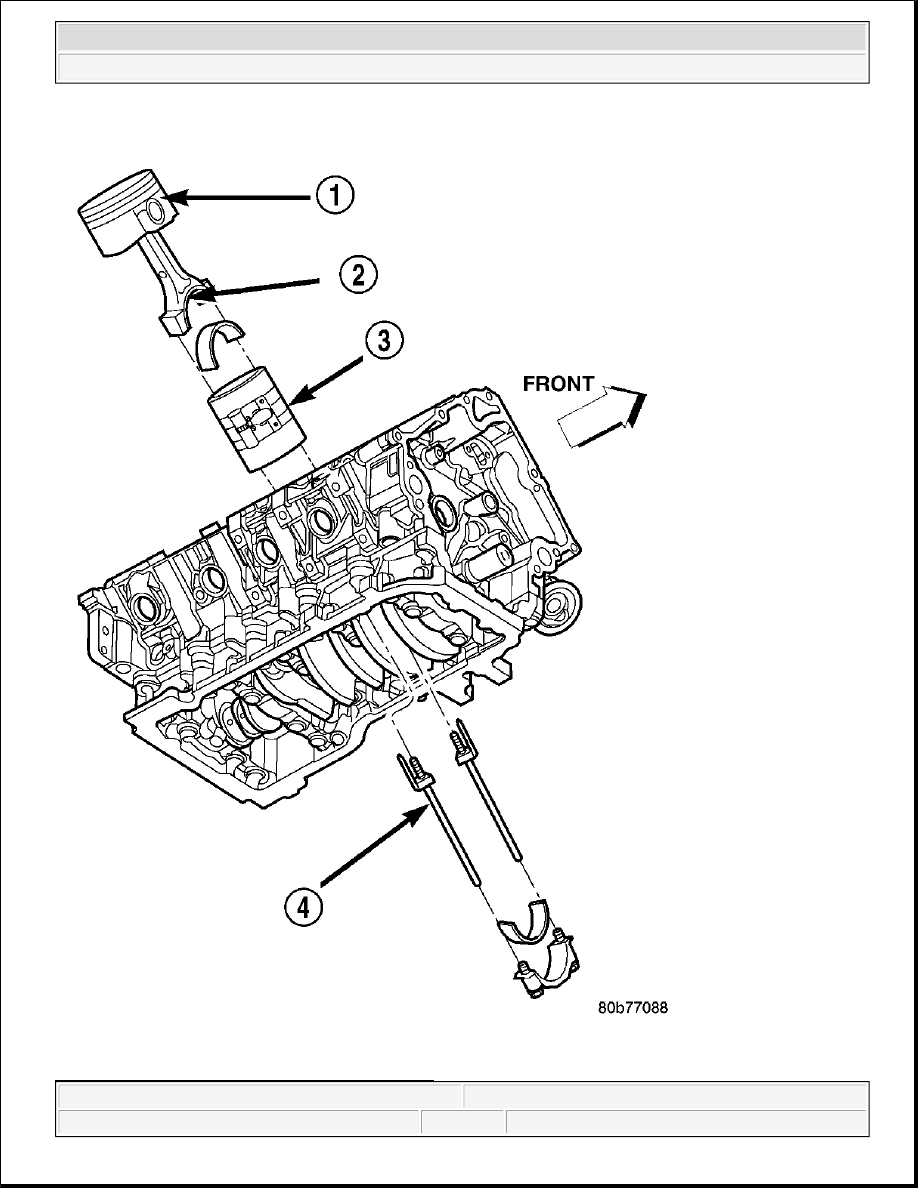

Fig. 120: Piston And Connecting Rod Installation



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



Courtesy of CHRYSLER LLC

1. Before installing piston and connecting rod assemblies into the bore, install the piston rings.

2. Immerse the piston head and rings in clean engine oil. Position a ring compressor over the piston and

rings. Tighten ring compressor. Ensure position of rings do not change during this operation.

3. Position bearing onto connecting rod. Ensure that tabs in bearing shell aligns with slots in connecting rod.

Verify that parting line of bearing is aligned with parting line of connecting rod.

4. Lubricate bearing surface with clean engine oil.

5. Install Connecting Rod Guides 8507 (4) onto connecting rod bolt threads. See Fig. 120

1 - "F" TOWARD FRONT OF ENGINE
2 - OIL SLINGER SLOT
3 - RING COMPRESSOR
4 - SPECIAL TOOL 8507



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro

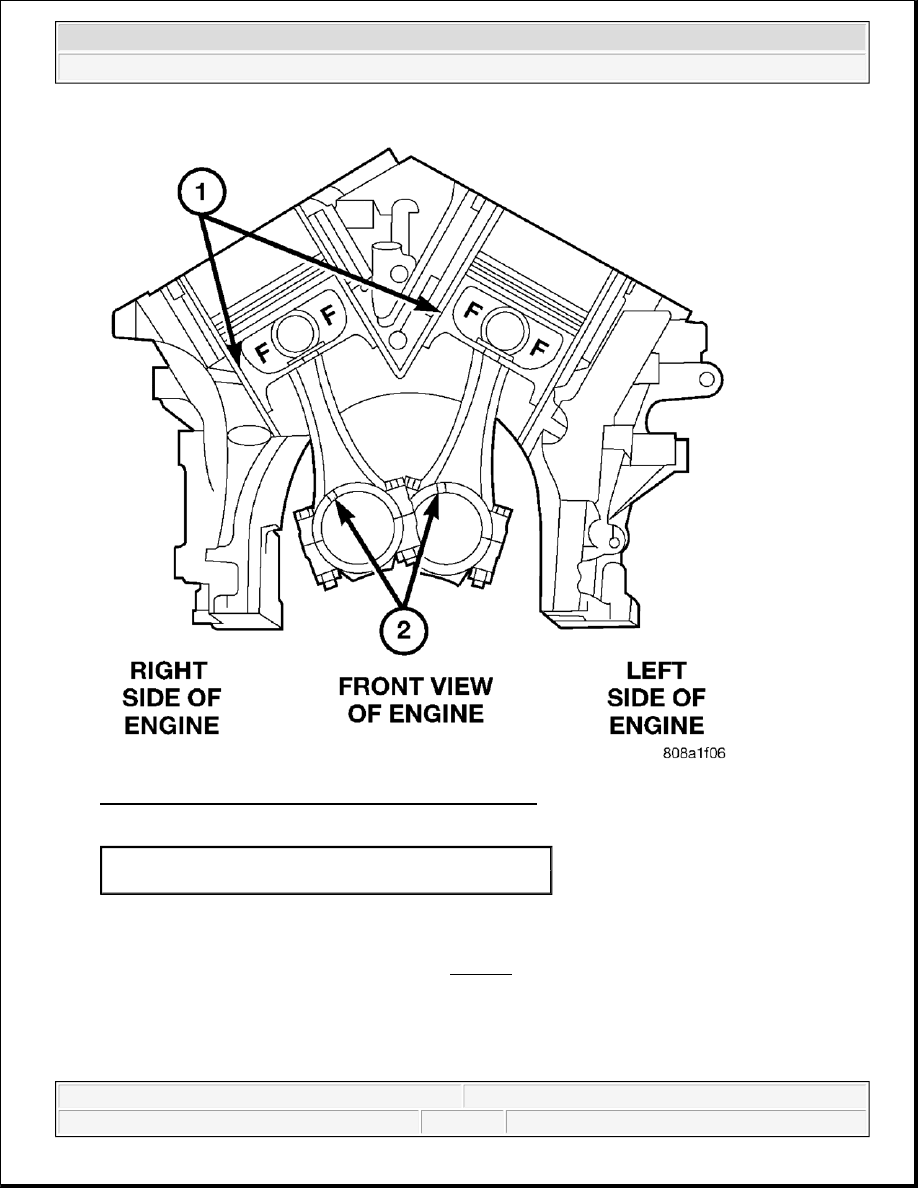

Fig. 121: Identifying Proper Connecting Rod Installation
Courtesy of CHRYSLER LLC

6. The pistons are marked on the piston pin bore surface with an raised "F" indicating installation position.

This mark must be pointing toward the front of engine on both cylinder banks. The connecting rod oil
slinger slot (2) faces the front of the engine. See Fig. 121.

7. Wipe cylinder bore clean and lubricate with engine oil.

8. Rotate crankshaft until connecting rod journal is on the center of cylinder bore. Insert rod and piston into

cylinder bore and carefully position connecting rod guides over crankshaft journal.

9. Tap piston down in cylinder bore using a hammer handle. While at the same time, guide connecting rod

1 - MAJOR THRUST SIDE OF PISTON
2 - OIL SLINGER SLOT



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



into position on rod journal.

10. Lubricate rod bolts and bearing surfaces with engine oil. Install connecting rod cap and bearing. Tighten

bolts to 27 N.m (20 ft. lbs.) plus 90°.

11. Install the following components:

Cylinder head(s). See INSTALLATION.

Timing chain and cover. See INSTALLATION).

Cylinder head covers. See INSTALLATION).

Oil pan and gasket/windage tray. See INSTALLATION.

12. Fill crankcase with proper engine oil to correct level.

13. Connect negative cable to battery.

RINGS-PISTON

STANDARD PROCEDURE

PISTON RING FITTING

CAUTION: Connecting Rod Bolts are Torque to Yield Bolts and Must Not Be

Reused. Always replace the Rod Bolts whenever they are loosened or
removed.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro
