(3) Remove the carrier backing and press each

skid strip onto roof panel with a roller.

NOTE: Apply 3M Drip-Chek Sealant (or an equiva-
lent product) to side rail screw threads.

(4) Position luggage rack on roof.
(5) Install screws attaching side rail to roof panel

(Fig. 78).

COWL TRIM COVER

REMOVAL

(1) Using a trim stick, pry cowl trim cover from

cowl to disengage clips.

(2) Separate cowl trim cover from vehicle.

INSTALLATION

(1) Position cowl trim cover on cowl.
(2) Press cowl trim cover into place to engage clips.

A-PILLAR GRAB HANDLE

REMOVAL

(1) Using a small flat blade screw driver, pry trim

plugs from A-pillar grab handle.

(2) Remove screws attaching grab handle to A-pil-

lar.

(3) Separate A-pillar grab handle from vehicle.

INSTALLATION

(1) Position grab handle on A-pillar.
(2) Install screws attaching grab handle to A-pillar.
(3) Install trim plugs in A-pillar grab handle.

A-PILLAR TRIM

REMOVAL

(1) Remove A-pillar grab handle, if equipped.
(2) Remove screws from cowl trim cover.
(3) Remove cowl trim cover.
(4) Grasp A-pillar trim and pull outward to disen-

gage clips attaching A-pillar trim to A-pillar (Fig. 79).

(5) Separate A-pillar trim from vehicle.

INSTALLATION

(1) Position A-pillar trim at A-pillar, align clips

and press into place.

(2) Install cowl trim cover.
(3) Install A-pillar grab handle, if equipped.

DOOR SILL TRIM

REMOVAL

(1) Using a trim stick, pry up door sill trim.
(2) Grasp door sill trim and lift upward.

(3) Separate door sill trim from vehicle (Fig. 80)

and (Fig. 81).

INSTALLATION

(1) Position door sill trim on door sill.
(2) Press into place.

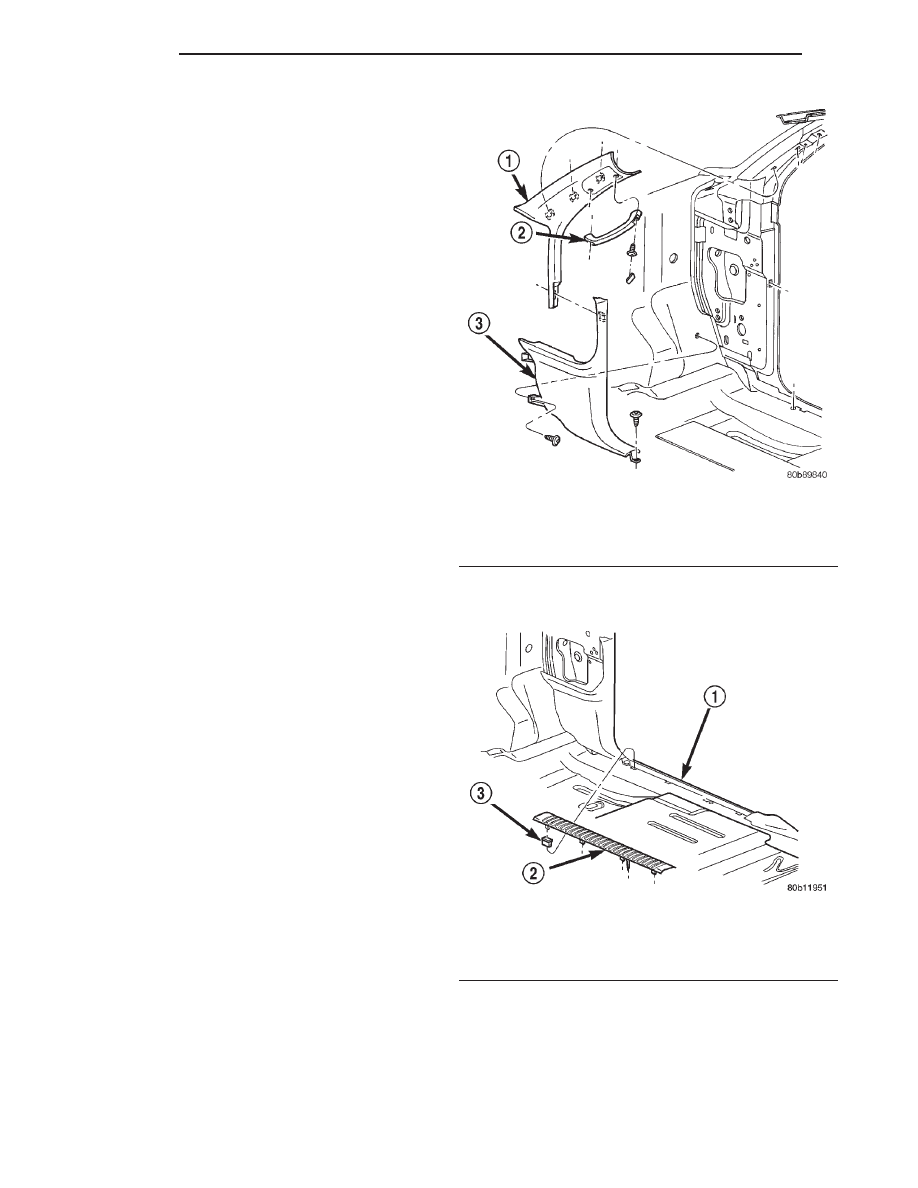

Fig. 79 A-Pillar Trim

1 – A-PILLAR TRIM
2 – GRAB HANDLE
3 – COWL TRIM COVER

Fig. 80 Front Door Sill Trim

1 – FRONT DOOR SILL
2 – DOOR SILL TRIM
3 – GROMMET

23 - 52

BODY

DN

REMOVAL AND INSTALLATION (Continued)

B-PILLAR TRIM

REMOVAL

The upper B-pillar trim is attached to the B-pillar

with spring clip retainers. The lower B-pillar trim is
attached with screws and spring clip retainers. (Fig.
82).

(1) Remove front seat belt turning loop cover and

turning loop.

(2) Grasp upper B-pillar trim and pull outward to

release spring clip retainers.

(3) Remove door sill trim front and rear.
(4) Remove lower B-pillar trim screws.
(5) Grasp lower B-pillar trim and pull outward to

release spring clip retainers.

(6) Route shoulder belt through access slot in

lower B-pillar trim.

(7) Separate lower B-pillar trim from vehicle.

INSTALLATION

(1) Position lower B-pillar trim on vehicle.
(2) Route shoulder belt through access slot in

lower B-pillar trim.

(3) Press lower B-pillar trim inward to engage

spring clip retainers.

(4) Position upper B-pillar trim on vehicle.
(5) Press upper B-pillar trim inward to engage

spring clip retainers.

(6) Install B-pillar trim screws.
(7) Install door sill trim front and rear.
(8) Install front seat belt turning loop, and torque

bolt to 39N·m (29 ft. lbs.). Install turning loop cover.

C-PILLAR TRIM

REMOVAL

(1) Remove cover and bolt attaching 2nd row seat

belt turning loop to C-pillar.

(2) Grasp C-pillar trim and pull outward to disen-

gage spring clips.

(3) Separate C-pillar trim from C-pillar (Fig. 83).

INSTALLATION

(1) Position C-pillar trim on C-pillar (Fig. 83).
(2) Align Spring clips and press into place.
(3) Install bolt attaching 2nd row seat belt turning

loop to C-pillar. Tighten bolt to 39 N·m (29 ft. lbs.)
torque. Install turning loop cover.

LIFTGATE OPENING UPPER TRIM

REMOVAL

(1) Using trim stick, pry upper trim from liftgate

opening.

(2) Grasp upper trim and pull downward to disen-

gage spring clips.

(3) Separate upper trim from liftgate opening (Fig.

84).

INSTALLATION

(1) Position upper trim in liftgate opening (Fig.

84).

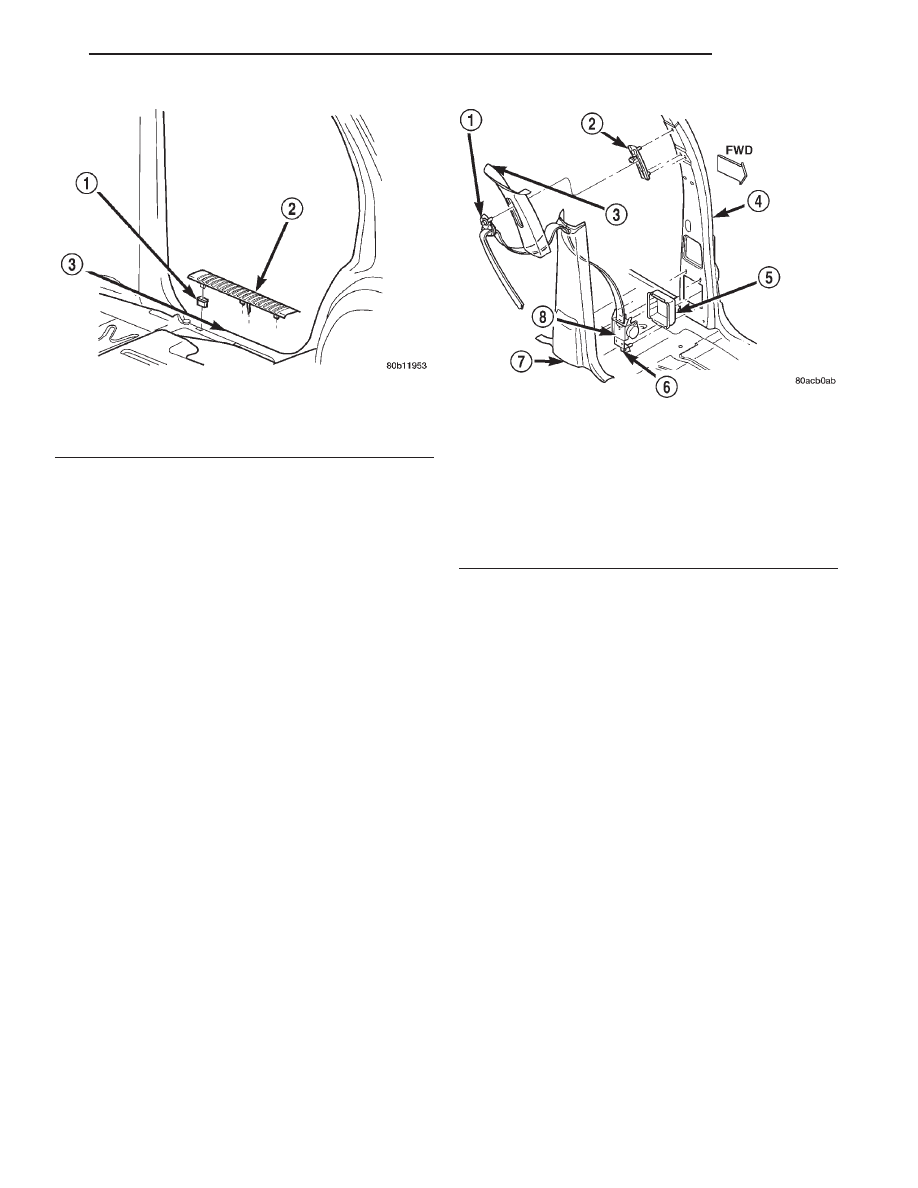

Fig. 81 Rear Door Sill Trim

1 – GROMMET
2 – DOOR SILL TRIM
3 – REAR DOOR SILL

Fig. 82 B-Pillar Trim

1 – TURNING LOOP
2 – ADJUSTER
3 – UPPER B-PILLAR TRIM
4 – B-PILLAR
5 – ANTI-RATTLE CUP
6 – ANCHOR BOLT
7 – LOWER B-PILLAR TRIM
8 – RETRACTOR

DN

BODY

23 - 53

REMOVAL AND INSTALLATION (Continued)

(2) Align spring clips and press inward to secure.

D-PILLAR TRIM

REMOVAL

(1) Remove liftgate opening upper trim.
(2) Remove screw attaching D-pillar trim to upper

liftgate opening.

(3) Remove 3rd row seat, if equipped.
(4) Remove nut attaching 3rd row seat belt anchor

to quarter panel, if equipped.

(5) Remove bolt attaching 3rd row seat belt turn-

ing loop to D-pillar, if equipped (Fig. 85).

(6) Grasp upper edge of D-pillar trim and carefully

pull outward to disengage upper spring clips.

(7) Lift D-pillar trim upward to release it from the

quarter panel trim.

(8) Route 3rd row seat belt through access slot, if

equipped.

(9) Separate D-pillar trim from vehicle.

INSTALLATION

(1) Route 3rd row seat belt through access slot, if

equipped.

(2) Position D-pillar trim on D-pillar.

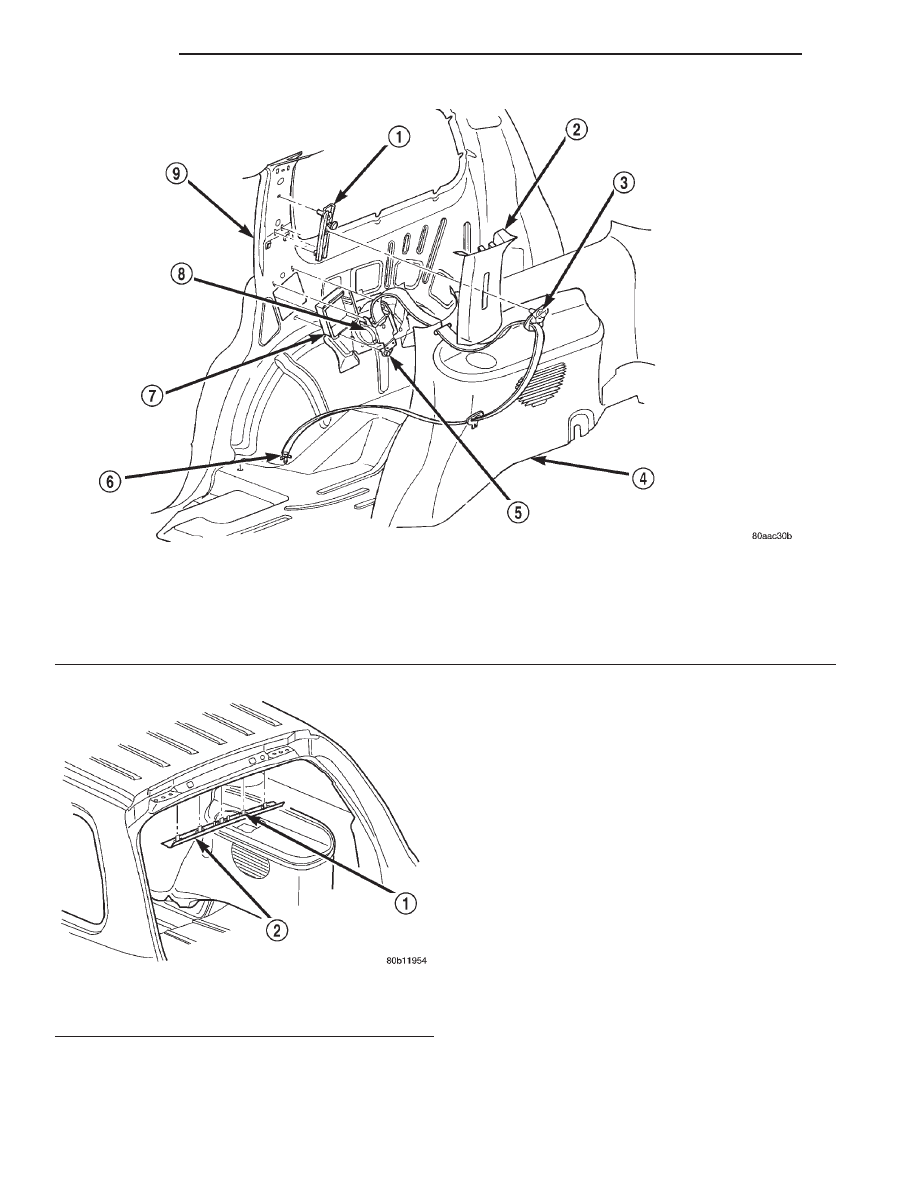

Fig. 83 C-Pillar Trim

1 – ADJUSTER
2 – C-PILLAR TRIM
3 – TURNING LOOP
4 – QUARTER PANEL TRIM
5 – ANCHOR BOLT

6 – BELT ANCHOR
7 – ANTI-RATTLE CUP
8 – RETRACTOR
9 – C-PILLAR

Fig. 84 Liftgate Opening Upper Trim

1 – SPRING CLIP
2 – LIFTGATE OPENING UPPER TRIM

23 - 54

BODY

DN

REMOVAL AND INSTALLATION (Continued)

(3) Slid D-pillar trim downward to engage it with

the quarter panel trim.

(4) Align D-pillar trim upper spring clips and

press inward to engage.

(5) Install screw attaching D-pillar trim to upper

liftgate opening.

(6) Install liftgate opening upper trim.
(7) Install bolt attaching 3rd row seat belt turning

loop to D-pillar, if equipped (Fig. 85). Tighten bolt to
39 N·m (29 ft. lbs.) torque.

(8) Install nut attaching 3rd row seat belt anchor

to quarter panel, if equipped. Tighten nut to 39 N·m
(29 ft. lbs.) torque.

(9) Install 3rd row seat, if equipped.

QUARTER PANEL TRIM

REMOVAL

(1) Tumble 2nd row seats to cargo position.
(2) Remove 3rd row seat, if equipped.
(3) Remove C-pillar trim (Fig. 83).
(4) Remove D-pillar trim.
(5) Remove liftgate opening scuff pad.

(6) Remove screws attaching quarter panel trim to

C-pillar and D-pillar.

(7) Route 2nd row seat belt through access slot in

quarter panel trim.

(8) Grasp quarter panel trim and pull outward to

disengage spring clips.

(9) Separate quarter panel trim from vehicle.

INSTALLATION

(1) Position quarter panel trim in vehicle.
(2) Route 2nd row seat belt through access slot in

quarter panel trim.

(3) Align quarter panel trim spring clips and press

inward to engage.

(4) Install screws attaching quarter panel trim to

C-pillar and D-pillar.

(5) Install D-pillar trim.
(6) Install C-pillar trim.
(7) Install liftgate opening scuff pad.
(8) Install 3rd row seat, if equipped.
(9) Return 2nd row seats to seating position.

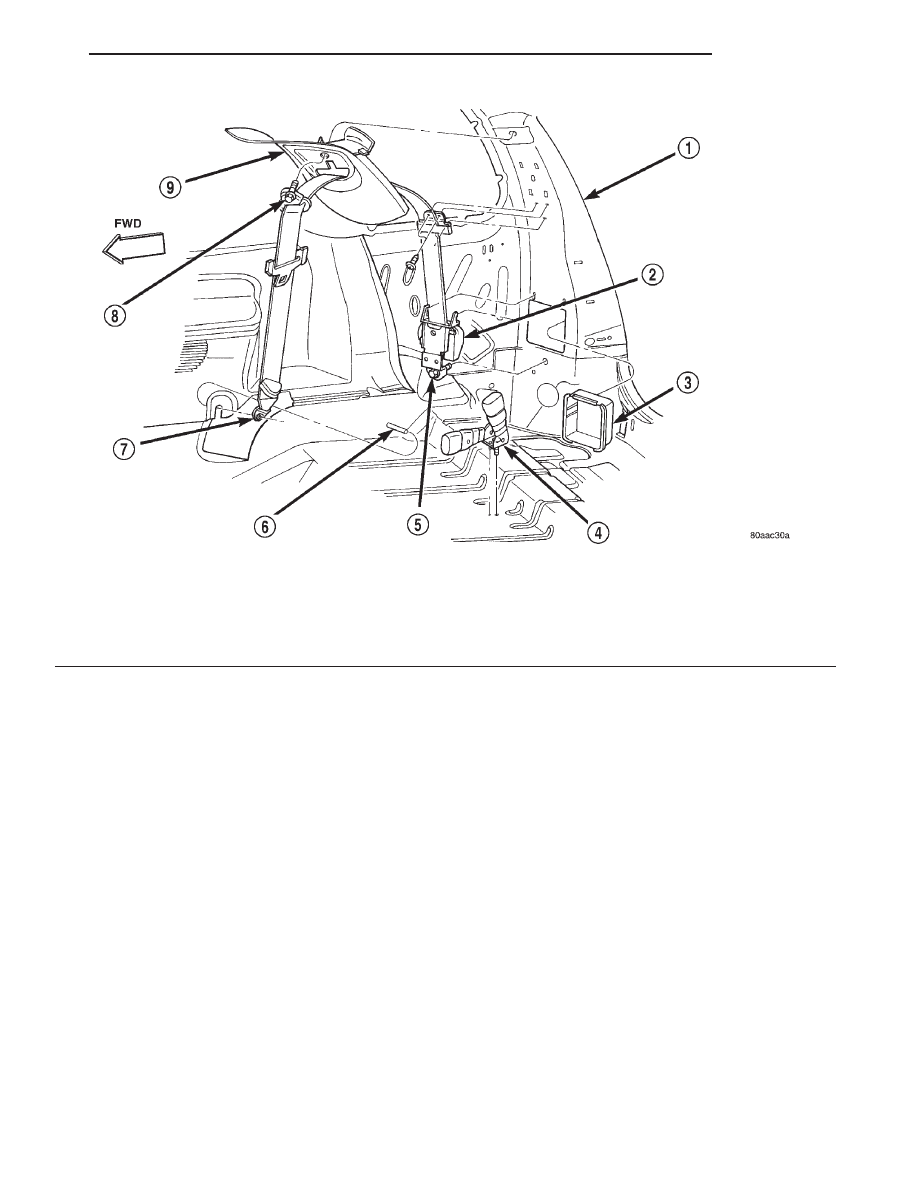

Fig. 85 D-Pillar Trim

1 – D-PILLAR
2 – RETRACTOR
3 – ANTI-RATTLE CUP
4 – BUCKLE
5 – ANCHOR BOLT

6 – STUD
7 – BELT ANCHOR
8 – TURNING LOOP
9 – D-PILLAR TRIM

DN

BODY

23 - 55

REMOVAL AND INSTALLATION (Continued)
