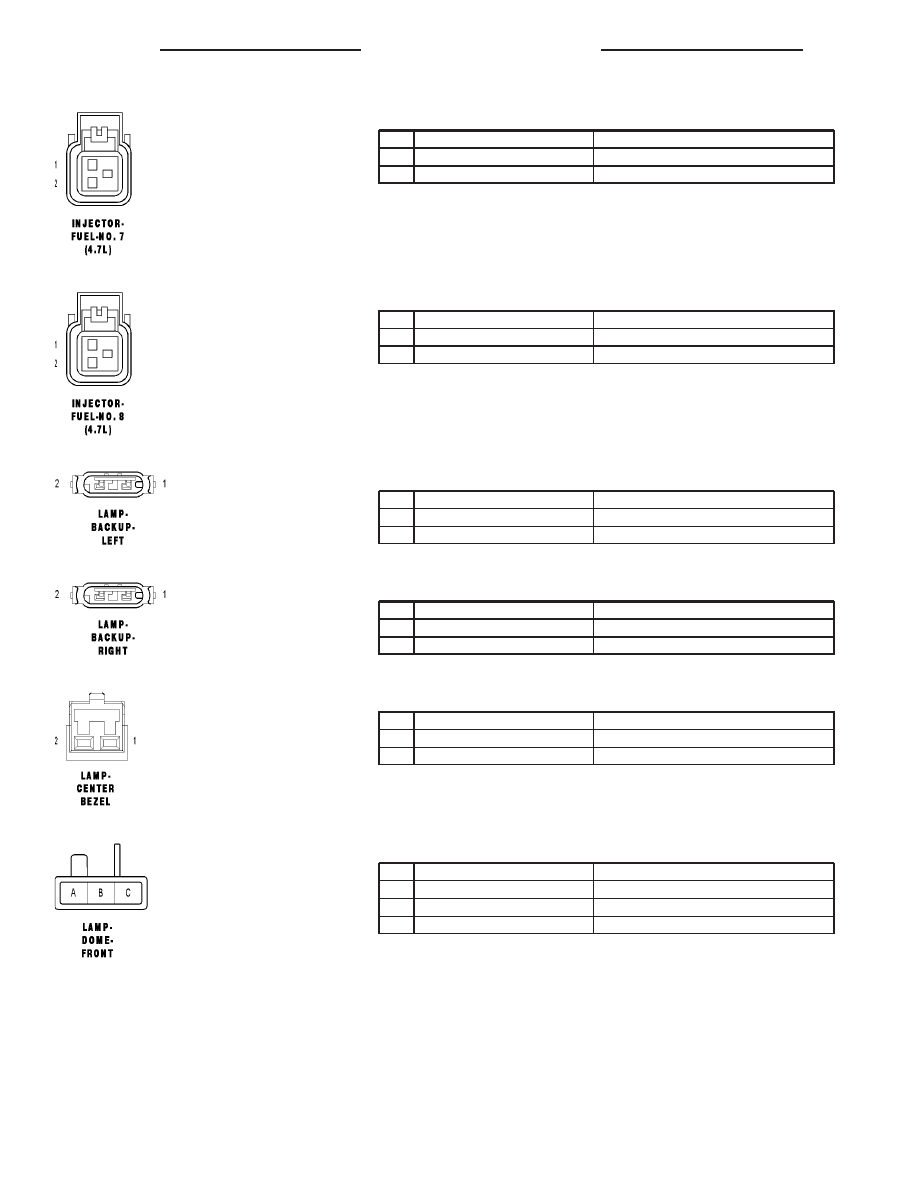

INJECTOR-FUEL-NO. 7 (4.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K26 18BR/YL

INJECTOR CONTROL NO. 7

2

A955 16RD

ASD RELAY OUTPUT

INJECTOR-FUEL-NO. 8 (4.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K28 18BR/LB

INJECTOR CONTROL NO. 8

2

A955 16RD

ASD RELAY OUTPUT

LAMP-BACKUP-LEFT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L1 18WT/LG

BACK-UP LAMP FEED

2

Z363 20BK/DG

GROUND

LAMP-BACKUP-RIGHT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L1 18WT/LG

BACK-UP LAMP FEED

2

Z362 20BK/BR

GROUND

LAMP-CENTER BEZEL - 2 WAY

CAV

CIRCUIT

FUNCTION

1

E33 20OR

PANEL LAMPS DRIVER

2

Z407 20BK/OR

GROUND

LAMP-DOME-FRONT - 3 WAY

CAV

CIRCUIT

FUNCTION

A

M28 20YL/TN

GLOVE BOX LAMP DRIVER

B

Z955 20BK

GROUND

C

M22 20YL/OR

COURTESY LAMPS DRIVER

8W - 80 - 36

8W-80 CONNECTOR PIN-OUTS

ND

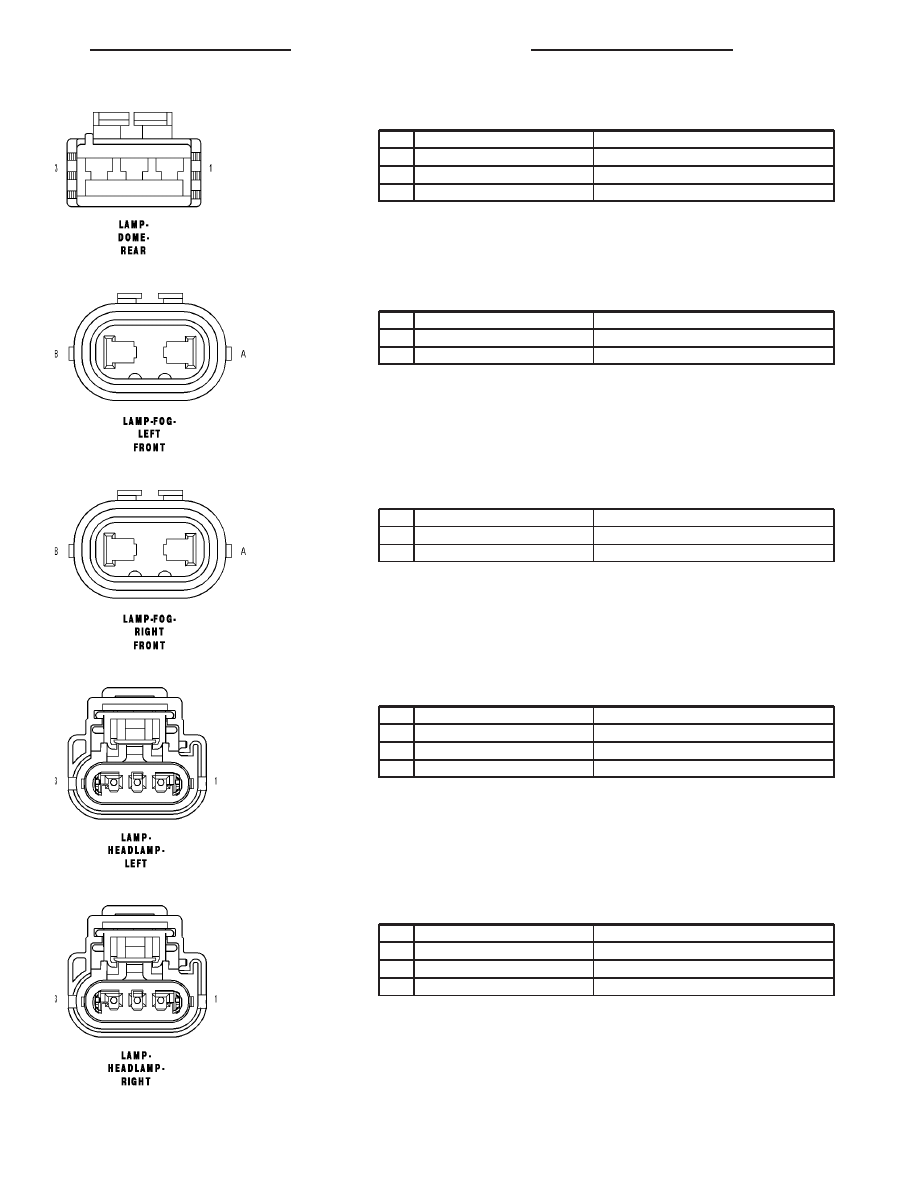

LAMP-DOME-REAR - 3 WAY

CAV

CIRCUIT

FUNCTION

1

M22 20YL/OR

COURTESY LAMPS DRIVER

2

M28 20YL/TN

GLOVE BOX LAMP DRIVER

3

Z955 20BK

GROUND

LAMP-FOG-LEFT FRONT - 2 WAY

CAV

CIRCUIT

FUNCTION

A

L89 18WT/YL

FRONT FOG LAMP RELAY OUTPUT

B

Z349 20BK/YL

GROUND

LAMP-FOG-RIGHT FRONT - 2 WAY

CAV

CIRCUIT

FUNCTION

A

L89 18WT/YL

FRONT FOG LAMP RELAY OUTPUT

B

Z348 20BK/OR

GROUND

LAMP-HEADLAMP-LEFT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

L43 18WT/DB

LEFT LOW BEAM DRIVER

2

Z912 18BK

GROUND

3

L33 18WT/LG

LEFT HIGH BEAM DRIVER

LAMP-HEADLAMP-RIGHT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

L44 18WT/TN

RIGHT LOW BEAM DRIVER

2

Z929 18BK

GROUND

3

L34 18WT/GY

RIGHT HIGH BEAM DRIVER

ND

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 37

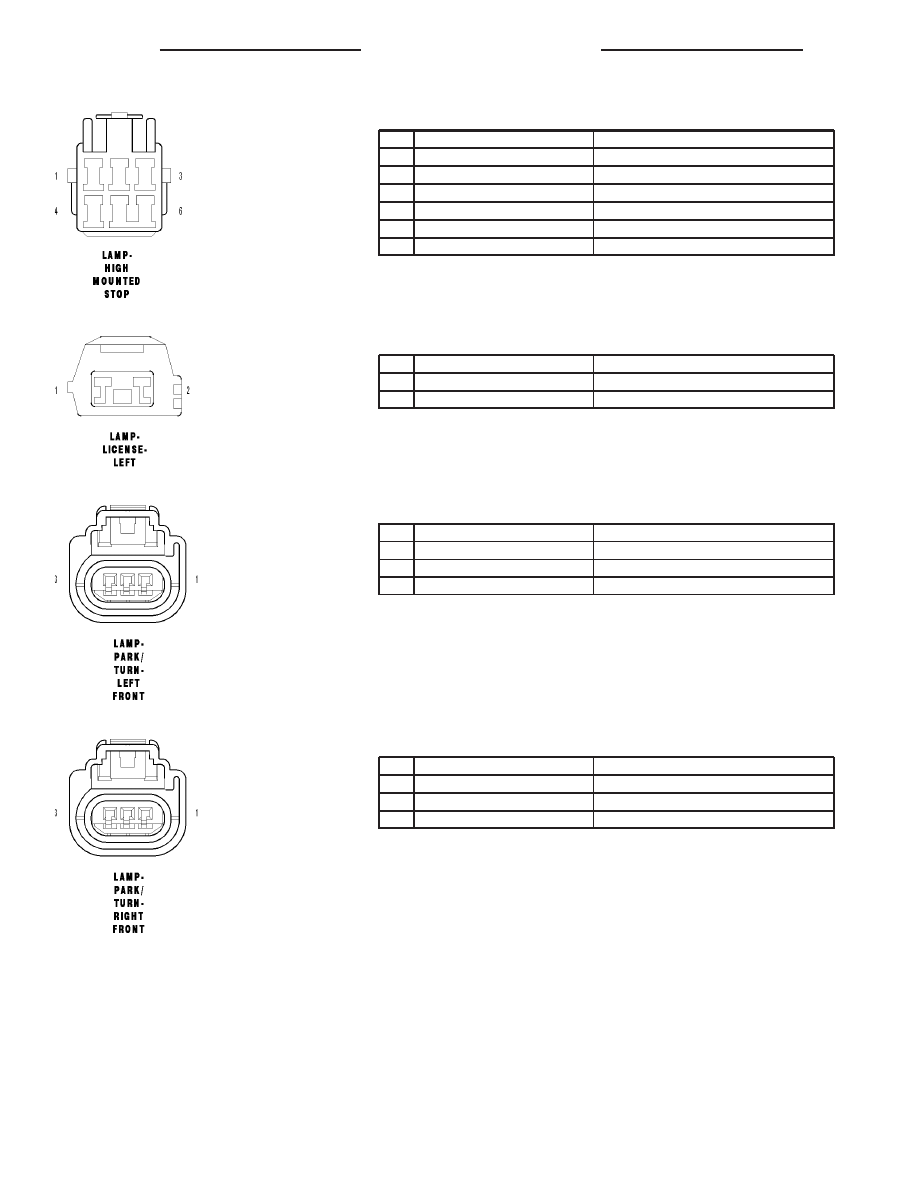

LAMP-HIGH MOUNTED STOP - 6 WAY

CAV

CIRCUIT

FUNCTION

1

L14 20WT/BK

CARGO LAMP DRIVER

2

Z945 20BK

GROUND

3

L50 16WT/LB

BRAKE LAMP SWITCH OUTPUT

4

Z945 20BK/OR

GROUND

5

-

-

6

-

-

LAMP-LICENSE-LEFT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L77 20PK/RD

PARK LAMP RELAY OUTPUT

2

Z945 18BK

GROUND

LAMP-PARK/TURN-LEFT FRONT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z377 20BK/BR

GROUND

2

L77 20PK/RD

FUSED PARK LAMP RELAY OUTPUT

3

L61 18WT/LG

LEFT FRONT TURN SIGNAL CONTROL

LAMP-PARK/TURN-RIGHT FRONT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z378 20BK/TN

GROUND

2

L78 20WT/OR

FUSED PARK LAMP RELAY OUTPUT (RIGHT)

3

L60 18WT/TN

RIGHT FRONT TURN SIGNAL CONTROL

8W - 80 - 38

8W-80 CONNECTOR PIN-OUTS

ND

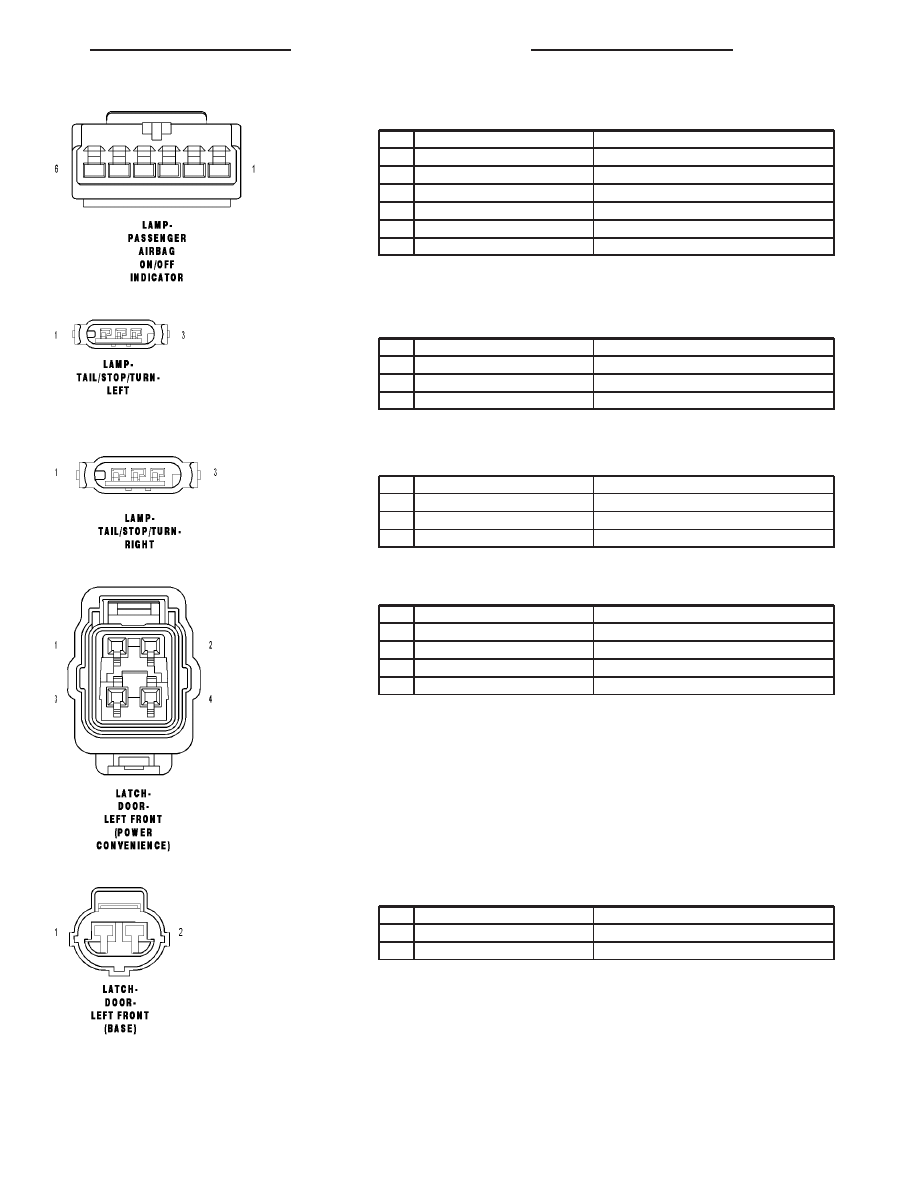

LAMP-PASSENGER AIRBAG ON/OFF INDICATOR - 6 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

G104 20VT/GY

PASSENGER AIRBAG INDICATOR DRIVER

4

F201 20PK/OR

FUSED IGNITION SWITCH OUTPUT (RUN-START)

5

-

-

6

-

-

LAMP-TAIL/STOP/TURN-LEFT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

L63 18WT/DG

LEFT REAR TURN SIGNAL CONTROL

2

L77 20PK/RD

PARK LAMP RELAY OUTPUT

3

Z363 20BK/DG

GROUND

LAMP-TAIL/STOP/TURN-RIGHT - 3 WAY

CAV

CIRCUIT

FUNCTION

1

L62 18WT/OR

RIGHT REAR TURN SIGNAL CONTROL

2

L78 20WT/OR

FUSED PARK LAMP RELAY OUTPUT (RIGHT)

3

Z362 20BK/BR

GROUND

LATCH-DOOR-LEFT FRONT (POWER CONVENIENCE) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

G75 20VT

DRIVER DOOR AJAR SWITCH SENSE

2

Z940 20BK

GROUND

3

P1 18TN/LG

DOOR UNLOCK DRIVER LEFT FRONT

4

P393 18LG

DOOR LOCK DRIVER LEFT DOORS

LATCH-DOOR-LEFT FRONT (BASE) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

G75 20VT

DRIVER DOOR AJAR SWITCH SENSE

2

Z917 20BK

GROUND

ND

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 39
